Lagun MC-7638 X 585 Machining Center()
- Listing No
- 963129
- Year
- Manufacturer
- Lagun
- Model
- MC-7638 X 585
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
min/max spindle to table: 75 / 507 mm distance table centre to column: 213 - 619 mm distance spindle centre to column: 405 mm Z-axis: 432 + 111,5 mm Table dimensions: 400 x 400 mm Max weight on the table: 350 kg Admission in spindle (ISO): BT40 Power on the spindle: 5,5/7,5 kW Control : Heidenhain TNC 426 Toolchanger: yes Number of toolholders: 18 positions Number of rotations: 60 > 6000 rpm Number of pallets: 6x Power principal motor : 10,5 kW
About this machine
This Lagun MC-7638 X 585 is a used machining center — also known as a CNC machining center or milling center — currently located in Belgium. Machining centers are multi-axis CNC machine tools designed to perform milling, drilling, boring, and tapping operations on metal and other materials, typically with automatic tool changing to allow complex parts to be completed in a single setup. Lagun is a Spanish machine tool manufacturer with a long-standing reputation for producing precision machining and milling equipment for metalworking and industrial manufacturing applications.

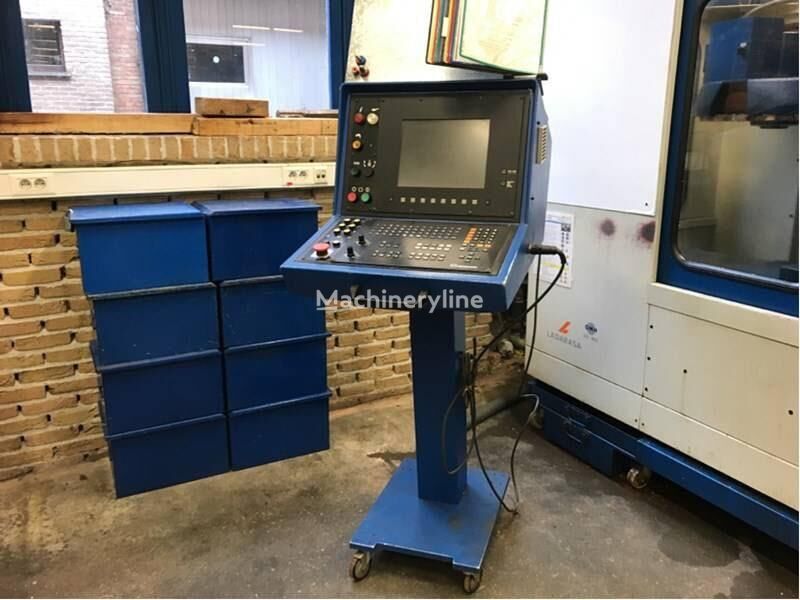

The machine is controlled by a Heidenhain TNC 426 CNC unit, a well-regarded contouring control system widely used in precision machining environments. The spindle accepts BT40 toolholders and has a speed range of 60 to 6,000 rpm, with spindle power rated at 5.5/7.5 kW and a principal motor power of 10.5 kW. An 18-position automatic toolchanger is fitted, enabling uninterrupted multi-operation cycles without manual intervention.

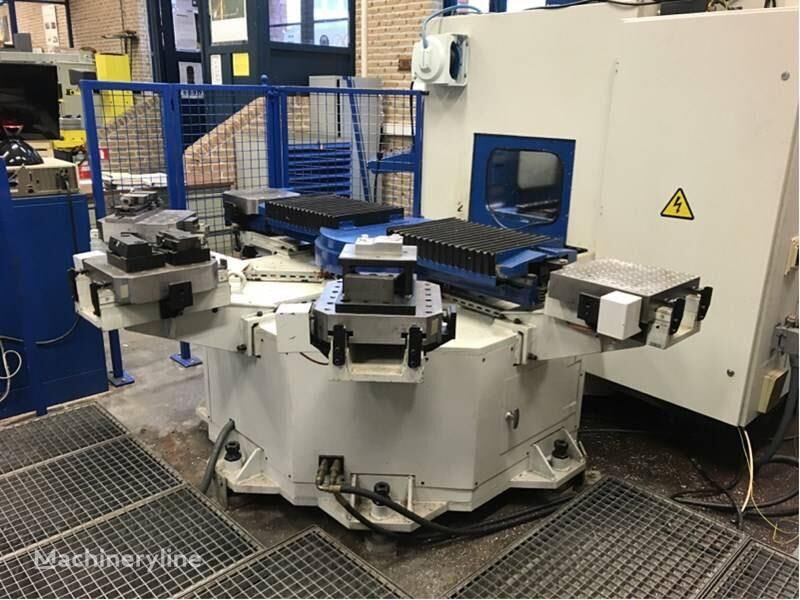

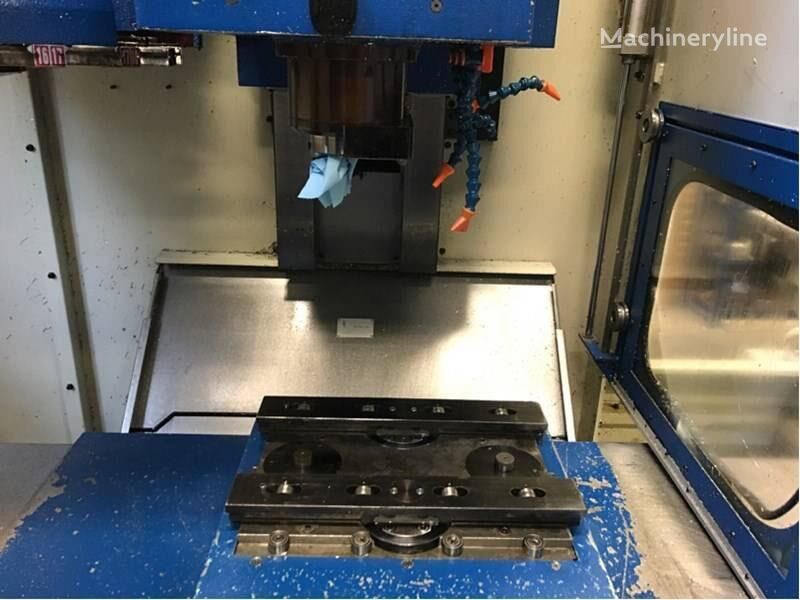

The work table measures 400 x 400 mm and can support a maximum workpiece weight of 350 kg. The spindle-to-table distance ranges from 75 mm to 507 mm, and the distance from the table centre to the column spans 213 to 619 mm. The spindle centre sits 405 mm from the column. Z-axis travel is 432 mm, with an additional 111.5 mm of extended range. The machine is also equipped with a 6-pallet system, supporting flexible workholding and improved throughput in production environments.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
