1983 - Lödige FKM-600 D – PO Mixer Blender()
- Listing No
- 1183484
- Year
- 1983
- Manufacturer
- Lödige
- Model
- FKM-600 D - PO
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: FKM 600 D No: 10637 Working pressure jacket: 0.5 Bar Material: Stainless steel 1.4552 Volume: 600 Ltr Motor: 2x 4 kW, 220/380 volt, 2893 rpm Powder turbo mixer: check T-arms: 5x Capacity: 600 l Trough sizes: Dia. 800x1200 mm Inlet: Dia. 250/350 mm Inspection hatch: 2x 460x380 mm Outlet: 250x180 mm With jacket: check 37 l Max. temperature: 110°C Glands air purged: check Speed mixing shaft: 1460 rpm With lump breaker: 2x Speed lumpbreaker: 2893 rpm Mounted on frame: check Floorspace: 2,40x1,20 m Total height: 2,20 m General Pressure Main Features Specified Features - Powder turbo mixer Information
About this machine

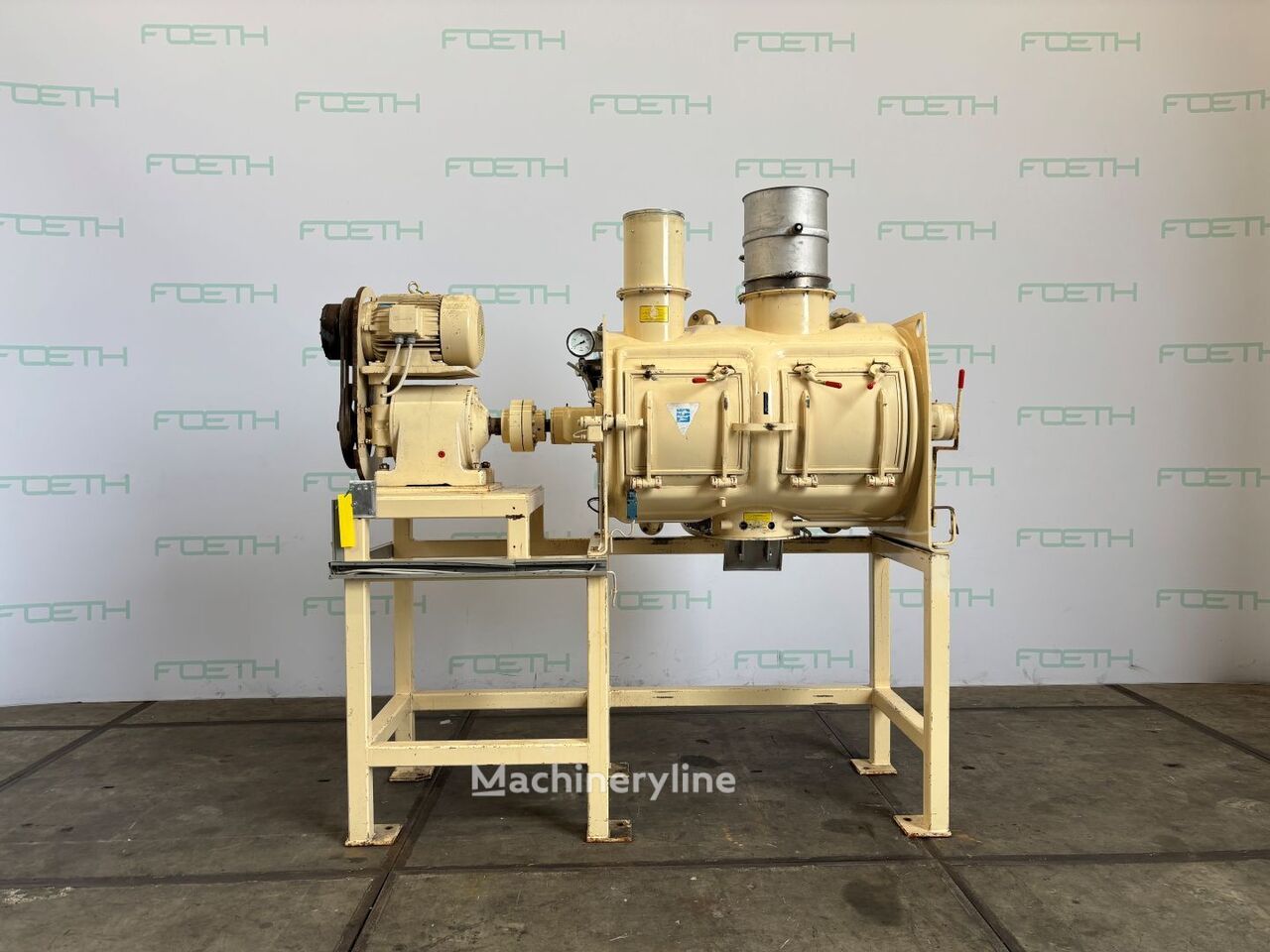

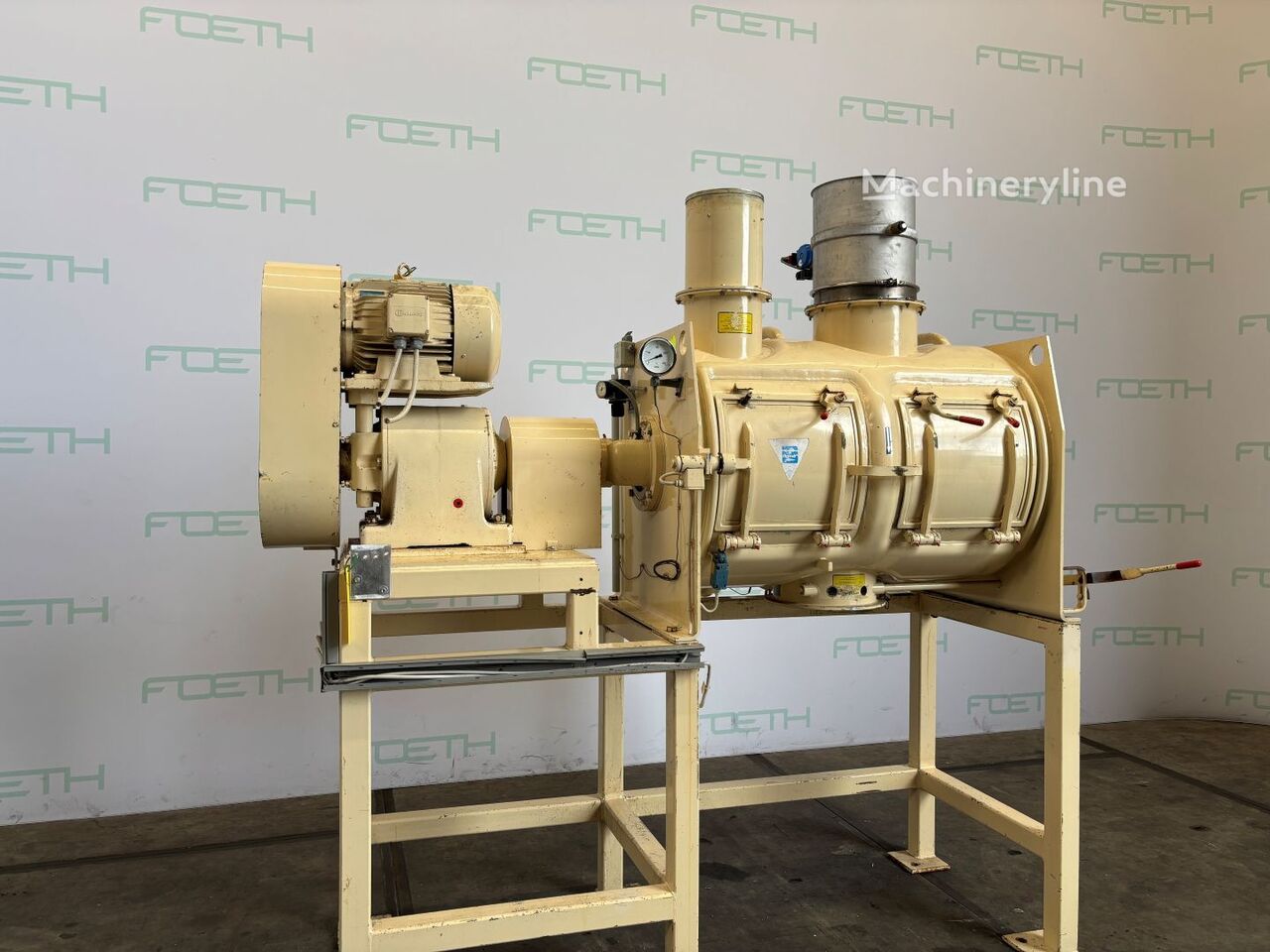

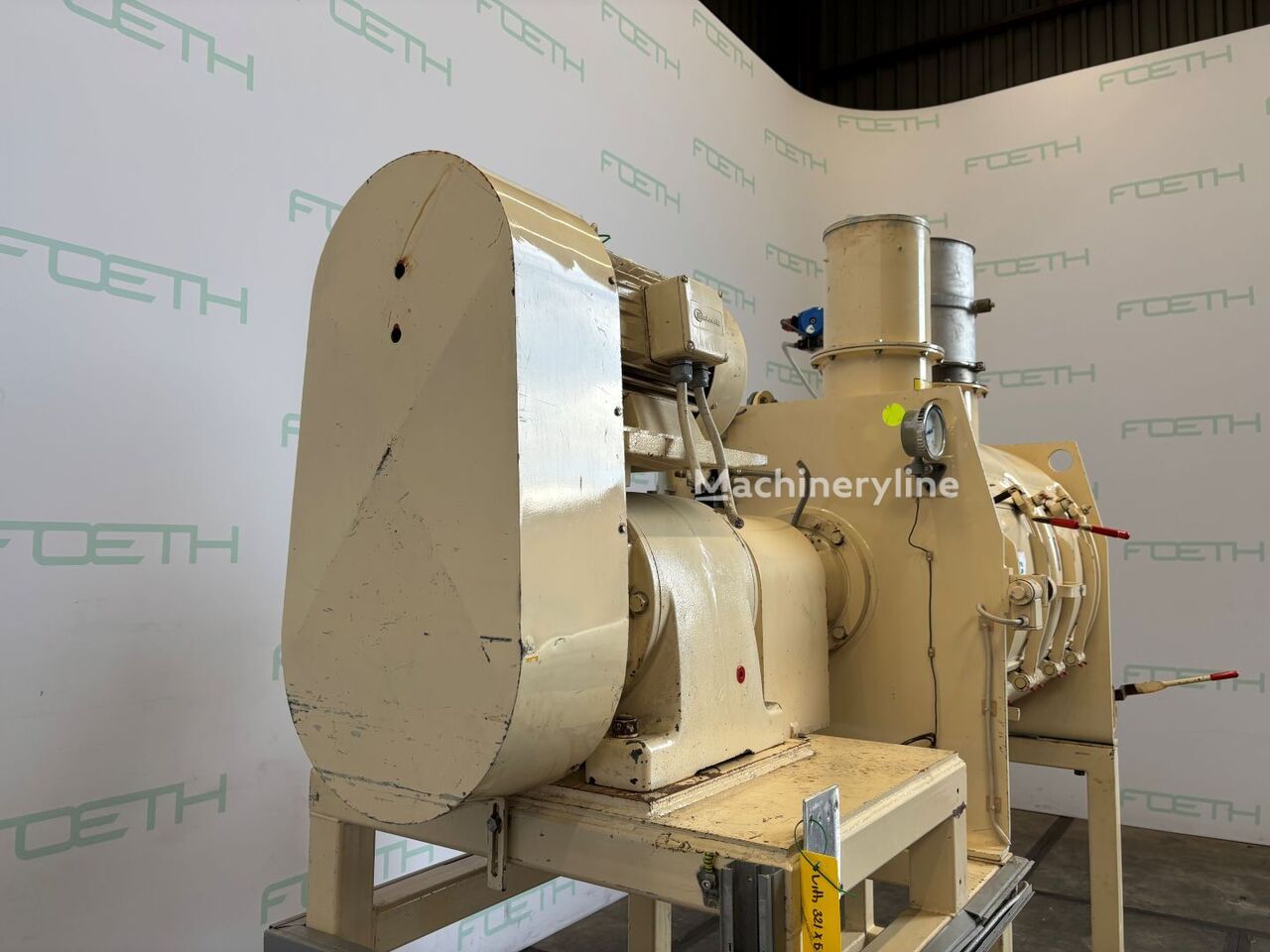

This Lödige FKM-600 D is a used mixer and blender — sometimes referred to as an industrial mixing vessel or process mixer — designed for the blending and homogenising of bulk powders, granules, and similar materials. Lödige is a well-established German manufacturer with a long history of producing high-performance mixing equipment for the chemical, pharmaceutical, food processing, and related process industries. This machine dates from 1983 and is located in Barneveld, Netherlands.
The unit is built in stainless steel grade 1.4552 and offers a working volume of 600 litres, housed in a trough with a diameter of 800 mm and a length of 1,200 mm. The vessel is fitted with a full jacket of 37 litres capacity, rated to a working pressure of 0.5 bar, and capable of reaching a maximum temperature of 110°C, making it suitable for heated or temperature-controlled mixing processes. The jacket allows for heating or cooling of the product during operation.
The main mixing shaft runs at 1,460 rpm and carries five T-arms, which provide the primary blending action across the full volume of the trough. Installed alongside these are two lump breakers, which operate at the higher speed of 2,893 rpm and serve to break down agglomerates and ensure a uniform, homogeneous mix. The machine is also equipped with a powder turbo mixer, adding further capability for fine powder processing. Drive power is provided by two motors, each rated at 4 kW, operating on 220/380 volt supply.

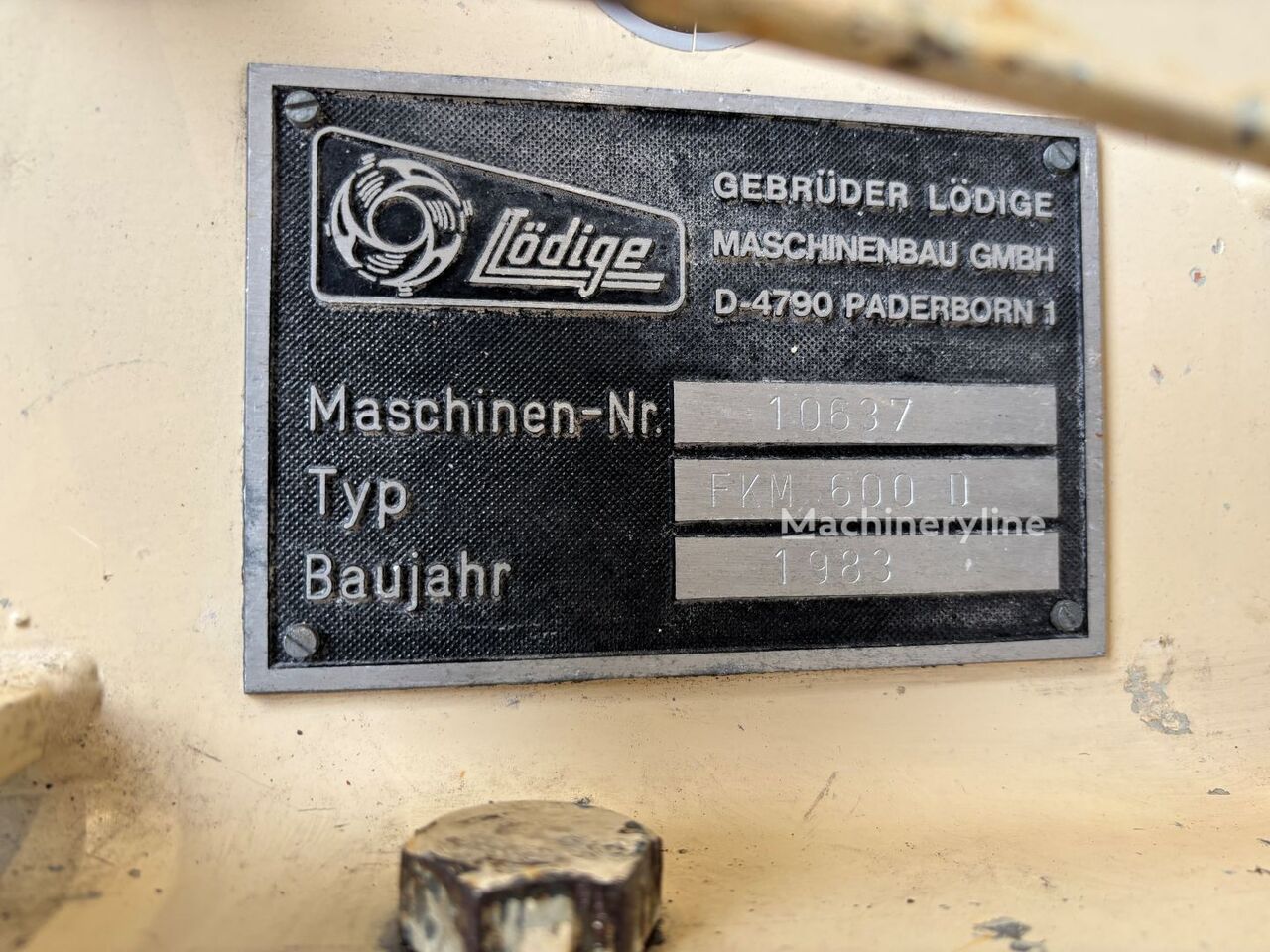

Product access is via two inspection hatches measuring 460 × 380 mm, while the inlet measures 250/350 mm in diameter. The outlet is sized at 250 × 180 mm. All gland seals are air-purged, helping to maintain hygiene and prevent contamination ingress — a feature of particular relevance in food and pharmaceutical applications. The machine is mounted on its own frame and has a floor footprint of 2.40 × 1.20 m with a total installed height of 2.20 m. The serial number of this unit is 10637.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
