2010 - Lödige K-TM400 – Powd Mixer Blender()
- Listing No
- 1180687
- Year
- 2010
- Manufacturer
- Lödige
- Model
- K-TM400 - Powd
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld CE: check Type: K-TM 400 Working pressure: 0.5 Bar Working pressure jacket: 6 Bar Material: Stainless steel 1.4571 (316Ti) Volume: 400 Ltr Motor: 15 kW, 500 volt, 1470 rpm Lödige mixer: check Powder turbo mixer: check Capacity: 510 l Useful capacity: 400 l Trough sizes: Dia. 600x1600 mm Inlet: DN80 / Dia. 210 mm Top connections: check Inspection hatch: check600x350 mm Outlet: DN150 With jacket: check volume 45 l Glands air purged: check Speed mixing shaft: 72 rpm No: 16385 Mounted on frame: check With switch: check Floorspace: 2,90x0,80 m Total height: 2,00 m General Pressure Main Features Specified Features - Powder turbo mixer Information
About this machine

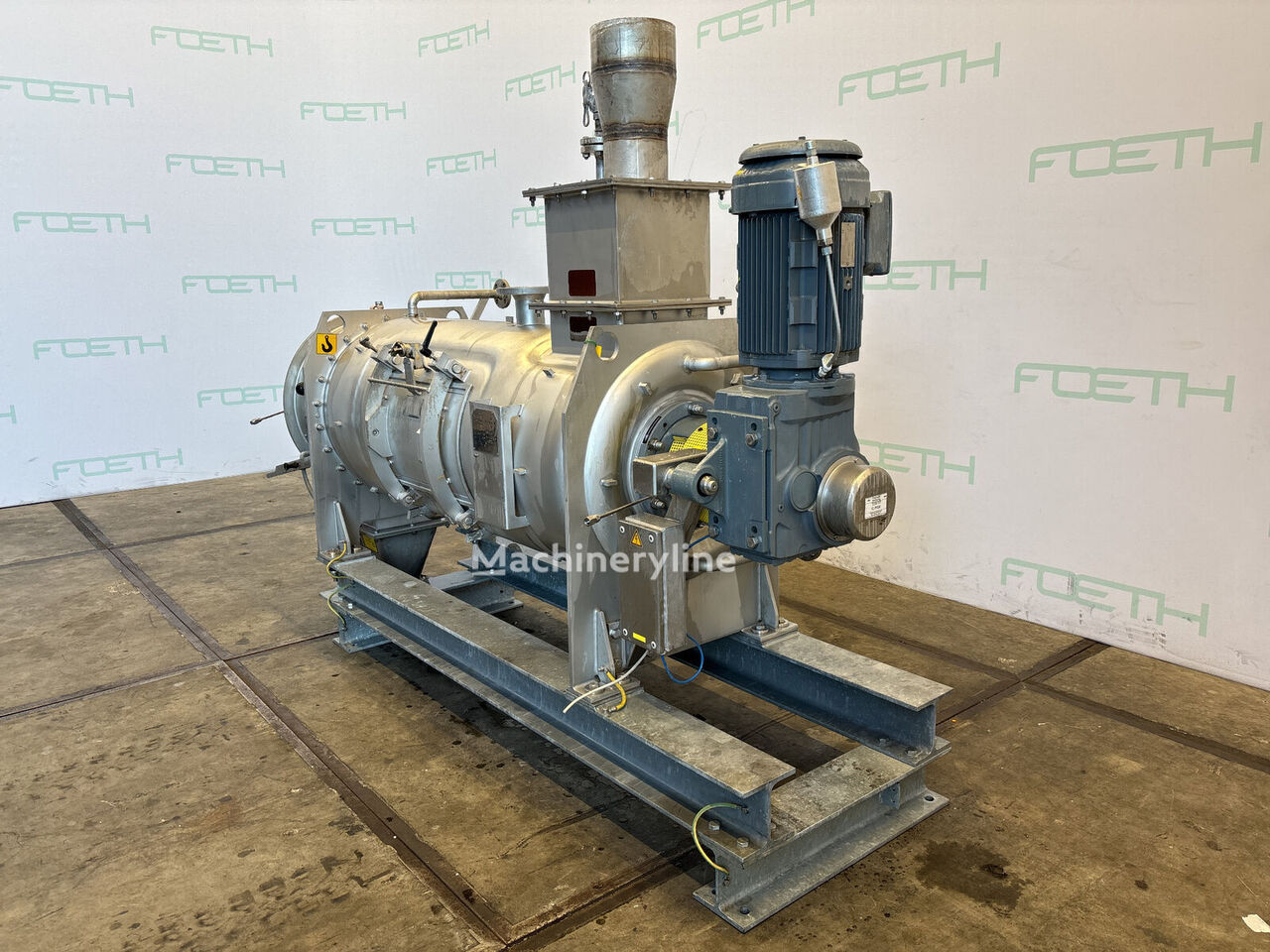

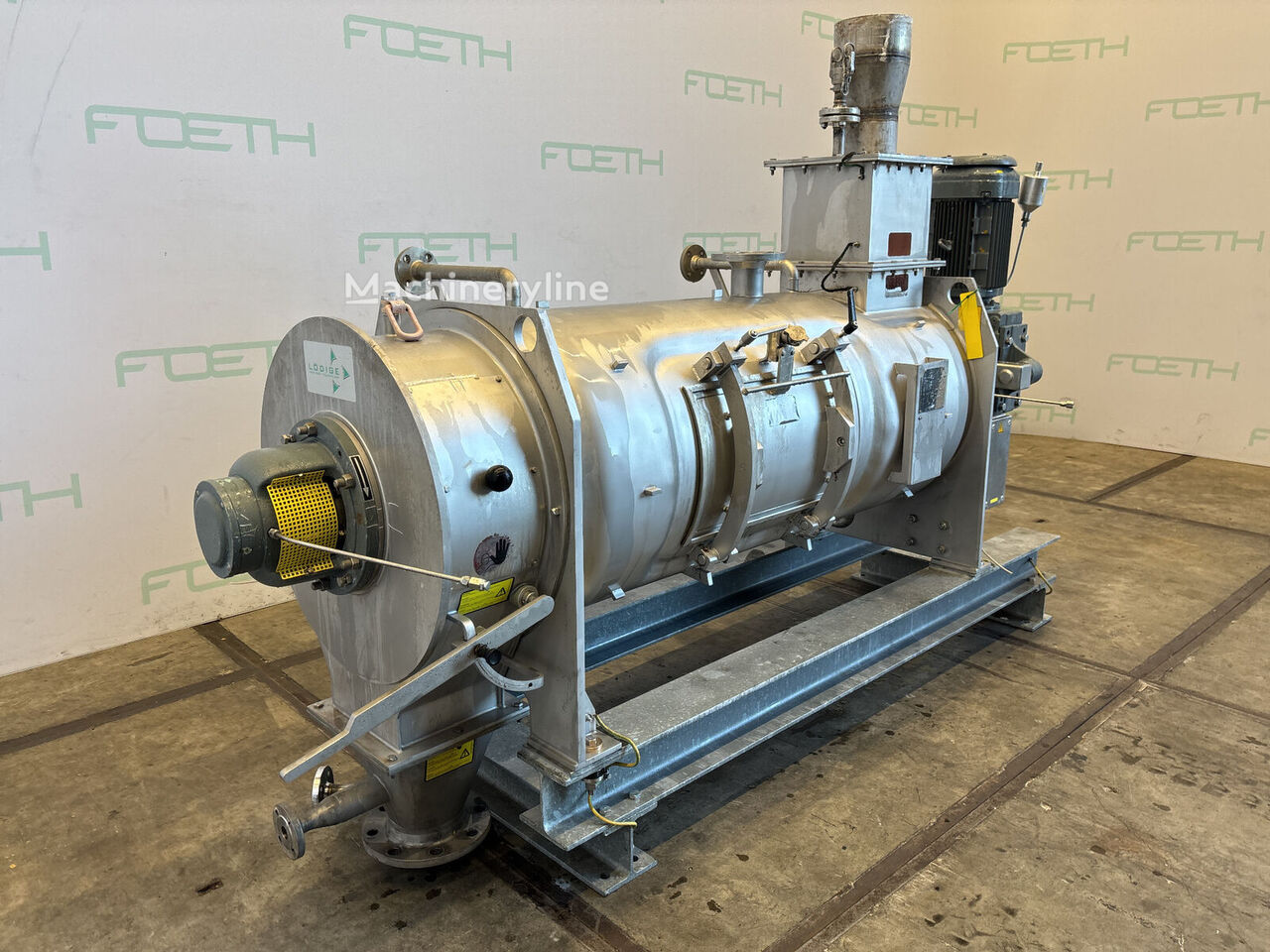

This Lödige K-TM400 is a used powder mixer and blender — sometimes referred to as a powder blender — designed for the mixing and blending of bulk powders and similar dry or semi-dry materials. Lödige is a well-established German manufacturer with a long history of producing industrial mixing equipment for the chemical, pharmaceutical, food, and related processing industries.

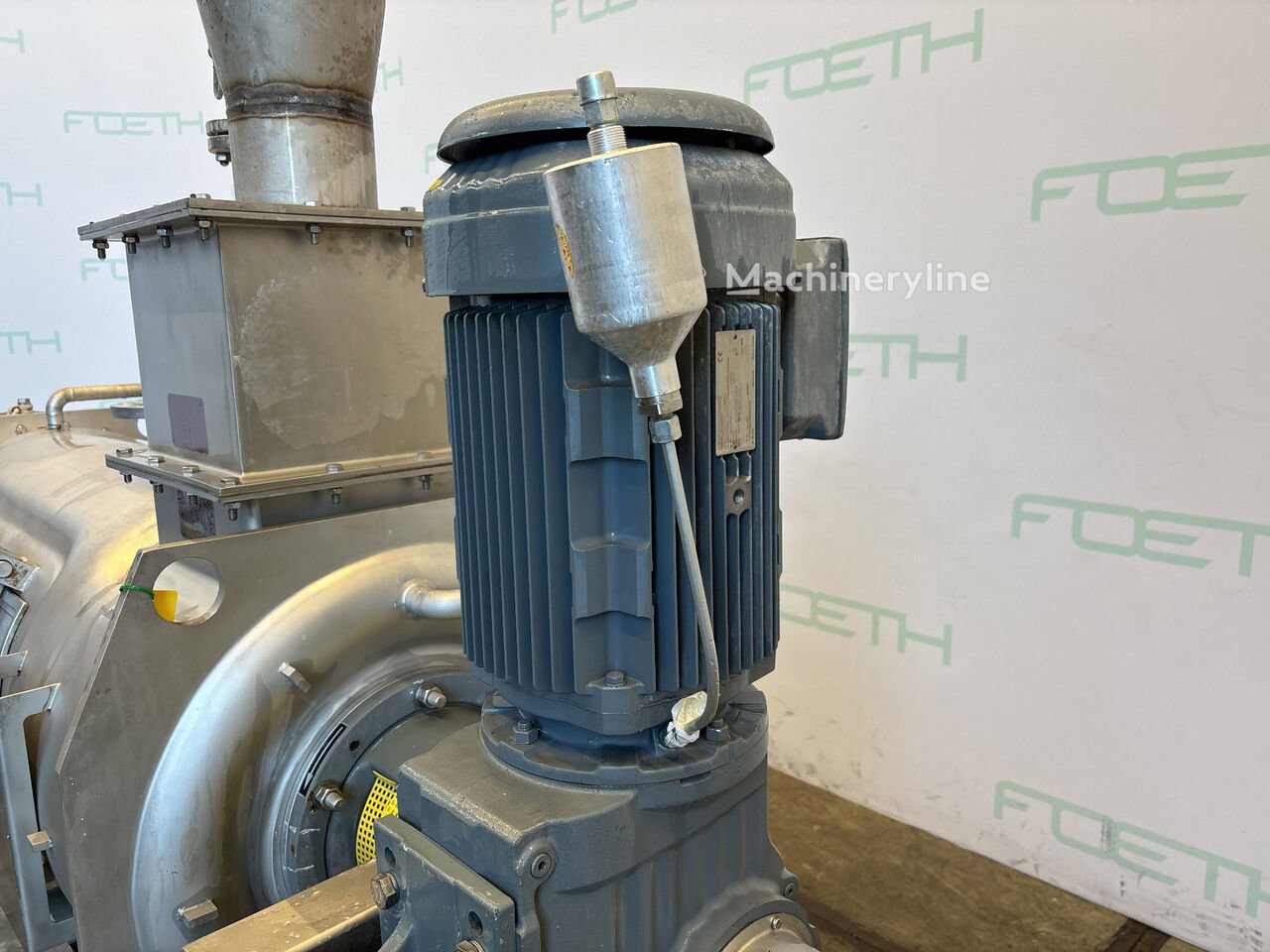

The machine is built from stainless steel grade Ti), making it suitable for corrosive or hygiene-sensitive applications. It has a total vessel volume of 510 litres and a useful working capacity of 400 litres. The trough is cylindrical, measuring 600 mm in diameter and 1,600 mm in length. The mixing shaft runs at 72 rpm, and the main drive motor is rated at 15 kW, operating at 500 volts and 1,470 rpm.
The vessel is equipped with a jacket, which has a volume of 45 litres and a working pressure of 6 bar, allowing for temperature control of the product during mixing. The internal working pressure of the main vessel is 0.5 bar. Inlet connections include a DN80 port with a diameter of 210 mm, and the outlet is DN150. Top connections are present, as is an inspection hatch measuring 600 by 350 mm. The glands are air-purged, helping to maintain a sealed environment around the shaft and prevent contamination or leakage.
The unit is mounted on a frame and includes a switch panel. Its footprint is 2.90 by 0.80 metres, with a total height of 2.00 metres. The machine carries serial number 16385 and is CE marked. It is located in Barneveld, Netherlands, and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
