2012 - Lödige K-TM400 – Powd Mixer Blender()
- Listing No
- 1180699
- Year
- 2012
- Manufacturer
- Lödige
- Model
- K-TM400 - Powd
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Type: K-TM400 Location: Barneveld CE: check Working pressure: 0.5 Bar Working pressure jacket: 6 Bar Material: Stainless steel 1.4571 (316Ti) Volume: 400 Ltr Motor: 15 kW, 290—500 V, 1470 rpm Lödige mixer: check Powder turbo mixer: check Continuous mixer: check Capacity: 510 Ltr Useful capacity: 400 Ltr Trough sizes: ø 632 x 1643 mm Inlet: 300 x 300 mm Top connections: DN150, DN80 Inspection hatch: check 600 x 340 mm Outlet: DN150 With jacket: check (45 Ltr.) Max. temperature: 0 / 200 °C Speed mixing shaft: 76 rpm No: 16696 Mounted on frame: check With switch: check Floorspace: 2,9 x 0,9 m Total height: 1,8 m General Pressure Main Features Specified Features - Powder turbo mixer Information
About this machine

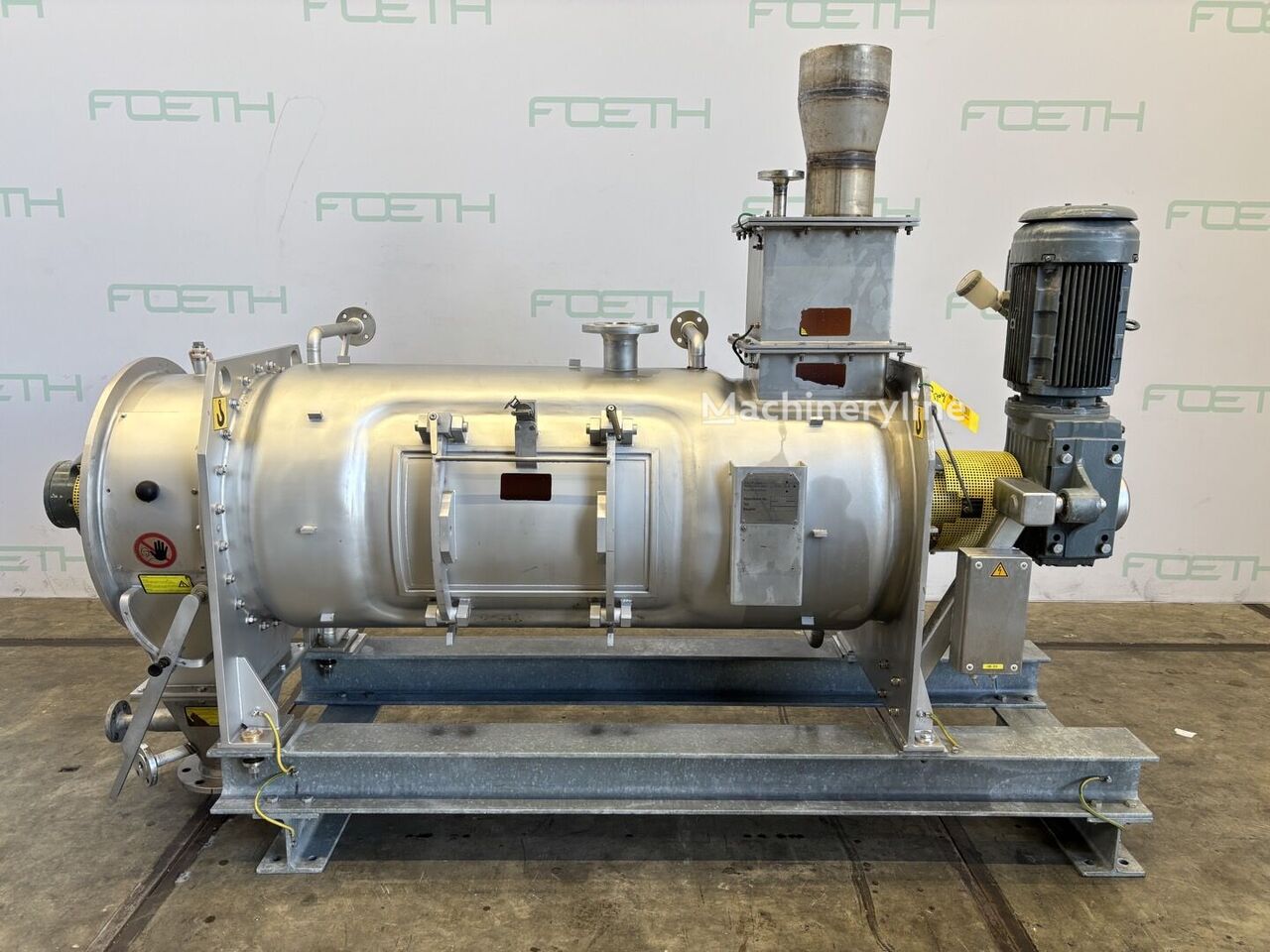

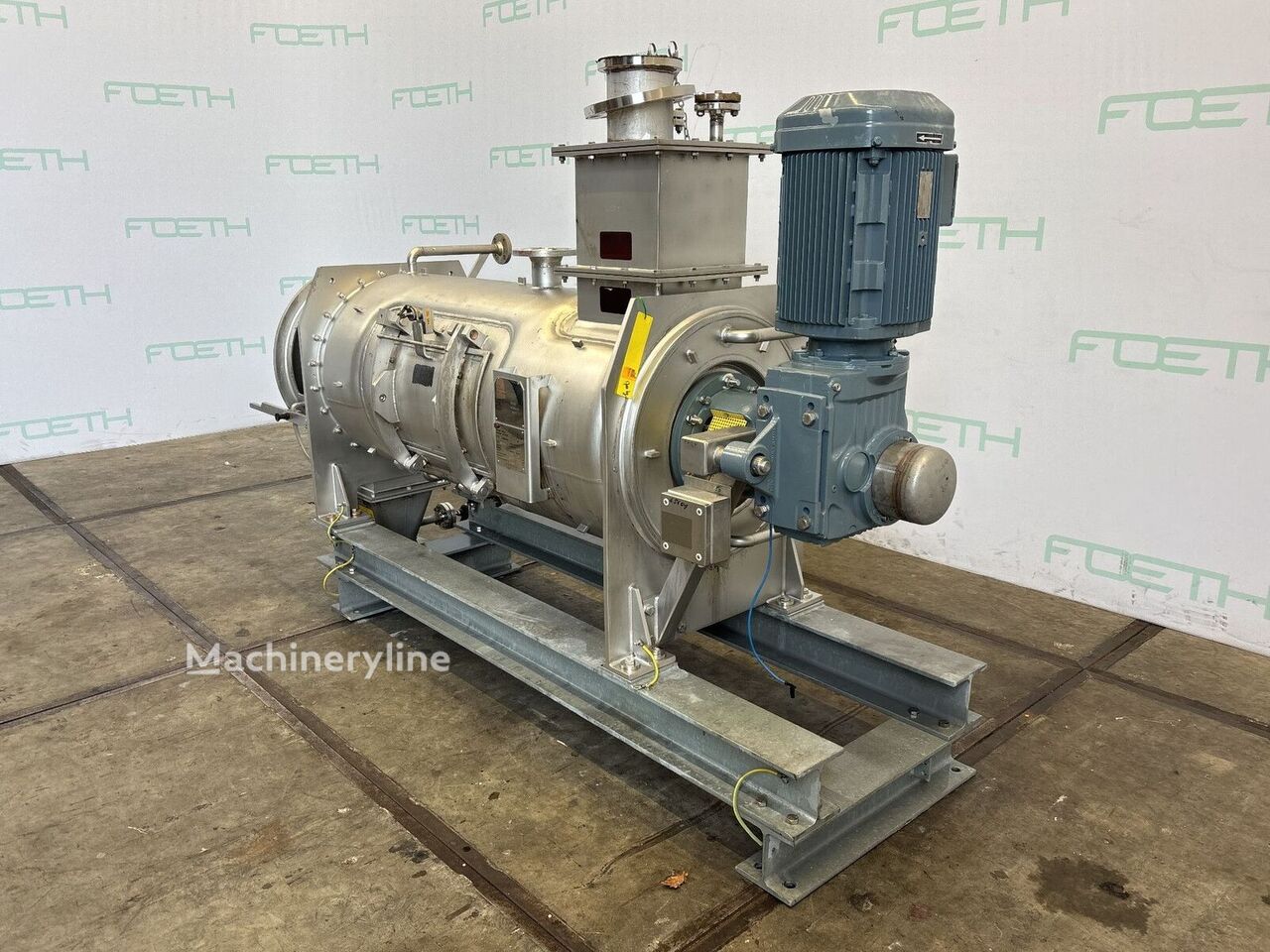

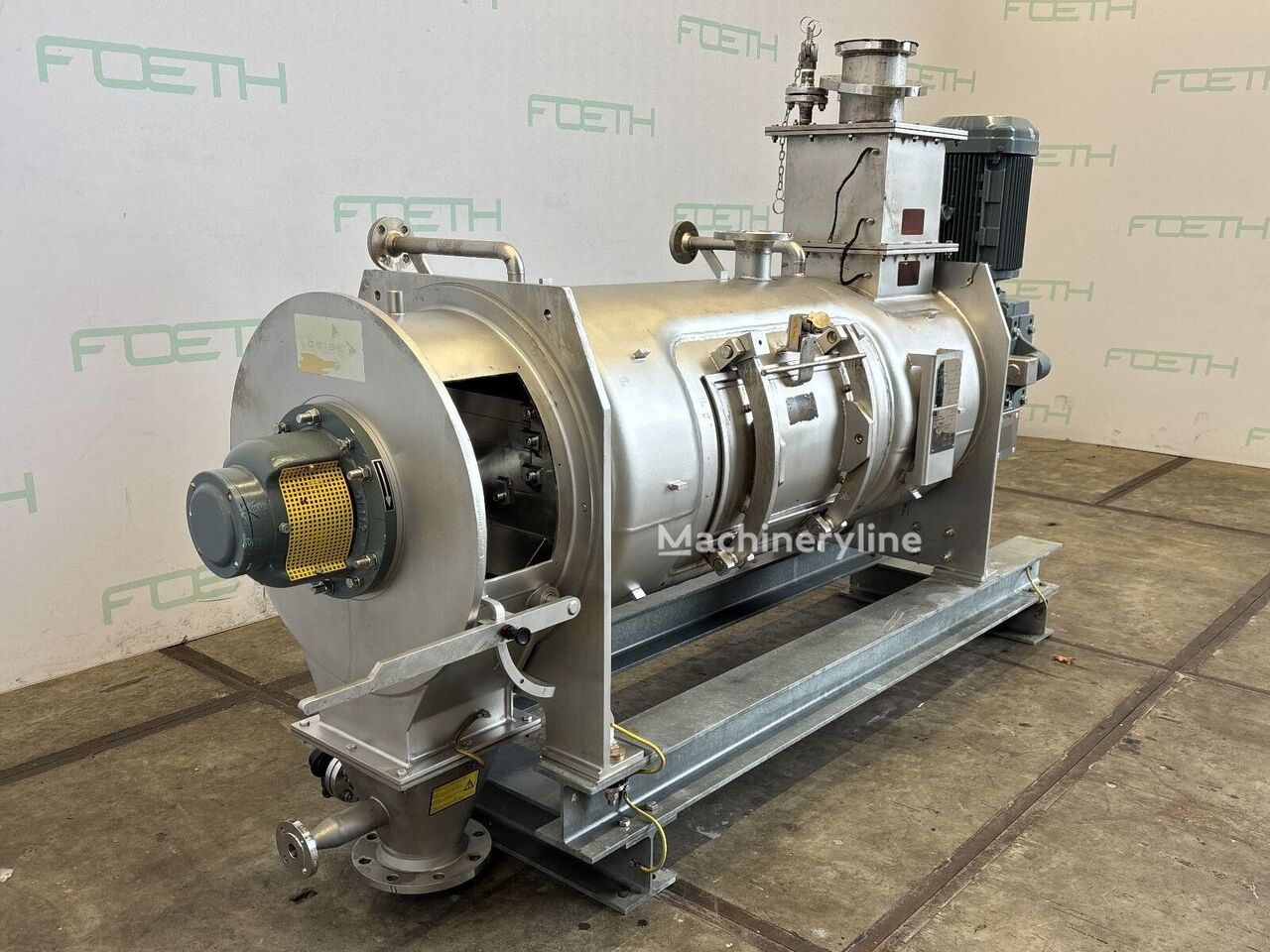

This Lödige K-TM400 is a used blender and mixer — also referred to as a powder mixer — designed for the continuous mixing and blending of powder and bulk materials. Lödige is a well-established German manufacturer with a long history of producing industrial mixing equipment for the chemical, pharmaceutical, food processing, and related industries, and their machines are widely used wherever precise, reliable powder handling is required.
The machine has a total vessel capacity of 510 litres with a useful working capacity of 400 litres. The trough measures 632 mm in diameter by 1,643 mm in length, and the mixing shaft runs at 76 rpm. Drive is provided by a 15 kW motor rated at 290–500 V and 1,470 rpm. The vessel is constructed from stainless steel grade Ti), which offers good corrosion and heat resistance and is commonly specified for demanding process environments.

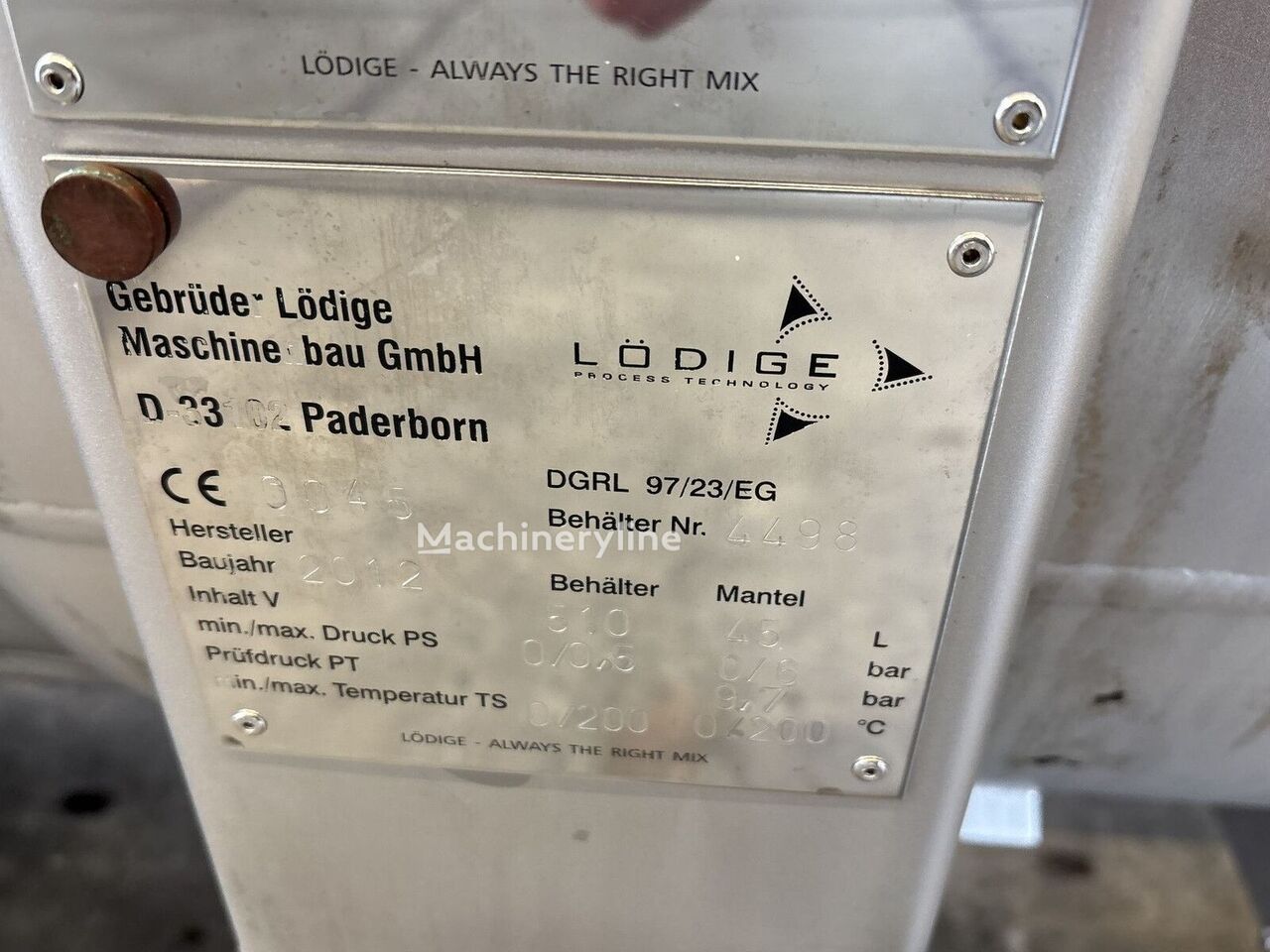

The unit is equipped with a heating or cooling jacket of 45 litres capacity, rated to a jacket working pressure of 6 bar. The process side working pressure is 0.5 bar, and the machine is rated for temperatures between 0 and 200 °C, making it suitable for temperature-controlled mixing applications. CE marking is present.

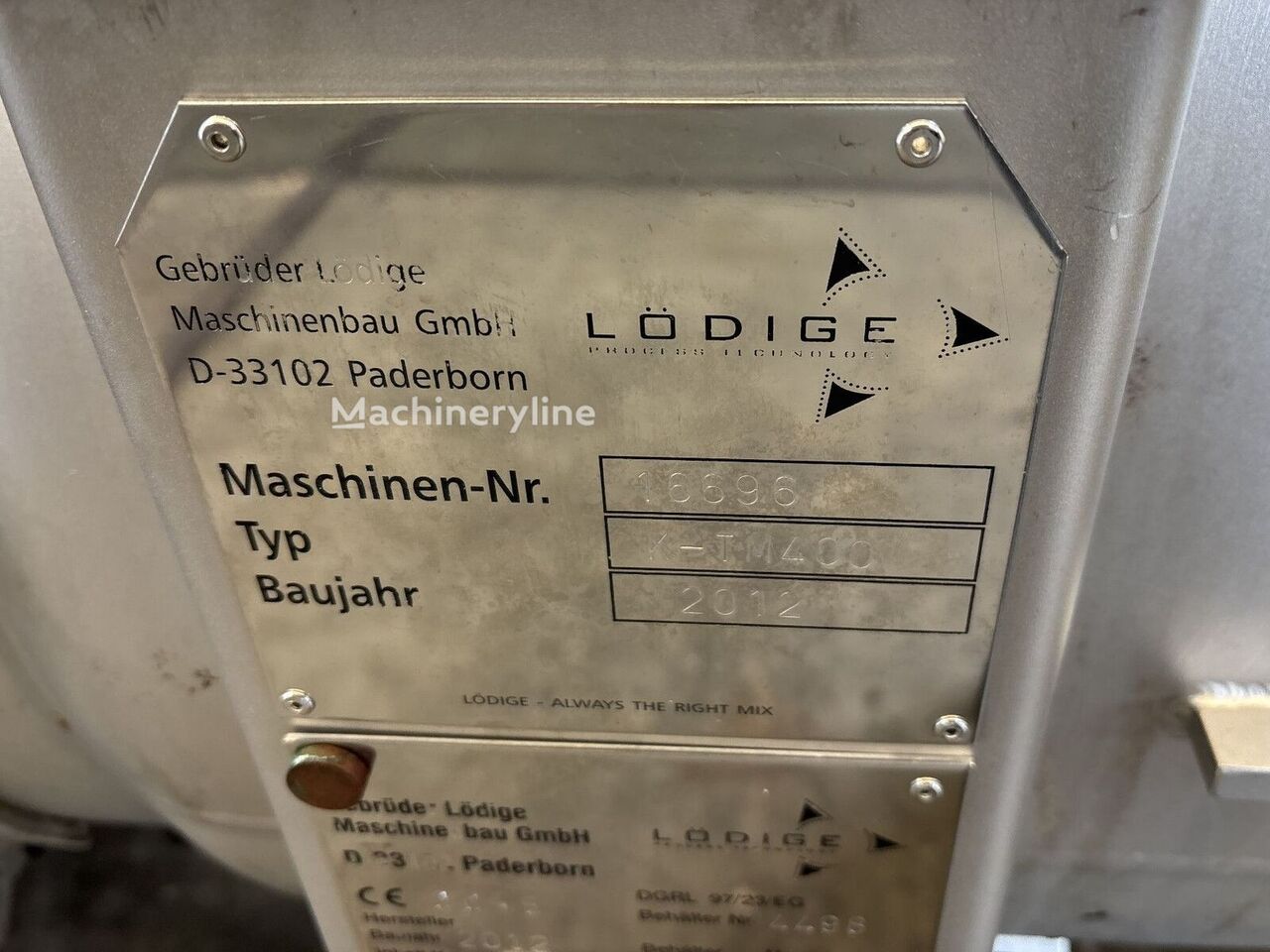

Connections include a 300 × 300 mm inlet, top connections of DN150 and DN80, and a DN150 outlet. An inspection hatch measuring 600 × 340 mm is fitted. The machine carries serial number 16696 and is mounted on a frame with a floor footprint of 2.9 × 0.9 m and a total height of 1.8 m, and an electrical switch cabinet is included. The machine is located in Barneveld, Netherlands, and was built in 2012.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
