About this machine

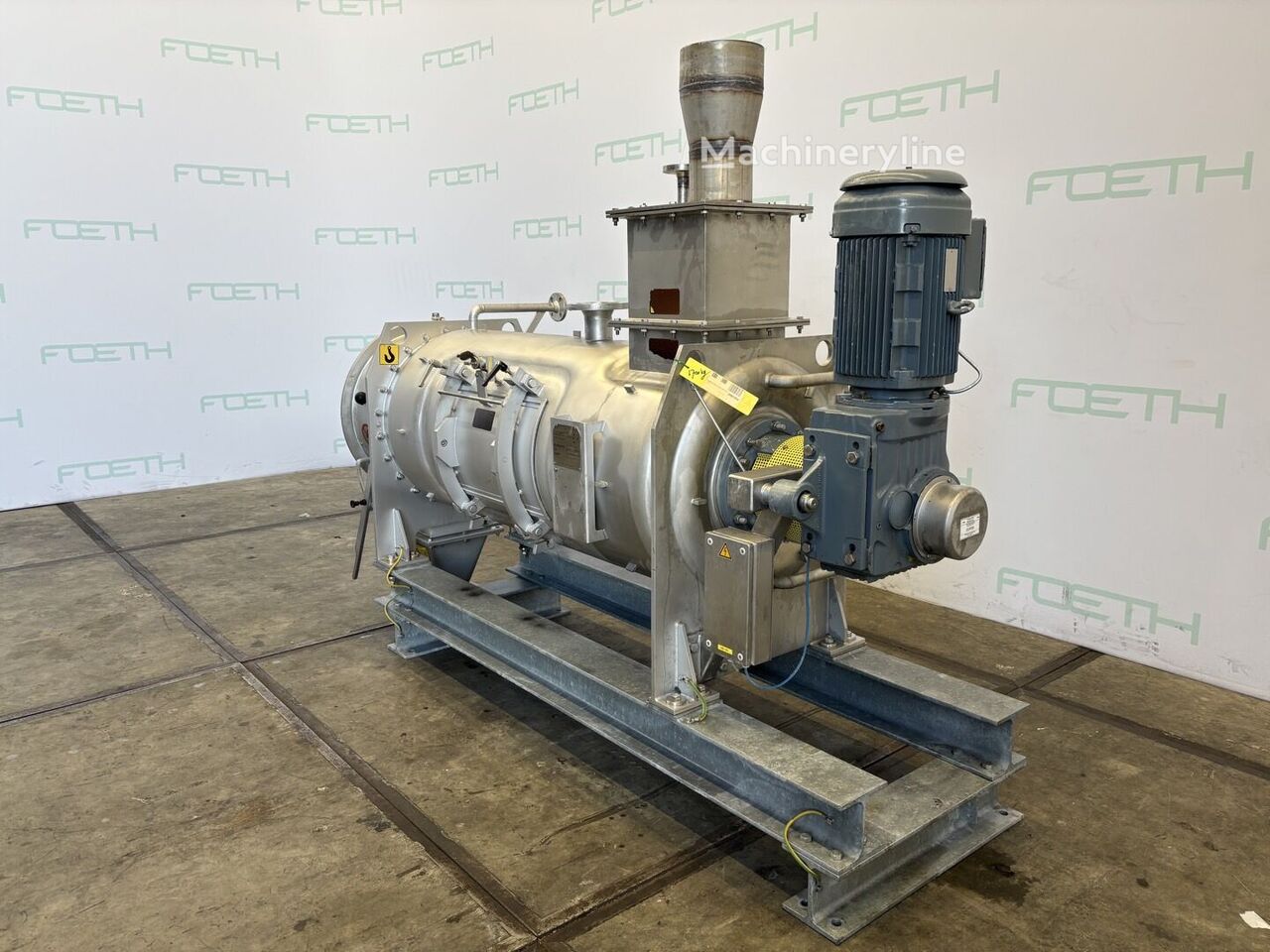

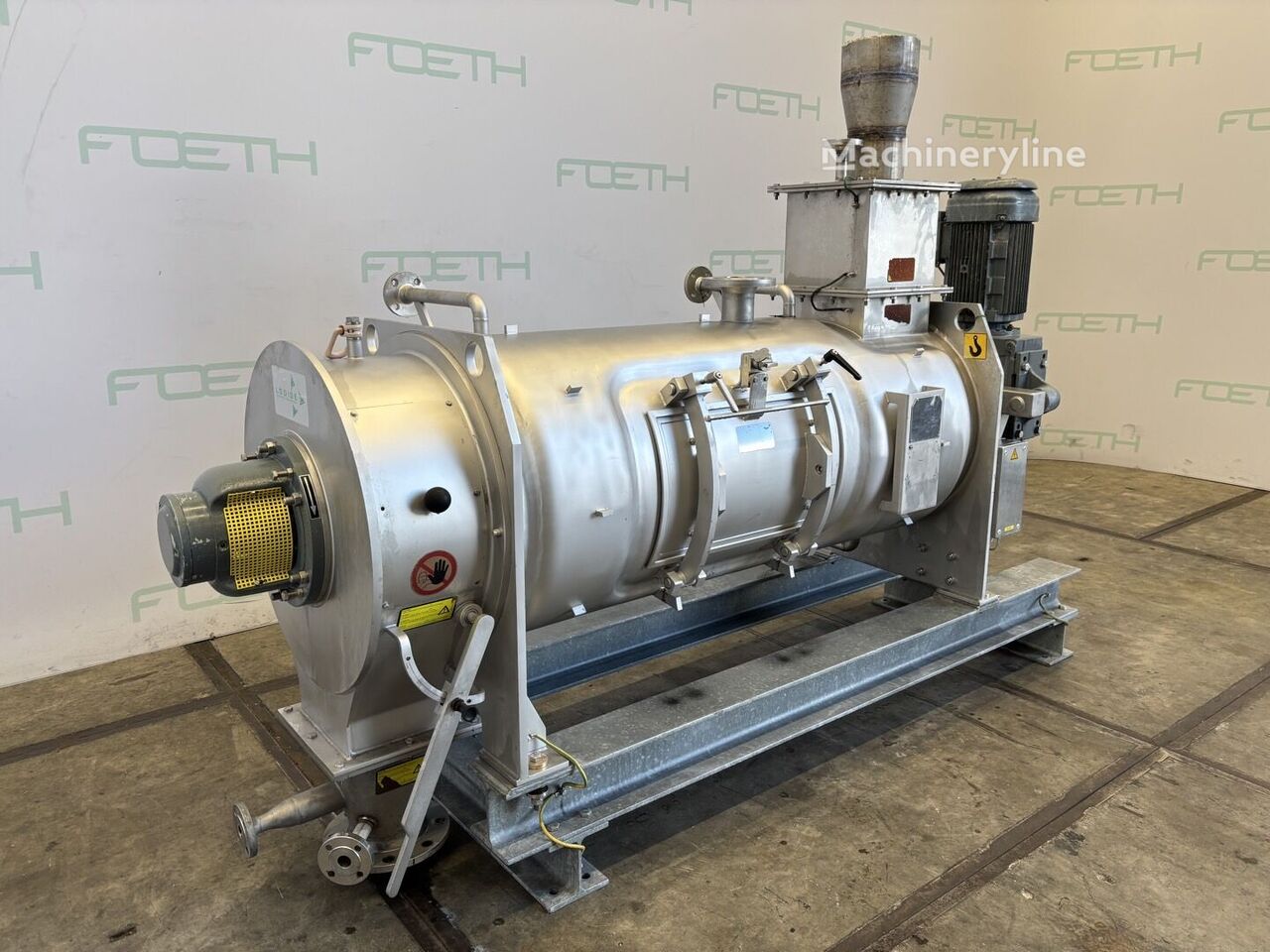

This Lödige K-TM400 is a used mixer and blender — sometimes referred to as an industrial mixing vessel or process mixer — designed for blending powders and bulk materials in continuous or batch production environments. Lödige is a well-established German manufacturer with a long history of producing mixing, granulating, and coating equipment for the pharmaceutical, chemical, food processing, and bulk solids industries.

Built in 2010 and currently located in Barneveld, Netherlands, this machine is constructed throughout in stainless steel grade Ti), making it well suited to demanding process environments where corrosion resistance and material purity are important. The vessel has a total volume of 510 litres and a useful working capacity of 400 litres. The trough is cylindrical, measuring 600 mm in diameter by 1,600 mm in length. The unit is CE marked and is mounted on its own frame, with a total installed height of 2.00 metres and a floor footprint of 2.90 × 0.80 metres.

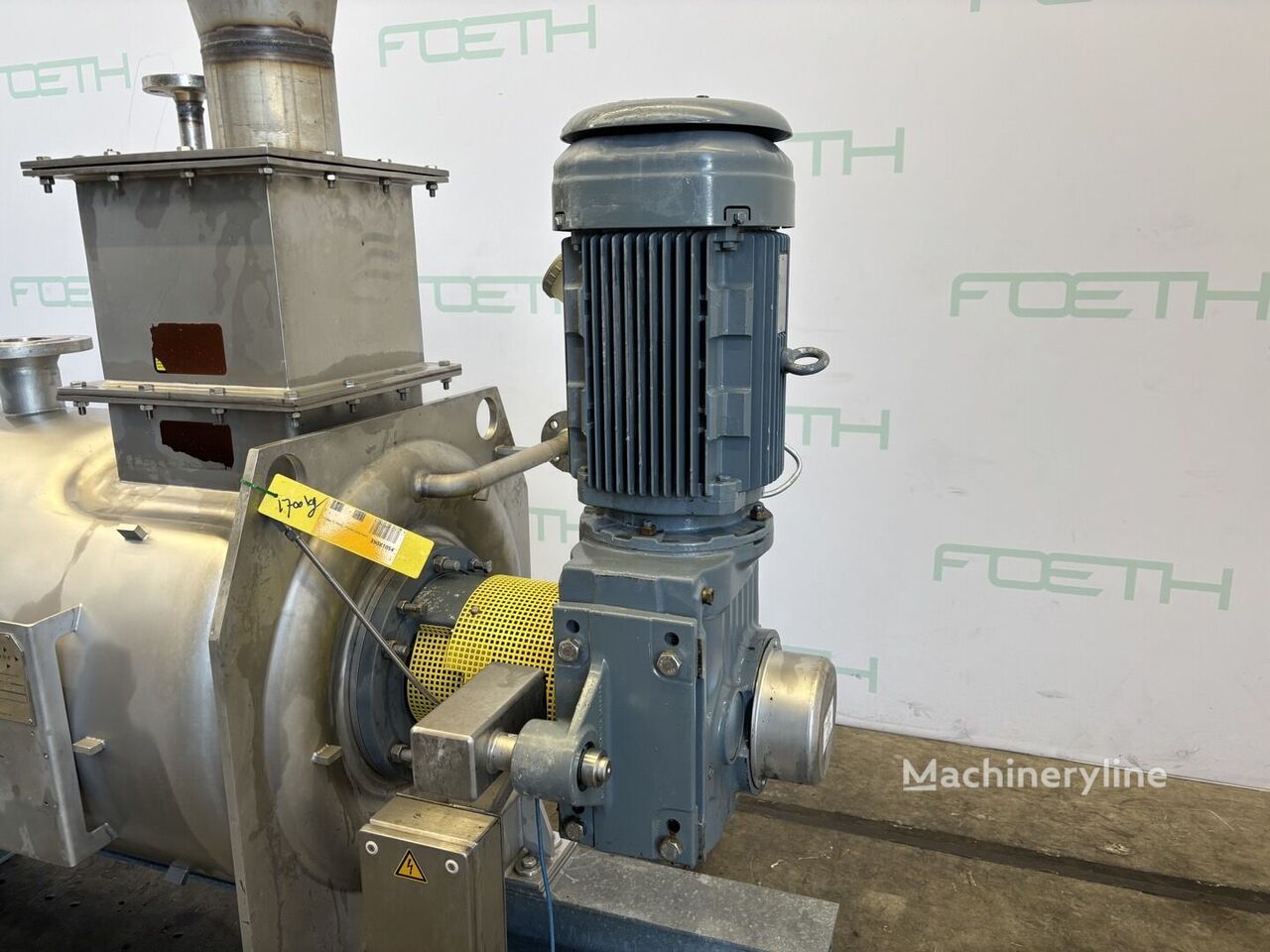

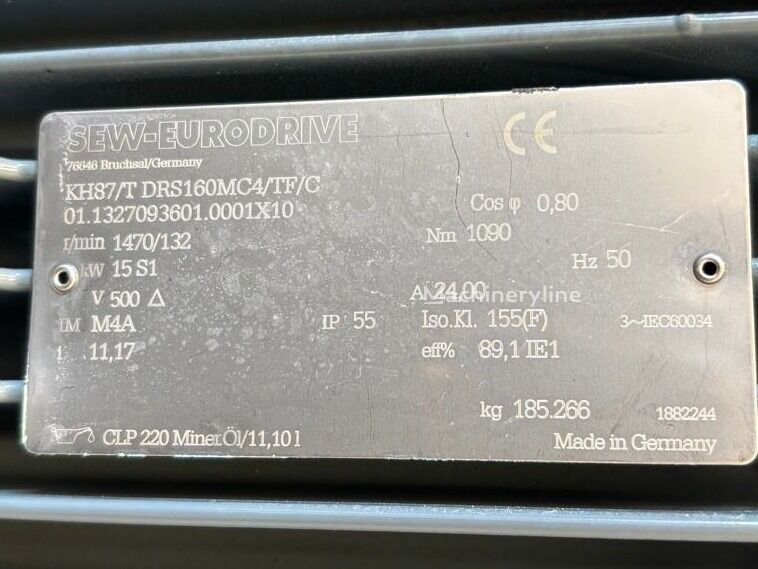

The mixer is equipped with a jacketed vessel, with the jacket carrying a volume of 45 litres and a working pressure of 6 bar, allowing controlled heating or cooling of the product during processing. The inner vessel working pressure is 0.5 bar, and the maximum permissible temperature is 200°C. The mixing shaft runs at 72 rpm and is driven by a 15 kW motor rated at 500 volts and 1,380 rpm. The machine features a powder turbo mixer configuration and the shaft glands are air-purged, supporting use in clean or controlled-atmosphere applications.

Inlet connections comprise a DN80 flanged inlet and a separate 200 mm diameter inlet, with additional top connections also present. Discharge is via a DN150 outlet. An inspection hatch measuring 600 × 350 mm provides access to the interior for inspection and cleaning. The machine weighs approximately 2,000 kg net.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
