2012 - Lödige K-TM400 – Powd Mixer Blender()
- Listing No
- 1180675
- Year
- 2012
- Manufacturer
- Lödige
- Model
- K-TM400 - Powd
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Type: K-TM400 No: 16697 Mounted on frame: check Working pressure: 0.5 Bar Working pressure jacket: 6 Bar Material: Stainless steel 1.4571 (316Ti) Volume: 400 Ltr Motor: 15 kW, 290-500 volt, 1470 rpm Powder turbo mixer: check Capacity: 510 l Useful capacity: 400 l Inlet: DN80/165 Top connections: check Inspection hatch: check 600x350 mm Outlet: DN150 With jacket: check volume 45 l Max. temperature: 200°C Glands air purged: check Speed mixing shaft: 76 rpm Location: Barneveld With switch: check Floorspace: 3,00x0,80 m Total height: 1,80 m CE: check General Pressure Main Features Specified Features - Powder turbo mixer Information
About this machine

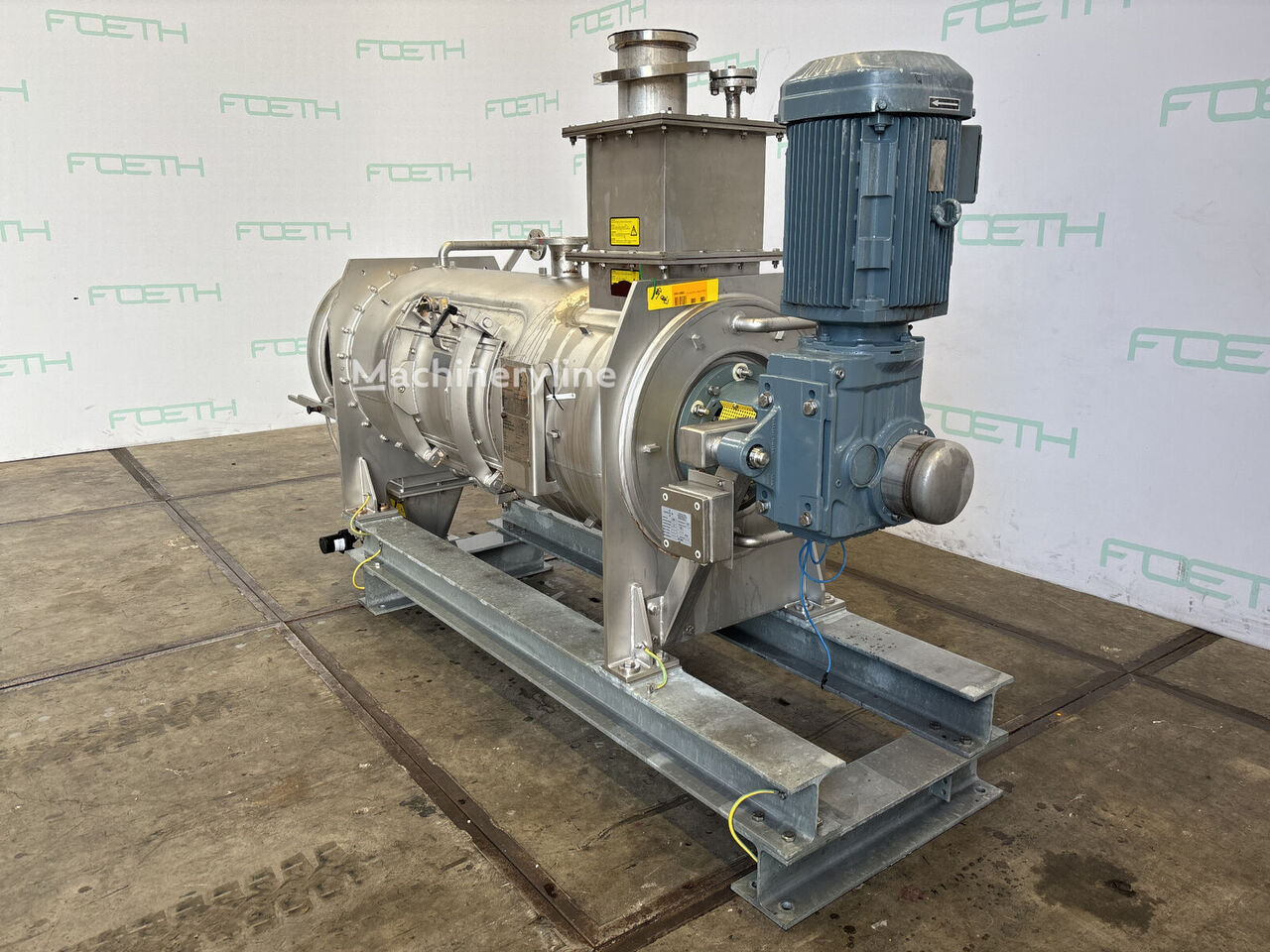

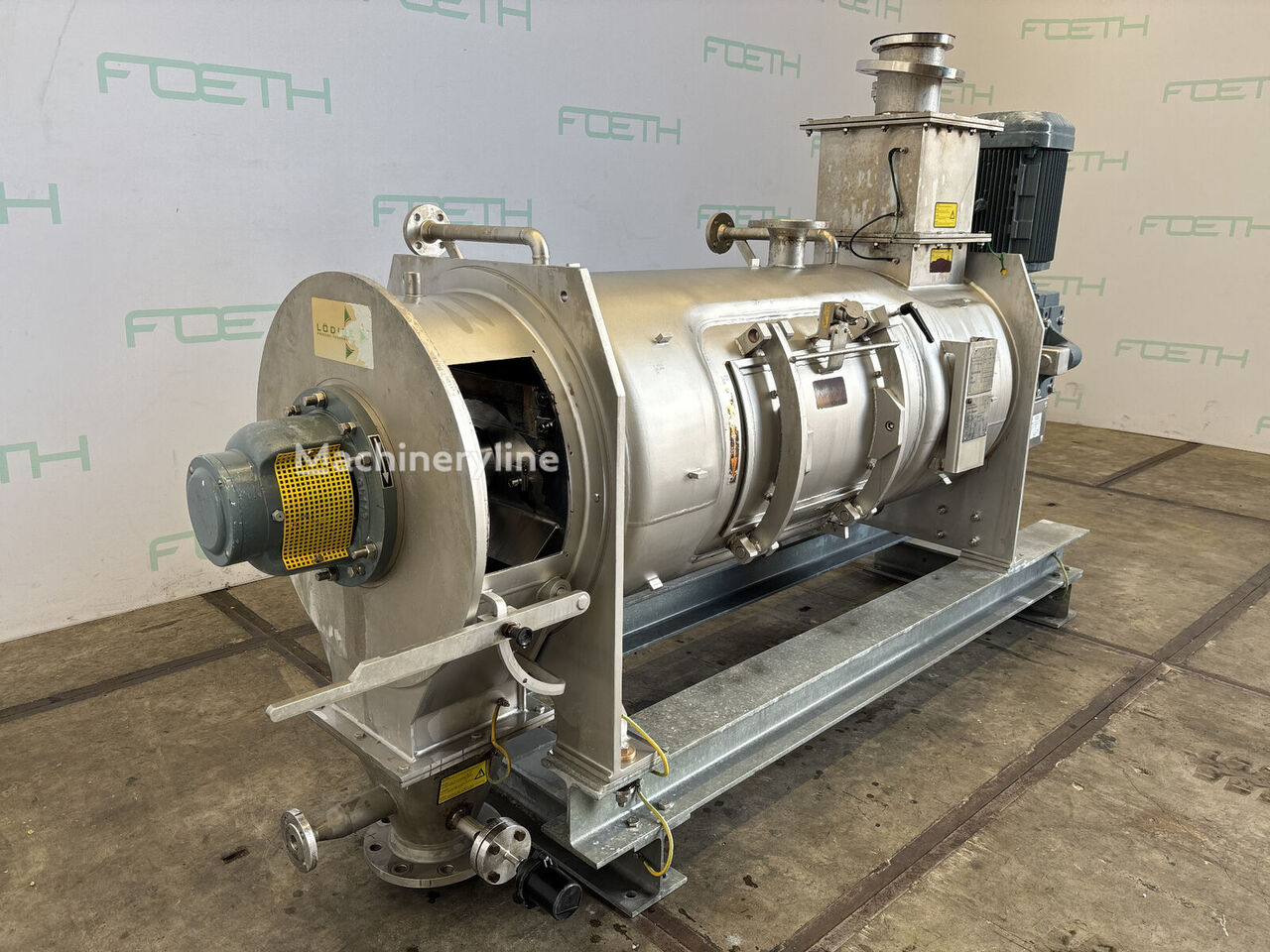

This Lödige K-TM400 is a used blender and mixer — sometimes referred to as a powder mixer or mixing vessel — designed for blending, homogenising, and processing powder and bulk materials in industrial production environments. Lödige is a well-established German manufacturer with a long history of producing process equipment for the chemical, pharmaceutical, food, and related industries, known particularly for its ploughshare and turbine mixing technology.

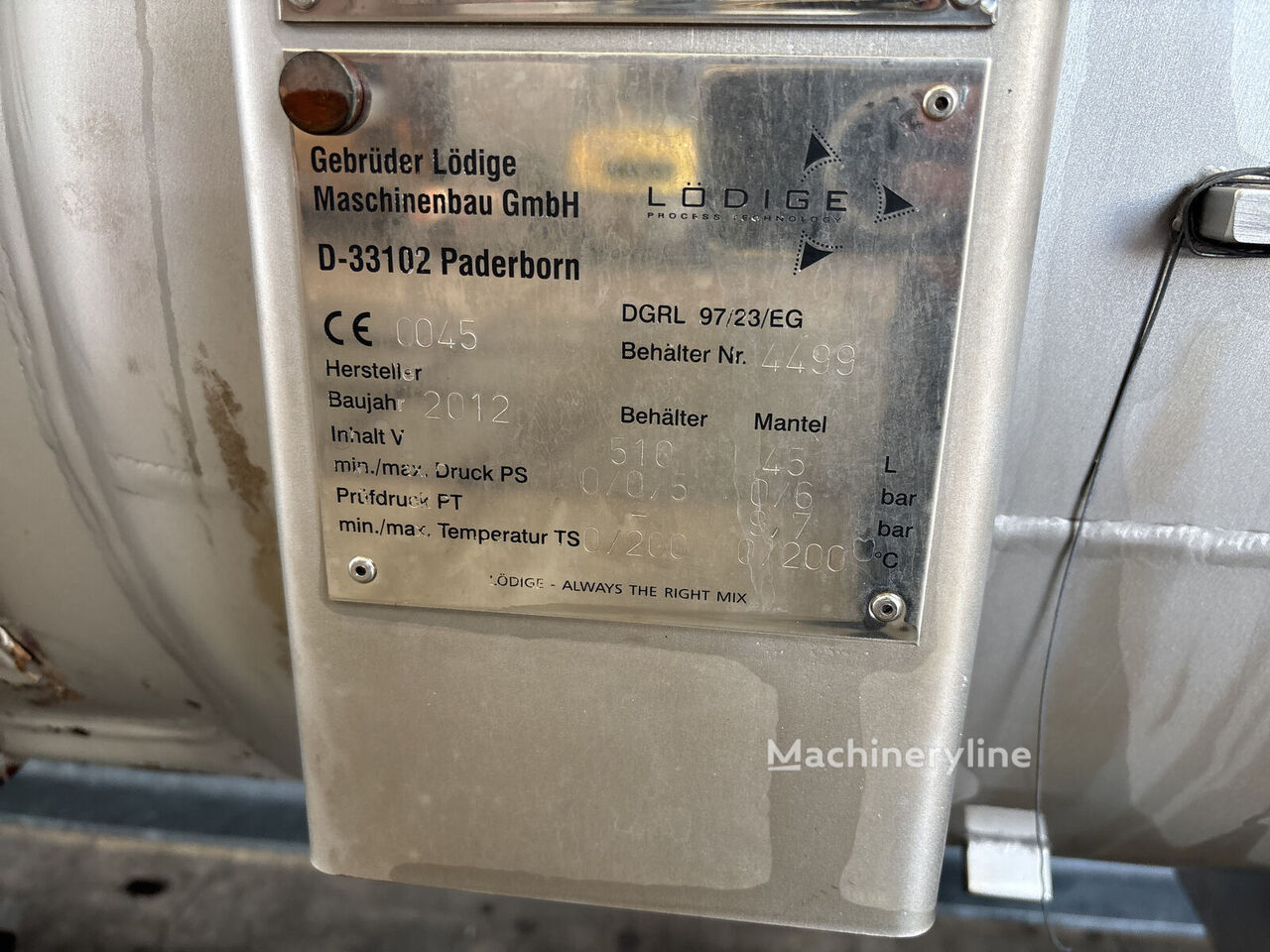

This machine carries serial number 16697 and was manufactured in 2012. It is constructed entirely from stainless steel grade 1.4571 (AISI 316Ti), which offers good resistance to corrosion and elevated temperatures, making it suitable for demanding process applications. The unit is mounted on a frame and has a footprint of 3.00 × 0.80 metres with a total height of 1.80 metres.

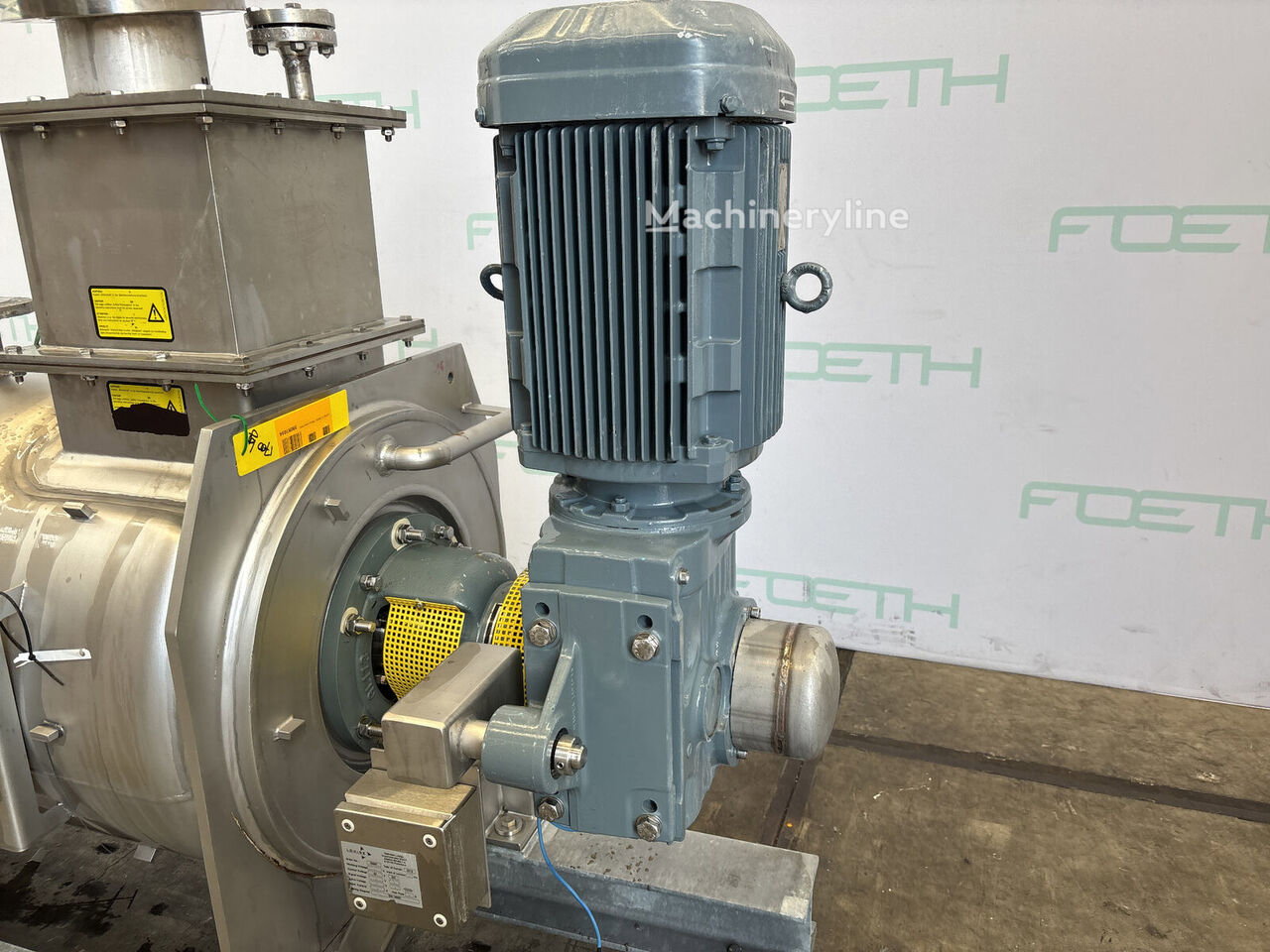

The vessel has a total capacity of 510 litres with a useful working capacity of 400 litres. It is equipped with a heating or cooling jacket, which has a volume of 45 litres and a maximum jacket working pressure of 6 bar. The main vessel working pressure is 0.5 bar, and the machine is rated for a maximum operating temperature of 200°C. The mixing shaft runs at 76 rpm, driven by a 15 kW motor operating on 290–500 volts at 1,470 rpm. The unit includes a powder turbo mixer configuration.
Connections include an inlet of DN80/165, a main outlet of DN150, and additional top connections. An inspection hatch measuring 600 × 350 mm is fitted to allow access for inspection and cleaning. The shaft seals are air-purged glands, which help prevent contamination and seal integrity under pressure. The machine also features a switch and carries CE certification.
The unit is located in Barneveld, Netherlands, and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
