About this machine

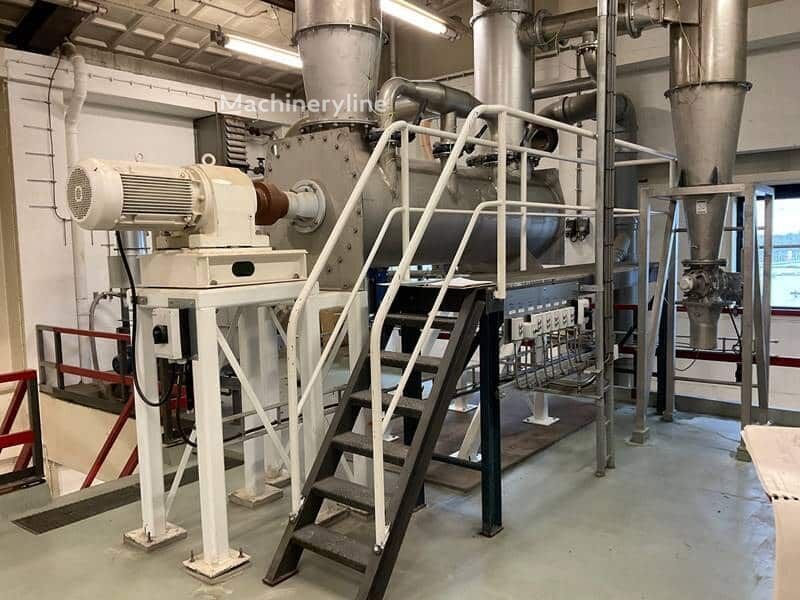

This Lodige KM 1200 D is a used mixer and blender — sometimes referred to as an industrial mixing unit — located in France and listed from 2017. Mixer-blenders of this type are used across process industries to combine, homogenise, and condition bulk solid and powder materials, and in this case the machine has been further configured to carry out drying as part of the same process. Lodige is a well-established German manufacturer known for its ploughshare mixing technology, widely used in the chemical, pharmaceutical, food, and mineral processing sectors.

This particular unit has an interesting history: the original ploughshare mixer — built in 1977 — was comprehensively transformed into a mixer-dryer in 2017 by the previous user. The modifications carried out at that time were substantial: the mixing chamber was replaced with a new enclosure fabricated in 316 stainless steel, and the motor transmission was converted from a belt drive to a geared motor arrangement. The machine is therefore presented with a 2017 effective date reflecting those upgrades. There is no manufacturer's plate present, and no electrical cabinet is included. Pipework is included with the unit.

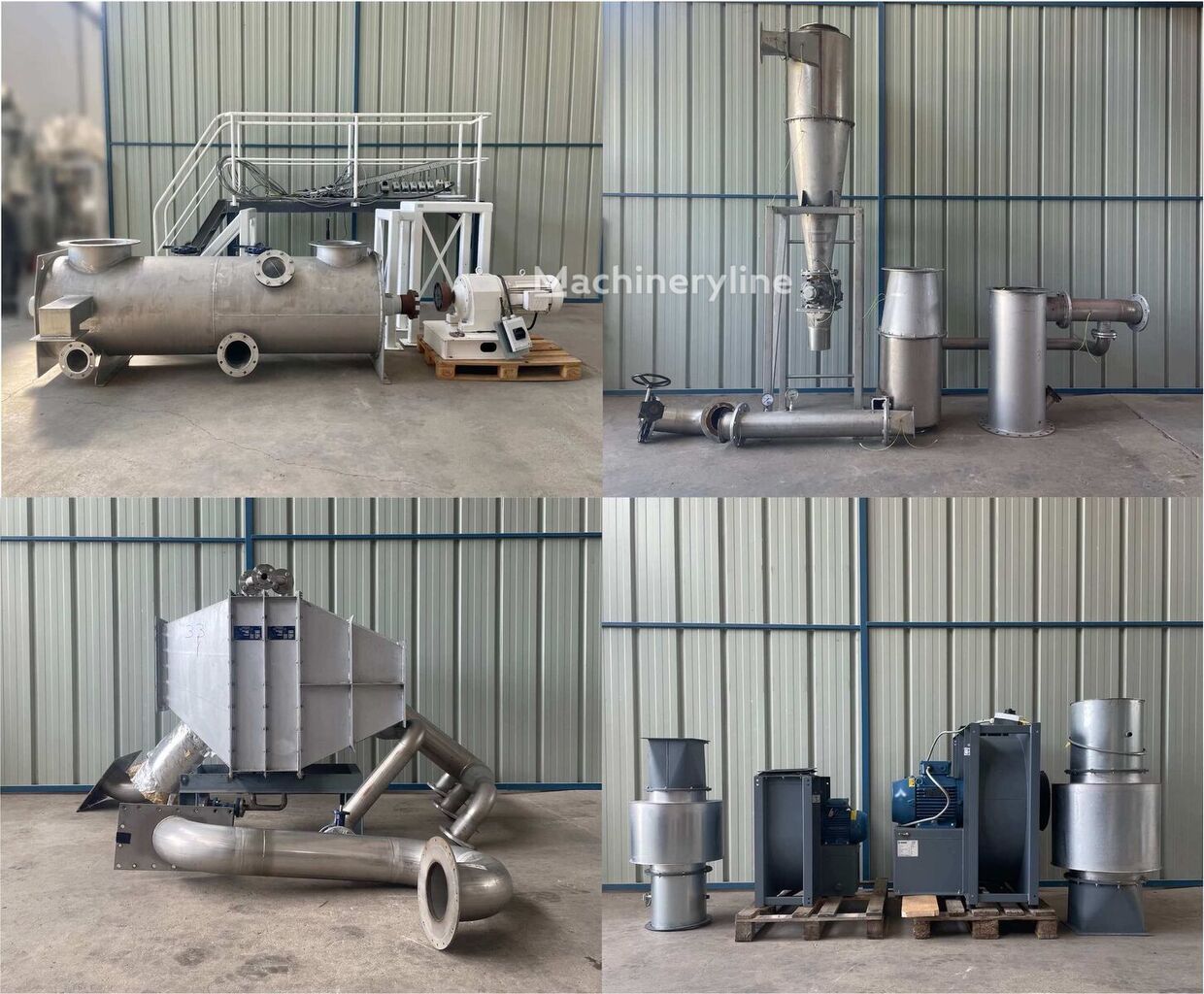

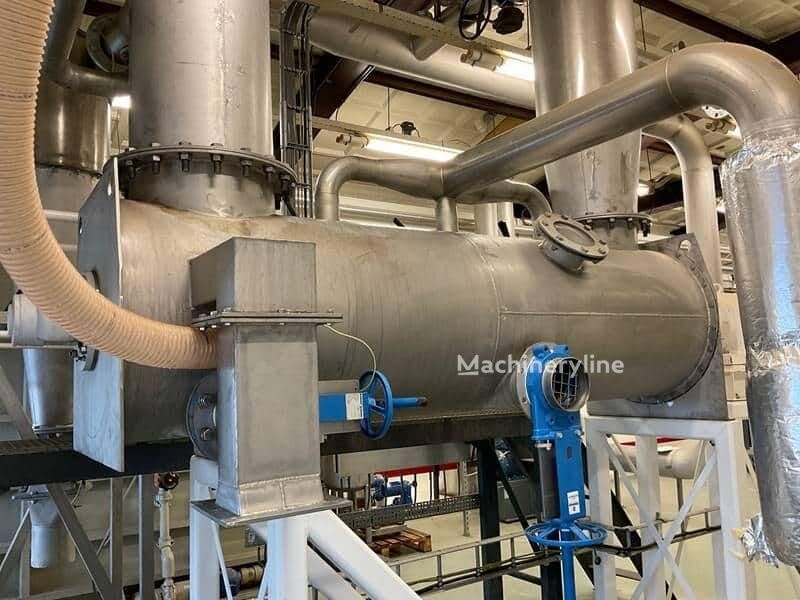

The core mixing vessel has a capacity of 1,200 litres and is constructed throughout in 316 stainless steel, retaining the ploughshare agitator configuration for which Lodige equipment is recognised. The drive motor is supplied by SEW and rated at 18.5 kW. Ancillary valving on the mixer includes two manual butterfly valves and two manual Orbinox knife gate valves. A porthole allows interior inspection, and a Vigilex safety suppression box is fitted.

Drying is achieved by hot air blowing, delivered via two ATEX-rated fans manufactured by Kiekens. The first fan — model 8 KTEN 355, dated 2017 — delivers 1,204 m³/h at a power of 15 kW and is rated for temperatures up to 80°C, with ATEX classification Ex II 3D/G td nA. The second fan, model 8 KTEN 280 and also from 2017, delivers the same airflow volume of 1,204 m³/h but at a lower power of 4 kW, sharing the same temperature and ATEX ratings.

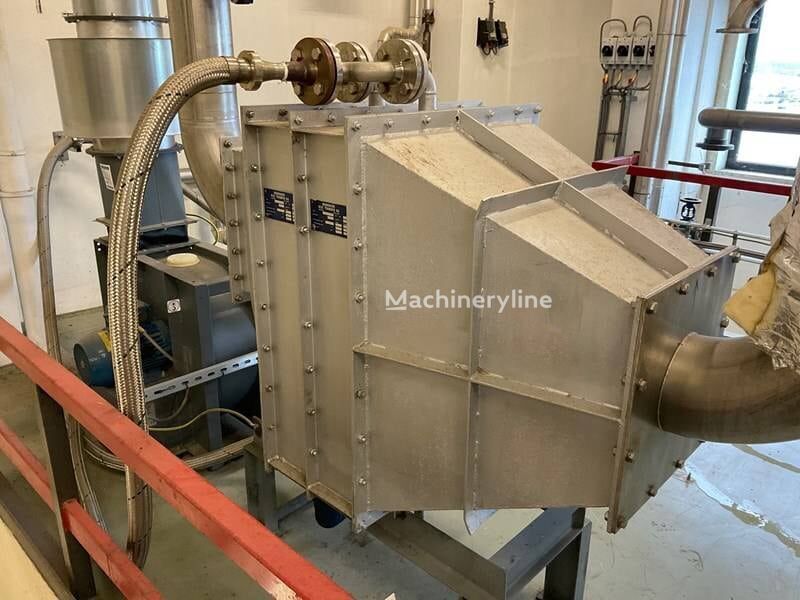

The heat exchanger was manufactured by Bronswerk Heat Transfer B.V. and, while dated 1996, offers a substantial exchange surface of 67 m² across two units (67 m² × 2), with a total volume of 17 litres per unit. It is rated to a maximum pressure of 20 bar and a maximum temperature of 215°C, and is designed to work with either water or steam as the heat transfer fluid. Temperature sensor connections are present.

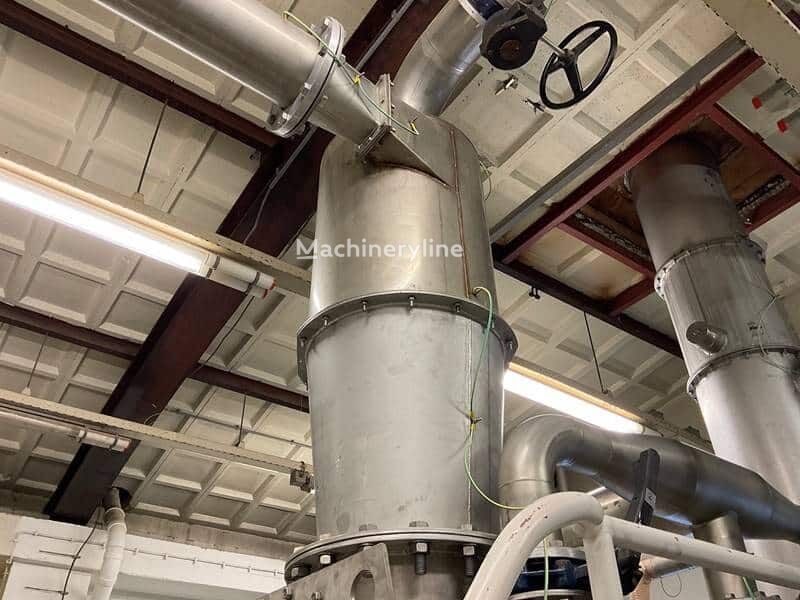

Dust-laden exhaust air is handled by a cyclone dust collector dated 2017, which is mounted on its own frame and fitted with a DMN Westinghouse rotary butterfly valve for material discharge. The complete installation is supported by a platform with stairs and mixer support structure, manufactured by IJSSEL Technology, which is included with the unit.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
