2000 - Makino A55E-A225 Machining Center()
- Listing No
- 940884
- Year
- 2000
- Manufacturer
- Makino
- Model
- A55E-A225
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

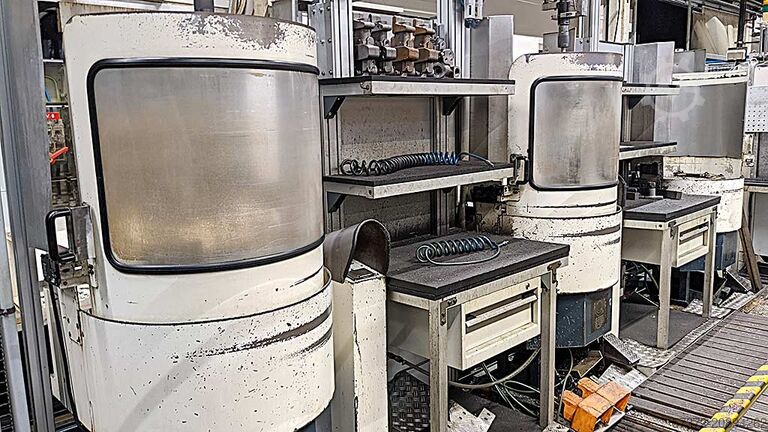

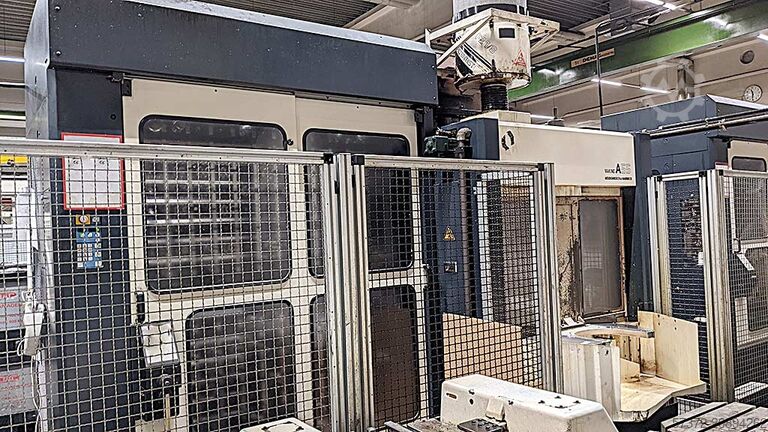

A complete manufacturing cell with four horizontal machining centers Makino and a pallet storage and transport system is available. Makino A55: Travels X/Y/Z: 560mm/560mm/600mm, pallet dimensions X/Y: 400mm/400mm, max. table load: 500kg, max. workpiece diameter: 630mm, max. workpiece height: 1000mm, rapid traverse: 84m/min. Complete system dimensions: approx. 24000mm/8000mm, weight: approx. 8500kg. The images and videos show an identical system. The configuration of the offered and the illustrated cells is essentially identical. Documentation available. On-site inspection is possible. Ffjwv Hox Syv Aeii Aet Request more information Request more information Already requested
About this machine
This Makino A55E-A225 is a used horizontal machining center — sometimes referred to as a horizontal machining centre or HMC — designed for high-precision metal cutting operations including milling, drilling, boring, and tapping on complex workpieces. Makino is a well-established Japanese manufacturer of CNC machine tools, recognised globally for producing precision machining centers, grinding machines, and EDM equipment for the aerospace, automotive, die and mould, and general engineering industries.

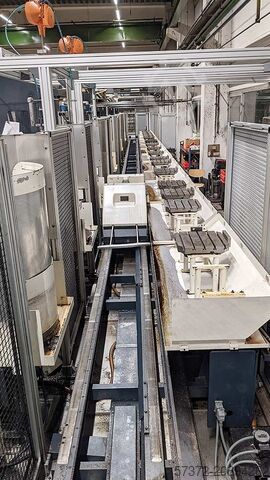

This particular offering is not a standalone machine but a complete manufacturing cell comprising four horizontal machining centers together with an integrated pallet storage and transport system. This type of multi-machine cell configuration is designed to support high-volume, automated production with minimal operator intervention between operations.
Each Makino A55 unit in the cell provides axis travels of 560 mm in X, 560 mm in Y, and 600 mm in Z. The pallet dimensions are 400 mm by 400 mm, with a maximum table load capacity of 500 kg. The machine accommodates workpieces up to 630 mm in diameter and up to 1,000 mm in height, making it suitable for a wide range of mid-size prismatic parts. The rapid traverse rate is 84 m/min, which contributes to reduced non-cutting time during automated cycle operation.
The complete cell occupies a footprint of approximately 24,000 mm by 8,000 mm and has a total weight of approximately 8,500 kg. Documentation is available, and on-site inspection at the location in Germany is possible. The images and videos provided show an identical system, and the configuration of the illustrated cell is described by the seller as essentially identical to the one being offered.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
