2006 - MAS MCV 1016 Quick Machining Center()
- Listing No
- 955342
- Year
- 2006
- Manufacturer
- MAS
- Model
- MCV 1016 Quick
- Condition
- Used
- Location
- Portugal
- Price
- $16,000
- Description
-
12.00 (in) x 12.00 (in) x 12.00 (in): 700 KG DEPTH : 2700 MM HEIGHT: 2937 MM HEIGHT ADJUSTMENT: 870 MM Load capacity on bottom plate: 7000 kg Load capacity on top plate: 2500 kg MACHINE WEIGHT: 5500 KG Maximum clamping force: 500 KN Maximum opening force: 120 ~ 1,500 KN MAXIMUM TOOL DIAMETER: 75/120MM MAXIMUM TOOL LENGTH: 300 MM MAX TOOL LENGTH: 300 MM Motor Leroy Somer Tipo LS80 230/380 voltios 1,5 kW 2840 rpm: 710 MM NUMBER OF TSLOTS: 5 OUTER LENGTH: 1300 MM OUTER WIDTH: 600 MM PIECE WEIGHT: 700 KG SPINDLE SPEED: 25,000 1/MIN STORAGE: 24 TABLE LENGTH: 900 MM TABLE LOAD: 450 KG Table size: 1,200x1,000mm TABLE WIDTH: 520 MM Type of guidance: 700 KG TYPE OF TOOL HOLDER: ISO 40 WIDTH: 3080 MM X AXIS MOVEMENT: 1016 MM Y AXIS MOVEMENT: 610 MM Z AXIS MOVEMENT: 710 MM 3-axis vertical machining center MAS MCV 1016 QUICK. Show the whole comment
About this machine

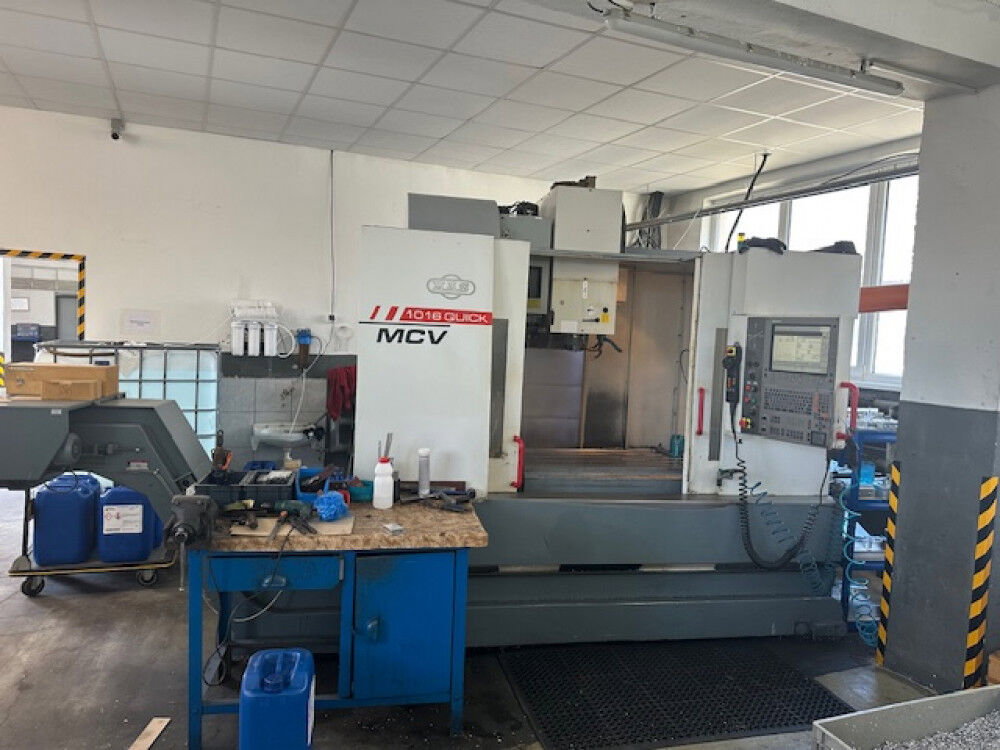

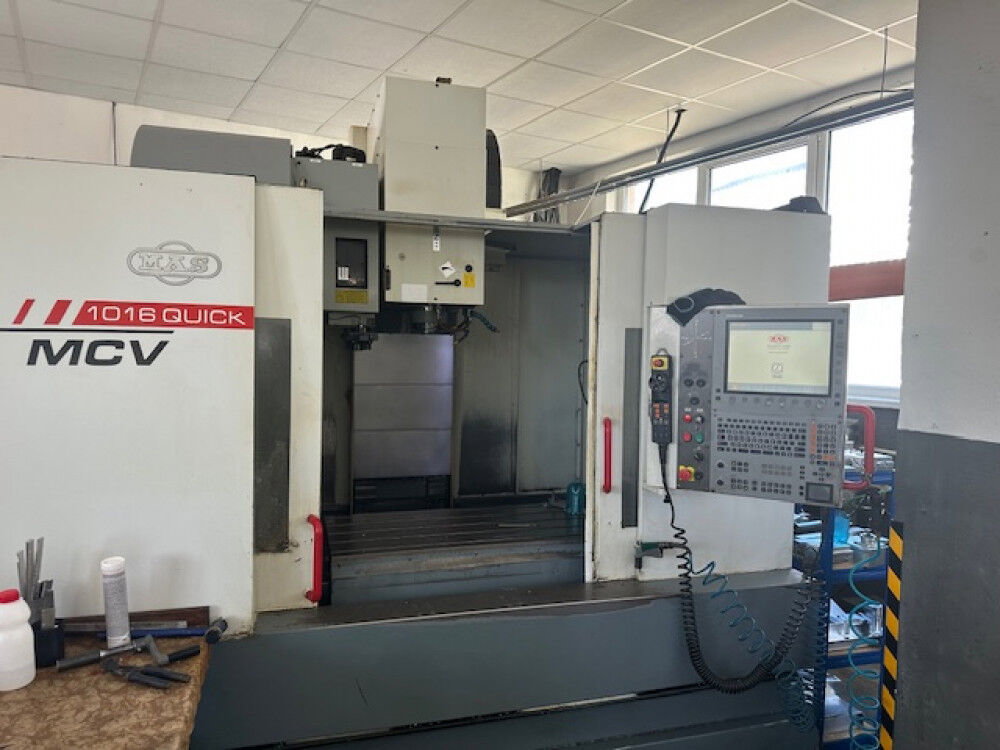

This used MAS MCV 1016 Quick is a vertical machining center — sometimes referred to as a VMC or CNC milling machine — a machine tool designed for precise multi-axis metal cutting operations including milling, drilling, boring, and tapping on a wide range of workpiece materials. MAS is a well-established Czech manufacturer with a long history of producing machine tools for the metalworking and engineering industries, and their machining centers are used in precision component manufacturing, toolmaking, and general engineering applications worldwide.
This is a three-axis vertical machining center, with axis travels of 1,016 mm in X, 610 mm in Y, and 710 mm in Z. The table measures 1,200 × 1,000 mm with a working surface of 900 mm in length and 520 mm in width, features five T-slots, and carries a maximum table load of 450 kg. The spindle runs at up to 25,000 rpm and accepts ISO 40 toolholders. Maximum tool diameter is 75 mm in the standard configuration or 120 mm with adjacent pockets empty, and maximum tool length is 300 mm. The automatic toolchanger magazine holds 24 tools.
The machine stands 2,937 mm tall with an overall width of 3,080 mm and a depth of 2,700 mm, making it a substantial installation. The height adjustment range is 870 mm. Total machine weight is 5,500 kg.
A Leroy Somer motor of type LS80 is fitted, rated at 1.5 kW, running at 2,840 rpm on a 230/380 V supply. The listing records a workpiece weight capacity of 700 kg. This machining center is located in Portugal and is offered in used condition, dated to 2006, at a price of $16,000.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
