2002 - MAS VCI-Q 1000 – 2002-2022 Machining Center()
- Listing No
- 955275
- Year
- 2002
- Manufacturer
- MAS
- Model
- VCI-Q 1000
- Condition
- Used
- Location
- Slovakia
- Price
- POA
- Description
-
Type: VCI-Q 1000 Year of modernization: 2022 Parameters: X/Y/Z= 1000/600/700 mm MAS - VCI-Q 1000 - 2002-2022 1100 spindle hours since retrofit in 2022 system Heidenhain TNC 620 + HR520 table spindle taper ISO 40 spindle 17 kW spindle max 10000 RPM spindle through cooling 20 bar spindle hours 1100 ATC 20 measuring probe TS460 + SE660 in use regularly maintained including some accessories (vice tool holders )
About this machine

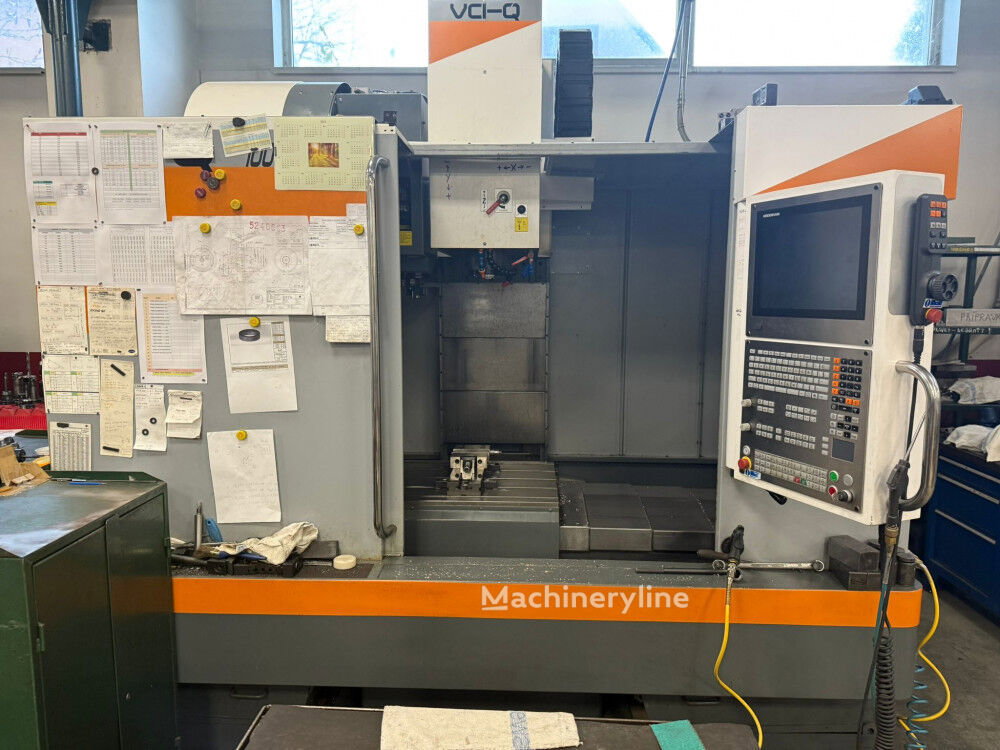

This MAS VCI-Q 1000 is a used machining center — sometimes referred to as a machining centre or CNC milling centre — a type of machine tool designed to perform multiple metal-cutting operations such as milling, drilling, boring, and tapping on a workpiece within a single setup. MAS, the Czech machine tool manufacturer, has long been associated with the production of precision metal-cutting machinery serving industries including automotive, aerospace, and general engineering.
This particular machine was originally built in 2002 and underwent a comprehensive retrofit in 2022, bringing it up to a significantly more modern specification. Since that modernisation, it has accumulated just 1,100 spindle hours, reflecting relatively light use for a machine of its capability. The control system fitted as part of the retrofit is a Heidenhain TNC 620, paired with an HR 520 handwheel unit — a current-generation conversational and DIN/ISO control widely regarded for its precision and ease of use in workshop environments.
The machining envelope covers 1,000 mm in X, 600 mm in Y, and 700 mm in Z, providing a substantial working volume suitable for medium to large prismatic components. The spindle accepts ISO 40 tooling, is rated at 17 kW, and reaches a maximum speed of 10,000 RPM. Through-spindle coolant is available at 20 bar, enabling efficient chip evacuation and extended tool life when machining at depth. Tool changing is handled by an automatic tool changer with a capacity of 20 positions.
The machine is equipped with a Renishaw TS460 touch-trigger spindle probe paired with an SE660 signal transmission unit, allowing in-process measurement and part-setting directly on the machine. Included with the listing are a selection of accessories comprising a machine vice and tool holders. The machine is described as currently in use and regularly maintained, and is located in Slovakia.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
