2015 - Mazak VTC-800-30SR Machining Center()
- Listing No
- 943983
- Year
- 2015
- Manufacturer
- Mazak
- Model
- VTC-800-30SR
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
A CNC vertical long-bed machining center Mazak is available. Travel X/Y/Z: 3000mm/800mm/720mm, B-axis: 110°, C-axis: 360°, table diameter: 600mm, long-bed table dimensions X/Y: 3500mm/820mm, max. table load: 2500kg, spindle interface: BT40, speed: 18000rpm, rapid traverse: 50m/min, tool stations: 48, coolant pressure: 70bar. Machine dimensions X/Y/Z: approx. 5250mm/3650mm/3200mm, weight: approx. 16100kg, control: Mazatrol Matrix 2, spindle hours: 18502h. Including rotary table Nikken CNC 601MA, high-pressure coolant, center partition wall, Renishaw probe, touch probe RMP 60Q, CAD/CAM software Topsolid 7.18 and postprocessor. Documentation available. An on-site inspection is possible. Gboc Emcrsx Ih Dmspog Request more information Request more information Already requested
About this machine
This Mazak VTC-800-30SR is a used vertical machining center — sometimes referred to as a VMC — manufactured in 2015 and currently located in Germany. Vertical machining centers are multi-axis CNC machine tools designed to cut, drill, mill, and bore metal and other materials with high precision, making them central equipment in aerospace, automotive, mould-making, and general engineering production. Mazak, formally Yamazaki Mazak, is one of the world's most widely recognised machine tool builders, known for producing CNC turning centers, machining centers, and multi-tasking machines that serve precision manufacturing industries globally.

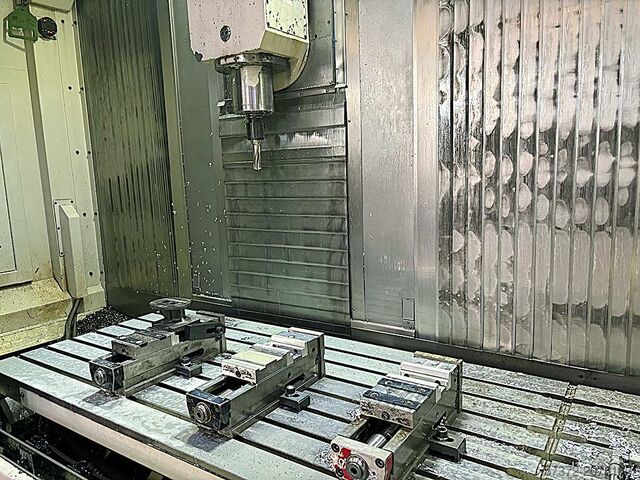

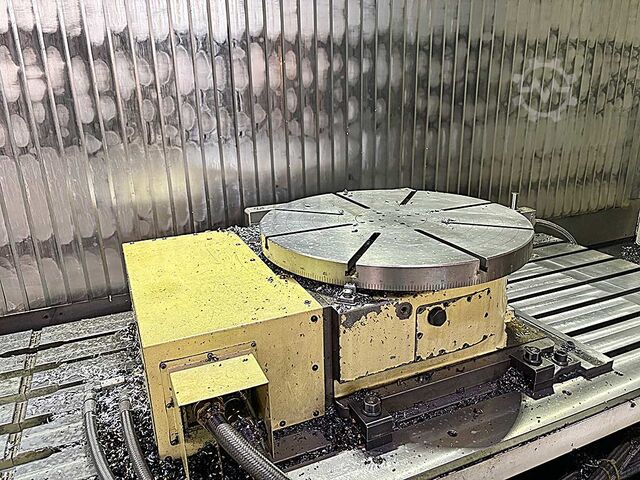

The machine offers a substantial work envelope, with X/Y/Z linear travels of 3,000 mm, 800 mm, and 720 mm respectively, supported by a long-bed table measuring 3,500 mm by 820 mm. The table accepts a maximum load of 2,500 kg, making it well suited to large or heavy workpieces. A B-axis with 110° of travel and a full 360° C-axis provide multi-directional cutting capability, while the integrated rotary table is a Nikken CNC 601MA with a 600 mm diameter, further extending the machine's five-axis positioning range.
The spindle uses a BT40 interface and reaches a maximum speed of 18,000 rpm, supporting a wide range of cutting operations from heavy roughing to fine finishing. Rapid traverse is 50 m/min, contributing to short non-cutting cycle times. The automatic tool changer accommodates 48 stations, allowing complex parts to be machined with minimal interruption. High-pressure coolant is delivered at 70 bar, improving chip evacuation and tool life during demanding cutting operations.

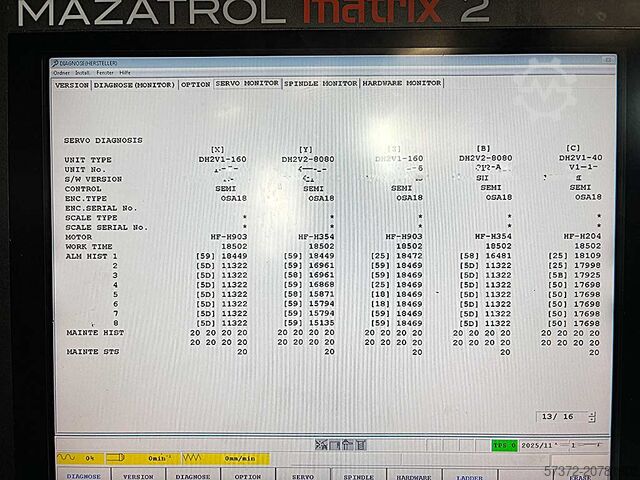

Control is provided by a Mazatrol Matrix 2 CNC unit, Mazak's conversational and EIA/ISO-capable control system. The spindle has logged 18,502 hours of use. The machine measures approximately 5,250 mm by 3,650 mm by 3,200 mm and weighs approximately 16,100 kg.
The package includes a centre partition wall, a Renishaw RMP 60Q touch probe for in-process measurement, CAD/CAM software Topsolid 7.18 with an associated postprocessor, and documentation. An on-site inspection is available.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
