2003 - Mikron VCE PRO V3 Machining Center()
- Listing No
- 956531
- Year
- 2003
- Manufacturer
- Mikron
- Model
- VCE PRO V3
- Condition
- Used
- Location
- Portugal
- Price
- POA
- Description
-
GENERAL DIMENSIONS: 3000x2500x2790 mm OVERALL DIMENSIONS: 3000x2500x2790 mm PRESSURE: 20 BAR TABLE SIZE: 1220 x 620 mm WEIGHT: 8000 Kg X AXIS TRAVEL: 1200 mm Y AXIS TRAVEL: 600 mm Z AXIS TRAVEL: 670 mm MIKRON VCE 1200 Pro. (Note: missing cards on the electrical panel)
About this machine

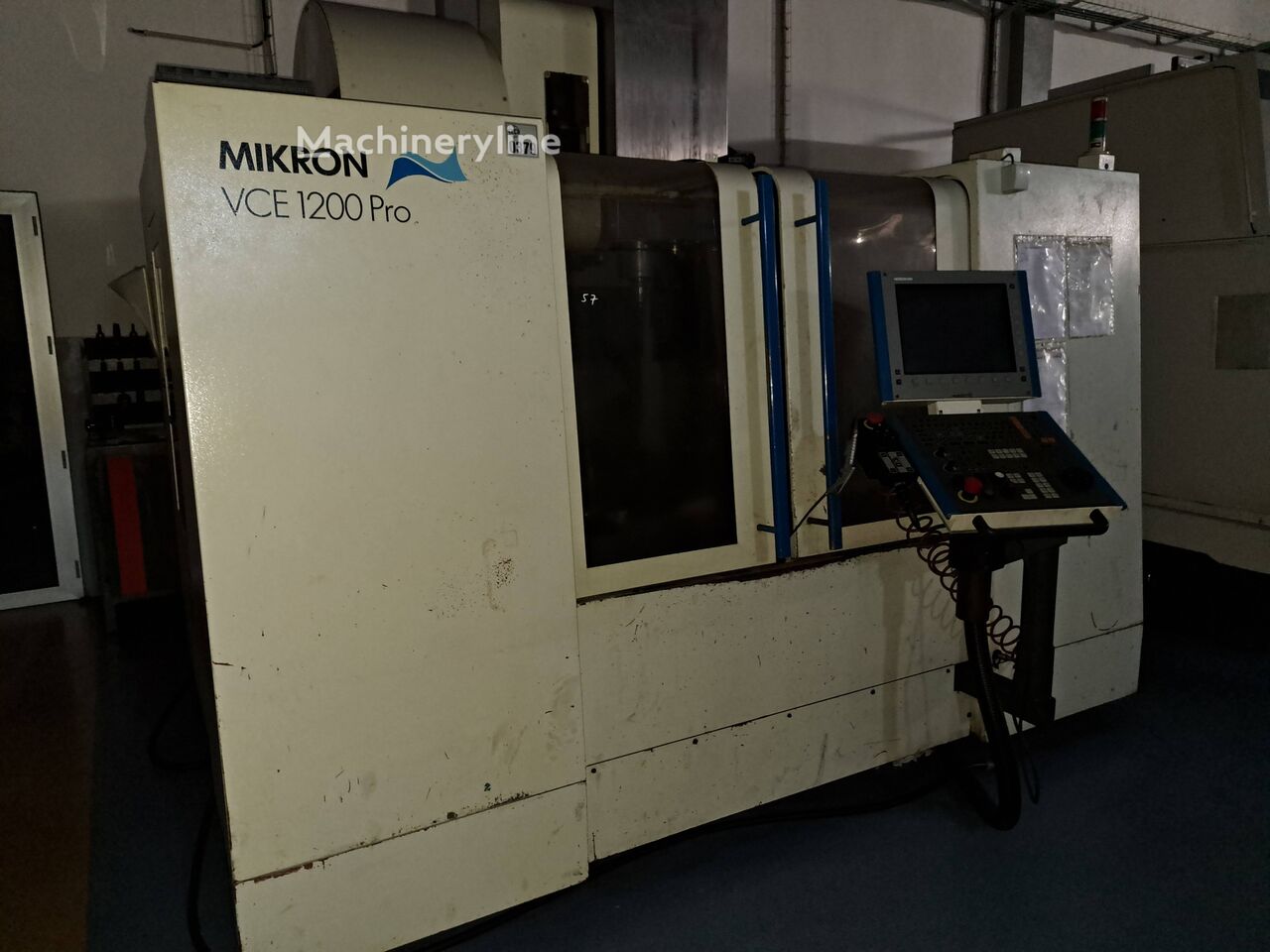

This Mikron VCE PRO V3 is a used machining center — also referred to as a CNC machining center or vertical machining center — a machine tool designed to perform multiple precision metal-cutting operations such as milling, drilling, boring, and tapping on a workpiece, typically under computer numerical control. Mikron is a Swiss manufacturer with a long-standing reputation in high-precision machine tools, serving industries such as aerospace, automotive, medical technology, and general engineering.
Dating from 2003, this machine is located in Portugal and is offered in used condition. The seller notes that cards are missing from the electrical panel, which buyers should factor into their assessment prior to acquisition.

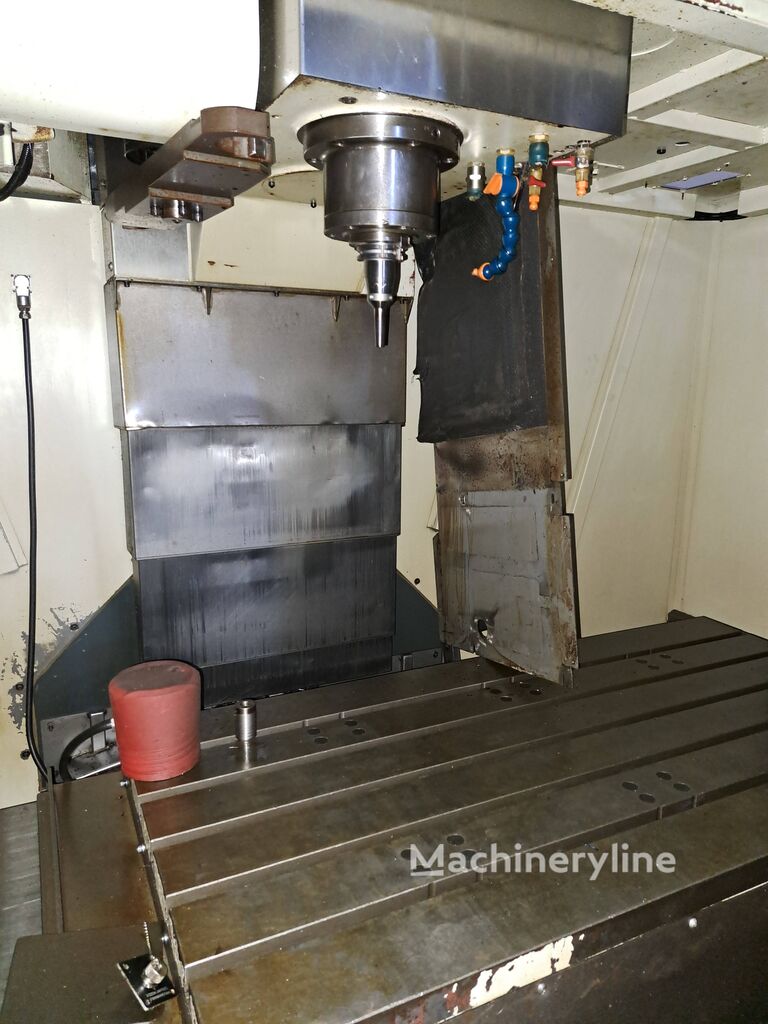

The work envelope is defined by axis travels of 1,200 mm in X, 600 mm in Y, and 670 mm in Z, providing a substantial cutting volume suited to medium and large-format workpieces. The table measures 1,220 mm by 620 mm, offering generous clamping area consistent with the X-axis travel. A system pressure of 20 bar is specified, relevant to coolant, clamping, or pneumatic circuits depending on the machine's configuration.
The overall footprint of the machine is 3,000 mm by 2,500 mm with a height of 2,790 mm, and the machine weighs 8,000 kg, reflecting the robust cast construction typical of machining centers in this class. These dimensions and mass are important considerations for floor loading, installation planning, and transportation logistics.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
