1986 - Molteni HCC 1500SV – D Mixer Blender()
- Listing No
- 1183597
- Year
- 1986
- Manufacturer
- Molteni
- Model
- HCC 1500SV - D
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-

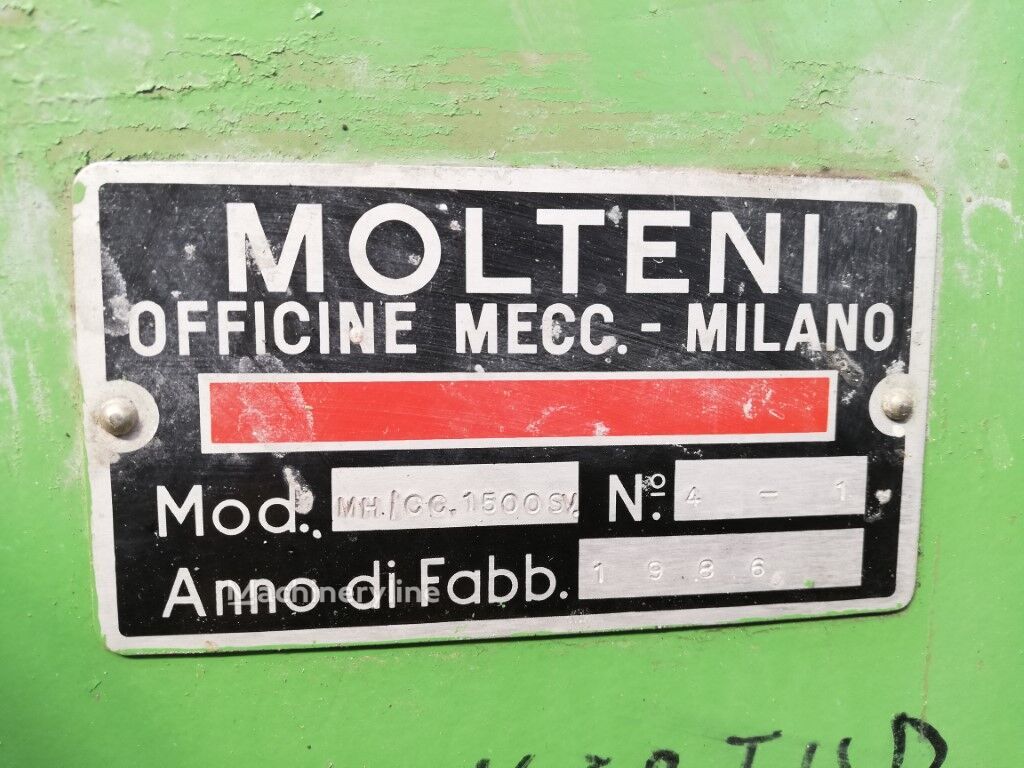

Location: Netherlands Type: MH/CC.1500 SV No: 4-1 Material: Mild steel Volume: 1500 Ltr Dissolver: check Double shaft: check With cover: check With scraper: check Hydraulic drive: check With hydraulic unit: check With pans: 2x Capacity: 1500l Pan sizes: Dia. 1295 mm With jacket: check 1 vessel is with jacket With hydraulic lifting: check With switchgear: check (as is) Total height: 4 m Floorspace: 2,5x1,5 m Extra Specifications: the controls of this machine were recently renewed Linde hydraulic unit with motor, 90 Kw, 1480 rpm, 380 volt with two vessels: - Silver one: Outer diameter top flange 1355 mm Inside diameter 1295 mm Wall thickness 8 mm - Green one: Outer netto gewicht: 5200 + 1400 kg General Main Features Specified Features - Dissolver Information
About this machine

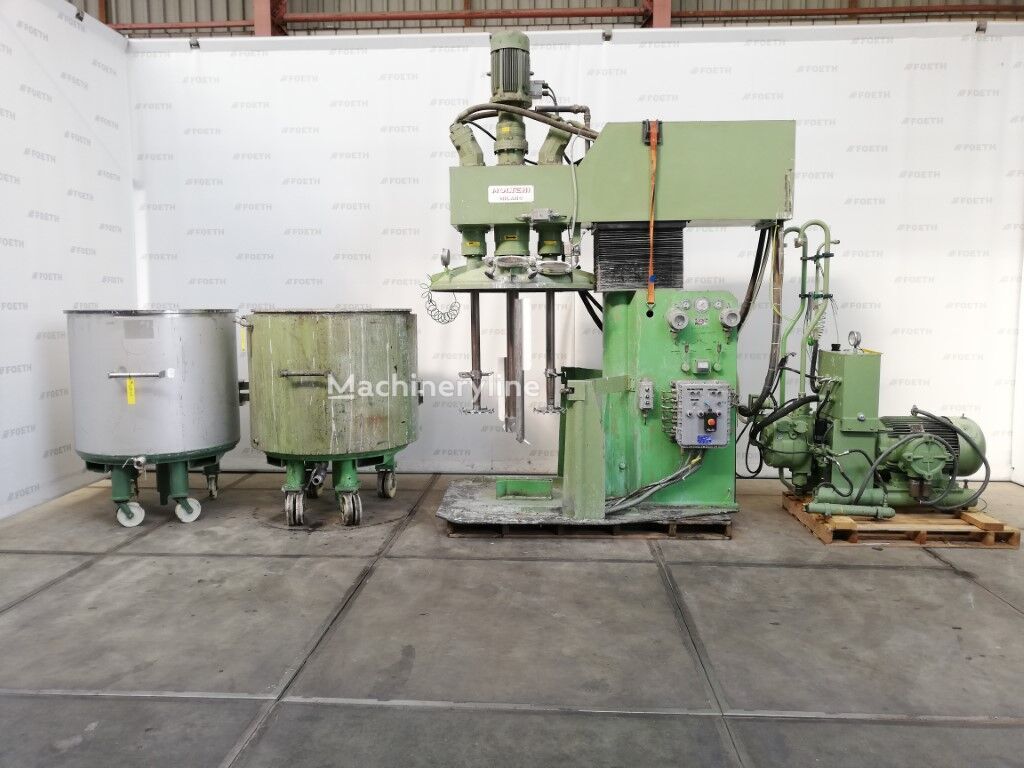

This Molteni HCC 1500SV - D is a mixer and blender — sometimes referred to as a disperser or high-speed dissolver mixer — used in the industrial processing of paints, coatings, adhesives, inks, and similar viscous or particle-laden materials. Molteni is a recognised manufacturer of industrial mixing and blending equipment, supplying process industries where controlled, heavy-duty agitation is required.

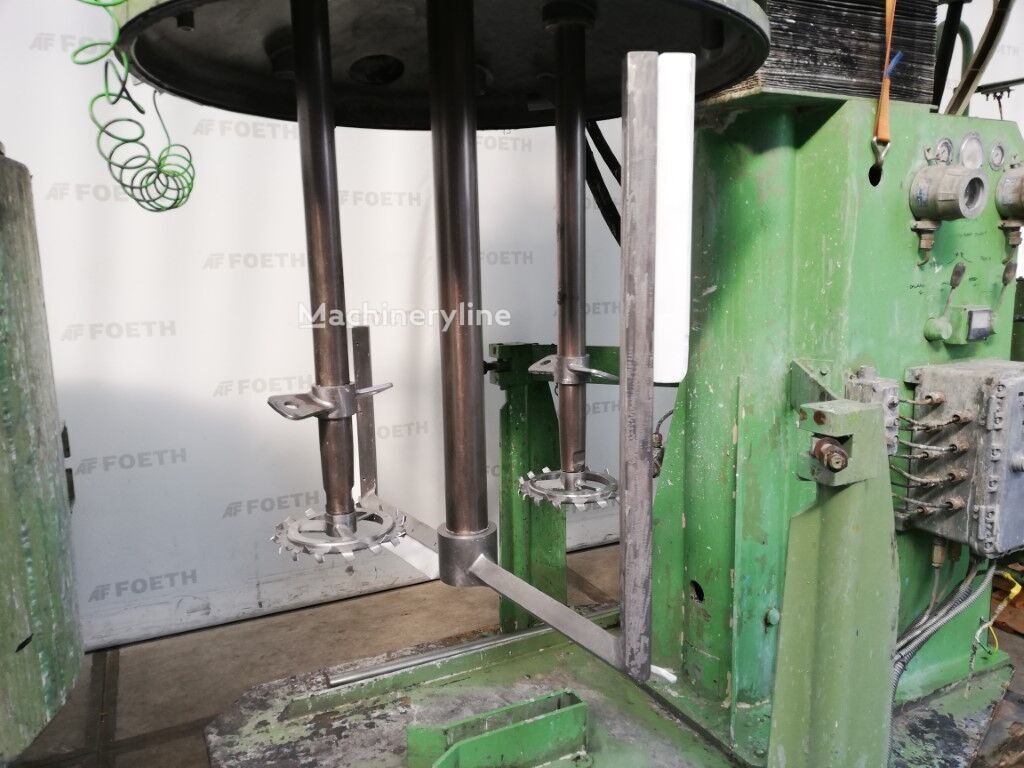

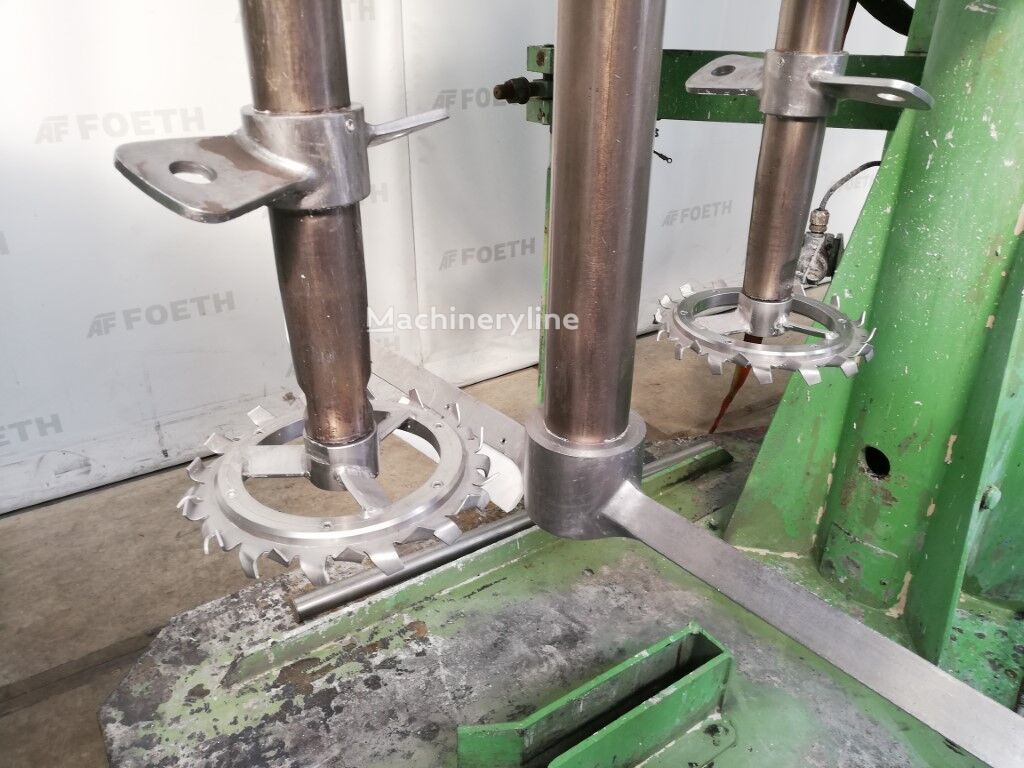

This is a substantial, dual-shaft machine built around a 1,500-litre working capacity. It combines a dissolver with a double-shaft mixing arrangement and is fitted with a cover and an integrated scraper system, making it well suited to demanding batch processes where thorough wall and base contact is needed. The drive system is fully hydraulic, powered by a Linde hydraulic unit with a 90 kW motor running at 1,480 rpm on 380 volt supply. The seller notes that the controls were recently renewed, meaning the electrical switchgear has been updated, though it is supplied on an as-is basis.
The machine is constructed from mild steel and stands to a total height of 4 metres, with a floor footprint of 2.5 × 1.5 metres. Hydraulic lifting is included, allowing the mixing head to be raised and lowered over the vessels. The net weight of the machine itself is approximately 5,200 kg, with the vessels adding a further 1,400 kg.

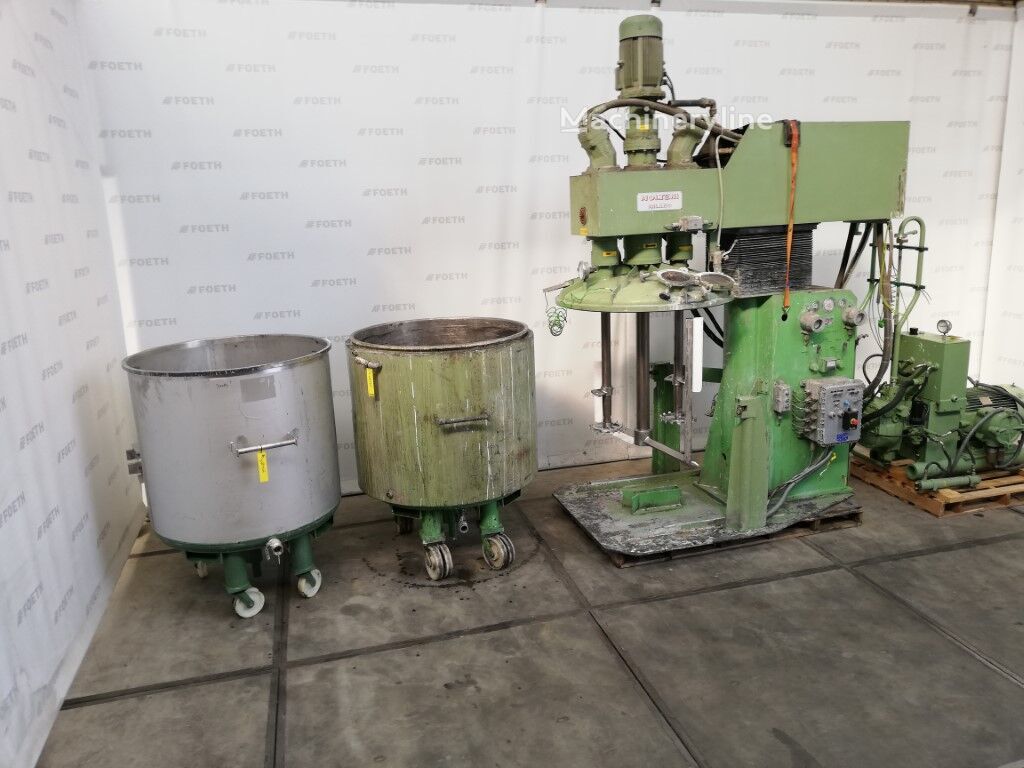

Two interchangeable pans are included, each with an inside diameter of 1,295 mm and a top flange outer diameter of 1,355 mm. The vessel walls are 8 mm thick. One vessel — described as the silver one — is a standard open pan, while the second, green vessel is fitted with a jacket, enabling temperature-controlled processing through heating or cooling media. Both vessels share the same 1,295 mm internal diameter and are compatible with the machine's hydraulic lifting and locking system.
The machine dates from 1986, is offered in used condition, and is located in the Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
