Mori Seiki 2 Pallets 500 X 500 MM Machining Center()
- Listing No
- 962313
- Year
- Manufacturer
- Mori Seiki
- Model
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Type: MH-50 Chipconveyor B-axis gt indexing every 1° max workpiece dia and height: 900 x 900 mm nbsp Table dimensions: 500 x 500 mm (2x) Depth of throat (uprights--spindlecenter): 50 > 700 mm Admission in spindle (ISO): BT-50 Power on the spindle: 15/11 kW Control: Fanuc Toolstore: yes Tools: 60 positions Frequency : 6000 rpm Number of pallets : 2x ACCESSORIES: optional
About this machine
This listing offers a used machining center — sometimes referred to as a machining centre or CNC machining centre — located in Belgium. Machining centers are multi-axis machine tools designed to perform a range of metal-cutting operations, including milling, drilling, boring, and tapping, typically under CNC control and with automatic tool changing. Mori Seiki is a well-established Japanese manufacturer with a long-standing reputation for precision machine tools, serving industries such as aerospace, automotive, medical, and general engineering.

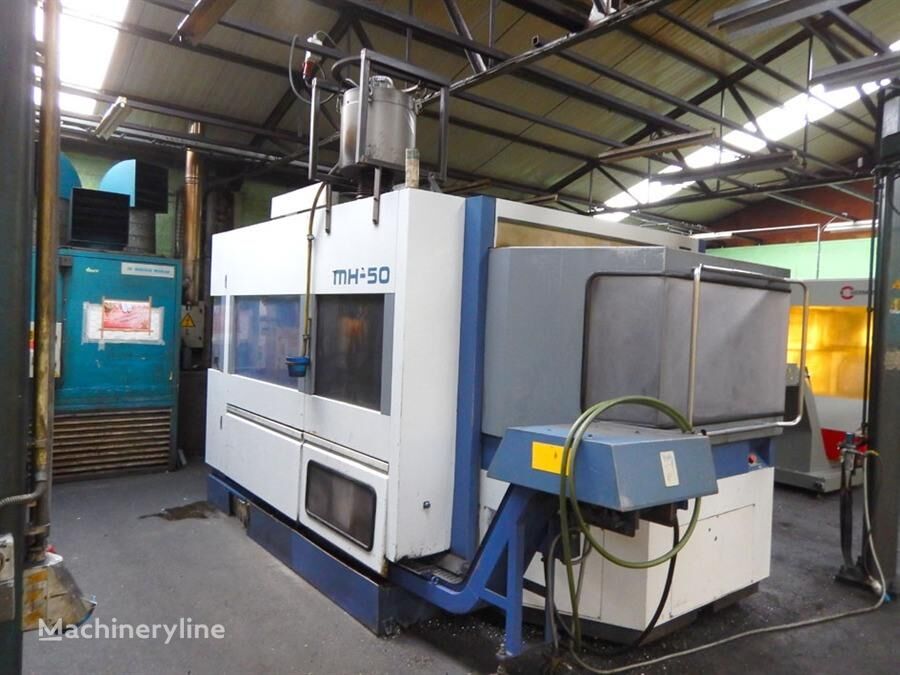

The machine is identified as a Type MH-50 horizontal machining center equipped with two pallets, each measuring 500 × 500 mm, allowing one workpiece to be set up or loaded while the other is being machined — a configuration that significantly reduces non-cutting time and improves throughput. The maximum workpiece diameter and height supported is 900 × 900 mm, and the depth of throat from the uprights to the spindle centre ranges from 50 to 700 mm, indicating a generous working envelope.
The spindle accepts BT-50 toolholders (ISO taper) and is driven by a 15/11 kW spindle motor, with a maximum rotational speed of 6,000 rpm. The machine is fitted with a B-axis with 1° indexing increments, enabling angular positioning of the workpiece across a full range of orientations to support multi-face machining in a single setup.

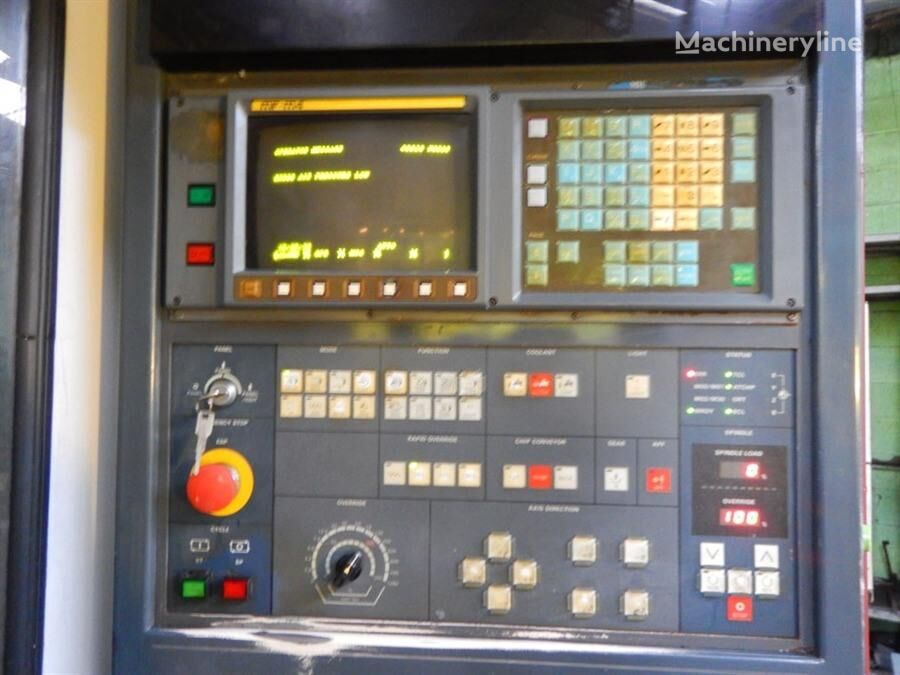

Tool management is handled by an on-board toolstore with 60 positions, providing substantial capacity for complex, multi-operation work without manual intervention. A chip conveyor is also included, keeping the work area clear during continuous operation. The machine runs on a Fanuc CNC control system, a widely used and well-supported platform in the machining industry. Accessories are listed as optional.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
