2019 - MT Cut Machining Center()
- Listing No
- 943699
- Year
- 2019
- Manufacturer
- MT Cut
- Model
- UDS80H-5A
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Control Unit Brand HEIDENHAIN Model TNC 640 Main Drive Number of axis 5 Gbswv Hex D In Uoiihog Spindle Speed 20000 RPM Spindle motor power 35 kW Tool taper HSK 63 This 5 axis MTcut UDS80H-5A was manufactured in 2019. It features a 20,000 rpm spindle, 120 Nm torque, and 35 kW drive power. Equipped with a HSK63 tool holder, 96-position tool changer, and a Kessler rotary tilting table with an 800 mm diameter. Includes Heidenhain TNC 640 control, 15" TFT screen, and Ethernet connectivity. Ideal for precision machining with its Heidenhain glass scales and BLUM laser tool measurement. Contact us for more information about this machine. Application Types Milling Request more information Request more information Already requested
About this machine

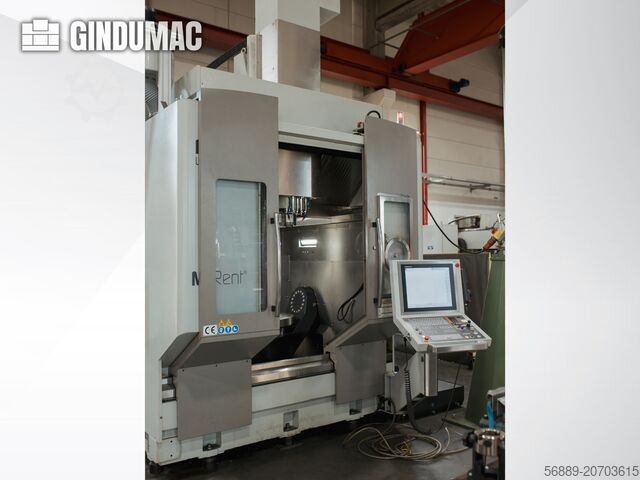

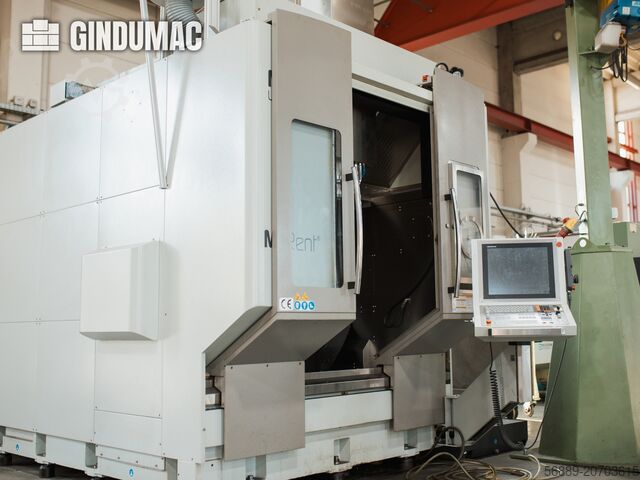

This MT Cut machining center — sometimes referred to as a CNC machining center or milling center — is a five-axis machine designed for high-precision milling operations across a wide range of materials and component geometries. Machining centers of this type are used throughout aerospace, automotive, mould-making, and general precision engineering industries, where complex multi-surface parts must be produced to tight tolerances in a single setup.

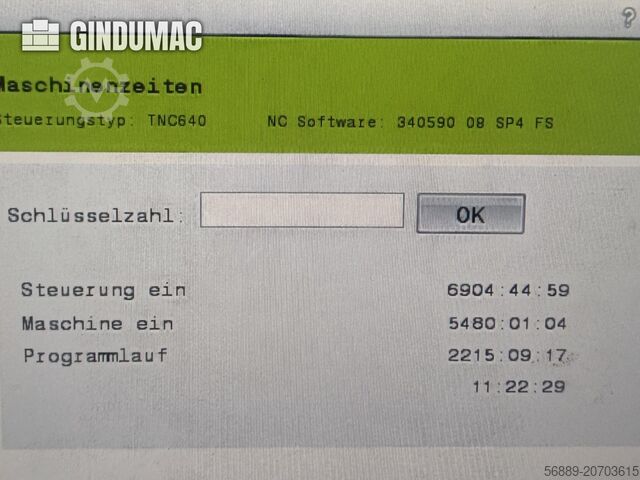

The machine was manufactured in 2019 and is offered here used, located in Germany. It is equipped with a Heidenhain TNC 640 control unit, one of the most widely specified and respected CNC controllers in precision machining, displayed on a 15-inch TFT screen and connected via Ethernet. Heidenhain glass scales are fitted for high-accuracy linear position feedback, contributing to the machine's suitability for demanding tolerance work.

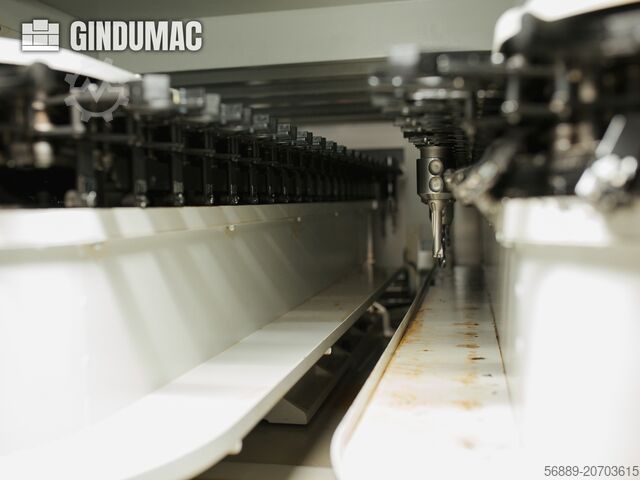

The spindle runs to a maximum of 20,000 RPM and is driven by a 35 kW motor, delivering 120 Nm of torque. Tooling is held via an HSK 63 interface, a precision taper system well suited to high-speed machining that provides strong rigidity and repeatability. An automatic tool changer with 96 positions is included, allowing extended unmanned or low-intervention production runs with a large selection of tools on hand.
The five-axis capability is supported by a Kessler rotary tilting table with an 800 mm diameter working surface, enabling simultaneous five-axis interpolation and complex part orientations without repositioning. Tool measurement is handled by a BLUM laser system, which allows non-contact tool length and breakage detection directly within the machine envelope.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
