1992 - Netzsch PMD-200 Mixer Blender()
- Listing No
- 1180522
- Year
- 1992
- Manufacturer
- Netzsch
- Model
- PMD-200
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: PMD-200 Working pressure: 0.4 Bar Vacuum possible: check Working pressure jacket: 2 Bar Material: Stainless steel 1.4301 (304) Volume: 1230 Ltr Motor: hydraulic drive unit 55,0 KW, 380 Volt (Ex) Closed stirring vessel: "Polymer Preparation Mixer" (1x) Capacity: 1230 Ltr Vessel sizes: dia. 1130x1250mm, Flat bottom Dished top side: check Manhole: dia. 300mm Top connections: (6x) Outlet: dia. 85mm With jacket: (150 Ltr) Max. temperature: jacket 95 Degr. C, Vessel 125 Degr. C With anchor stirrer: "scraper stirrer" Speed mixing shaft: 15 Rpm With homogeniser: "High speed disperser" hydraulic driven Mounted on legs: check General Pressure Main Features Specified Features - Stirring vessel Information
About this machine
This Netzsch PMD-200 is a used mixer and blender — sometimes referred to as a mixing vessel or blending tank — designed for the preparation and processing of viscous or polymer-based materials. Machines of this type are used across the chemical, polymer, and process industries wherever controlled mixing, dispersing, and homogenising of bulk liquid or semi-liquid products is required. Netzsch is a well-established German manufacturer with a long history of producing mixing, dispersing, and grinding equipment for demanding industrial and chemical applications.
The unit is a closed stirring vessel described by the seller as a Polymer Preparation Mixer, built from stainless steel grade ) and offering a working volume of 1,230 litres. The vessel measures 1,130 mm in diameter with a height of 1,250 mm and features a flat bottom and a dished top. A 300 mm diameter manhole provides access, and six connections are fitted to the top of the vessel. The product outlet has a diameter of 85 mm.
The vessel is jacketed, with a jacket volume of 150 litres. The working pressure of the vessel itself is 0.4 bar, with vacuum capability noted, and the jacket operates at a working pressure of 2 bar. Maximum permitted temperatures are 95 °C for the jacket and 125 °C for the vessel interior, allowing for controlled heating or cooling of the product during processing.

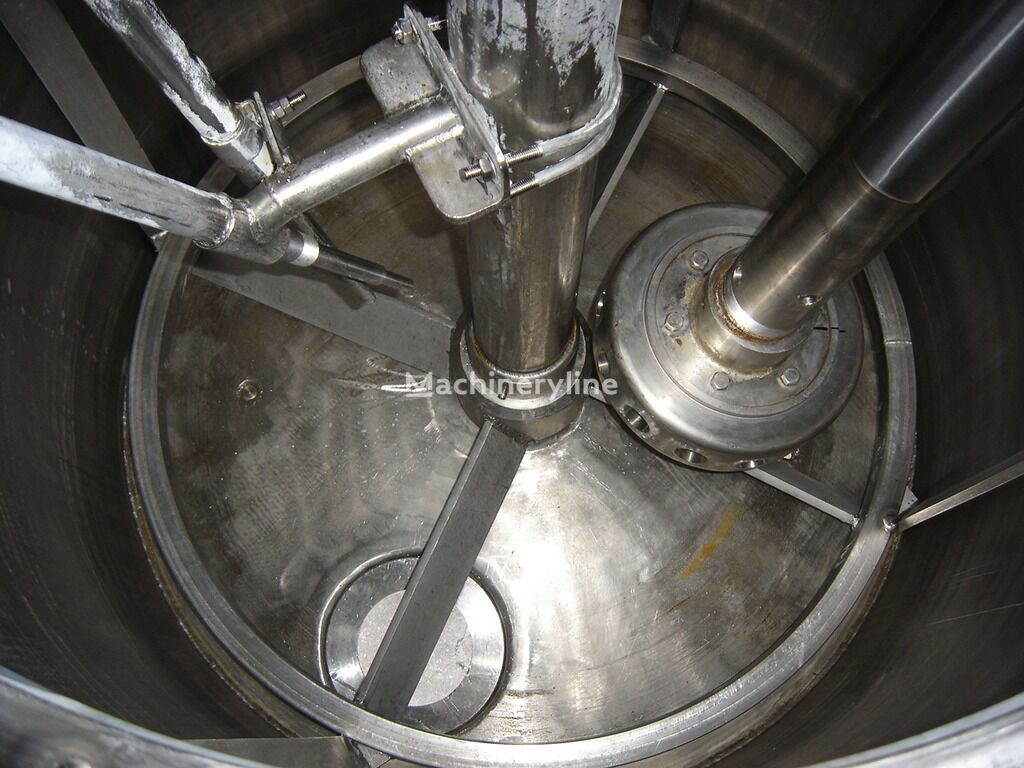

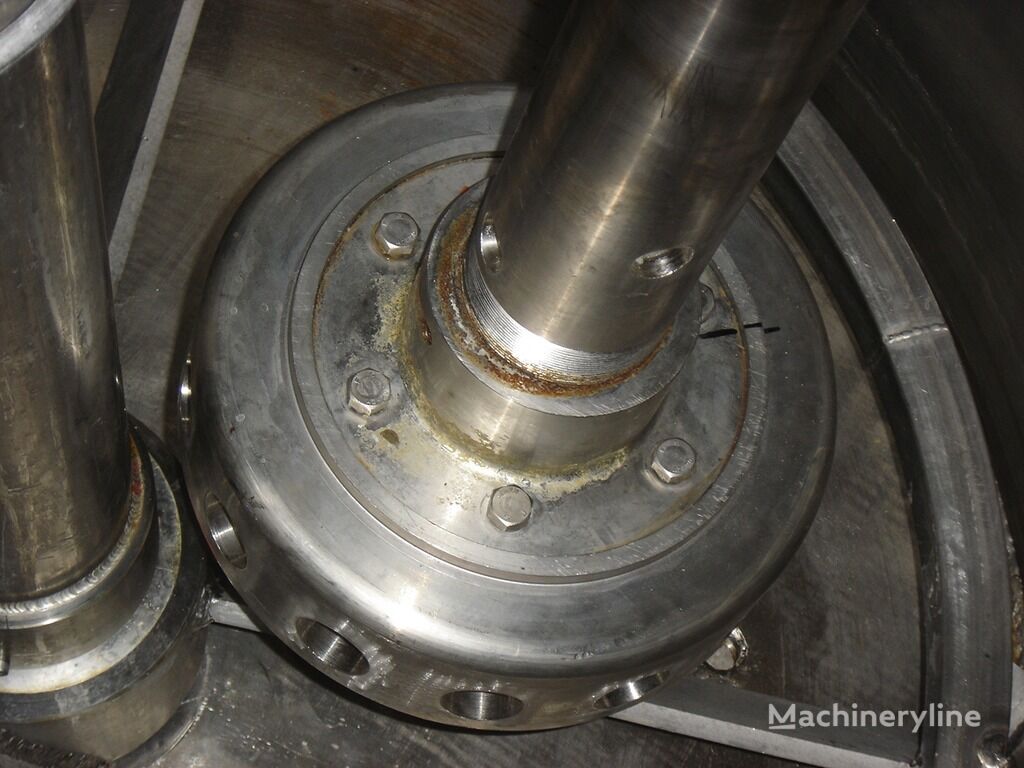

Mixing is carried out by an anchor-type scraper stirrer running at 15 rpm on the main mixing shaft. In addition, the unit is equipped with a high-speed disperser acting as a homogeniser, providing intensive shear and dispersion alongside the low-speed anchor agitation. Both the main stirrer and the homogeniser are powered by a hydraulic drive unit rated at 55.0 kW, 380 volt, which carries an Ex designation indicating suitability for use in potentially explosive atmospheres. The machine is mounted on legs and was built in 1992. It is currently located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
