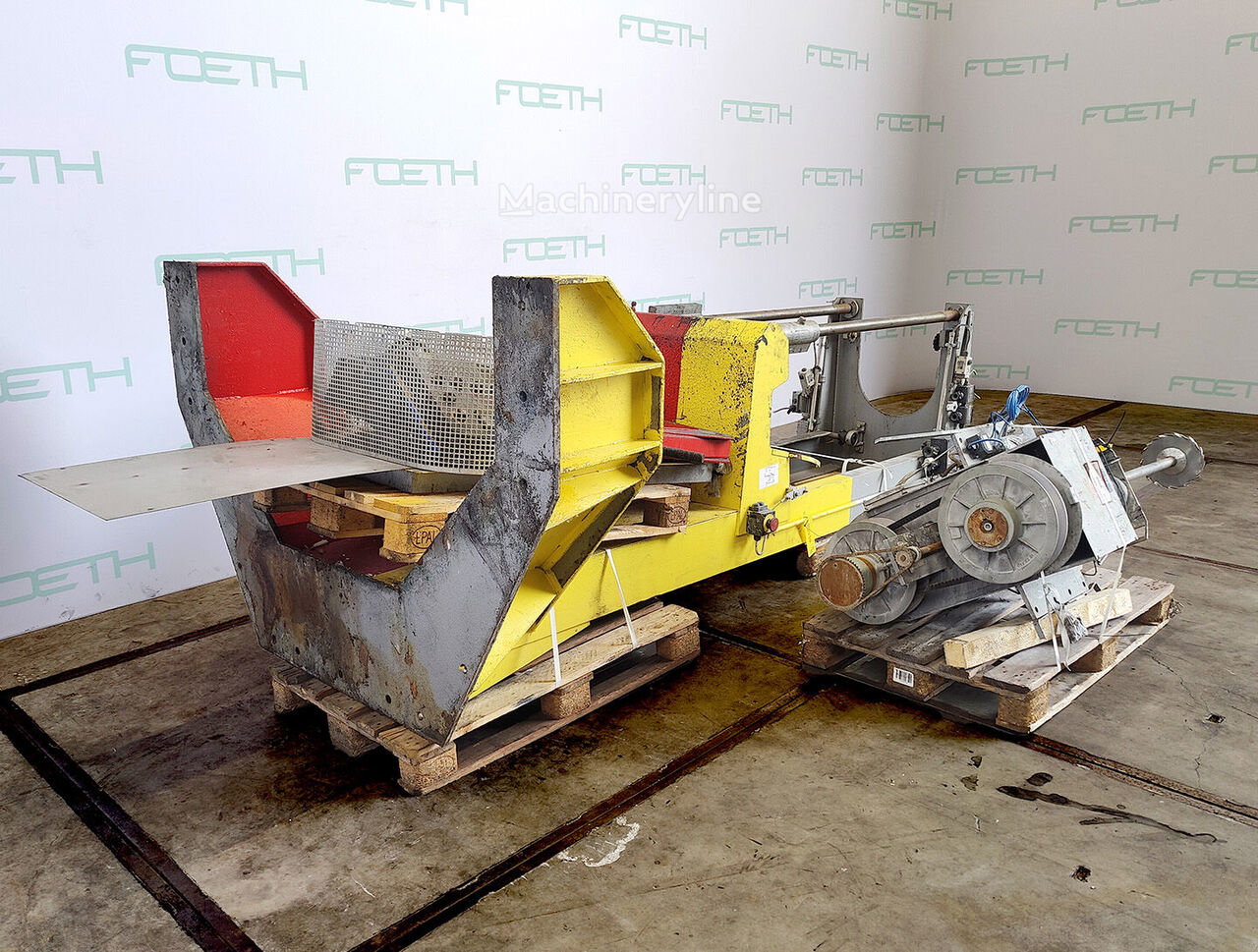

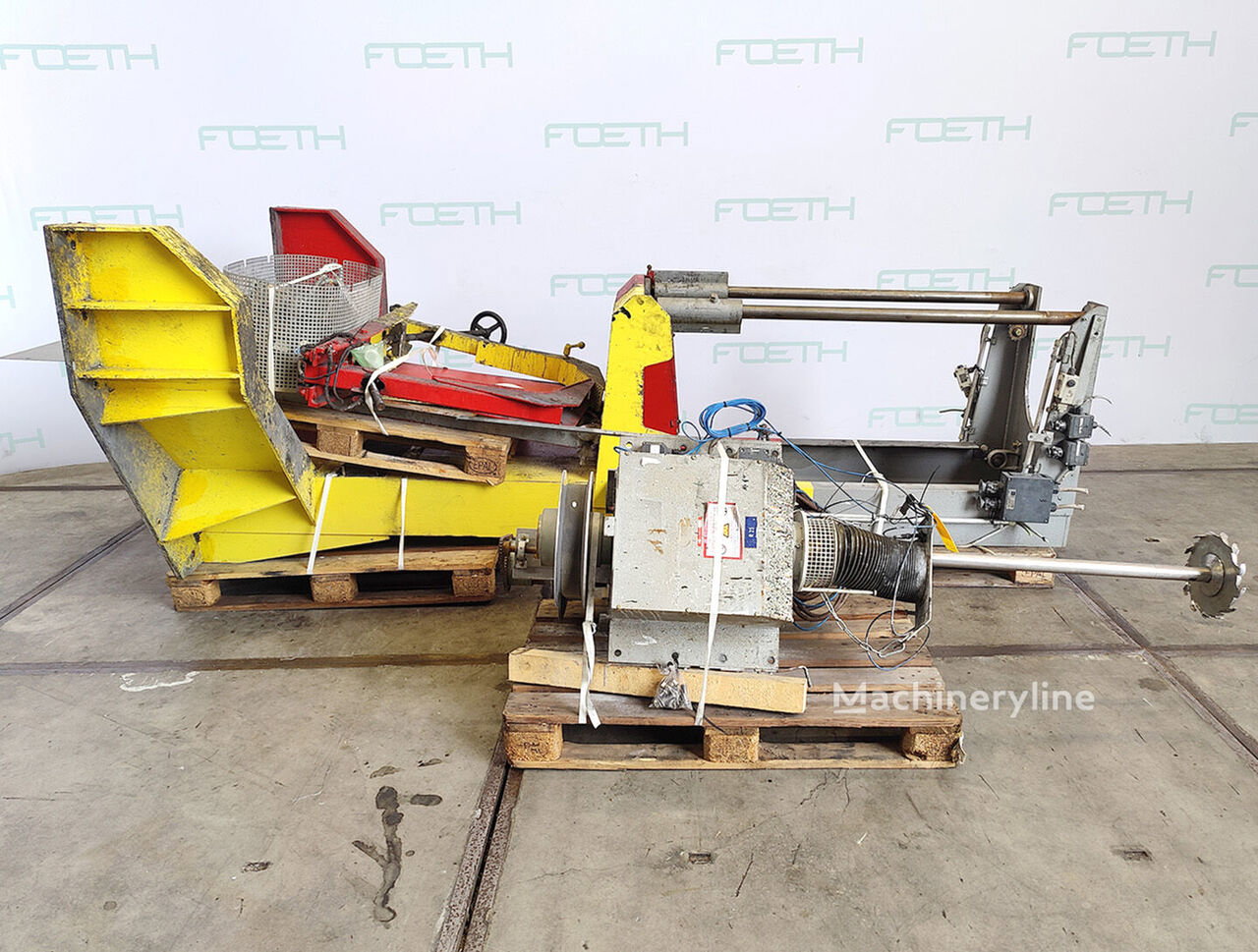

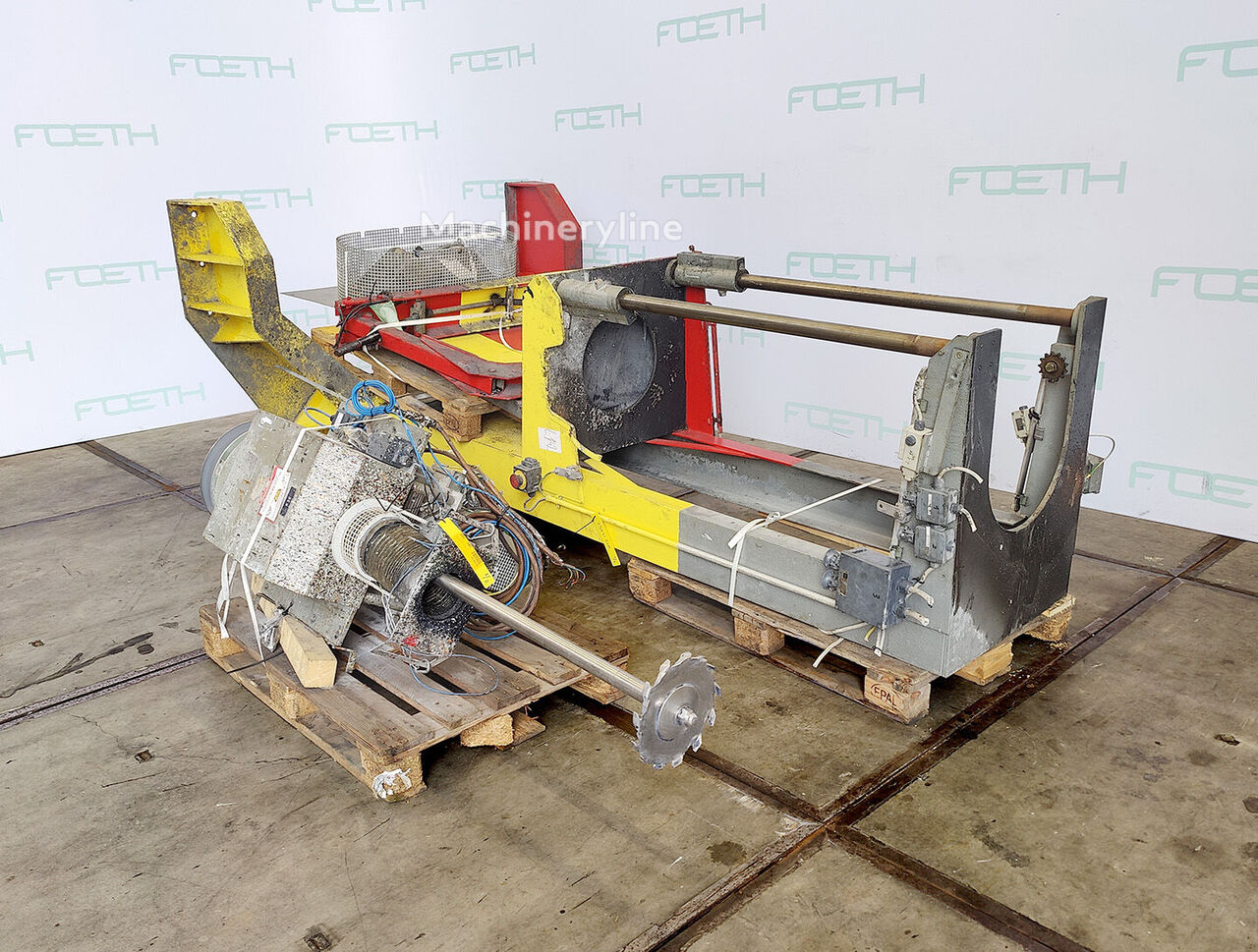

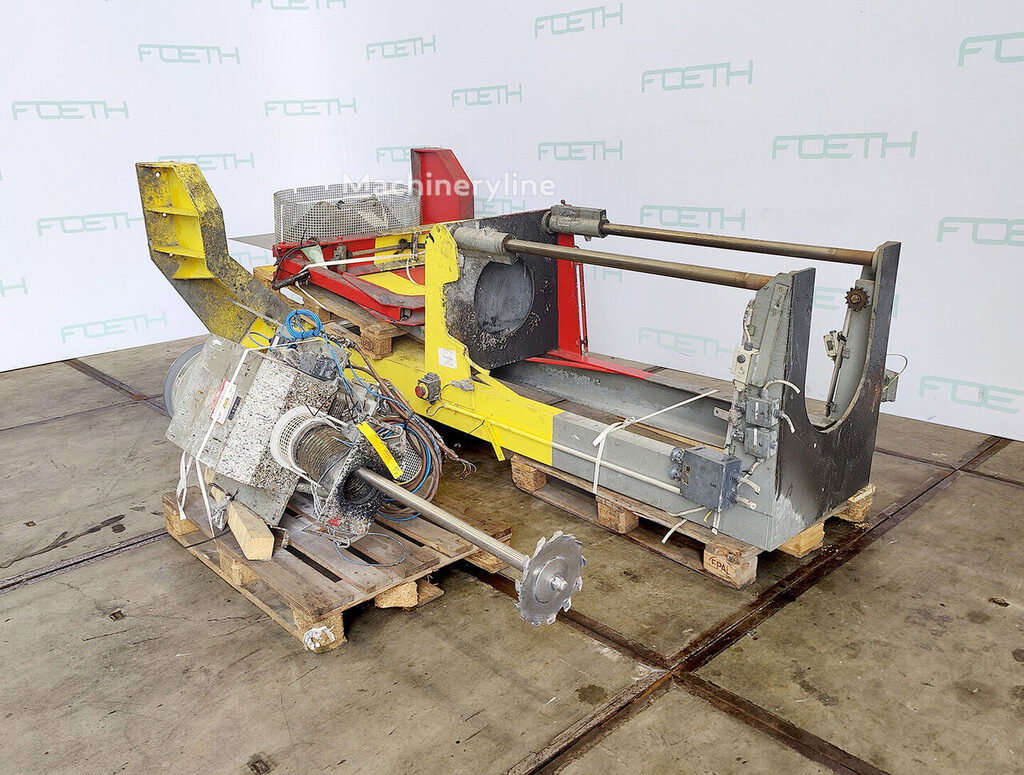

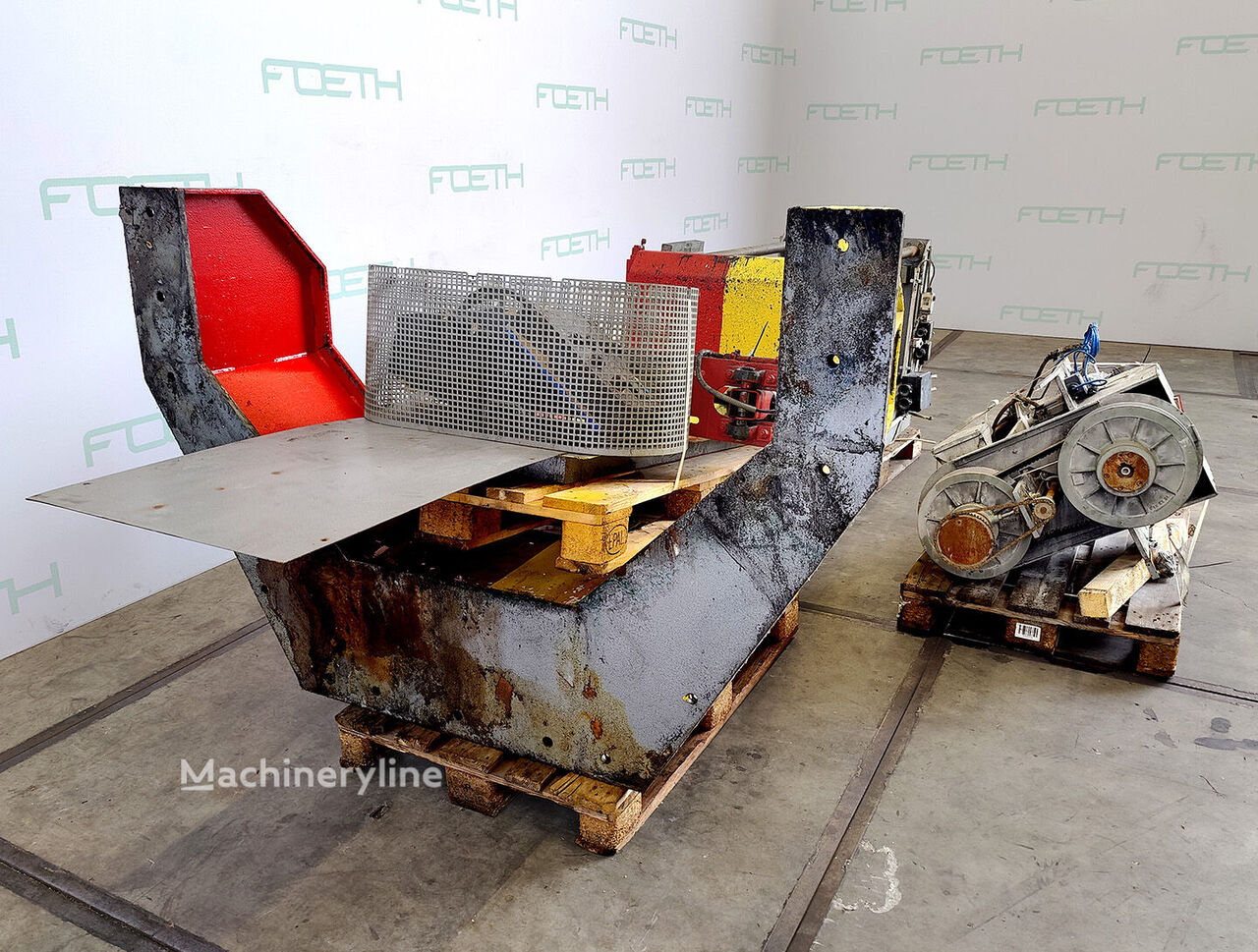

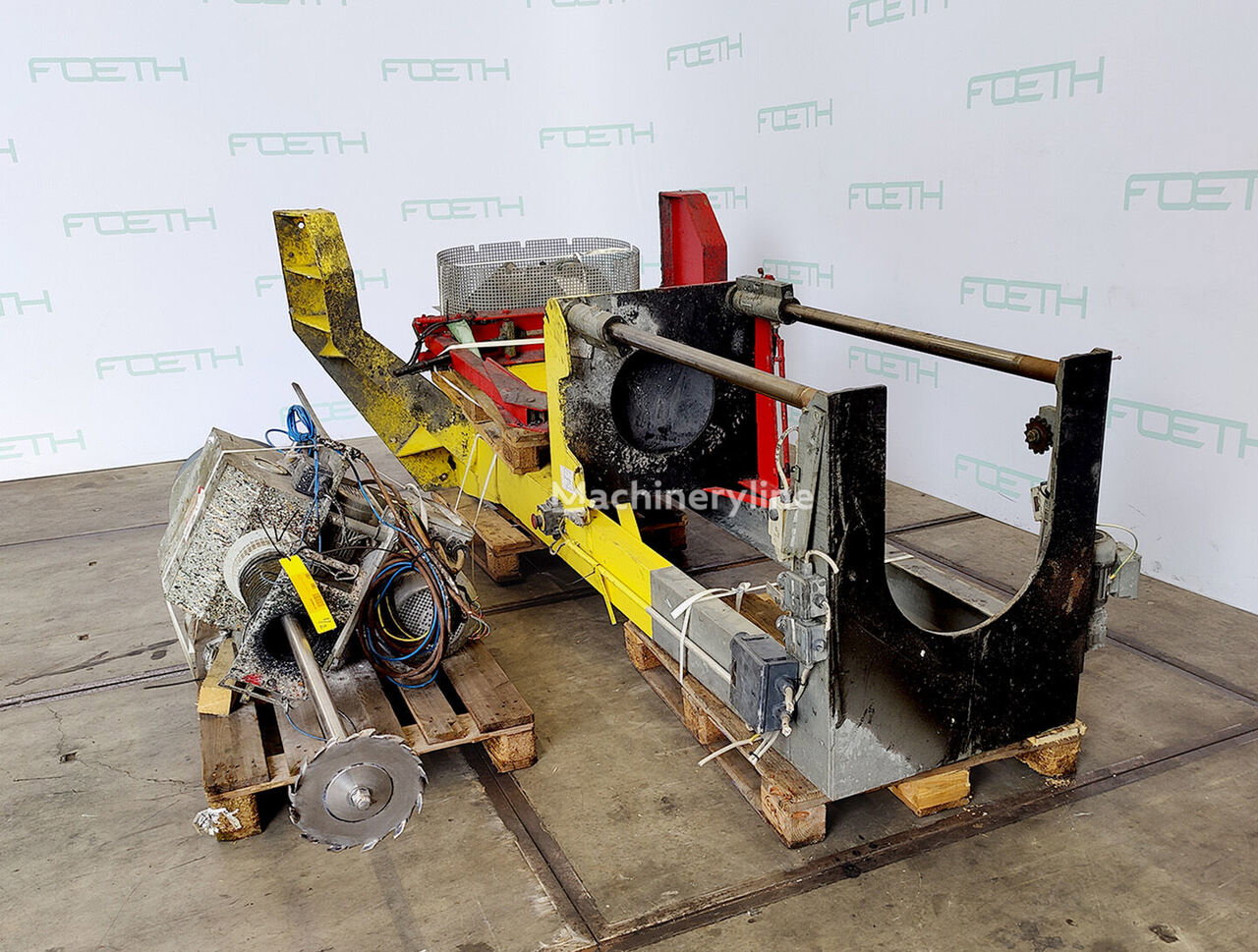

Pendraulik WDR 18 – Disso Mixer Blender()
- Listing No
- 1180352
- Year
- Manufacturer
- Pendraulik
- Model
- WDR 18 - Disso
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: WDR 18 Material: Stainless steel Motor: check Dissolver: check Shaft length: 1400 mm Disc diameter: max dia. 280 mm Between shaft and frame: 530 mm With variable speed drive: 300-1800 rpm With mechanical lifting: check With switch: check Floorspace: 0,78 x 1,0 m CE: check Total height: 3,52 m ATEX compatible: check Extra Specifications: Mixing disc and Stahl control Drum cap. 400-1350 kg, max drum dia. 600-900 mm General Main Features Specified Features - Dissolver Information
About this machine
This Pendraulik WDR 18 is a used mixer and blender — also commonly referred to as a dissolver or high-speed disperser — designed for mixing, blending, and dispersing viscous materials such as paints, coatings, adhesives, and similar industrial compounds. Pendraulik is a well-established German manufacturer specialising in laboratory and industrial mixing and dispersing equipment, serving sectors including coatings, inks, chemicals, and pharmaceuticals.
The machine is constructed in stainless steel, making it suitable for applications where hygiene or corrosion resistance is a requirement. It is equipped with a motor and a dissolving disc, and features a variable speed drive covering a range of 300 to 1,800 rpm, allowing the operator to tailor agitation intensity to the material being processed. Mechanical lifting is included, enabling the shaft and disc assembly to be raised and lowered over the drum. A mixing disc and a Stahl control panel are part of the configuration.
The dissolving shaft has a length of 1,400 mm, with a maximum disc diameter of 280 mm. The clearance between the shaft and the frame measures 530 mm. The machine accommodates drums with a capacity of 400 to 1,350 kg and a diameter ranging from 600 to 900 mm. Its floor footprint is 0.78 by 1.0 metres, and its total installed height is 3.52 metres.
The unit carries CE marking and is noted as ATEX compatible, indicating it is suitable for use in environments where explosive atmospheres may be present. It is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
