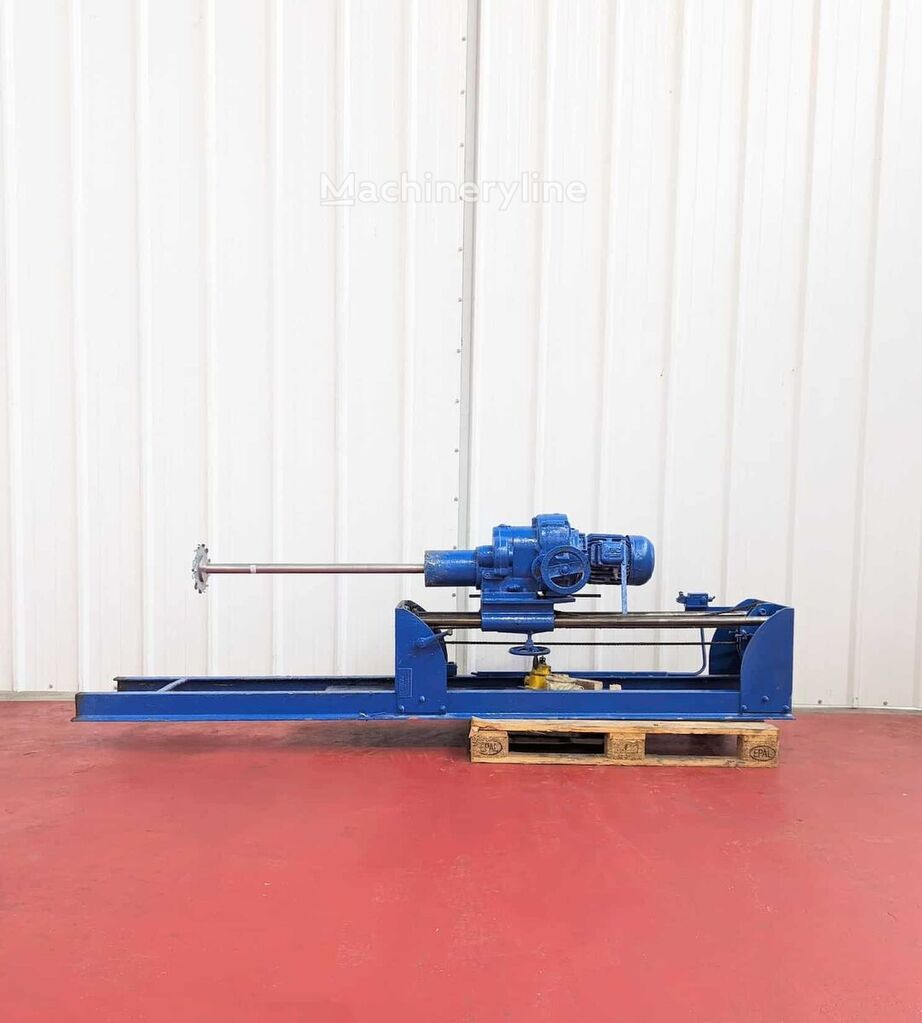

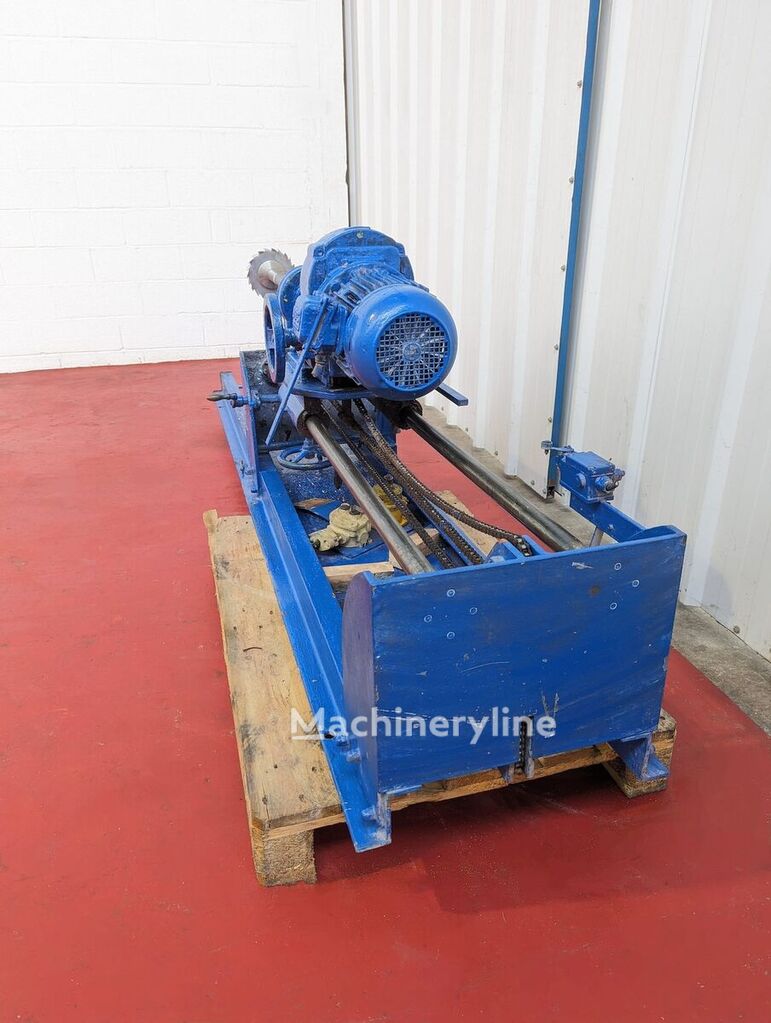

1978 - Pendraulik WRV49 Mixer Blender()
- Listing No
- 1178183
- Year
- 1978
- Manufacturer
- Pendraulik
- Model
- WRV49
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Manufacturer: Pendraulik Model: WRV49 Year : 1978 Type : stirrer / disolver Atex class : EExe G3 7 Motor : BBC Power : 3,6 KW Rotation: max 1500 rpm Wall support: manual Previous use: paint Stirring mechanism: dispersing tool Stirring head diameter: 200 mm Agitation shaft length: 105 mm Up/down travel: 150 mm Speed variation: mechanical
About this machine
The Pendraulik WRV49 is a used mixer and blender — sometimes referred to as a dissolver or high-speed disperser — designed for blending, mixing, and dispersing materials in industrial production processes. Pendraulik is a well-established German manufacturer with a long history of producing mixing and dispersing equipment for industries such as paints, coatings, inks, adhesives, and chemical processing, and this machine reflects that background directly: the seller notes that it was previously used in paint production.

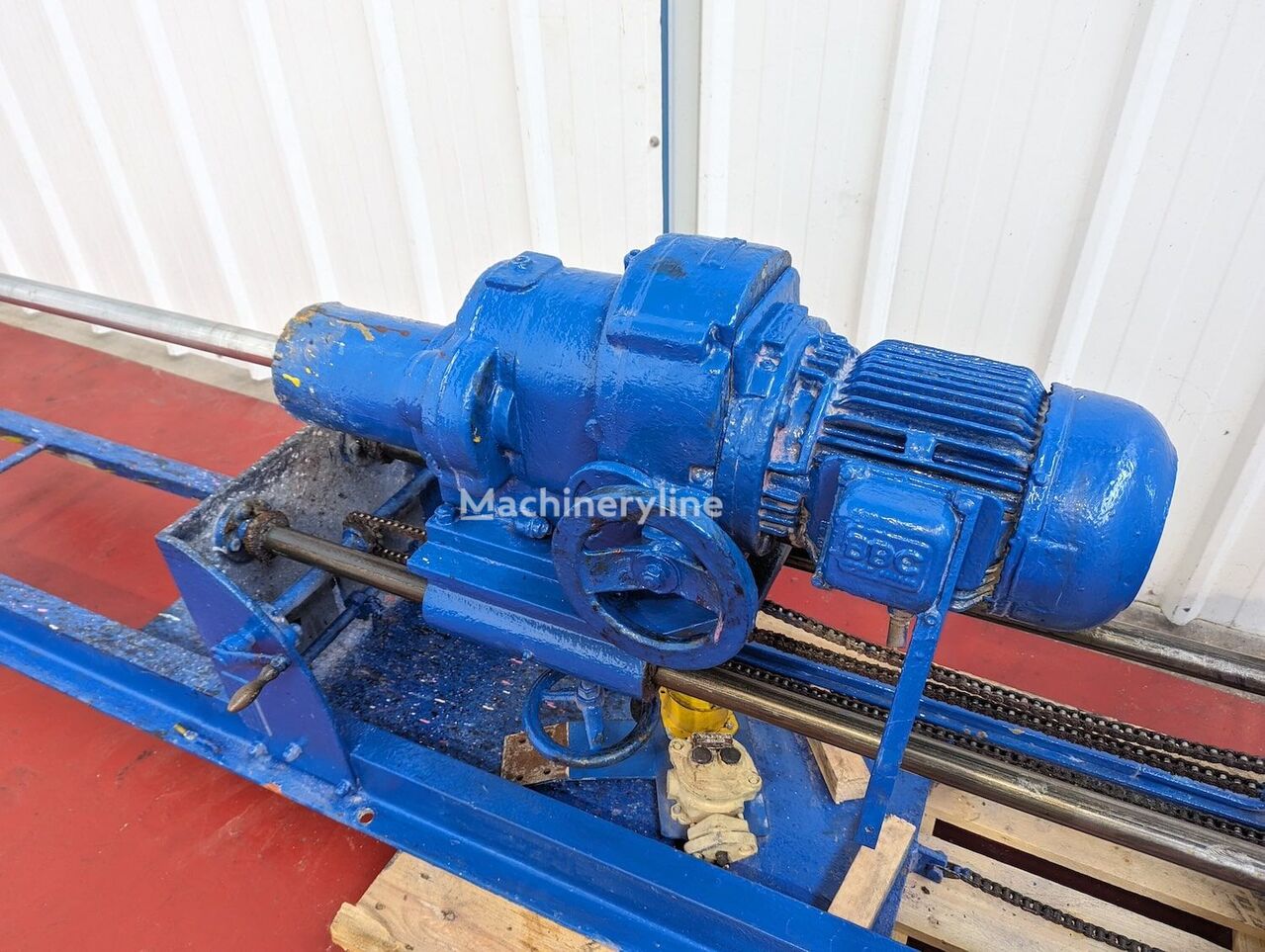

Built in 1978 and currently located in France, the machine is powered by a BBC motor rated at 3.6 kW, with a maximum rotational speed of 1,500 rpm. Speed variation is achieved mechanically, giving the operator control over the dispersing process without the need for electronic frequency conversion. The unit carries an ATEX classification of EExe G3 7, indicating it is certified for use in potentially explosive atmospheres, which is a relevant consideration in solvent-based paint and coating environments.

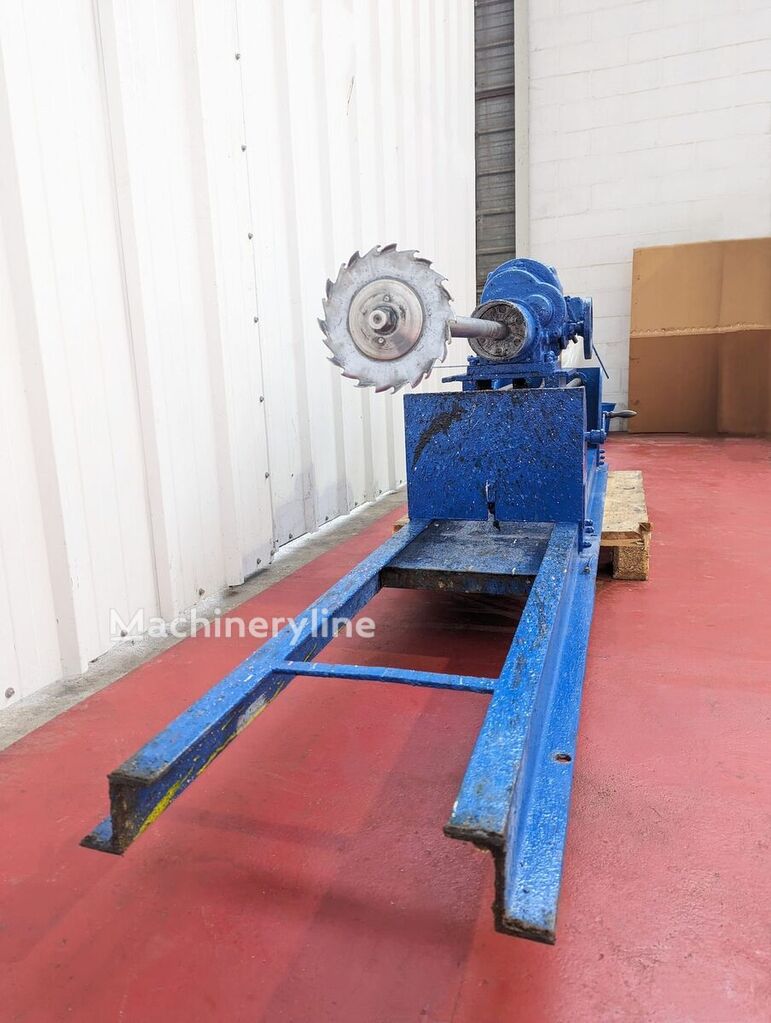

The stirring mechanism is a dispersing tool with a head diameter of 200 mm, mounted on an agitation shaft with a length of 105 mm. The head travels vertically over a range of 150 mm, and the wall support — which holds the unit in its working position — is operated manually. This wall-mounted, manually adjusted configuration is typical of smaller batch dissolvers used in workshop or production-line settings where the vessel is brought to the machine rather than the machine being repositioned between tanks.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
