About this machine

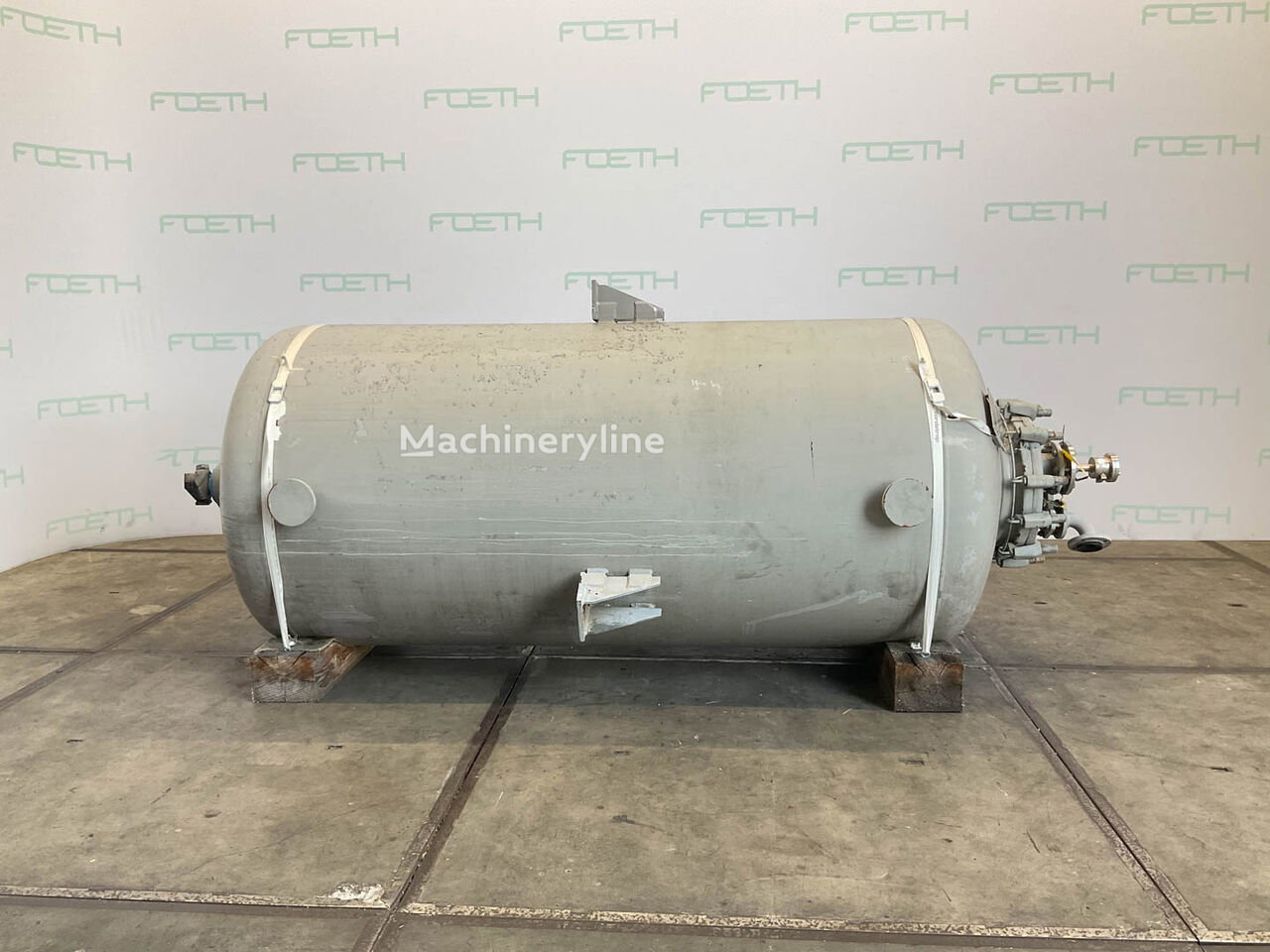

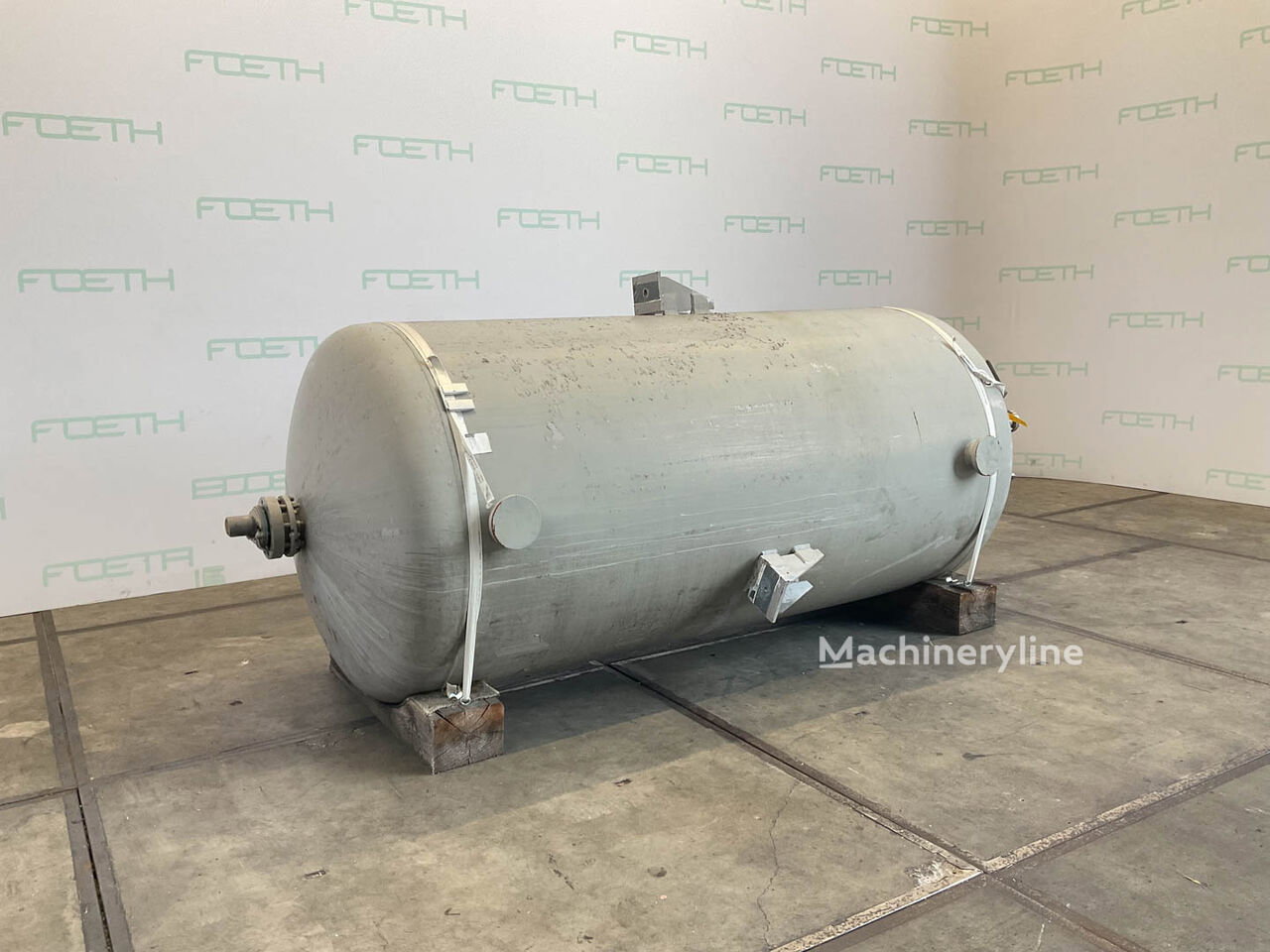

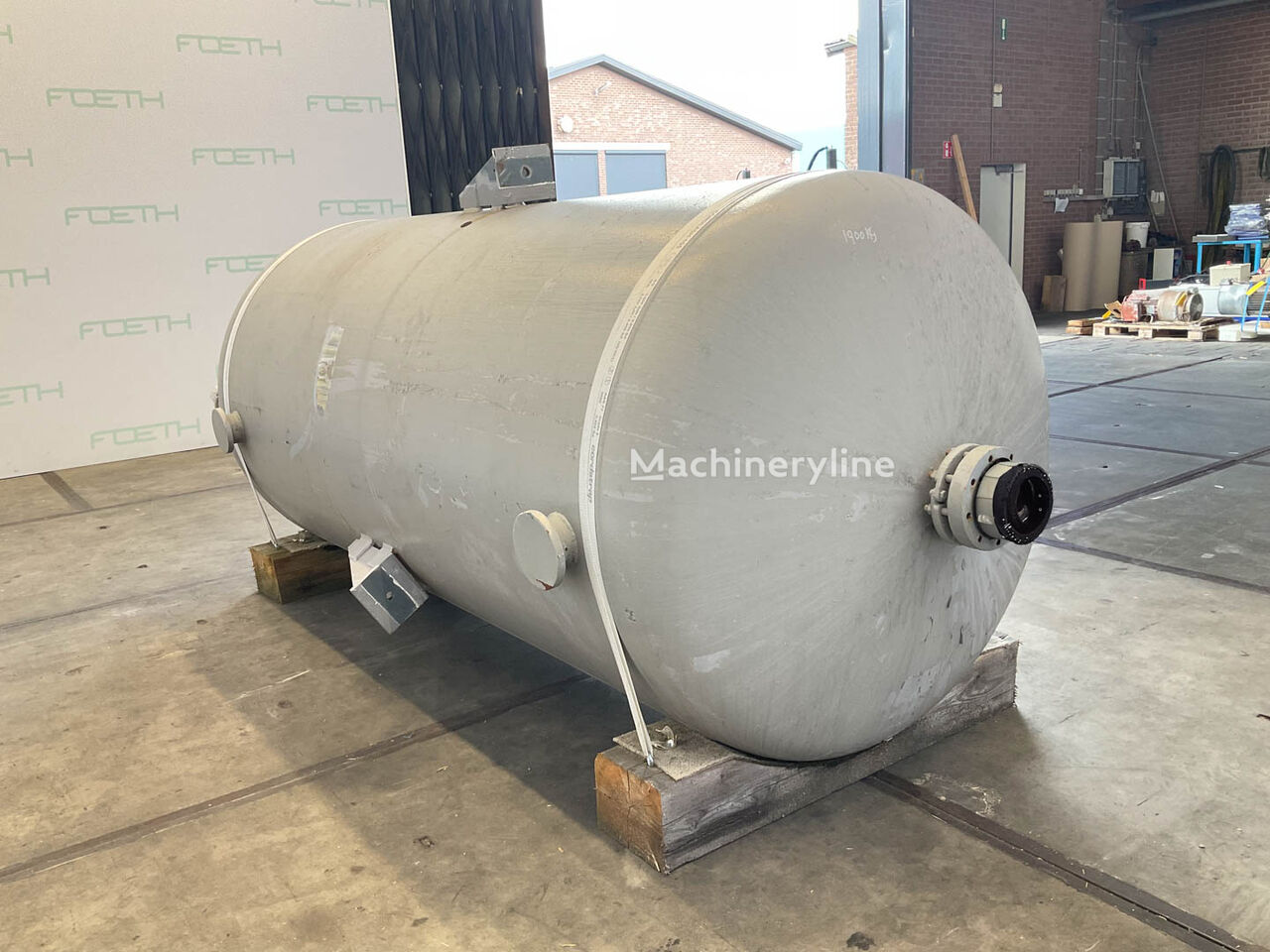

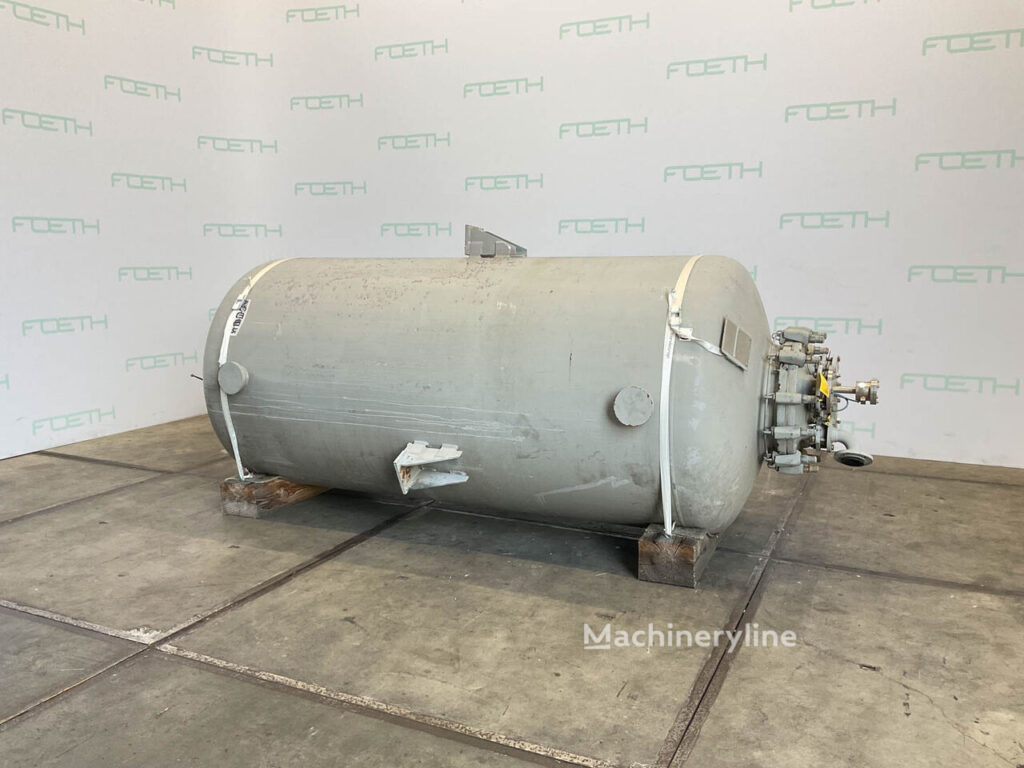

This Pfaudler CH4000 is a used mixer and blender — sometimes referred to as a mixing vessel or process reactor — designed for blending, mixing, and processing liquids and slurries under controlled pressure and temperature conditions. Pfaudler is a well-established manufacturer of glass-lined process equipment, widely recognised across the pharmaceutical, chemical, and food-processing industries for its corrosion-resistant, glass-enamelled vessels and reactors.

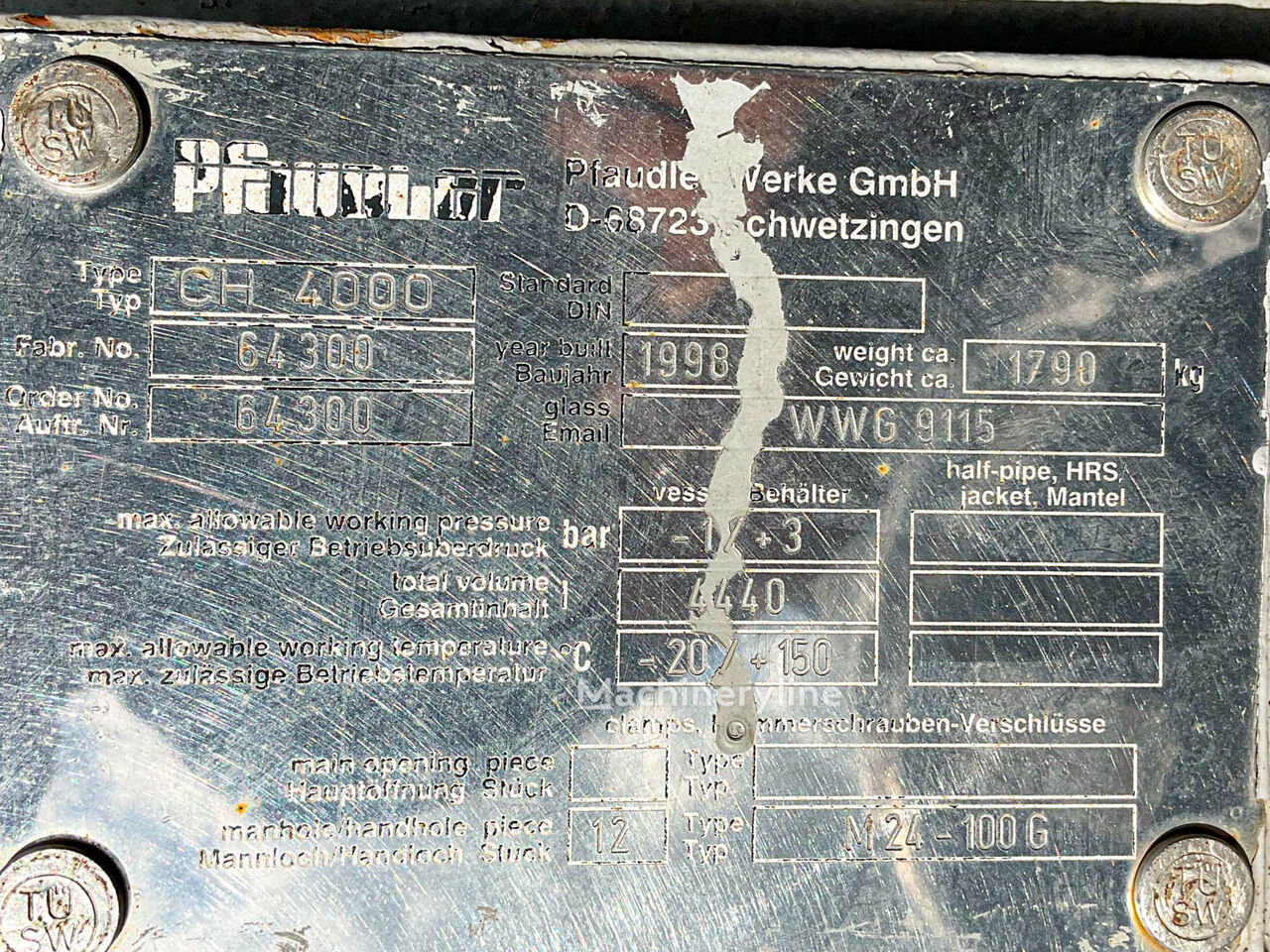

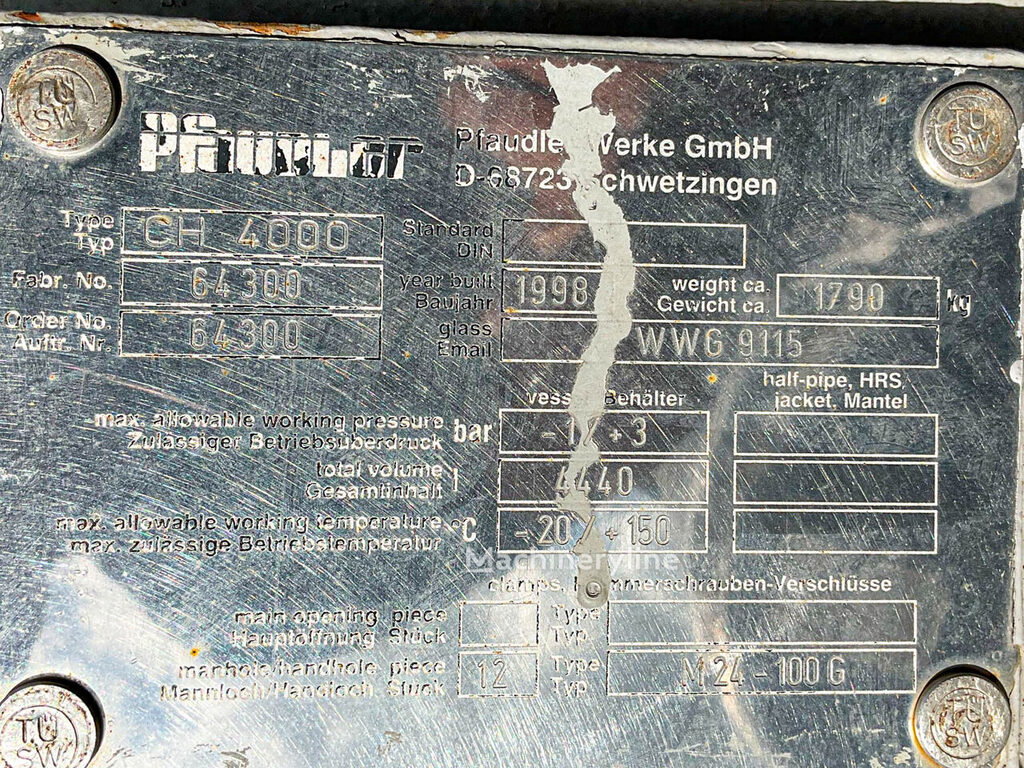

This particular unit carries serial number 64300 and was built in 1998. It is currently located in Barneveld, Netherlands. The vessel is constructed from glass-enamel material to specification WWG-9115, a glass lining system associated with chemical resistance and product purity, making it well suited to aggressive or sensitive process media. The unit has been inspected and certified by TÜV as the notified body, confirming its compliance with relevant pressure equipment standards.

The vessel has a working pressure of 3 bar and a capacity of 4,440 litres, with an operating temperature range spanning from -20 °C to +150 °C. Both vacuum capability and pressure operation are noted as available. The vessel features a dished top and dished bottom, a configuration that supports efficient mixing and drainage. It is fitted with a cover and includes a DN500 manhole for internal access, cleaning, and inspection. Top connections comprise DN100, DN80, and DN50 nozzles, with a DN100 outlet at the base.

The vessel shell measures 1,400 mm in diameter by 3,200 mm in length, with a total installed height of 3.54 metres and a floor footprint of 1.7 × 1.7 metres. There is one vertical pressure tank in this configuration. The compact footprint and vertical orientation make it practical for installations where floor space is limited.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
