About this machine

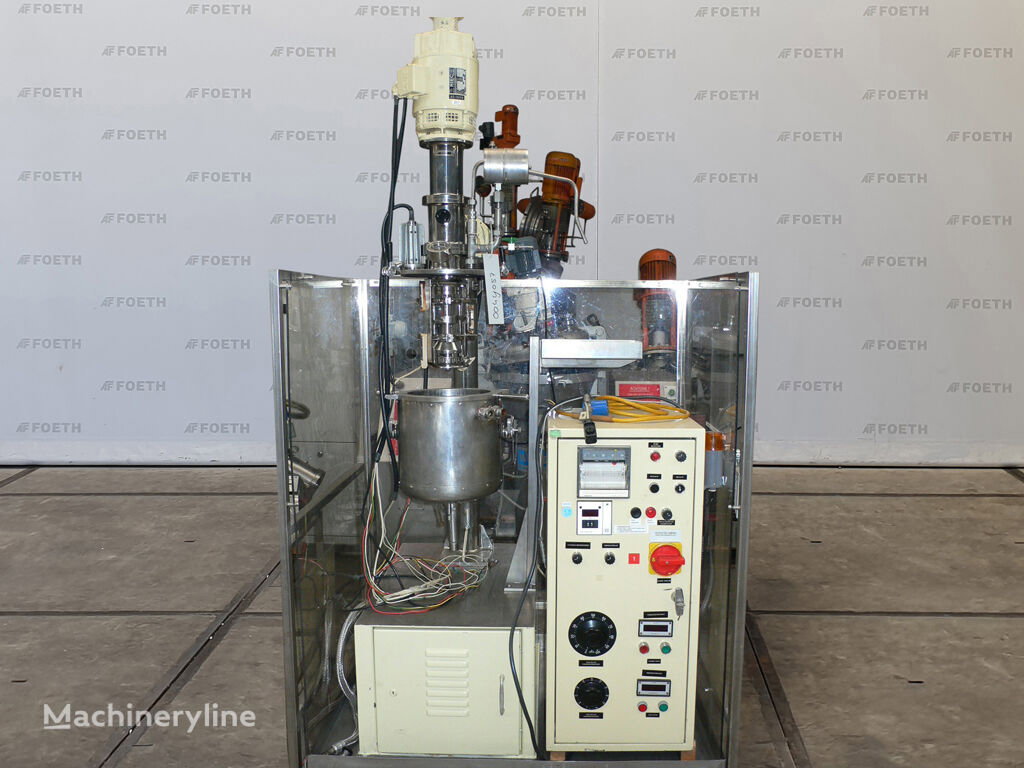

This Pressindustria S.p.A TE.3/SV/R/5 is a mixer and blender — sometimes referred to as a mixing vessel or blending unit — designed for the controlled mixing, blending, and homogenising of liquid or semi-liquid materials in small-batch processing applications. Pressindustria S.p.A is an Italian manufacturer known for producing industrial mixing, blending, and processing equipment, including vacuum and pressure vessels, serving sectors such as cosmetics, pharmaceuticals, food processing, and fine chemicals.

Manufactured in 1983 and offered here in used condition from Barneveld in the Netherlands, this machine carries serial number 4302. It is constructed throughout from stainless steel grade ), making it suitable for corrosive or hygiene-sensitive processing environments.

The core of the machine is a closed, vacuum-capable processing vessel with a working capacity of between 3 and 7 litres, and a total vessel volume of 7 litres. The vessel measures 250 mm in diameter by 250 mm in height, features a dished bottom, a flat top side, and is fitted with a cover and a full heating or cooling jacket rated to a working pressure of 3 bar. The vessel itself operates at a working pressure of 0.067 bar, and vacuum processing is possible. Maximum process temperature is 160 °C. The vessel can be raised and lowered hydraulically, facilitating loading and discharge.

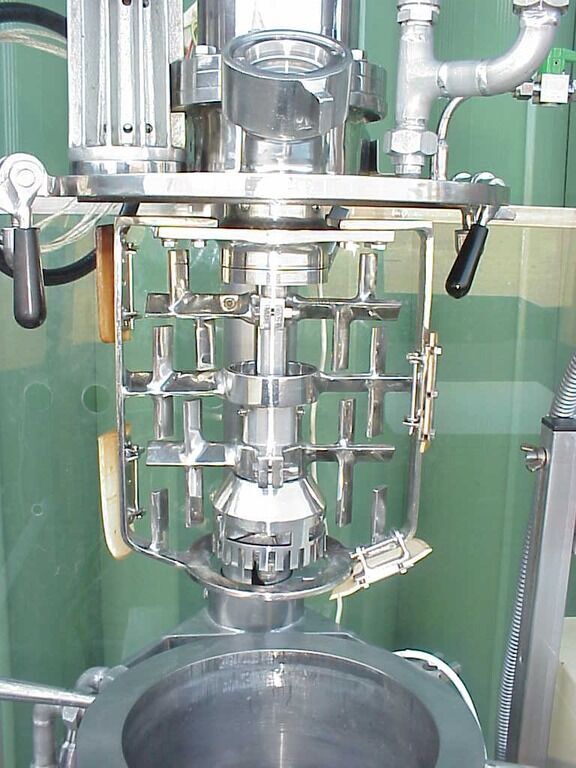

Agitation is provided by a scraper-type anchor stirrer with counter-rotation capability, running at a variable speed between 3 and 60 rpm on the main mixing shaft. An integrated homogeniser is also fitted, operating at speeds between 400 and 2,000 rpm, allowing for fine emulsification or dispersion work in addition to bulk mixing. The machine is driven by a motor rated at 0.2/0.55 kW, and a full switchgear panel is included. The overall floor footprint is 1.2 × 0.9 metres.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
