About this machine

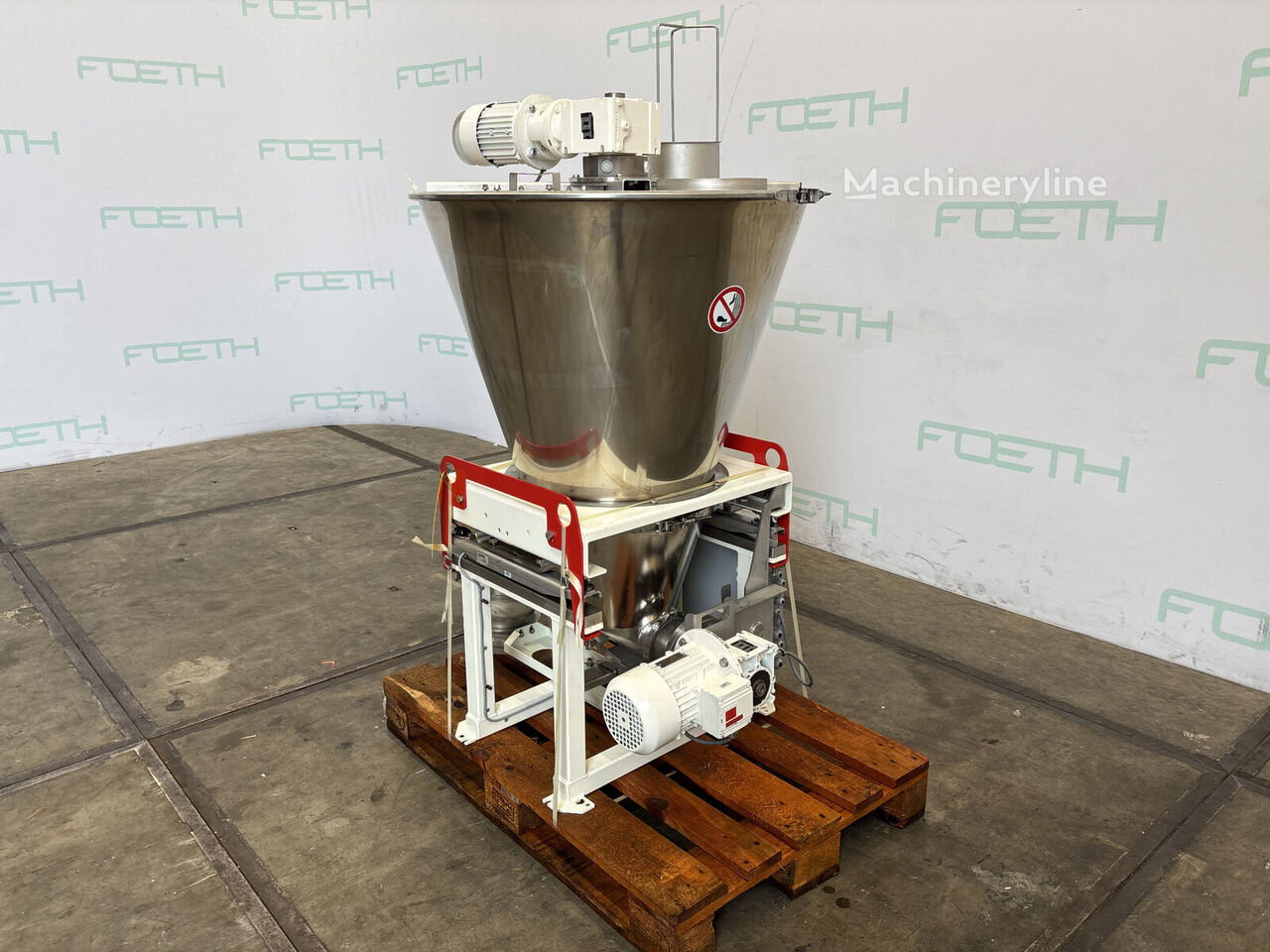

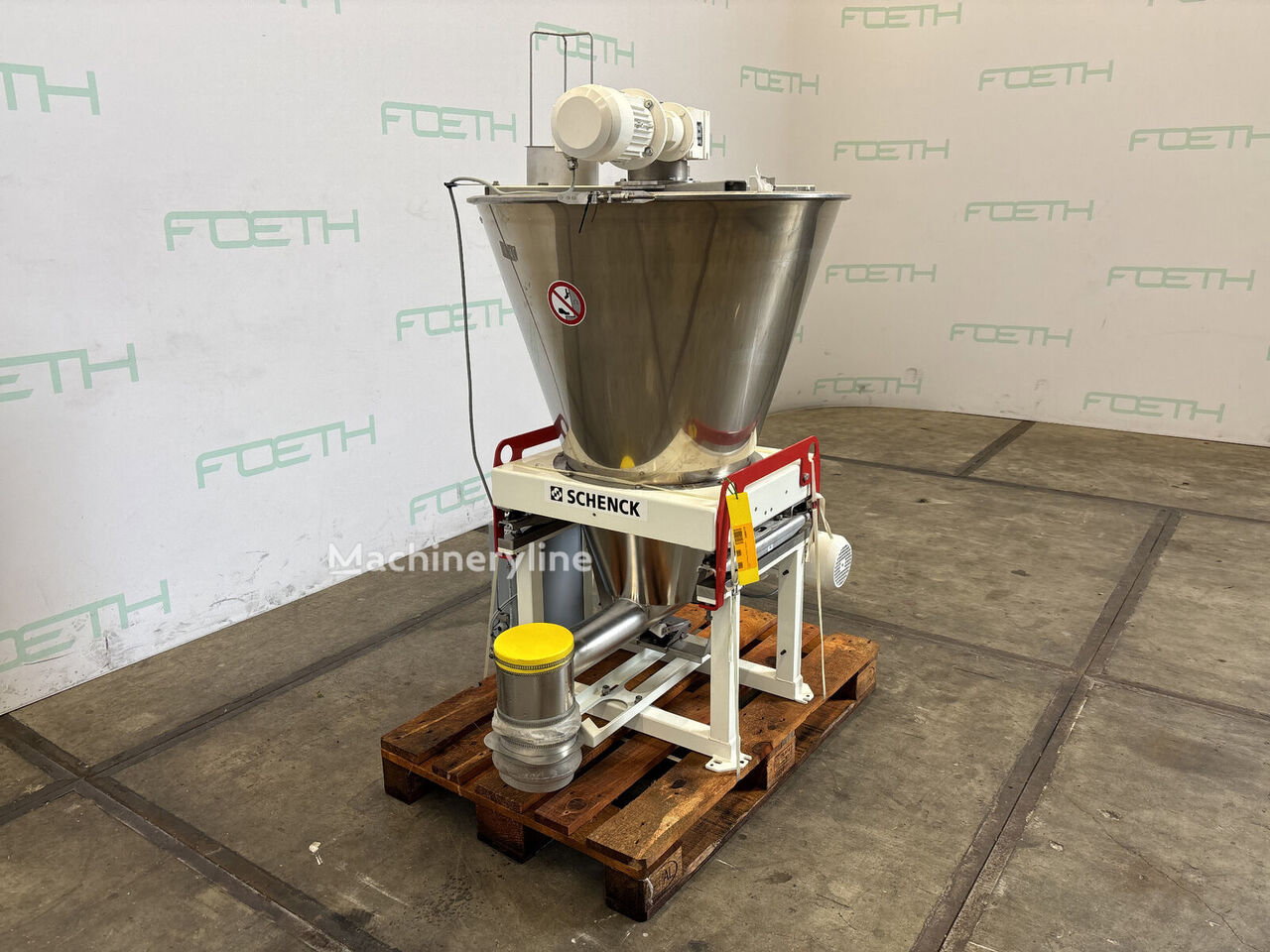

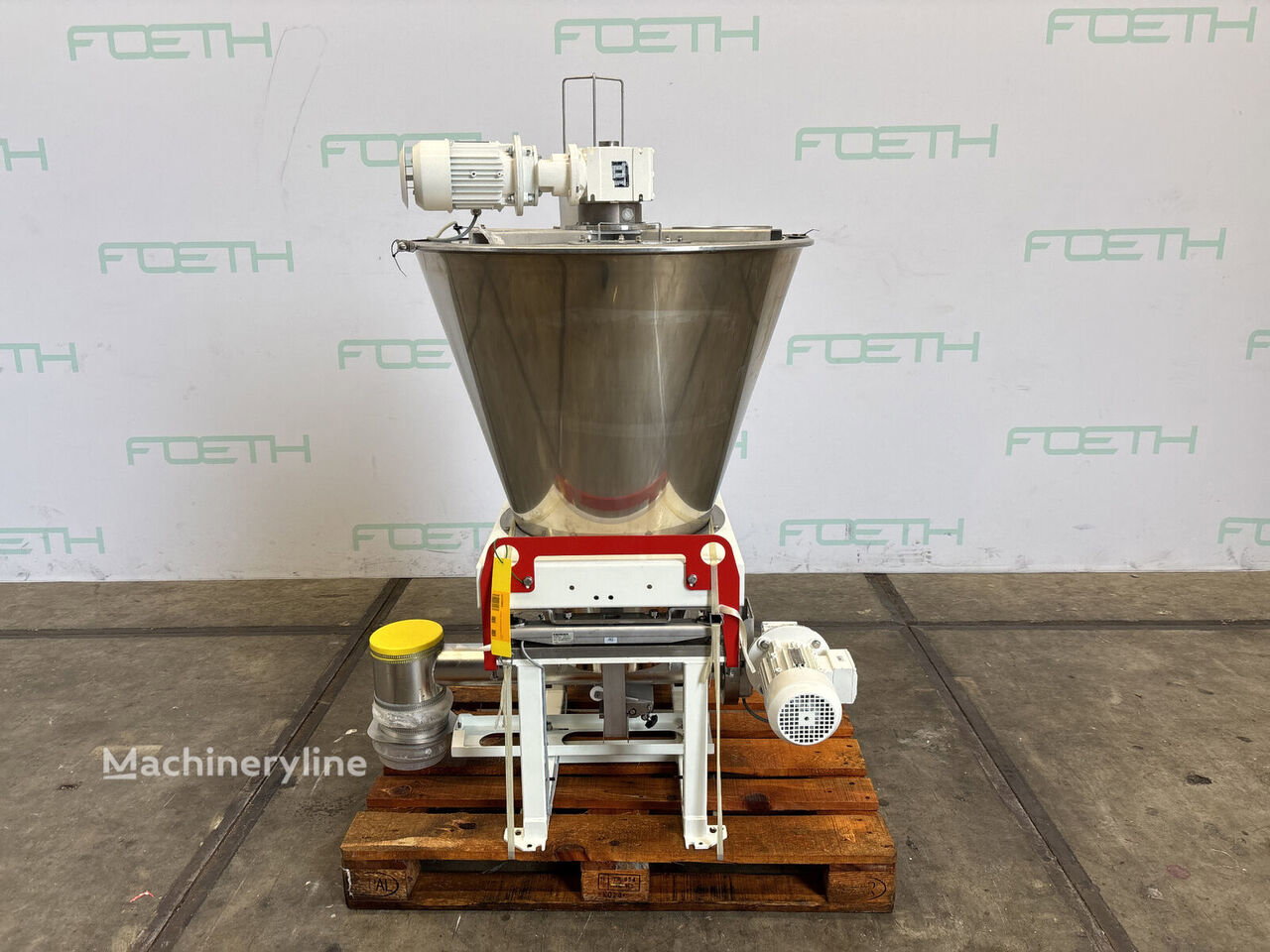

This Schenck GRMD11 EX - ME is a used mixer and blender — sometimes referred to as a mixing blender — designed for the controlled blending and metering of bulk materials. Schenck is a well-established German manufacturer with a long history of producing precision weighing, feeding, and bulk material handling equipment for industries including food processing, chemicals, pharmaceuticals, and plastics.

Built in 2006 and located in Barneveld, Netherlands, this unit is constructed entirely from stainless steel, with the main wetted components in grade ) and structural parts in 1.4408, making it well suited to hygienic or corrosive-media applications. The machine carries serial number V027515 A01 and full type designation GRMD.

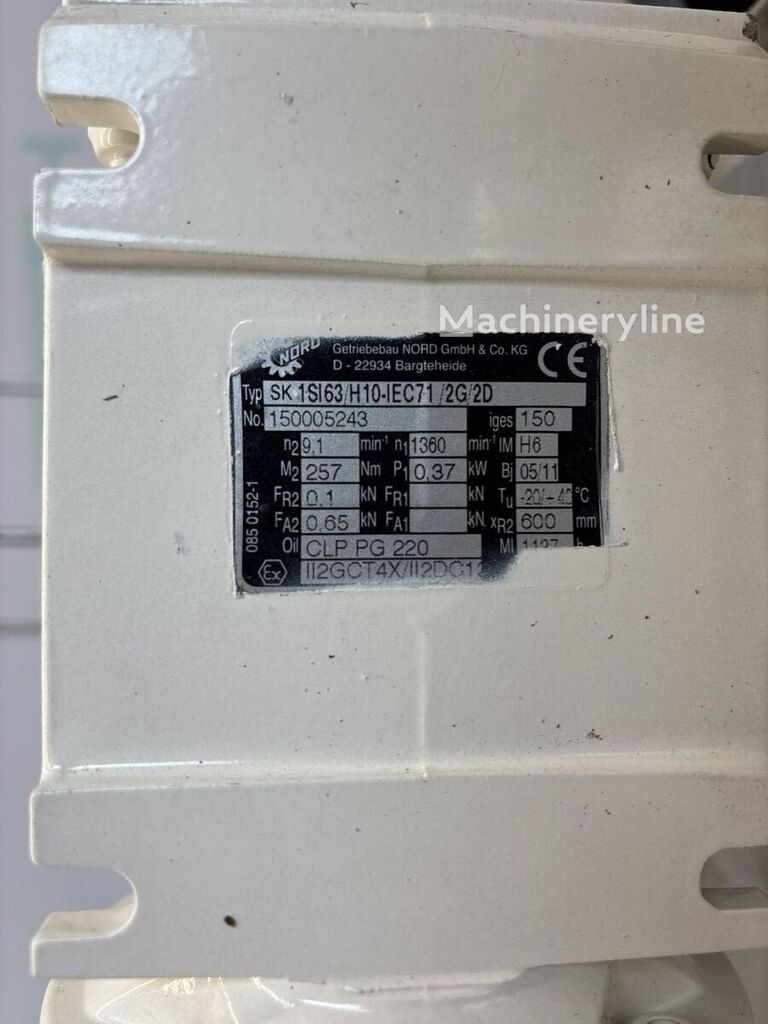

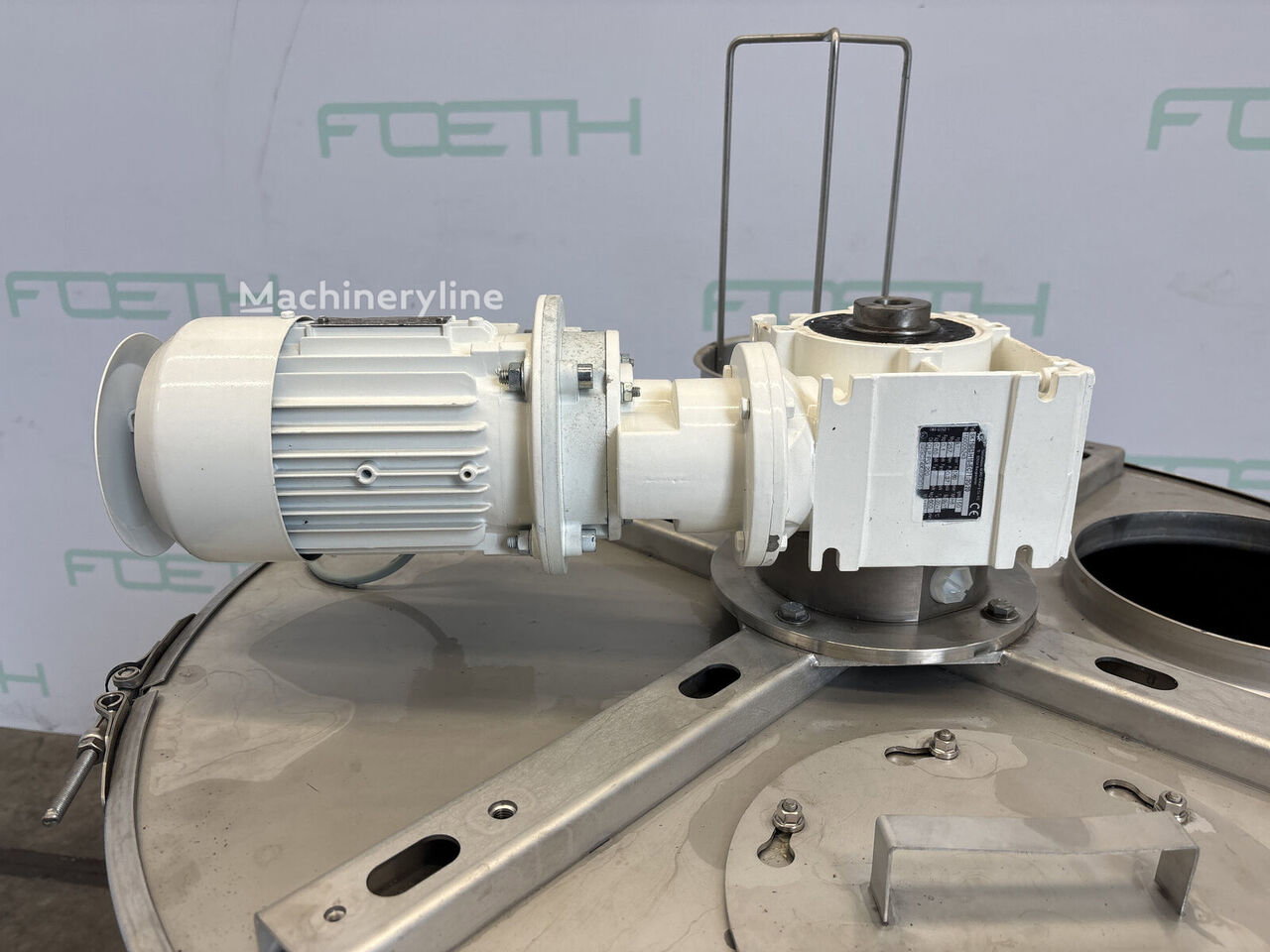

The blender is equipped with a metering screw measuring 100 mm in diameter, with a pitch of 40 and a screw length of 600 mm. The metering screw is driven by a 0.61 kW, 400 V motor running at 1,425 rpm, delivering a screw speed of 275 rpm. The inlet to the metering section measures 210/170 mm in diameter, and the outlet diameter is 160 mm. A breaking and mixing shaft is also fitted, along with an anchor agitator powered by a dedicated 0.37 kW motor rated at 220–240/380–420 V and 1,370 rpm. A further 0.37 kW, 230/400 V motor at 1,370 rpm is also noted in the specifications.

The machine comes with a hopper of approximately 300-litre capacity, with a diameter of 850 mm and a depth of 630 mm, mounted above the metering screw inlet diameter of 210 mm. The entire assembly is mounted on a frame with a floor footprint of 1.20 × 1.00 m and a total height of 1.70 m. All drive motors are rated for use in explosive atmospheres, and the machine is ATEX compatible, making it suitable for installations in hazardous-area zones where flammable dusts or gases may be present.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
