2015 - Servolift Container Misc Mixer Blender()
- Listing No
- 1182012
- Year
- 2015
- Manufacturer
- Servolift
- Model
- Container Misc
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: MC No: 13461 Material: Stainless steel 1.4301 (304), Stainless steel 1.4306 (304L), Stainless steel 1.4541 (321) Volume: 120 Ltr Tumbler mixer: check Capacity: 120 l Length/Depth: 600x600 mm Conical length: 450 mm Inlet: Dia. 400 mm Outlet: Dia. 150 mm With motor: check 2,2 kW, 230/400 volt, 1400 rpm With variable speed drive: check Speed mixer: 5-25 rpm With liquid injection: check volume 3 l Mounted on stainl. steel frame: check with wheels With switchgear: check Total height: 1,90 m CE: check Floorspace: 1,65x1,40 m Extra Specifications: With Siemens touchscreen control, type Simatic HMI, max load cap. 150 kg, mix height 1800 mm General Main Features Specified Features - Tumbler mixer Information
About this machine

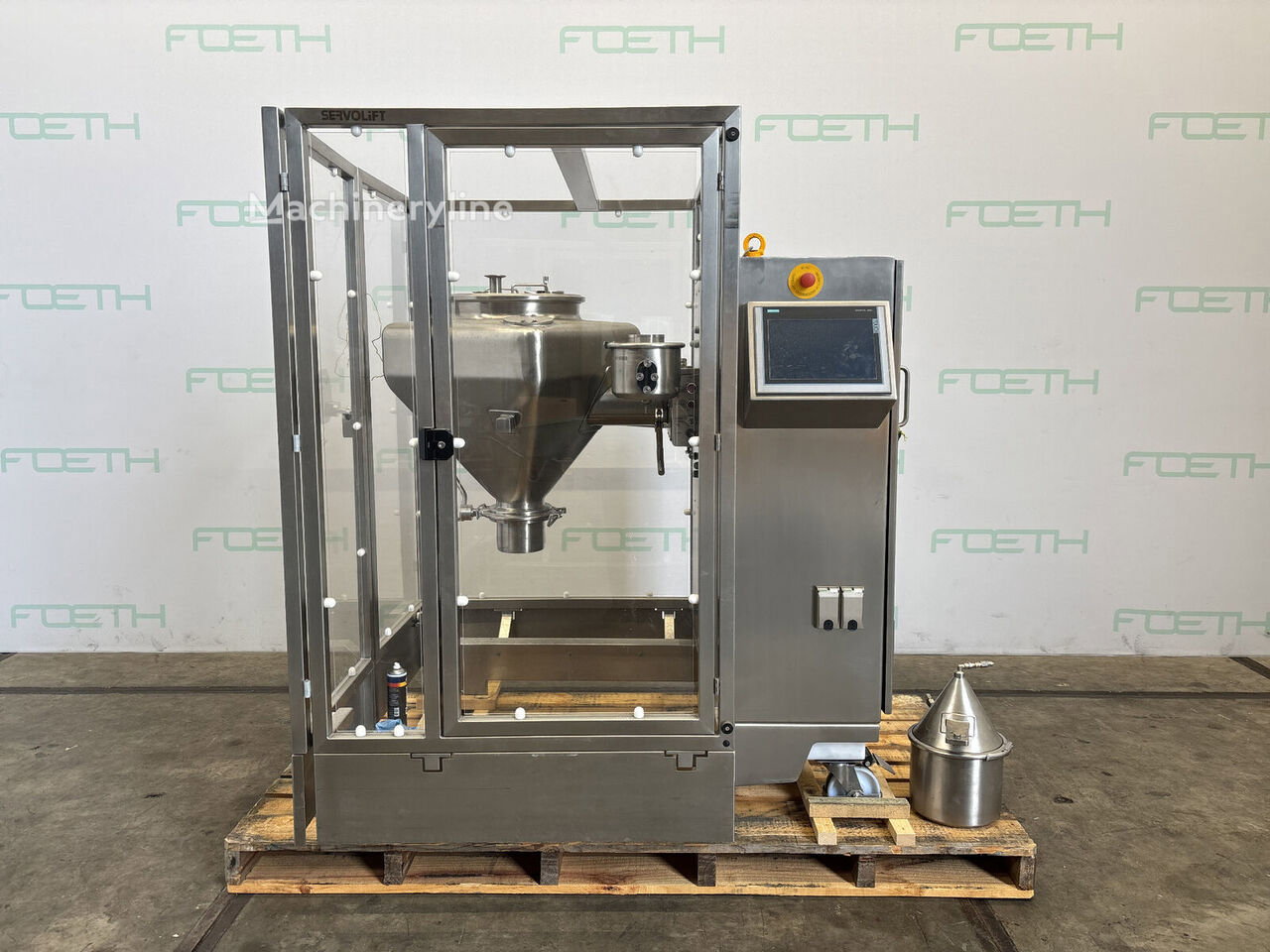

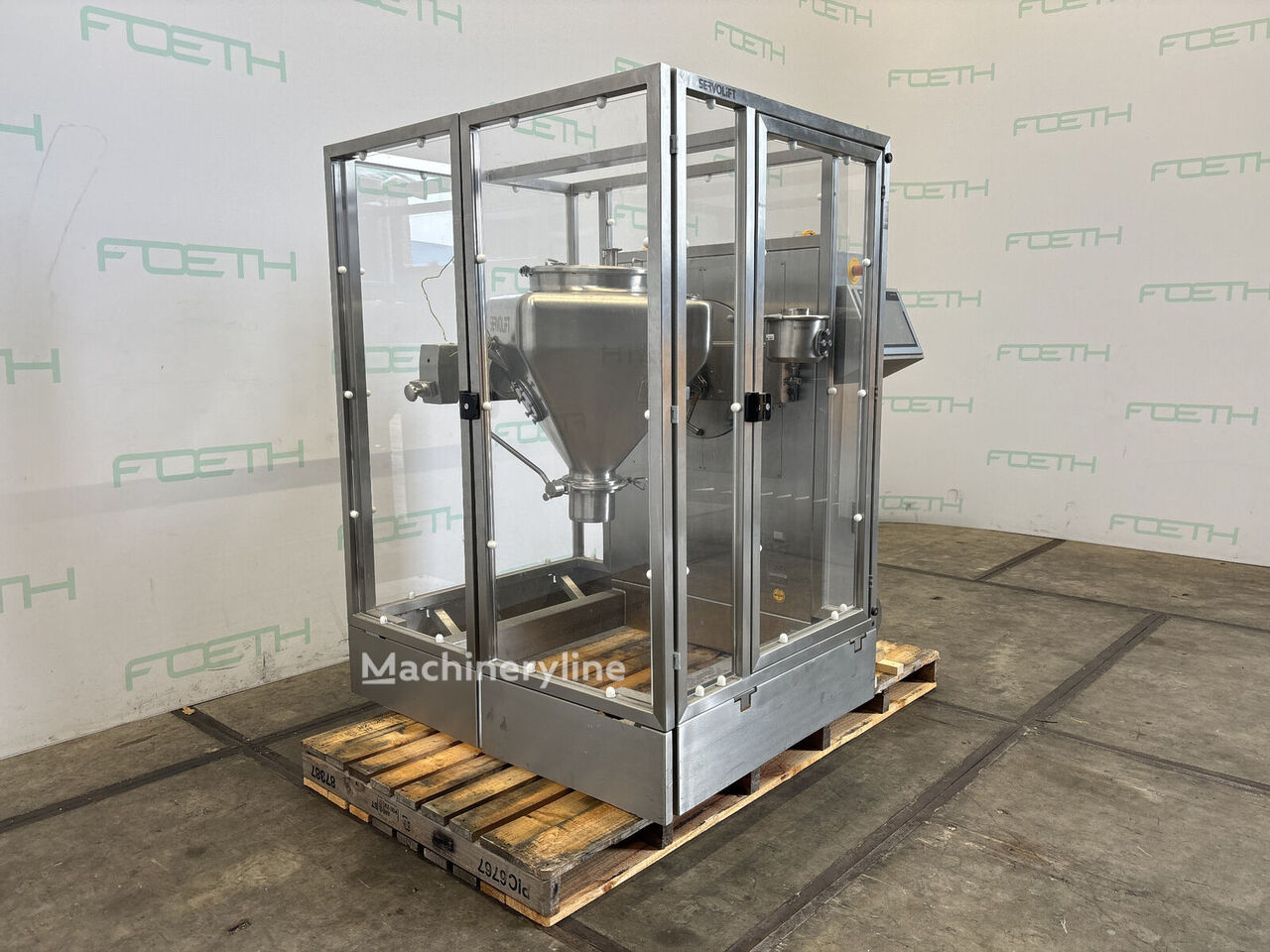

This Servolift is a tumbler mixer — sometimes called a container mixer or bin blender — designed to gently and uniformly blend dry powders, granules, and similar bulk materials by rotating a container through a defined tumbling cycle. Servolift is a well-established Dutch manufacturer specialising in hygienic powder handling and blending equipment for the pharmaceutical, food, and chemical industries, and this machine is a representative example of their container-based mixing systems.

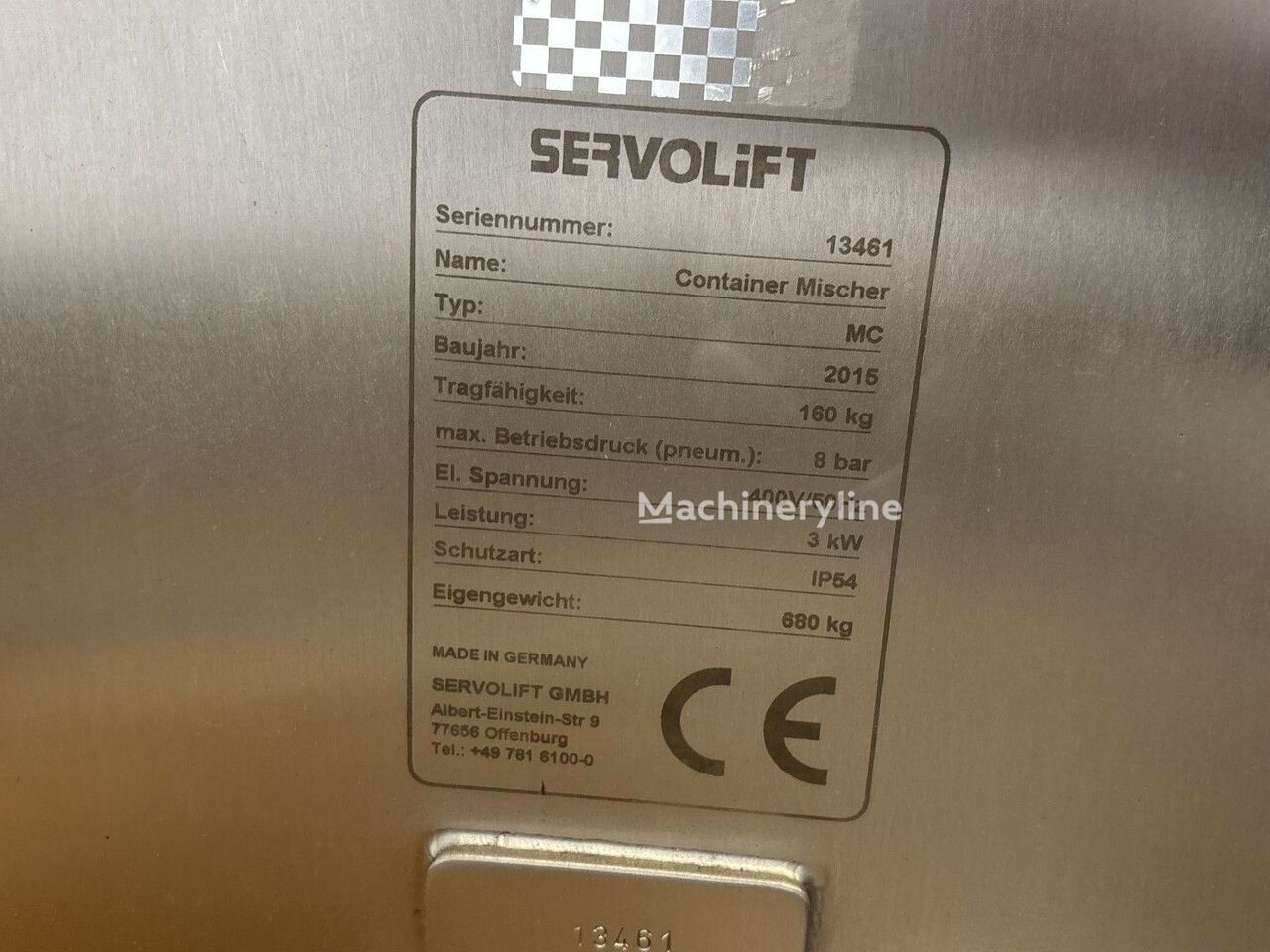

The mixer carries serial number 13461 and is of the MC type, built in 2015 and located in Barneveld, Netherlands. The mixing container has a working volume of 120 litres and is constructed from multiple grades of stainless steel — ), L), and ) — ensuring corrosion resistance and suitability for demanding process environments. The container body measures 600 × 600 mm in cross-section with a conical length of 450 mm, and features an inlet of 400 mm diameter and an outlet of 150 mm diameter. The maximum load capacity is 150 kg and the mix height is 1,800 mm.
Drive is provided by a 2.2 kW motor rated at 230/400 V and 1,400 rpm, paired with a variable speed drive that allows the tumbling speed to be adjusted between 5 and 25 rpm to suit different product characteristics. The machine is also equipped with a liquid injection system with a 3-litre volume, enabling the addition of binders or other liquids during the mixing cycle.

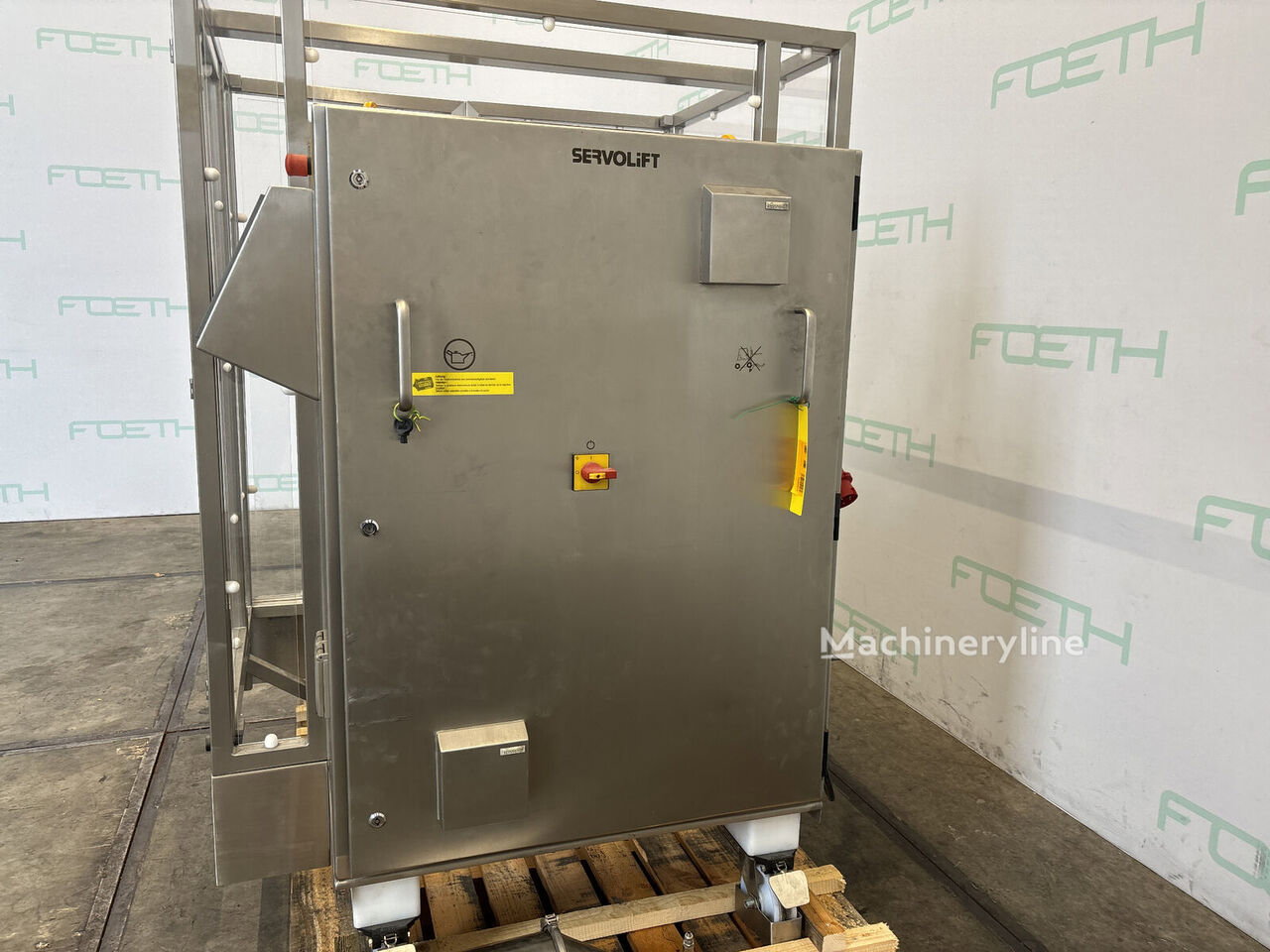

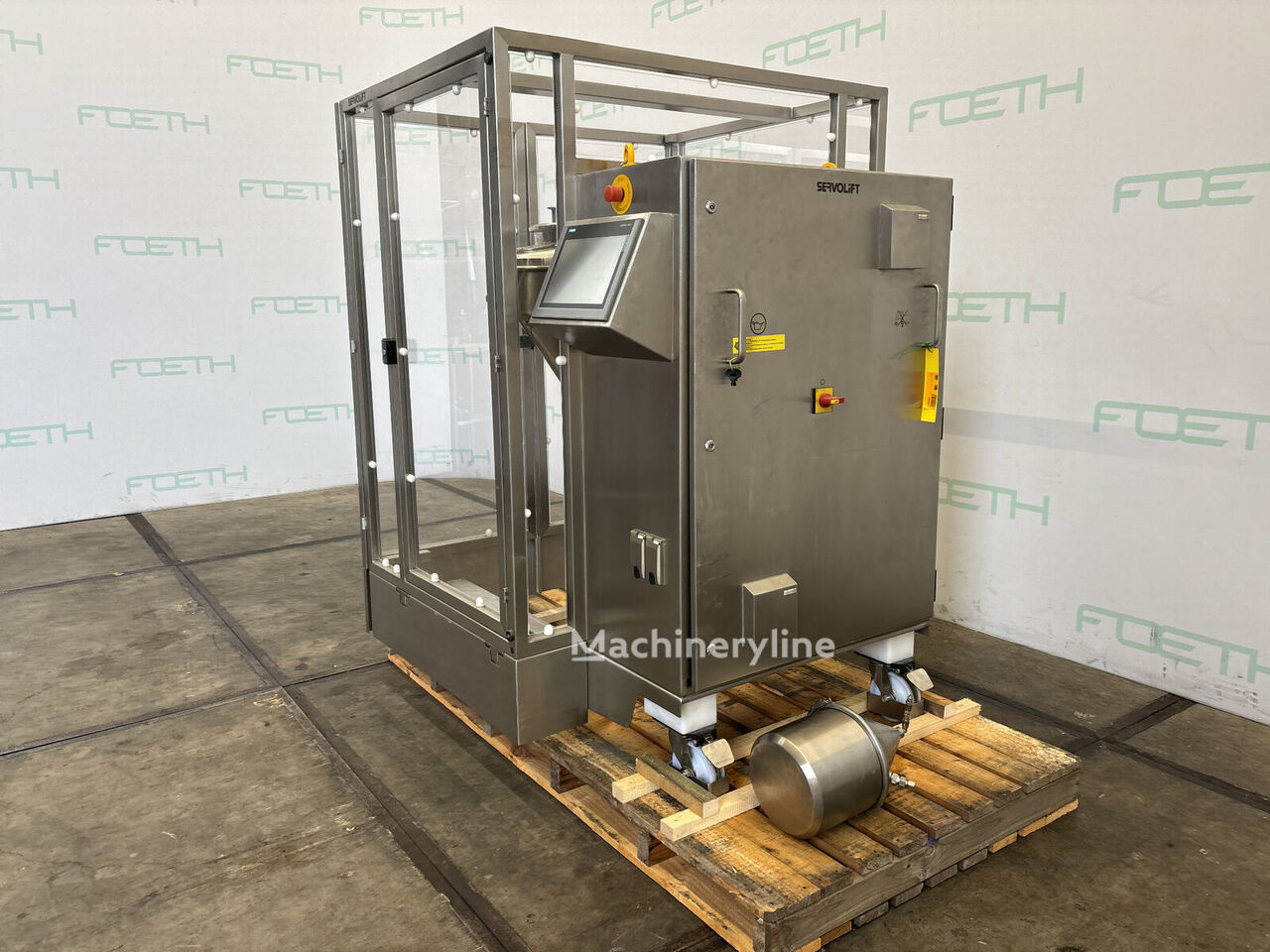

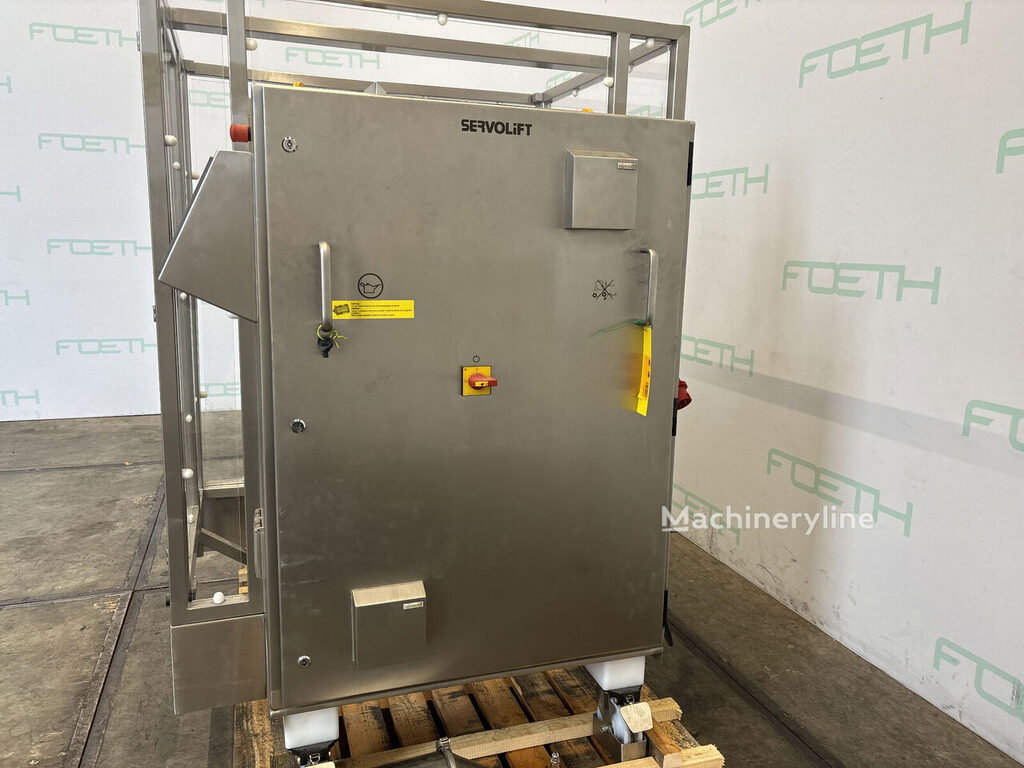

The unit is mounted on a stainless steel frame fitted with wheels for ease of repositioning on the production floor. Control is handled by a Siemens Simatic HMI touchscreen panel, providing operator-friendly process management. A full switchgear cabinet is included, and the machine holds CE certification. The overall footprint is 1.65 × 1.40 m with a total height of 1.90 m, making it a compact, self-contained system ready for integration into an existing production line.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
