2014 - Spinner U5-1520 Machining Center()
- Listing No
- 940243
- Year
- 2014
- Manufacturer
- Spinner
- Model
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
CNC control Sinumerik 840D NC-swivel-rotary table (B-axis and C-axis) automatic tool changer for 30 tools coolant device chip conveyor Technische Daten / technical details: X-Weg / X-travel 1520 mm Y-Weg / Y-travel 520 mm Z-Weg / Z-travel 420 mm B-Achse Schwenktisch / B-axis swivel table -90 - +110 ° C-Achse Rundtisch / C-axis rotary table 360 ° NC-Schwenk-Rundtischdurchmesser / NC swivel-rotary table diameter 500 mm Starrtischaufspannfläche / fixed table clamping area 920 x 540 mm Spindelaufnahme / spindle taper SK40 Ffowv Hiasx S Htzsrot Drehzahl Spindel / spindle speed 12000 Upm /rpm Eilgang / rapid feed 32 m/min Antriebsleistung Spindel / drive capacity spindle 25 kW Gewicht der Maschine ca. / weight 10500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding. Request more information Request more information Already requested
About this machine

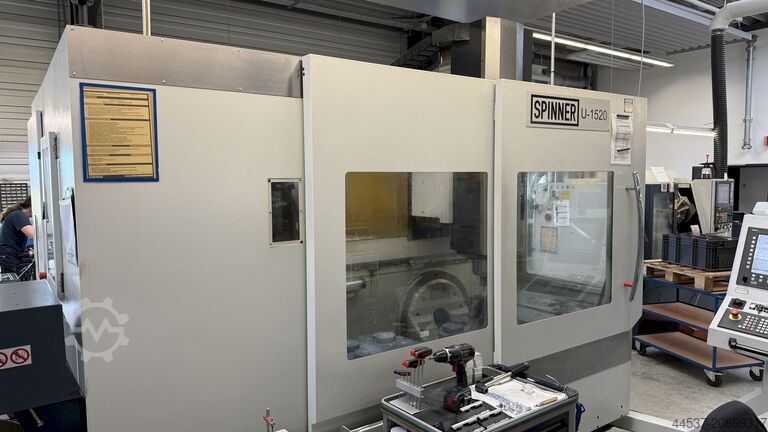

The Spinner U5-1520 is a used machining center — sometimes referred to as a machining centre or CNC machining center — a multi-axis machine tool designed to perform milling, drilling, boring, and related cutting operations on workpieces with high precision and repeatability. Spinner is a German manufacturer with a strong reputation for producing high-quality CNC machine tools, serving industries such as aerospace, automotive, mould and die, and general precision engineering.

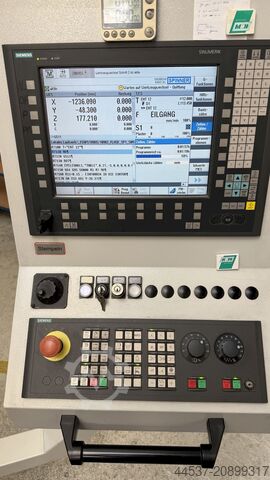

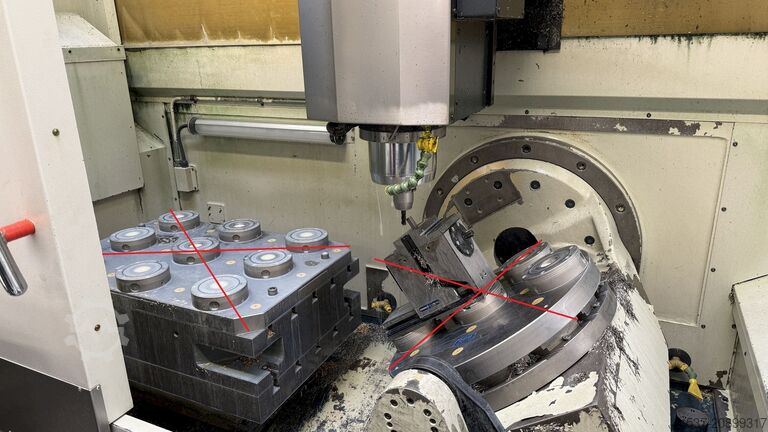

This 2014 machine, located in Germany, is equipped with a Siemens Sinumerik 840D CNC control, one of the most widely used and respected control systems in precision machining. A key feature of this machine is its NC swivel-rotary table, which provides both a B-axis (swivel) with a range of -90° to +110° and a full 360° C-axis rotary function, giving the machine 5-axis capability for complex, multi-face machining in a single setup. The swivel-rotary table has a diameter of 500 mm, and the machine also carries a fixed table clamping area measuring 920 × 540 mm.
The axis travels are 1,520 mm in X, 520 mm in Y, and 420 mm in Z, accommodating a broad range of workpiece sizes. The spindle uses an SK40 taper and reaches a maximum speed of 12,000 rpm, driven by a 25 kW spindle motor. Rapid feed rate is 32 m/min, supporting efficient positioning between cuts.
An automatic tool changer with a capacity of 30 tools is fitted, enabling uninterrupted machining across complex operations without manual intervention. The machine is further equipped with a coolant system and a chip conveyor, both practical inclusions for sustained production use. The machine weighs approximately 10,500 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
