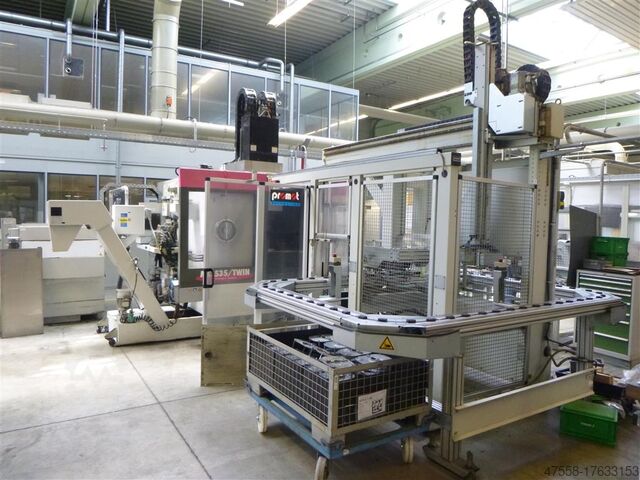

1999 - Stama MC 535-TWIN Machining Center()
- Listing No
- 940842
- Year
- 1999
- Manufacturer
- Stama
- Model
- MC 535-TWIN
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Technical details: x-axis: 800 mm y-axis: 500 mm z-axis: 510 mm control: Siemens 840D number of spindle speeds: 36 - 10000 U/min. tool changer with: 42 tools tool clamping: 12000 N tool taper: SK40 max. torque on the spindle: 102 Nm feed continuous: X/Y/Z: min./max.: 1/10000 / 1/10000 / 1-10000 mm rapid traverse: X/Y/Z: 40/40/40 m/min voltage: 400 / 50 V / Hz total power requirement: 70 kW HIGH PERFORMANCE DRIVING COLUMN - MACHINING CENTER Coolant system with paper band conveyor chip conveyor make Flender MC535/x=800 hydraulic aggregate make HAWE Loading system Promo cutting values: max. milling capacity=400mm max. drilling Ø 50mm max. thread Ø M30 Fswv Hiieu Id Rbspeft 1 motor each for main spindle 1 + 2: make Kessler; 21 kW; speed 15.000 rpm. 1 motor each for X / Y / and Z-axis: Make Siemens; for X/Y axis 14.0 Nm and Z axis 17.6 Nm torque; speed 3000 rpm. * Request more information Request more information Already requested
About this machine
This Stama MC 535-TWIN is a used machining center — sometimes referred to as a CNC machining center or machining centre — dating from 1999 and currently located in Germany. Machining centers are multi-axis machine tools designed to perform a range of metal-cutting operations including milling, drilling, and tapping in a single setup, and Stama is a German manufacturer well regarded for its twin-spindle and multi-spindle machining solutions, serving industries that demand high-throughput precision part production.
The machine is configured as a high-performance driving-column machining center with twin main spindles, each driven by a dedicated Kessler motor rated at 21 kW and capable of reaching 15,000 rpm. Spindle speed range spans 36 to 10,000 rpm across 36 steps, with a maximum torque at the spindle of 102 Nm and a tool clamping force of 12,000 N. Tooling is carried on an SK40 taper, and the automatic tool changer accommodates 42 tools.
Axis travels measure 800 mm in X, 500 mm in Y, and 510 mm in Z. Feed rates are variable from 1 to 10,000 mm/min on all three axes, and rapid traverse is a uniform 40 m/min across X, Y, and Z. Each linear axis is driven by a dedicated Siemens motor: the X and Y axes produce 14.0 Nm of torque, while the Z axis delivers 17.6 Nm, all at a rated speed of 3,000 rpm. The control system is a Siemens Sinumerik 840D.
Cutting capacities include a maximum milling capacity of 400 mm, a maximum drilling diameter of 50 mm, and a maximum thread size of M30. Total connected power requirement is 70 kW at 400 V / 50 Hz.

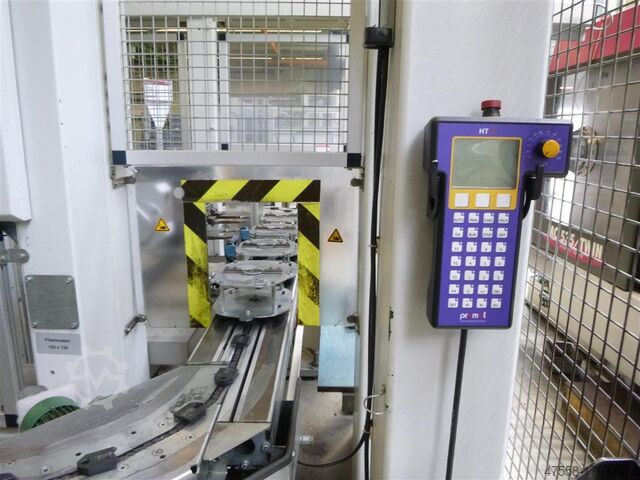

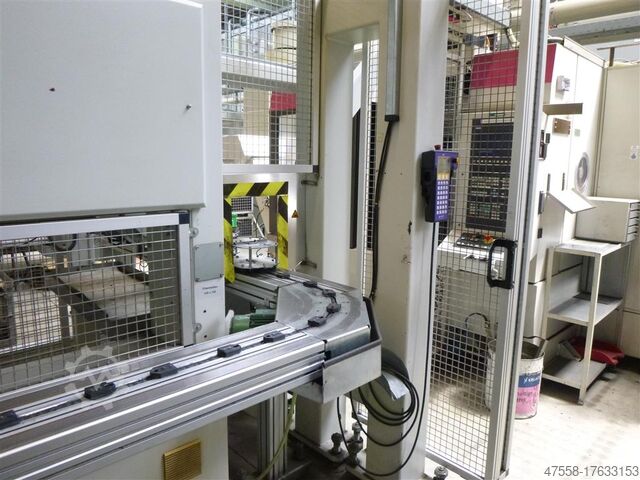

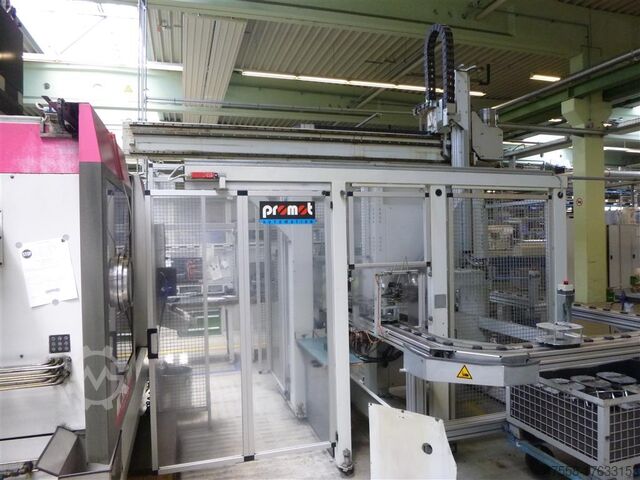

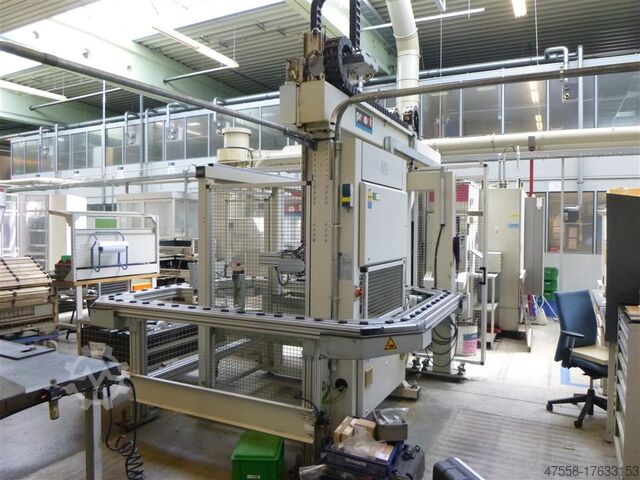

The machine is equipped with a coolant system featuring a paper-band conveyor, a Flender chip conveyor (MC535, X = 800), a HAWE hydraulic aggregate, and a Promo loading system.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
