About this machine

This is a used mixer and blender — sometimes referred to as a mixing vessel or agitator tank — designed for blending, homogenising, or processing liquid and semi-liquid products in industrial or food-grade environments. Built in 2001 and currently located in Barneveld, Netherlands, the unit is offered in used condition and is well-specified for demanding process applications.

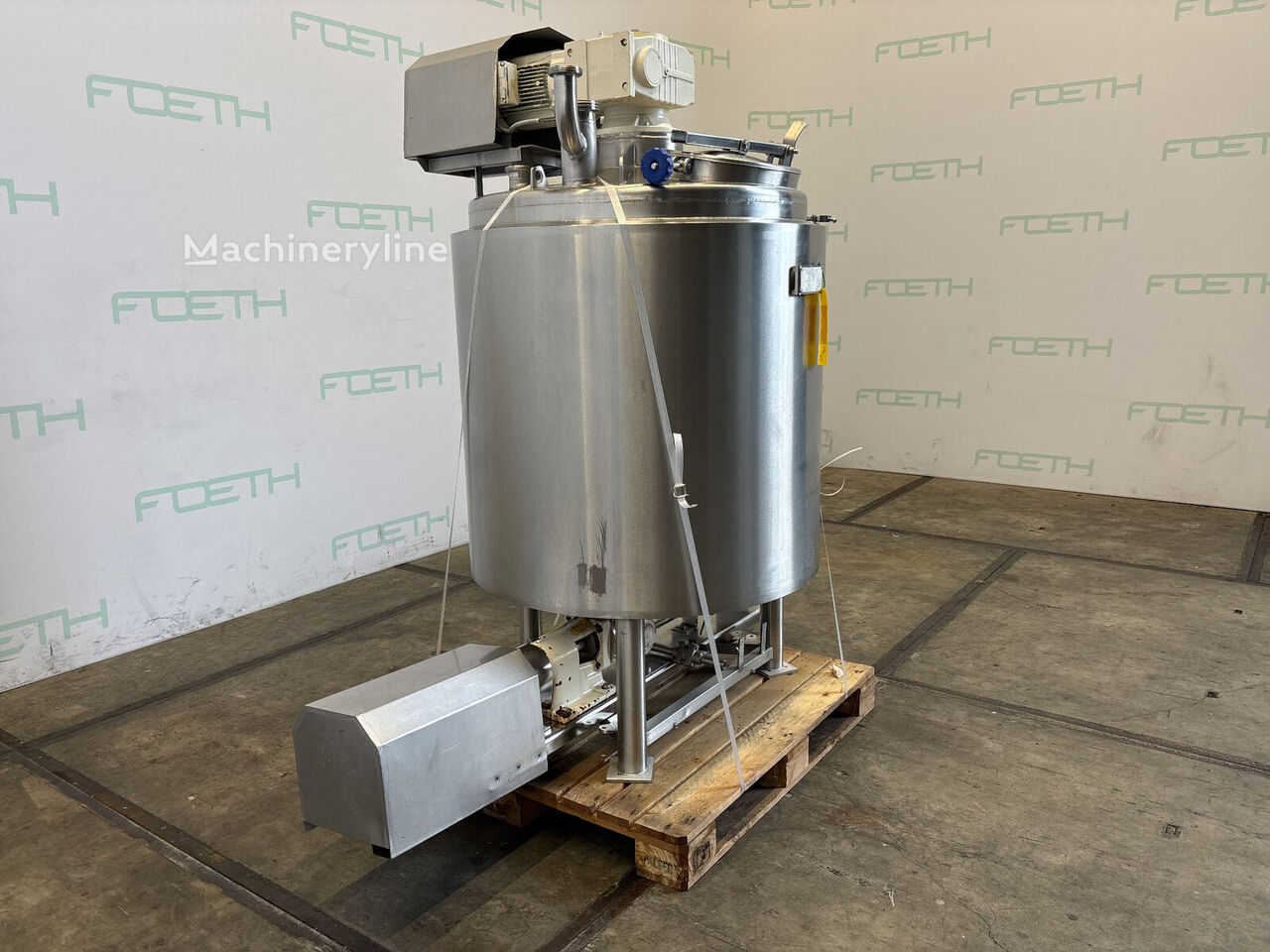

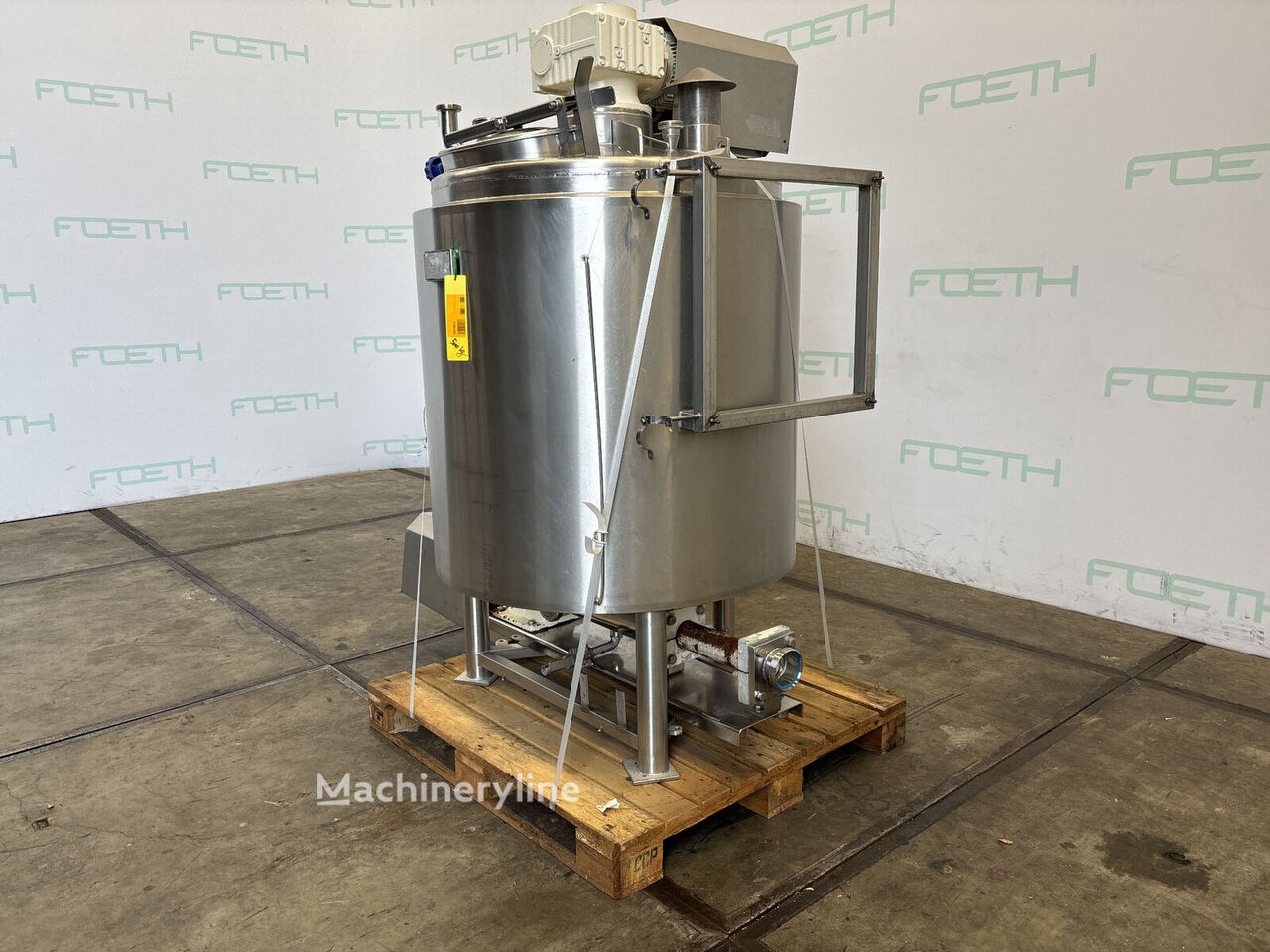

The vessel has a total capacity of 530 litres, with a working volume of 500 litres. It is constructed from a combination of stainless steel 1.4301 (AISI 304) and stainless steel 1.4401 (AISI 316), making it suitable for corrosive or hygiene-sensitive media. The cylindrical vessel measures 1,000 mm in diameter by 1,000 mm in height, with a dished bottom, and is mounted on legs, bringing the total installation height to 2.00 metres. The floor footprint is 1.00 by 1.60 metres.

The vessel is fully closed and fitted with a manhole measuring 425 by 310 mm for internal access and cleaning. It includes top connections and a DN300 outlet. A heating or cooling jacket is present, enabling temperature control of the vessel contents during processing.

Agitation is provided by an anchor stirrer driven at 14 rpm via a 2.2 kW motor rated at 389–415 volts. This low-speed anchor configuration is well suited to viscous or shear-sensitive products, ensuring thorough mixing without excessive mechanical stress on the material.

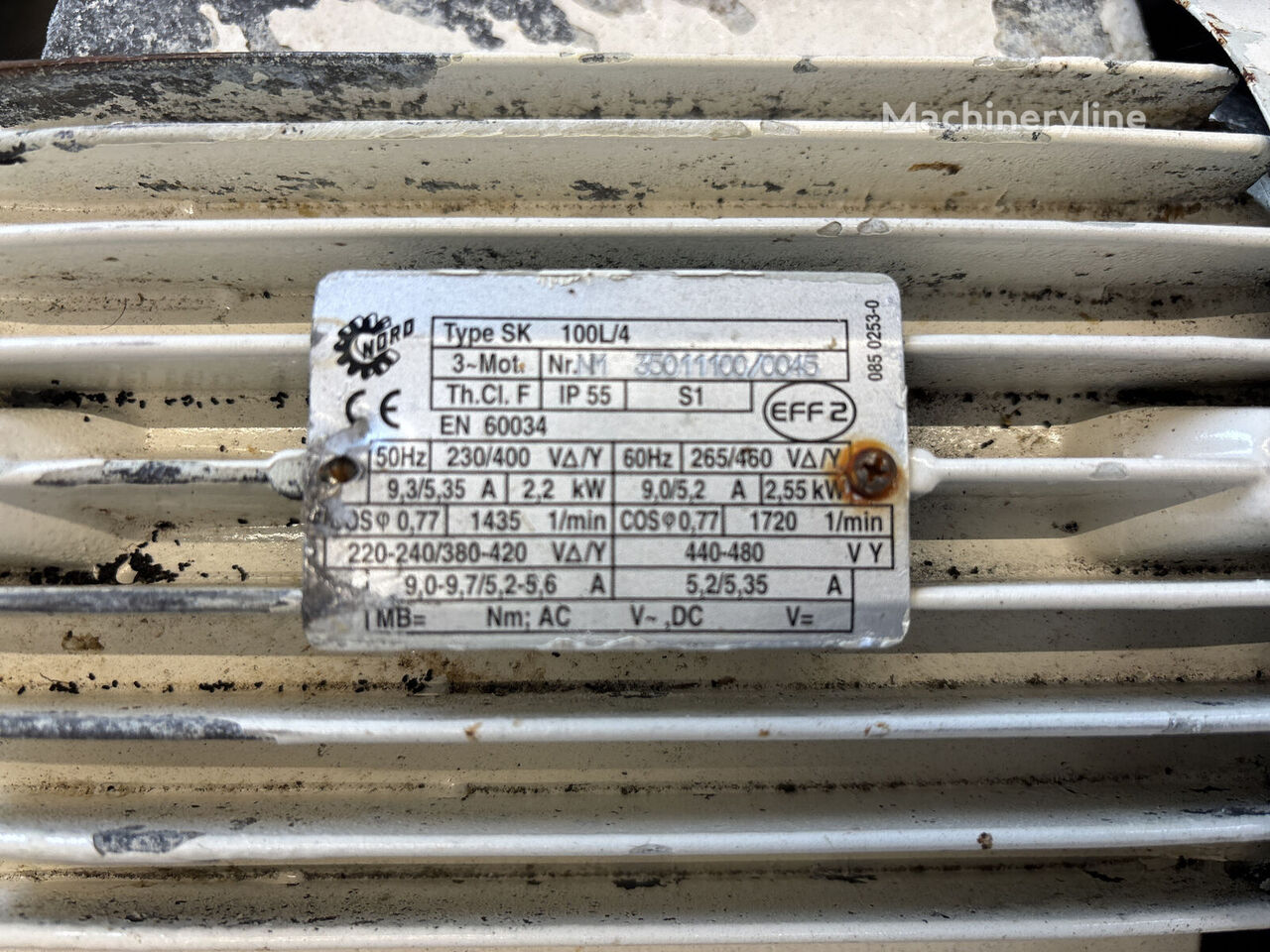

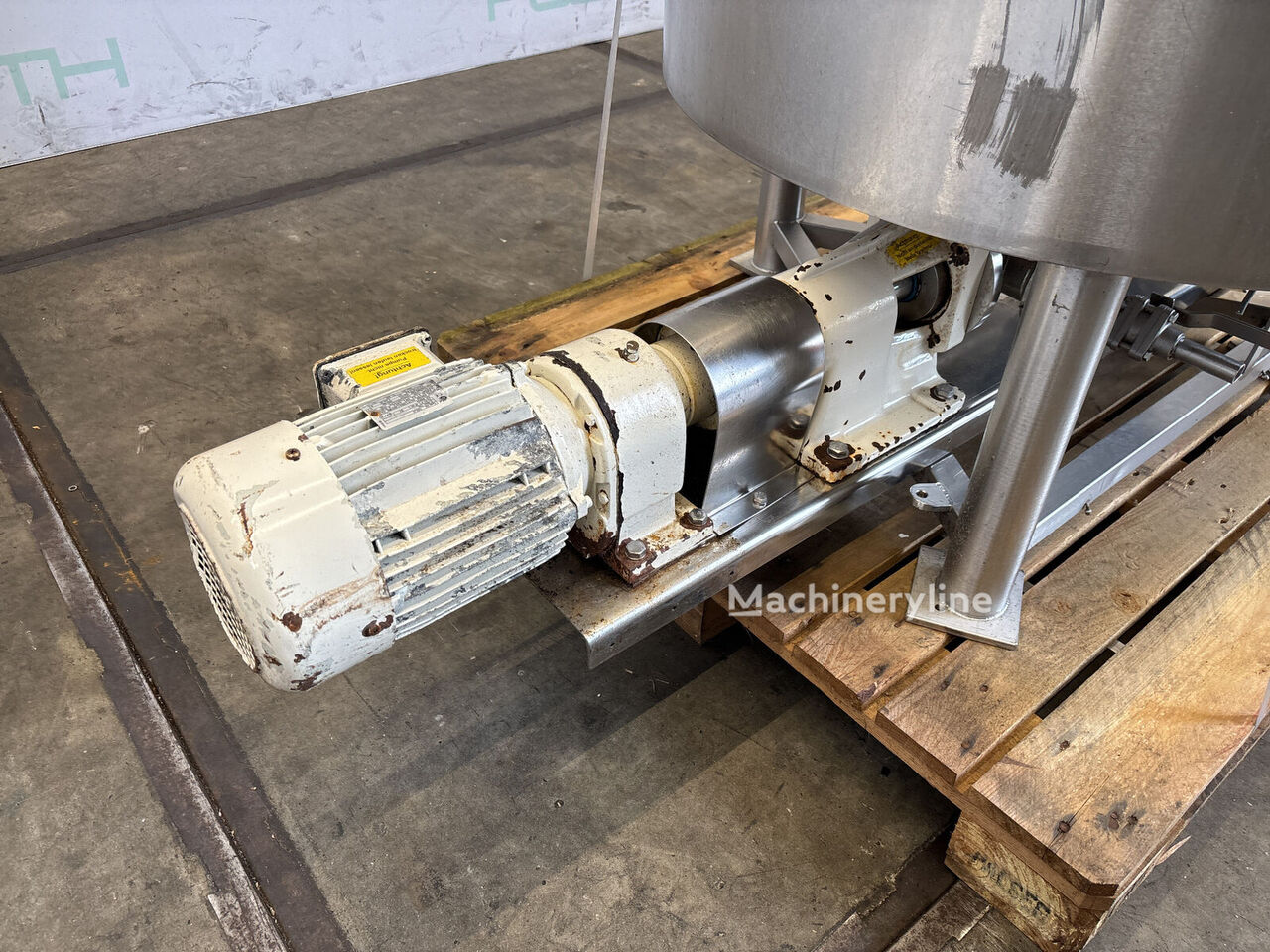

The unit is additionally equipped with a mono pump output — a positive-displacement pump commonly used for transferring viscous fluids — powered by a separate 2.2 kW motor rated at 230/400 volts and running at 1,435 rpm, delivering an output shaft speed of 272 rpm. This integrated pump arrangement allows the vessel contents to be discharged or recirculated without the need for a separate pump unit, adding practical versatility to the installation.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
