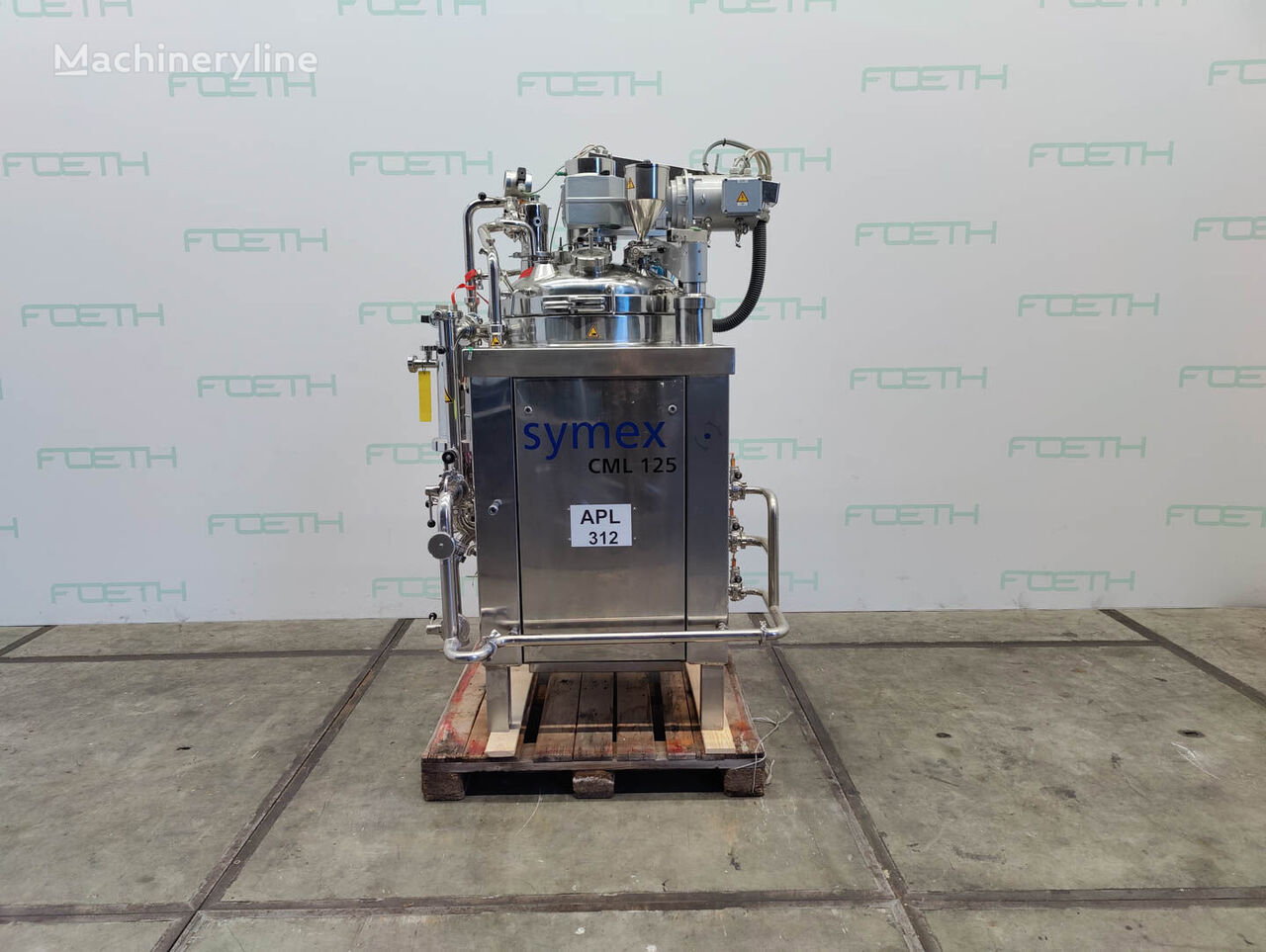

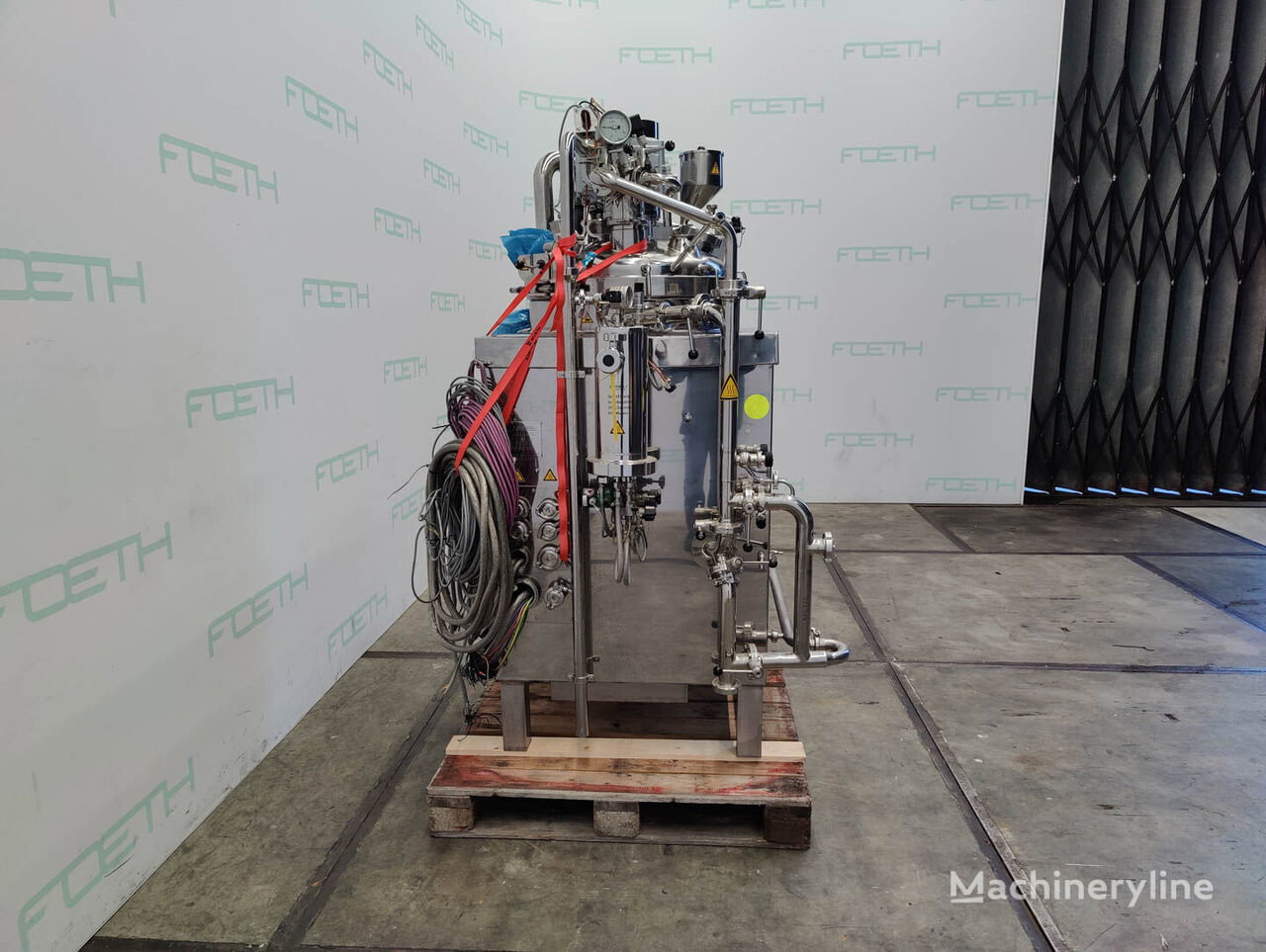

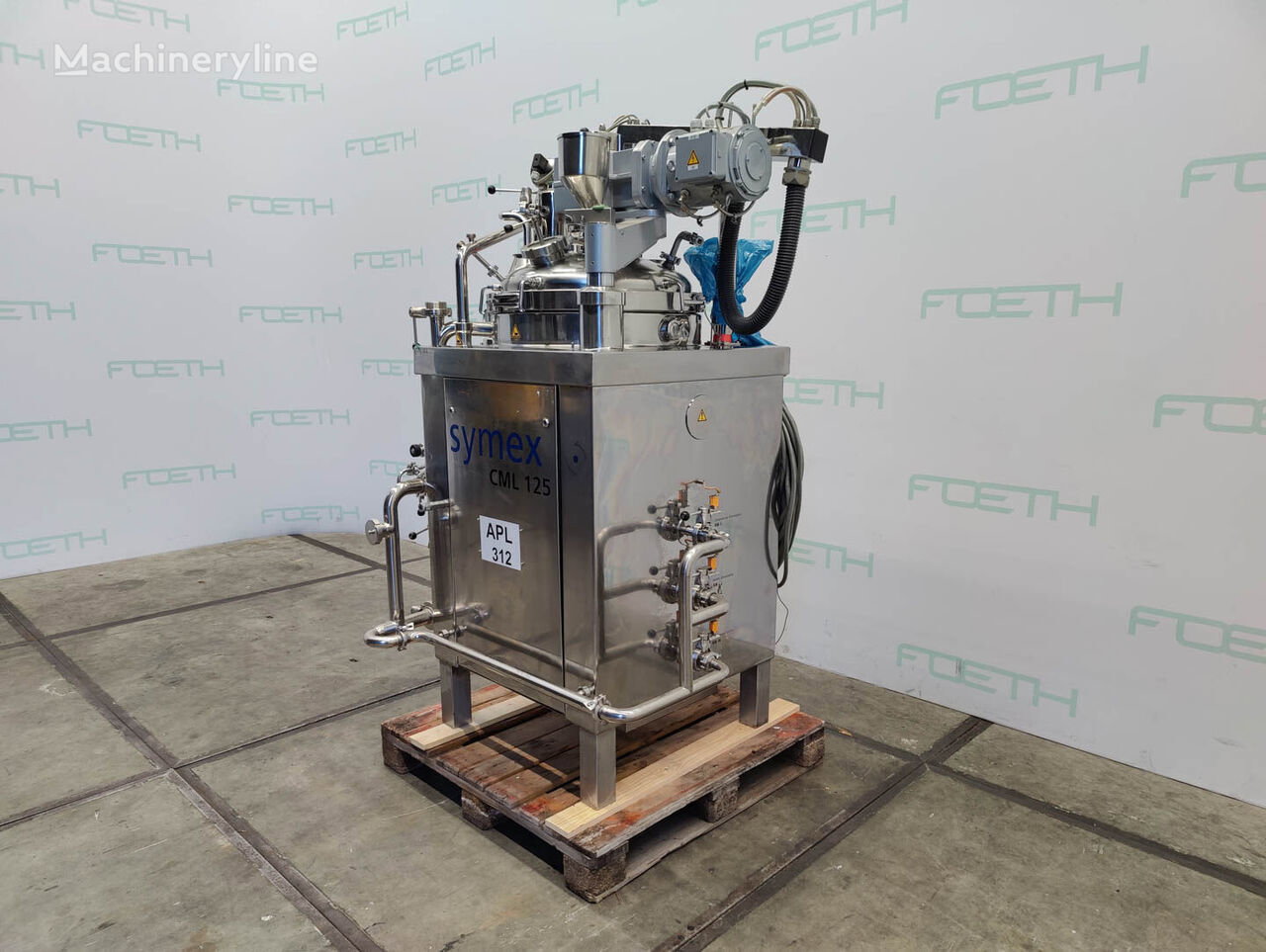

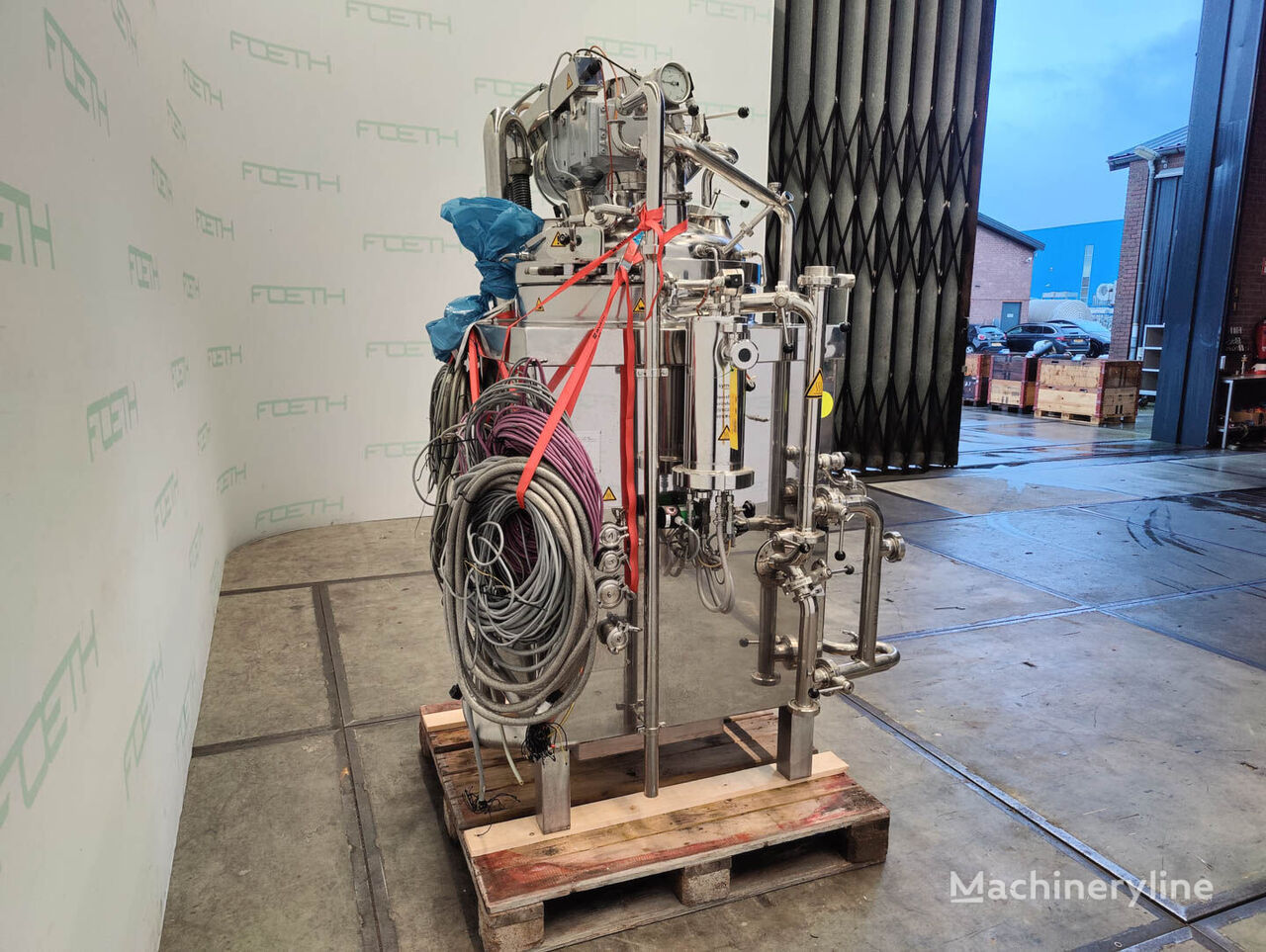

2003 - Symex CML 125 Mixer Blender()
- Listing No
- 1165770
- Year
- 2003
- Manufacturer
- Symex
- Model
- CML 125
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: CML 125 No: SY900794 Working pressure: 2 Bar Vacuum possible: check Working pressure jacket: 4 Bar Vacuum possible jacket: check Material: Stainless steel 1.4571 (316Ti) Volume: 125 Ltr Motor: 6,5 kW, 400 volt, 2495 rpm Closed stirring vessel: check Capacity: 215 l. (netto 125l) Vessel sizes: Dia. 650x1500 mm Dished bottom: check volume 20l Dished top side: check Top connections: check Outlet: DN50 With jacket: check Max. temperature: 151,3°C With anchor stirrer: check with scrapers With paddle stirrer: check Total height: 2,30 m CE: check Mounted on legs: check Floorspace: 1,40x1,20 m Extra information: Volume 20 General Pressure Main Features Specified Features - Processing vessel Information Technical specs
About this machine
The Symex CML 125 is a used mixer and blender — sometimes referred to as a mixing vessel or process mixer — designed for blending, homogenising, and processing liquid or semi-liquid products under controlled temperature and pressure conditions. This type of equipment is widely used in food processing, pharmaceuticals, chemicals, and cosmetics manufacturing, where precise mixing within an enclosed, hygienic vessel is required.
The machine is constructed entirely from stainless steel grade Ti), a titanium-stabilised austenitic alloy well suited to corrosive or high-purity process environments. The vessel has a gross capacity of 215 litres with a net working volume of 125 litres, and its cylindrical body measures 650 mm in diameter by 1,500 mm in height. The dished bottom adds approximately 20 litres to the total vessel volume. Both the top and bottom ends are dished, and the top section is fitted with connections for process pipework or instrumentation. Product discharge is through a DN50 outlet.
The vessel is fully enclosed and pressure-rated, with a working pressure of 2 bar in the main chamber and 4 bar in the heating or cooling jacket that surrounds it. Vacuum capability is possible in both the vessel and the jacket, extending the machine's suitability to vacuum mixing or degassing applications. Maximum operating temperature reaches 151.3°C. The jacket allows the contents to be heated or cooled indirectly, making the unit appropriate for temperature-sensitive processes.
Agitation is provided by two stirrer systems: an anchor stirrer fitted with scrapers, which sweeps the vessel wall to prevent product build-up and promote heat transfer, and a paddle stirrer for additional mixing action. The drive motor delivers 6.5 kW at 400 volts and runs at 2,495 rpm. The unit carries CE certification and is mounted on legs, giving a total installed height of 2.30 metres and a floor footprint of 1.40 by 1.20 metres.
This machine was built in 2003, is offered in used condition, and is located in Barneveld, Netherlands. The serial number is SY900794.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
