2016 - Takumi G700 Machining Center()
- Listing No
- 957452
- Year
- 2016
- Manufacturer
- Takumi
- Model
- G700
- Condition
- Used
- Location
- Portugal
- Price
- POA
- Description
-
Abmessungen (lxbxh): 300 mm Air Requirements: 6 bar ATC Type: Doppelgreifer Axle: 15,000 rpm / BBT40 Coolant through the shaft: 30 bar/435 psi Course: (X, Y, Z) 1350 x 950 x 600 mm cutting feed rate: 1~ 20,000mm/min Distance between columns: 850 mm Distance from spindle nose to table: 200~900mm Distance from spindle tip to table: 150 - 650mm Distance from the spindle tip to the table: 150 - 650mm d'occasion: 20/26 kW Electricity Consumption: 50/125 kVA/A Electric power consumption: 50/125 kVA/A Equipos generales de laboratorio: 50/125 kVA/A Fast displacement rate: (X, Y, Z) 30 / 30 / 30 m/min Fast traversal (X/Y/Z): 30 x 30 x 30 m/min freni: 850 mm Hours: 14533 lifting height: 300 mm Machine Net Weight: 7.000 Kg Magazine capacity: 24 Maximum load: 500 kg Maximum shaft torque: 143.04 Nm Maximum tool length: 300 mm Maximum tool weight: 7 kg Max. Load: 6.000 kg Max Tool Diameter: 75/148mm Max. Tool Length: 300 mm Max. Tool weight: 7 kg Motor: 20/26 kW ohmios de campo de derivación: 750 mm Operating dimensions: 4863x5205x3980mm Power S1/S6: 20/26 kW Quantity in Stock: 1 S1/S6 Power: 20/26 kW spindle cone: HSK50-E spindle speed: 25.000 rpm table size: 1900 x 1300 mm Table work surface: 810 x 620 mm Torque S1/S6: 10.4 / 13.5 Nm T-Slots: 5 x 18 x 125 (DIN 650) T-Slot Size: 8 x 22 in 160 mm Type: Motorspindel Weight: 20000kg X axis: 750 mm Y axis: 600 mm Z axis: 500 mm TAKUMI G700 machining center. Show the whole comment
About this machine

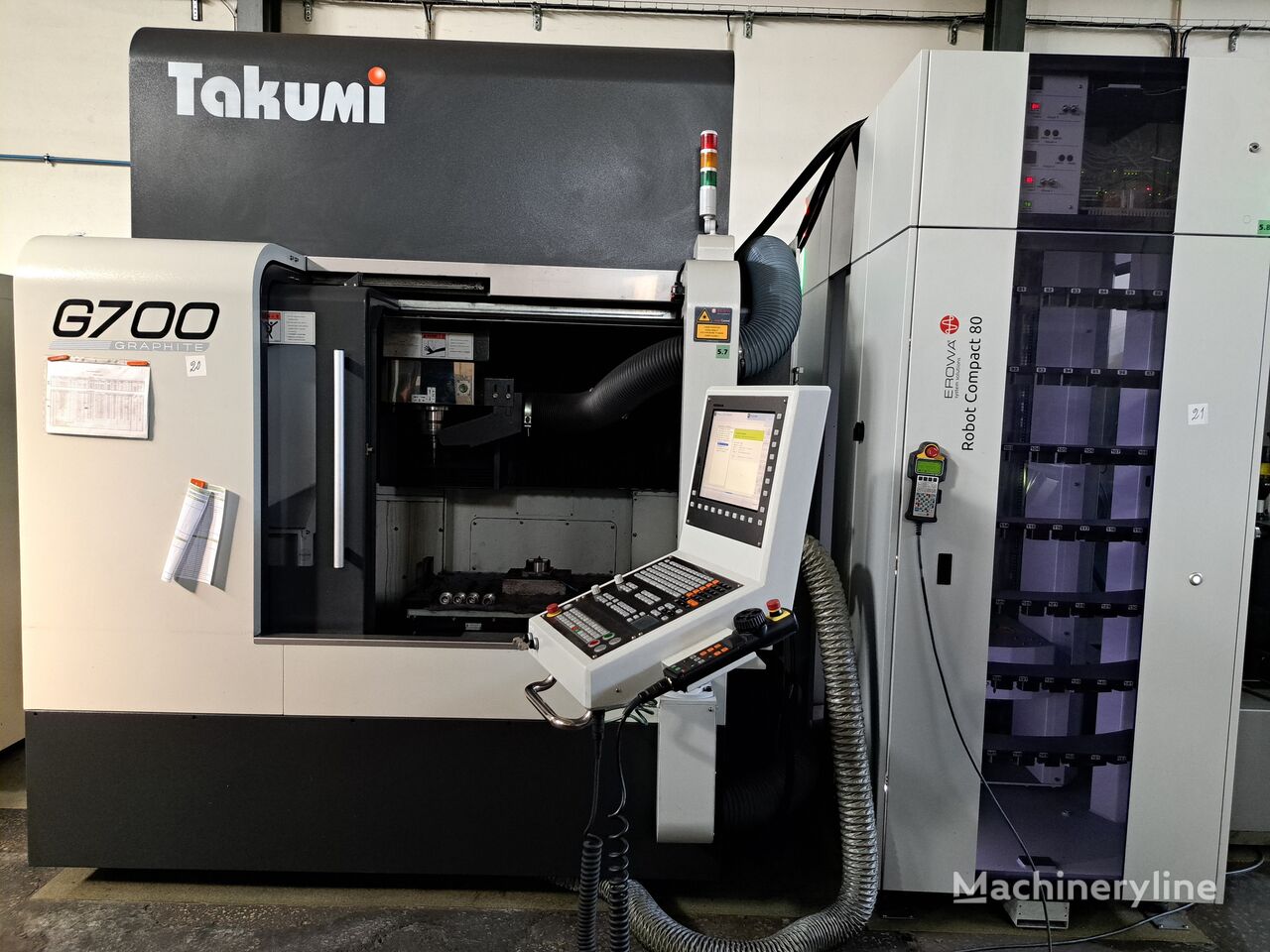

This Takumi G700 is a used machining center — sometimes referred to as a CNC machining center or vertical machining center — a precision machine tool designed for multi-axis milling, drilling, boring, and tapping operations on metal and other engineering materials. Takumi is a machine tool manufacturer known for producing high-performance vertical and horizontal machining centers serving the aerospace, automotive, mould-and-die, and general engineering industries.
Built in 2016 and currently located in Portugal, this machine has logged 14,533 spindle hours and one unit is available. The table measures 1,900 × 1,300 mm with a working surface of 810 × 620 mm and carries a maximum load of 500 kg. Five T-slots to DIN 650 standard are cut at 125 mm pitch with an 18 mm width. Axis travels are 1,350 mm in X, 950 mm in Y, and 600 mm in Z, with rapid traverse rates of 30 m/min on all three axes and a cutting feed rate range of 1 to 20,000 mm/min.

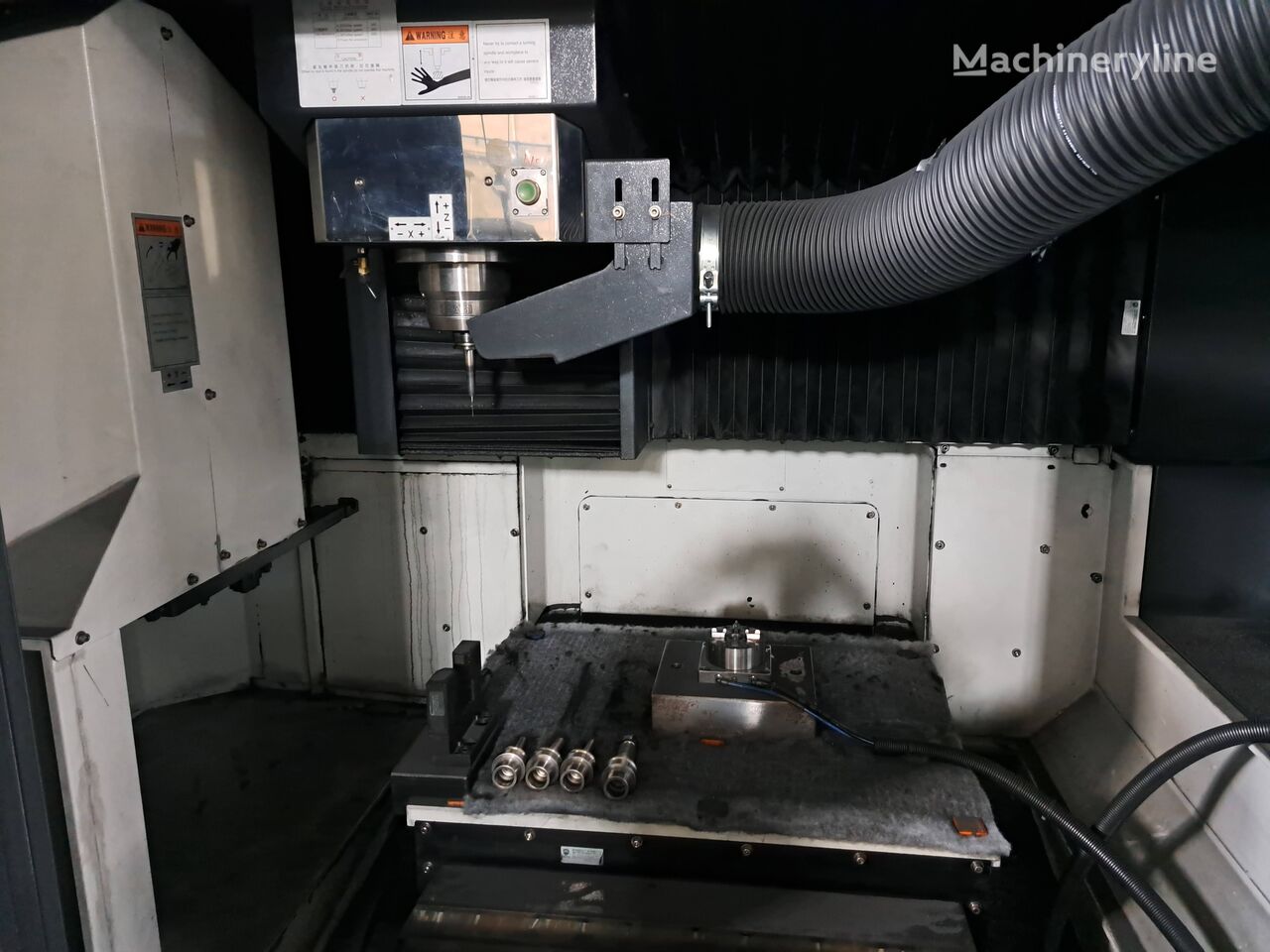

The spindle runs to 25,000 rpm on a motorised spindle unit with an HSK50-E taper and delivers a maximum torque of 143.04 Nm. Continuous and short-term power ratings are 20 kW and 26 kW respectively, with corresponding torque figures of 10.4 Nm and 13.5 Nm at S1 and S6 duty. Coolant is supplied through the spindle at 30 bar (435 psi). The spindle nose-to-table distance ranges from 200 to 900 mm, and the spindle tip-to-table distance from 150 to 650 mm.
The automatic tool changer uses a double-gripper arm and holds 24 tools in the magazine. Maximum tool diameter is 75 mm in adjacent pockets or 148 mm with adjacent pockets empty, maximum tool length is 300 mm, and maximum tool weight is 7 kg. The machine requires a compressed air supply of 6 bar and draws 50 kVA at 125 A. The machine net weight is 7,000 kg and overall operating dimensions are 4,863 × 5,205 × 3,980 mm.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
