2004 - TecSource Mixer Blender()
- Listing No
- 1182227
- Year
- 2004
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: doseer/mengschroef Mach.No: 20030328 Motor: 0.55 kW, 230/400 volt Inlet diameter: 230 mm Material: Stainless steel 1.4552 Horizontal conveyor screw: check Trough-type: check Diameter: 300 mm Shaft diameter: 100 mm Pitch: 130 mm With hopper: check Inlet: 230x70 mm Outlet: 160x155 mm Screw speed: 59 rpm Outlet height: 1180 mm With covers: check Mounted on frame: check Mounted on wheels: check With switch: check CE: check Floorspace: 2,5x1,0 m Total height: 1,8 m Extra Specifications: This screw conveyor is equiped of spray nozzles along the length of the screw. on the product input side is an opening to let sprayed liquid merk: Dutch TecSource General Main Features Specified Features - Horizontal screw conveyor Information
About this machine

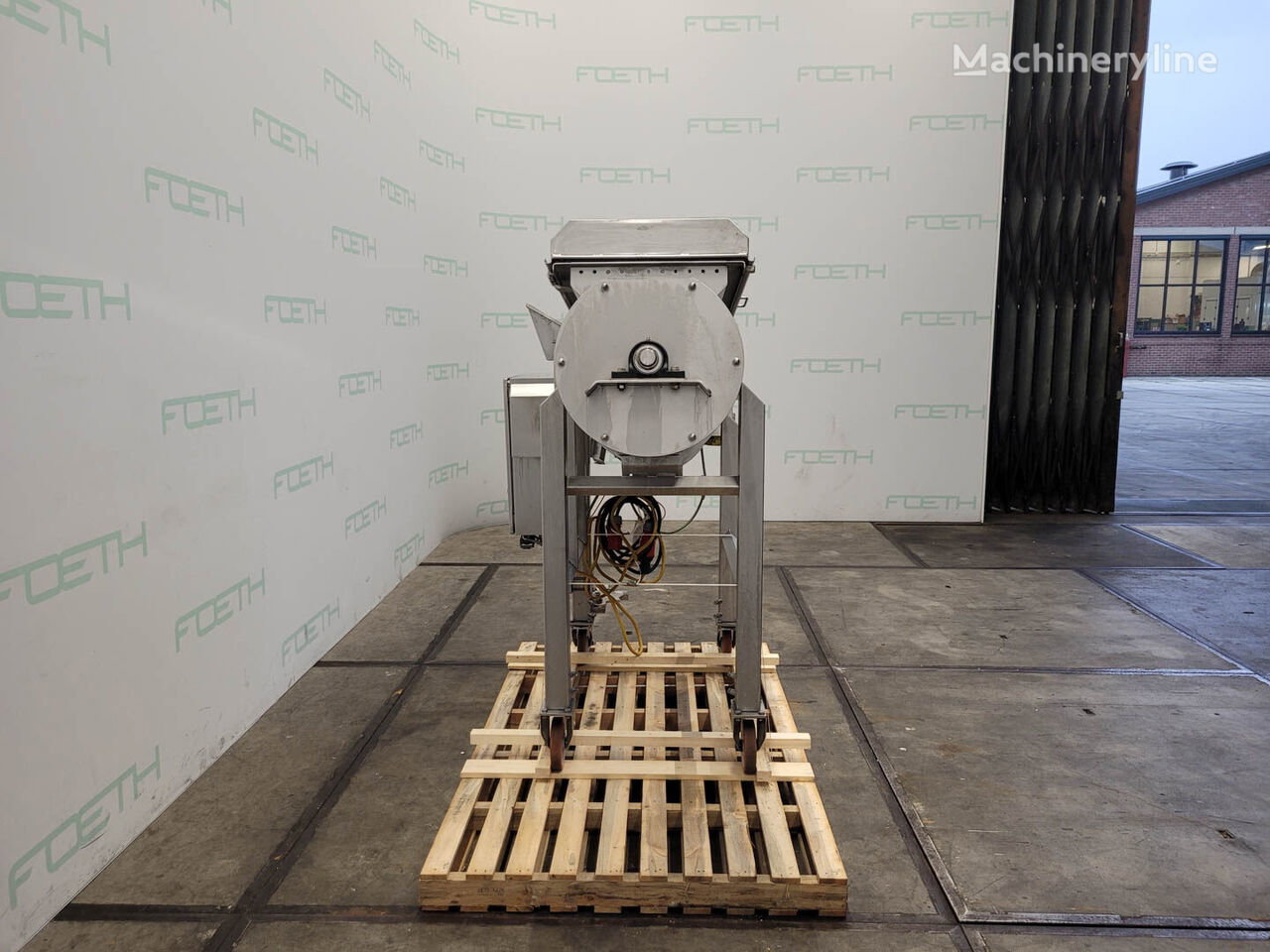

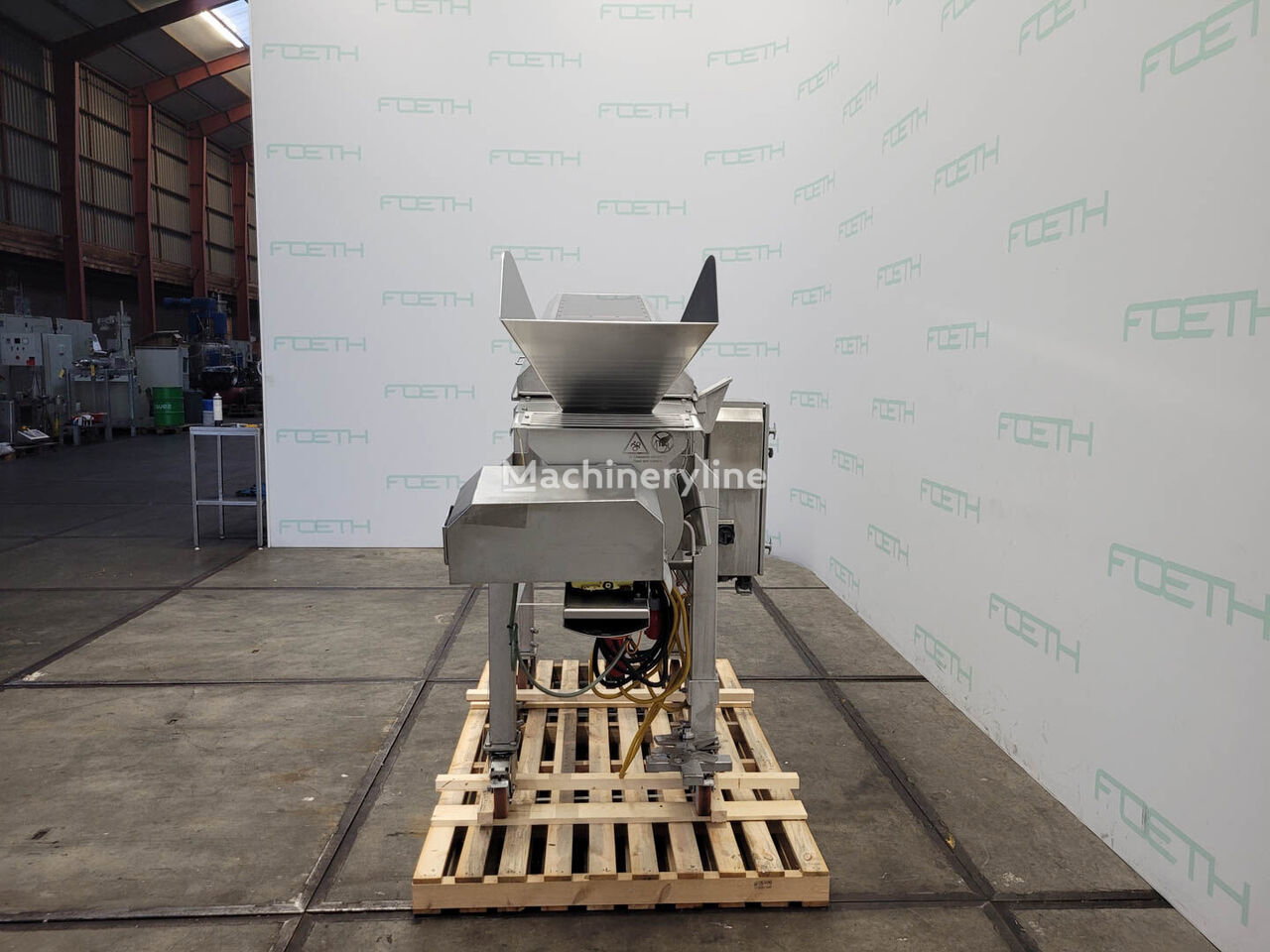

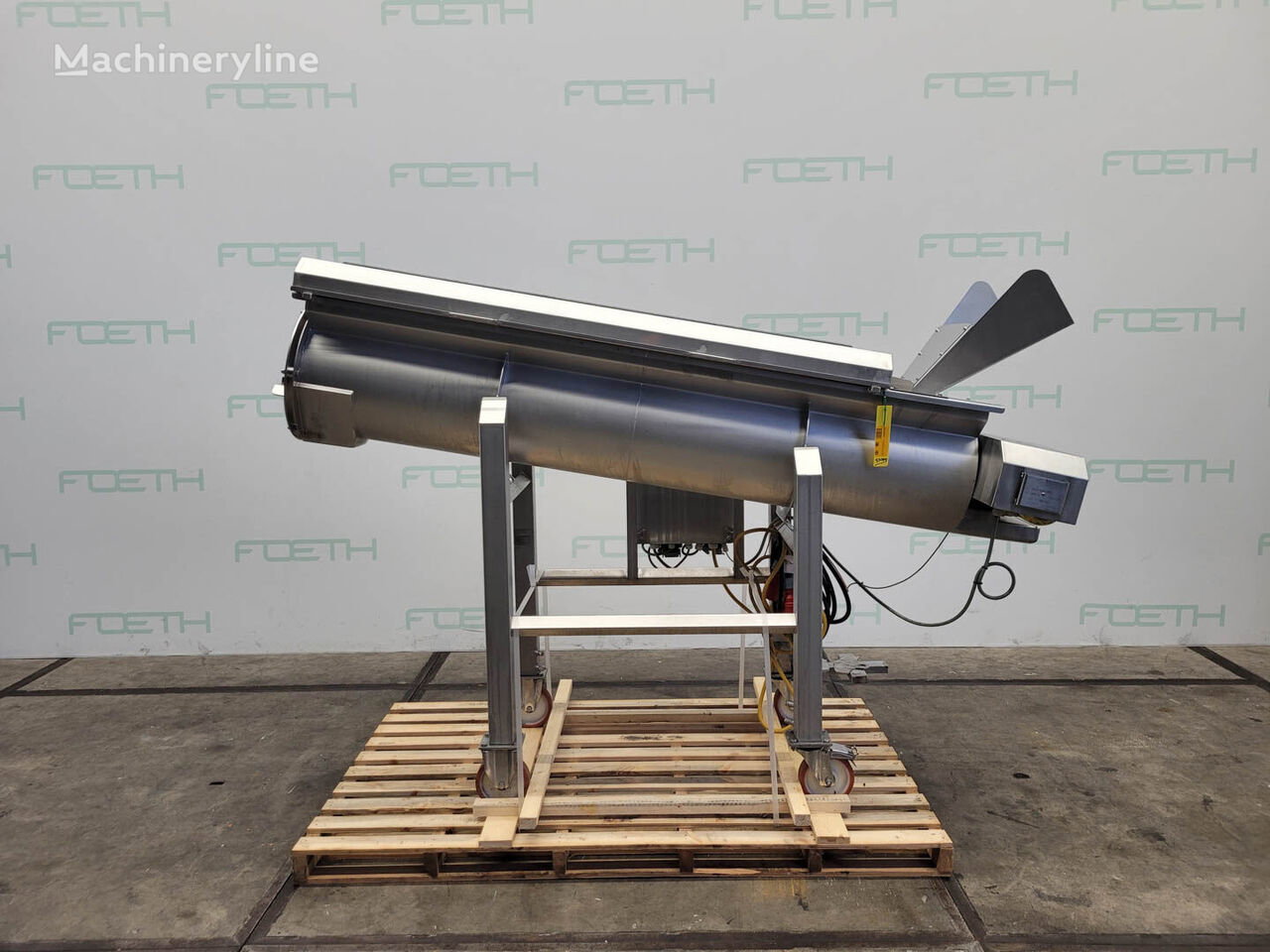

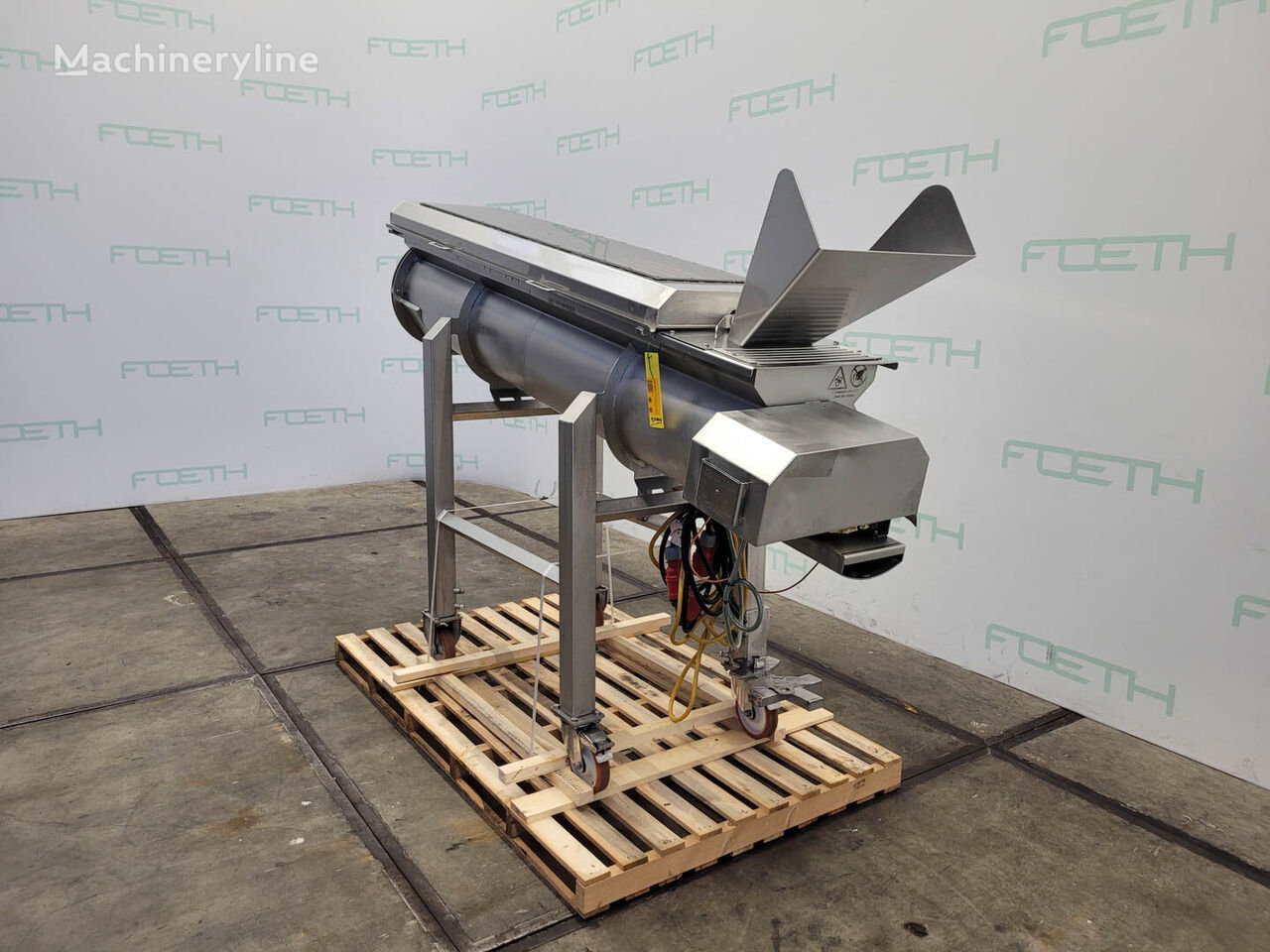

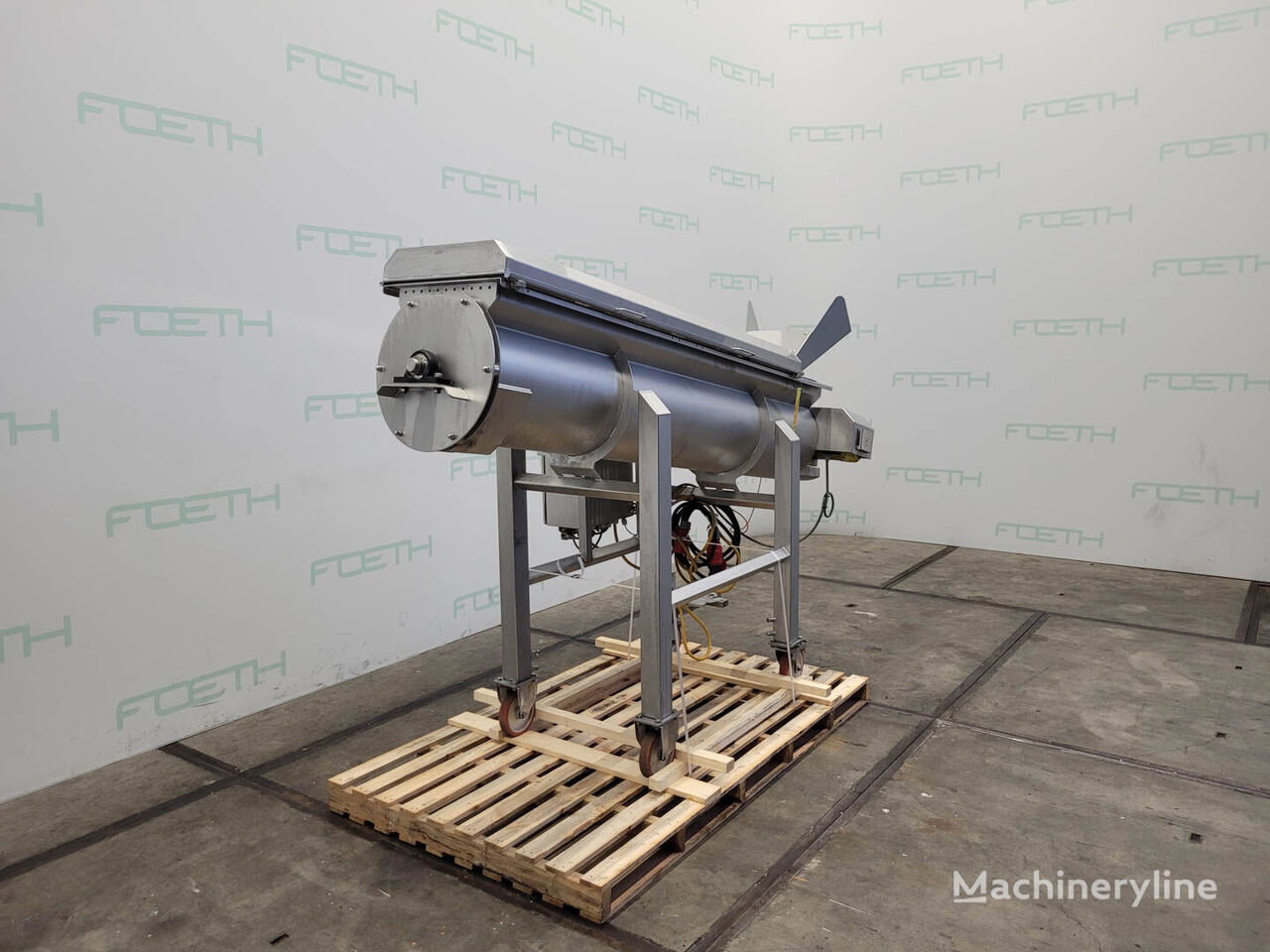

This TecSource Mixer Blender is a horizontal screw conveyor — sometimes referred to as an auger conveyor — designed to dose and blend bulk materials by moving product along a trough via a rotating helical screw. Built in 2004 and located in Barneveld, Netherlands, this used machine carries machine number and is built entirely in stainless steel grade 1.4552, making it well suited for applications where hygiene and corrosion resistance are priorities.
A defining feature of this unit is its integrated spray nozzle system, which runs along the length of the screw. An opening on the product input side allows sprayed liquid to be introduced directly onto the incoming material, meaning the machine does not simply convey but actively blends or coats product with a liquid during transport. This makes it particularly capable in applications such as flavouring, moisture addition, or liquid ingredient dosing within food, feed, or similar processing environments.
The conveyor screw has a diameter of 300 mm, a shaft diameter of 100 mm, and a pitch of 130 mm, operating at a screw speed of 59 rpm. The inlet measures 230 x 70 mm with an inlet diameter of 230 mm, and the outlet measures 160 x 155 mm, positioned at a height of 1,180 mm from the floor. The drive is provided by a 0.55 kW motor rated at 230/400 volt. The machine is of trough-type construction and is fitted with covers, and a hopper is included on the input side.
The unit is mounted on a frame with wheels, giving it mobility on the shop floor, and the overall footprint is 2.5 x 1.0 metres with a total height of 1.8 metres. A switch is fitted, and the machine holds CE certification. This is a compact, self-contained dosing and mixing conveyor ready for integration into an existing processing line.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
