About this machine

This Thyssen TK D 125 is a continuous high-speed mixer and blender — sometimes referred to as a high-intensity mixer — designed for demanding blending and compounding applications where precise mixing at elevated speeds is required. Thyssen is a well-established industrial engineering group with a broad portfolio spanning heavy industry, mechanical engineering, and process equipment, and this unit reflects that heritage in its robust construction and specification.

The machine is built entirely from stainless steel grade 1.4541 (AISI 321), a stabilised austenitic steel well suited to chemical and food-grade process environments. The mixing vessel has a working volume of 7.5 litres with a vessel diameter of 125 mm, and the jacket — which holds 2.5 litres — operates at a working pressure of 5 bar, allowing effective temperature control during processing. The unit is rated to a maximum operating temperature of 200 degrees Celsius, making it suitable for thermally demanding mixing processes.

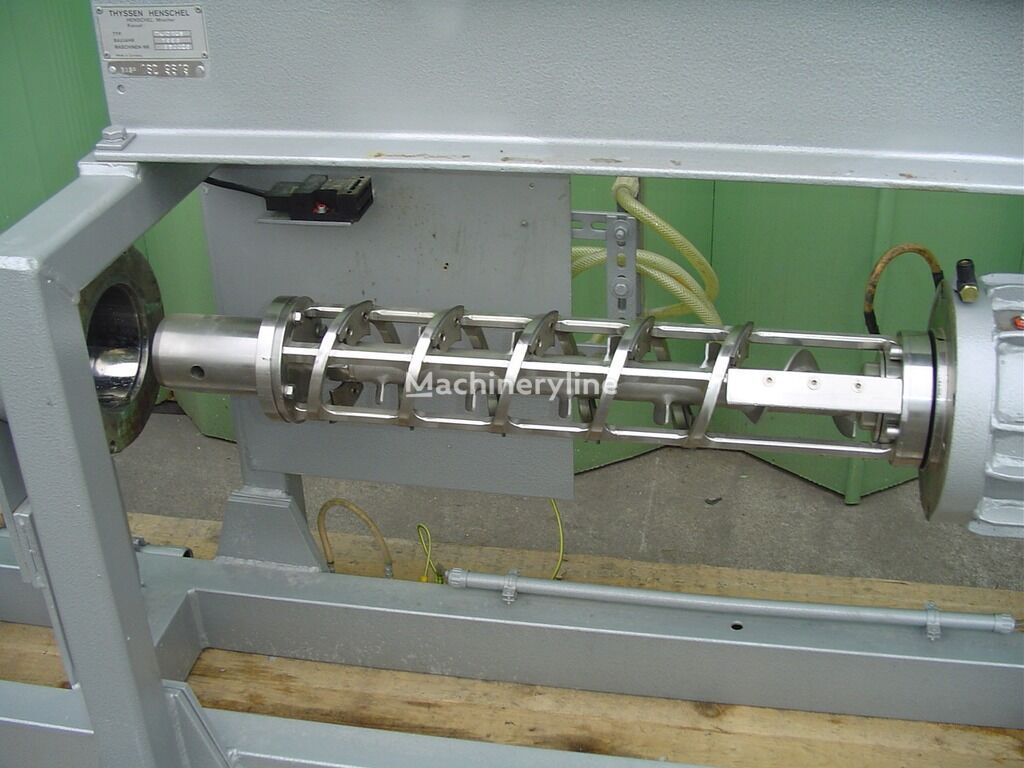

Drive power is provided by a dual-motor arrangement: a 15.0 kW motor and a 5.5 kW motor, both rated at 500 volts and supplied in explosion-proof (Ex) configuration. This makes the machine suitable for use in potentially explosive atmospheres, and it is confirmed as ATEX compatible. The mixing action is delivered by two counter-rotating tools: an outer mixing tool with a variable speed range of 60 to 2,000 rpm and an inner rotor running at a fixed 1,500 rpm. This counter-rotating configuration promotes intensive, homogeneous mixing and is noted to facilitate easy cleaning.

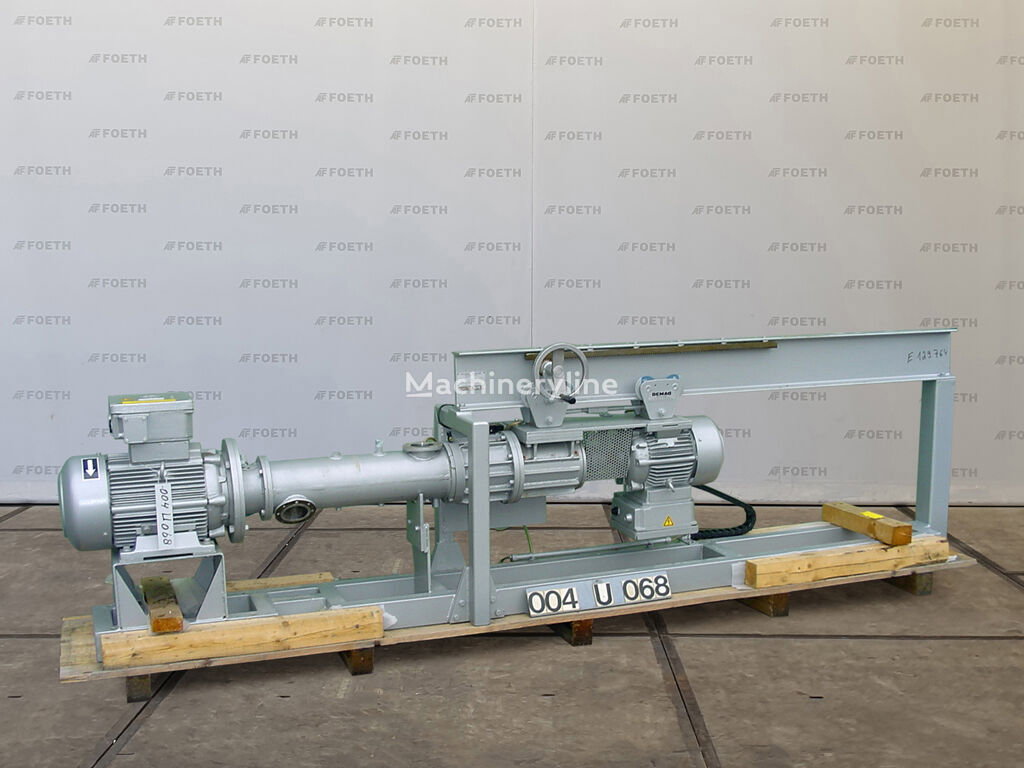

The unit carries serial number 850026, dates from 1993, and is mounted on a frame with a floor footprint of 3.5 × 0.5 metres and a total height of 1.0 metre. It is offered in used condition and is currently located in Barneveld, Netherlands.
