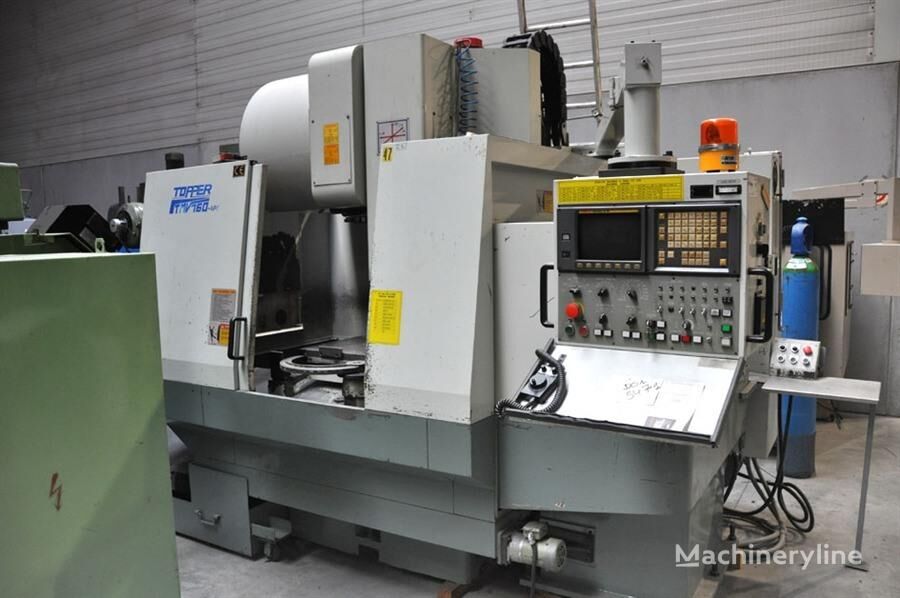

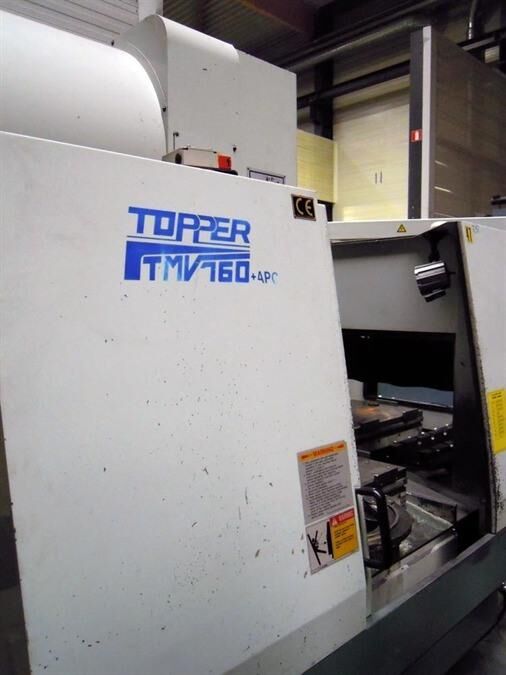

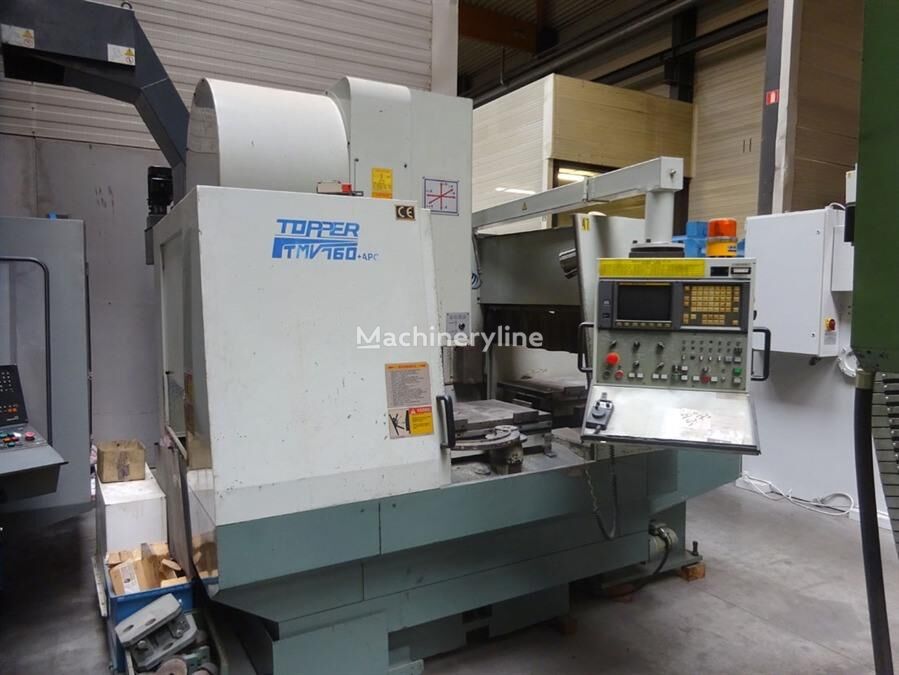

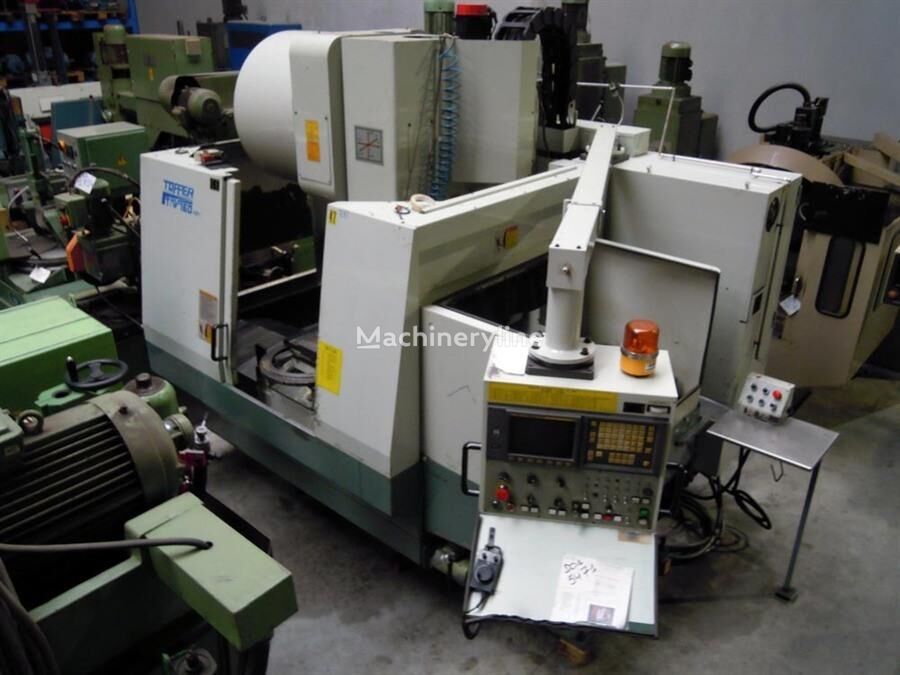

Topper TMV 760A CNC X Machining Center()
- Listing No
- 963045
- Year
- Manufacturer
- Topper
- Model
- TMV 760A CNC X
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
table pallet changing system Table dimensions: 800 x 480 mm Max weight on the table: 5000 kg Admission in spindle (ISO): ISO 40 Control : Fanuc CNC Number of axes: 4 axes Toolchanger: yes Number of toolholders: 24 positions Number of rotations: 60 -> 8000 rpm Power principal motor : 35 kW
About this machine
This Topper TMV 760A is a used machining center — sometimes referred to as a CNC machining centre or vertical machining center — a machine tool designed to perform multiple metal-cutting operations such as milling, drilling, boring, and tapping on a workpiece in a single setup, guided by a computer numerical control system. Topper is a Taiwanese machine tool manufacturer with a long-standing presence in the production of CNC machining centers, lathes, and related equipment serving metalworking and engineering industries worldwide.

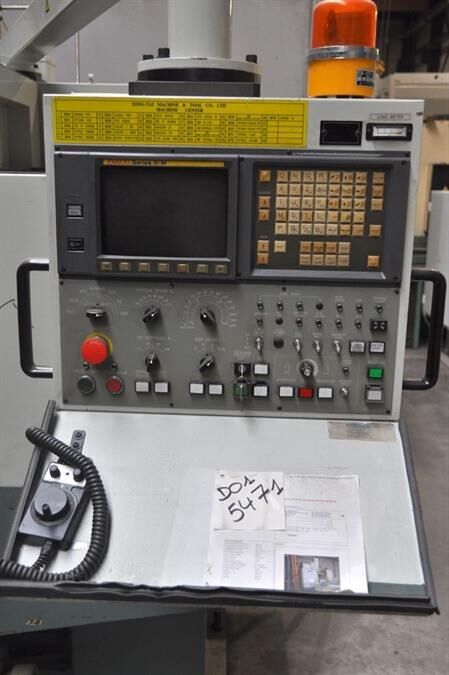

This particular machine is equipped with a Fanuc CNC control system and operates on four axes, giving it the capability to carry out complex multi-face machining operations. The spindle accepts ISO 40 tooling and runs across a speed range of 60 to 8,000 rpm, providing versatility for a wide range of cutting materials and operations. The principal motor delivers 35 kW of power, supporting demanding cutting applications.
The machine features an automatic tool changer with 24 tool positions, allowing the control system to cycle through a substantial library of cutting tools without manual intervention, which significantly reduces setup time and supports continuous production. A table pallet changing system is also included, enabling workpieces to be loaded and unloaded while the machine continues cutting, further improving throughput.
The working table measures 800 x 480 mm and is rated to support a maximum workpiece weight of 5,000 kg, making it well suited to heavy-duty components. The machine is located in Belgium and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
