2015 - Tucal HPF Refrigerator()
- Listing No
- 1131018
- Year
- 2015
- Manufacturer
- Tucal
- Model
- HPF
- Condition
- Used
- Location
- Norway
- Price
- POA
- Description
-
Introducing the Tucal HPF Horizontal Plate Freezer:- Manufacturer: Tucal- Model: HPF- Year of Manufacture: 2015- Condition: Good, working- Designed for freezing products in frames to blocks- 15 Stations with a compressor in a soundproof cabinet on the side- Frames and block outriggers are not included- Sheet size: 2045 x 1200 mm- Freezer Dimensions: 3000 x 1300 x 2300 mm- Soundproof Cabinet Dimensions: 3000 x 1500 x 2320 mm- Simple Freezer Frames Dimensions: Length: 48 cm, Width: 25 cm- External Measurements of Frames: Length: 52 cm, Width: 29 cm- Number of Plates: 11- Number of Stations: 15- Refrigerant: NH3 (Ammonia)- Working Temperature: from -45 to +40 degrees C- Test Pressure: 30 bar- Frame made of stainless steelDon't miss out on this efficient Tucal HPF Horizontal Plate Freezer, ideal for your freezing needs.Introducing the Tucal HPF Horizontal Plate Freezer:- Manufacturer: Tucal- Model: HPF- Year of Manufacture: 2015- Condition: Good, working- Designed for freezing products in frames to blocks- 15 Stations with a compressor in a soundproof cabinet on the side- Frames and block outriggers are not included- Sheet size: 2045 x 1200 mm- Freezer Dimensions: 3000 x 1300 x 2300 mm- Soundproof Cabinet Dimensions: 3000 x 1500 x 2320 mm- Simple Freezer Frames Dimensions: Length: 48 cm, Width: 25 cm- External Measurements of Frames: Length: 52 cm, Width: 29 cm- Number of Plates: 11- Number of Stations: 15- Refrigerant: NH3 (Ammonia)- Working Temperature: from -45 to +40 degrees C- Test Pressure: 30 bar- Frame made of stainless steelDon't miss out on this efficient Tucal HPF Horizontal Plate Freezer, ideal for your freezing needs.
About this machine

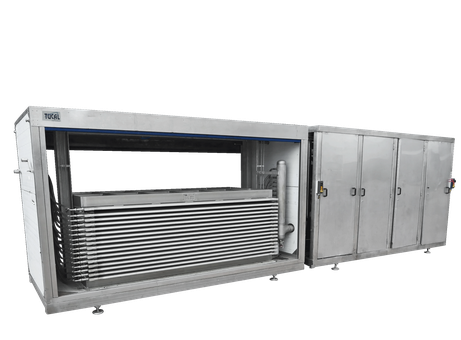

This used Tucal HPF is a horizontal plate freezer — sometimes referred to as a contact plate freezer — designed to freeze products loaded in frames into solid blocks. Horizontal plate freezers of this type are widely used in the food processing industry, particularly for freezing fish, meat, and similar perishable products to precise block dimensions suitable for further processing or storage.
Manufactured in 2015 and described by the seller as in good, working condition, this machine is built around 11 freezing plates arranged across 15 stations. The freezer operates using NH3 (ammonia) as the refrigerant, with a working temperature range spanning from -45 °C to +40 °C and a test pressure rating of 30 bar. These figures reflect a robust industrial specification suited to demanding continuous-freezing environments.

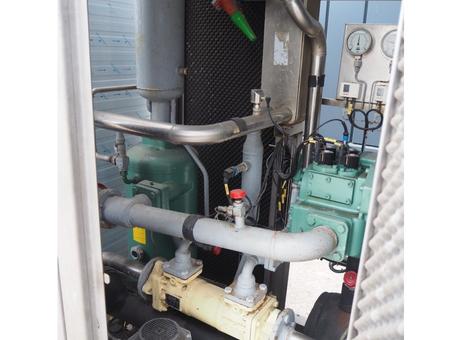

The freezer unit itself measures 3,000 × 1,300 × 2,300 mm, and the integrated compressor is housed in a soundproof cabinet mounted to the side, which measures 3,000 × 1,500 × 2,320 mm. The freezing plates have a sheet size of 2,045 × 1,200 mm. Frames used within the machine have internal dimensions of 480 × 250 mm and external dimensions of 520 × 290 mm. The frames themselves are constructed from stainless steel. It should be noted that the freezing frames and block outriggers are not included with this listing.
The machine is located in Norway and is available as a used unit.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
