1988 - Unimix Haagen & Rinau Bremen Processing vessel Mixer Blender()
- Listing No
- 1183851
- Year
- 1988
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-

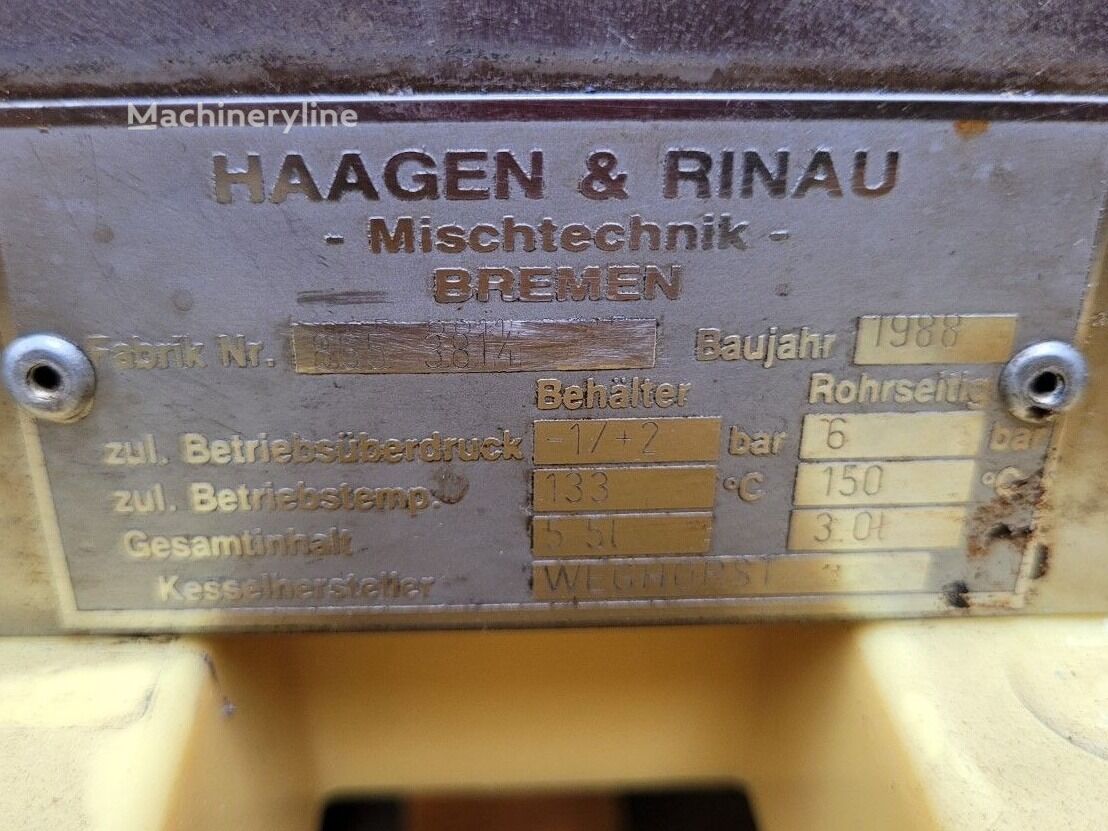

Location: Barneveld No: 865 3814 Working pressure: 2 Bar Vacuum possible: check Working pressure jacket: 6 Bar Material: Stainless steel Volume: 5.5 Ltr Closed stirring vessel: (1x) Capacity: 5,5 Ltr Vessel sizes: dia. 245x165mm (conical vessel) With cover: check With jacket: (3 Ltr), With electric heating Max. temperature: 133/150 Degr. C. (vessel/jacket) With anchor stirrer: "scraper stirrer" (motor 370 Watt) With homogeniser: check Motor: 900 Watt, 220 Volt (1 Ph) With switch: check Floorspace: 0,8x0,5 M Total height: 1,0 M Extra information: conical vessel merk: Unimix Haagen & Rinau Bremen General Pressure Main Features Specified Features - Processing vessel Information Technical specs
About this machine
This Unimix Haagen & Rinau Bremen Processing vessel is a mixer and blender — sometimes referred to as a mixing vessel or process blender — designed for blending, homogenising, and processing small-batch materials under controlled temperature and pressure conditions. Haagen & Rinau is a recognised German manufacturer based in Bremen with a long history of producing mixing and processing equipment for the food, cosmetics, pharmaceutical, and chemical industries.

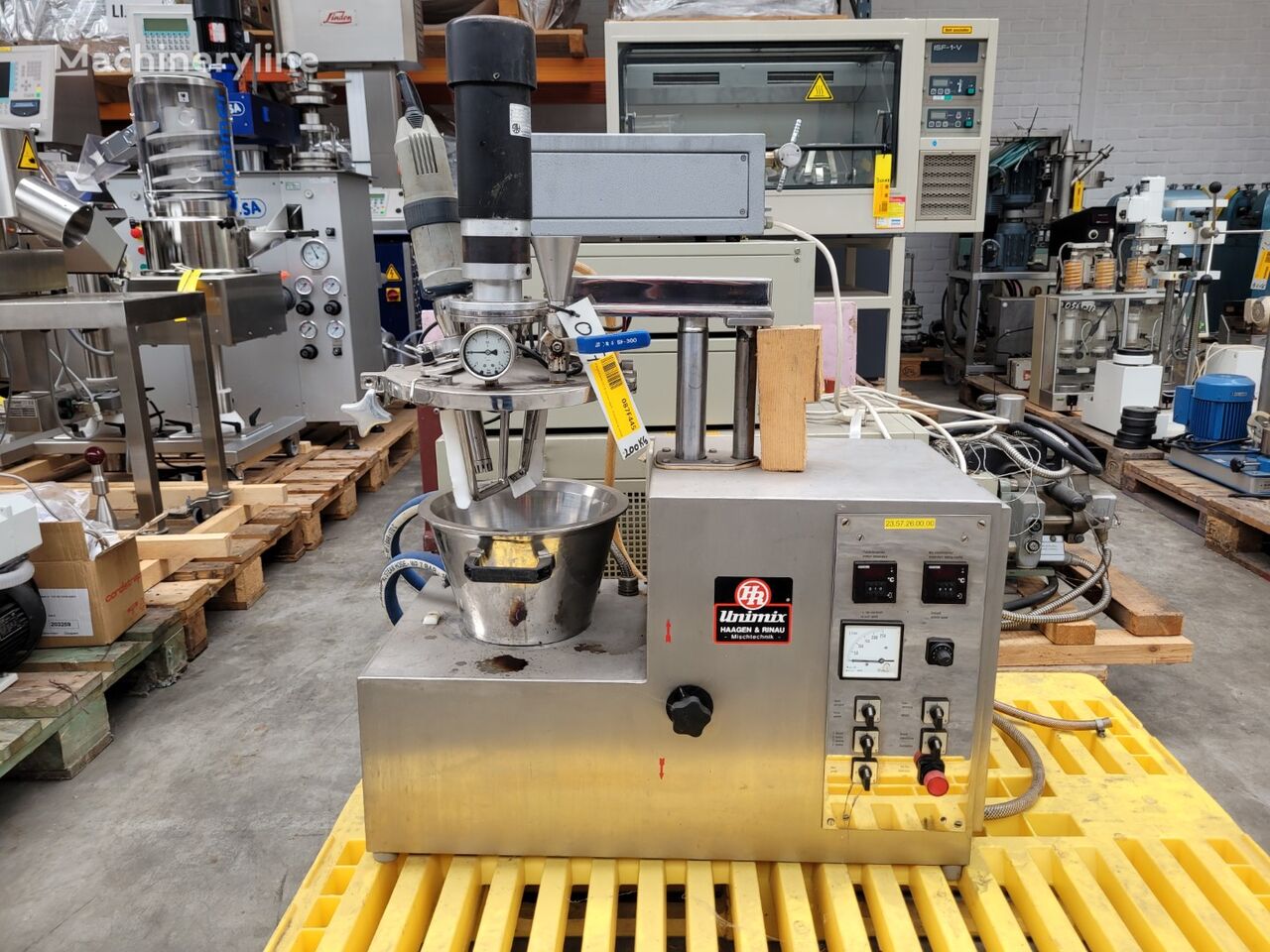

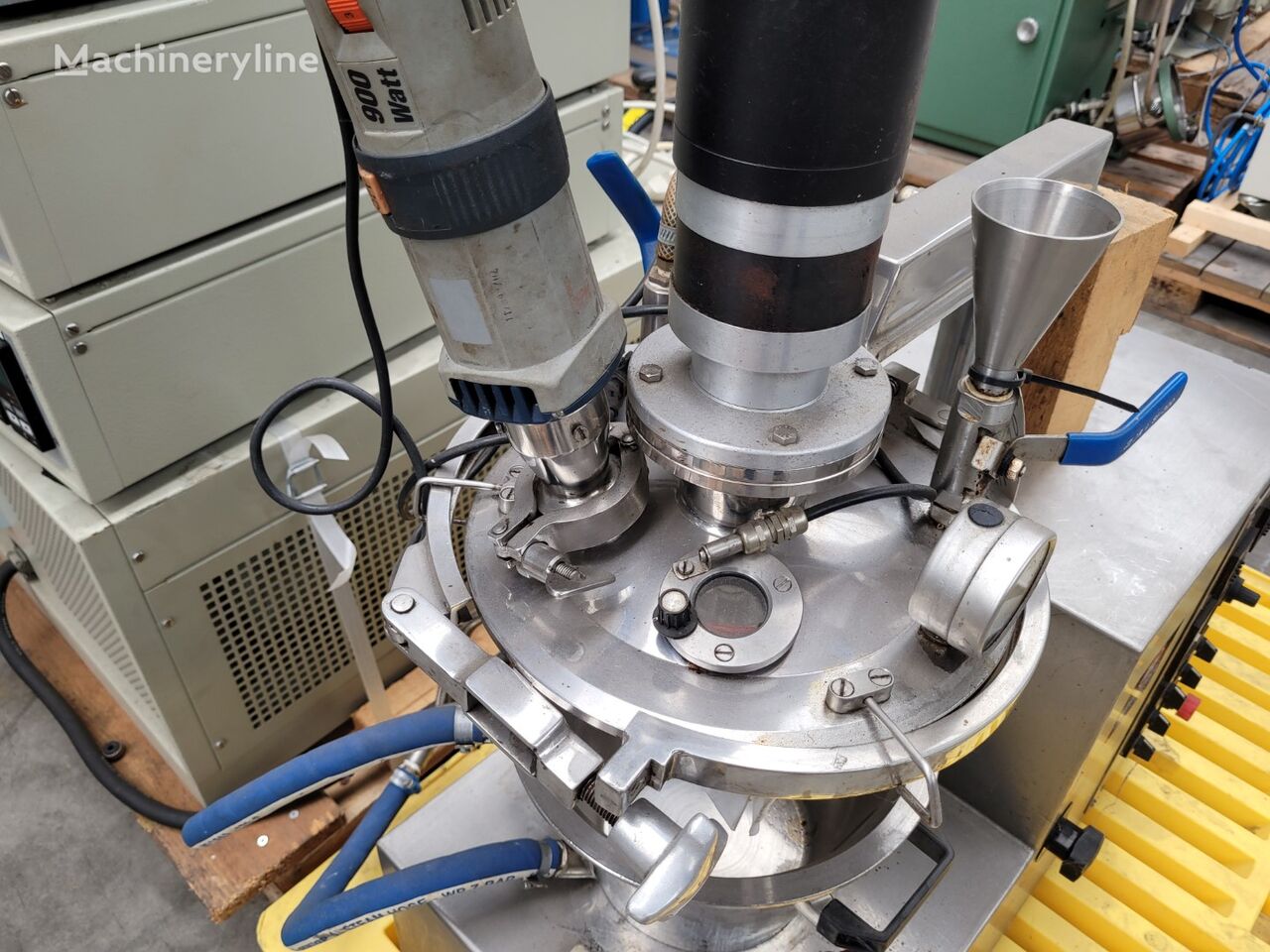

Built in 1988 and offered in used condition from Barneveld, Netherlands, this is a compact, closed stirring vessel with a total capacity of 5.5 litres. The vessel body is conical in shape, measuring 245 mm in diameter by 165 mm deep, and is constructed entirely from stainless steel. It is fitted with a cover and operates at a working pressure of up to 2 bar, with vacuum capability also available.
The vessel is jacketed, with a jacket volume of 3 litres and a jacket working pressure rated at 6 bar. Electric heating is integrated into the jacket system, allowing the vessel contents to be brought up to a maximum temperature of 133 °C, while the jacket itself can operate up to 150 °C. This makes the unit suitable for processing heat-sensitive formulations that require precise thermal management.

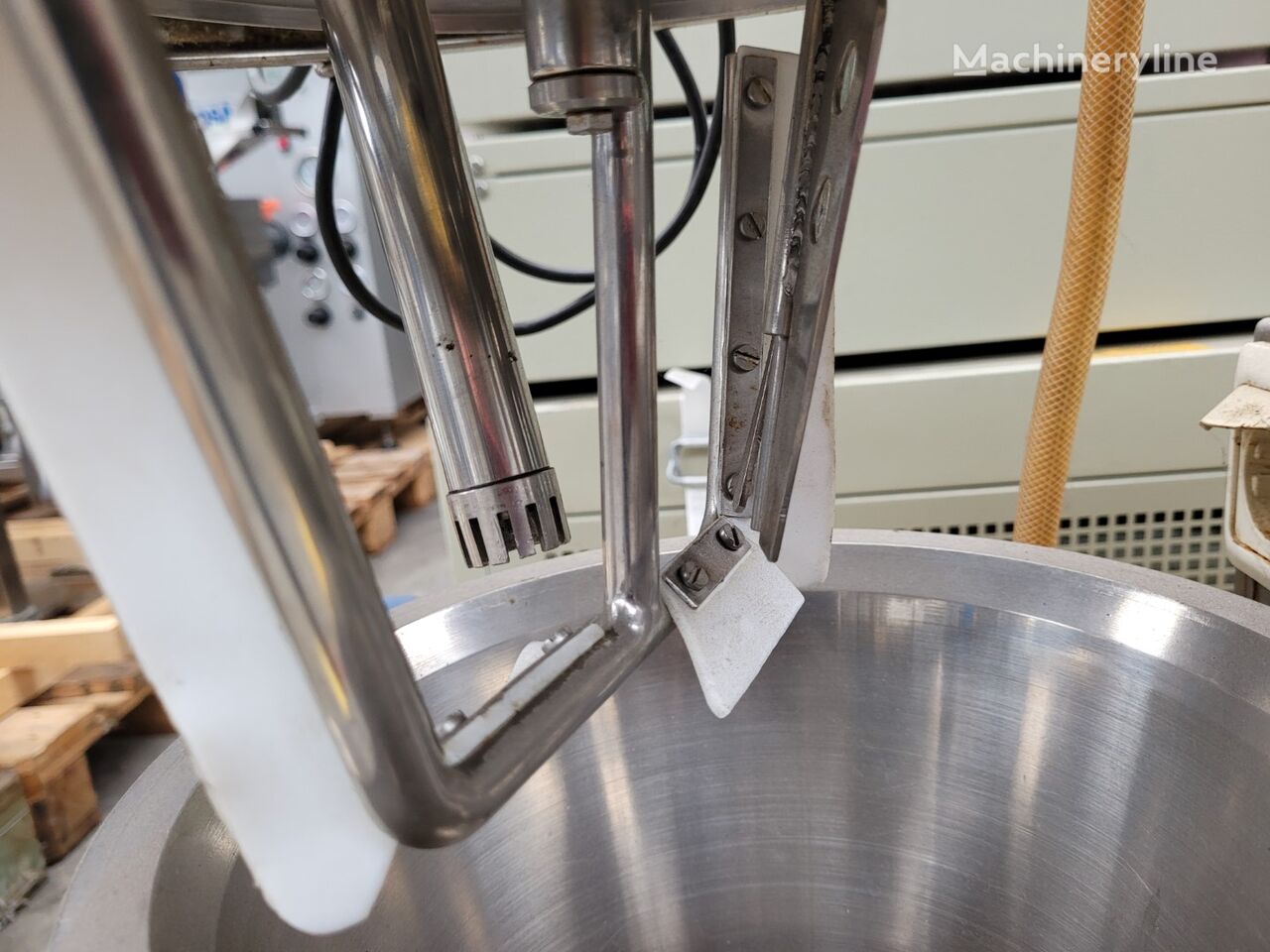

Agitation is provided by an anchor-type scraper stirrer driven by a 370-watt motor, which keeps material moving along the vessel walls during processing. A homogeniser is also fitted, enabling the machine to perform both bulk mixing and fine emulsification or dispersion within the same vessel. The main motor is rated at 900 watts and runs on single-phase 220-volt power supply. A control switch is included.
The machine has a compact footprint of 0.8 by 0.5 metres and stands 1.0 metre tall in total, making it well suited to laboratory-scale or small production environments where floor space is limited.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
