2011 - Vakumix AG ABF-275 Mixer Blender()
- Listing No
- 1181856
- Year
- 2011
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: ABF-275 No: 3200163 Working pressure: 2 Bar Vacuum possible: check Working pressure jacket: 4 Bar Material: Stainless steel 1.4404 Volume: 225 Ltr Motor: 11 kW (400 V, 1450 rpm) Closed stirring vessel: check Capacity: 275 Ltr Dished bottom: check Dished top side: check Top connections: check Outlet: check With jacket: check Max. temperature: 130 °C With turbo stirrer: check Speed mixing shaft: 500-4500 rpm With switch: check With switchgear: check CE: check Floorspace: 1,5 x 1,5 m (processing vessel only) Total height: 2,5 m Extra Specifications: including temperature control unit and vacuum pump merk: Vakumix AG General Pressure Main Features Specified Features - Processing vessel Information
About this machine

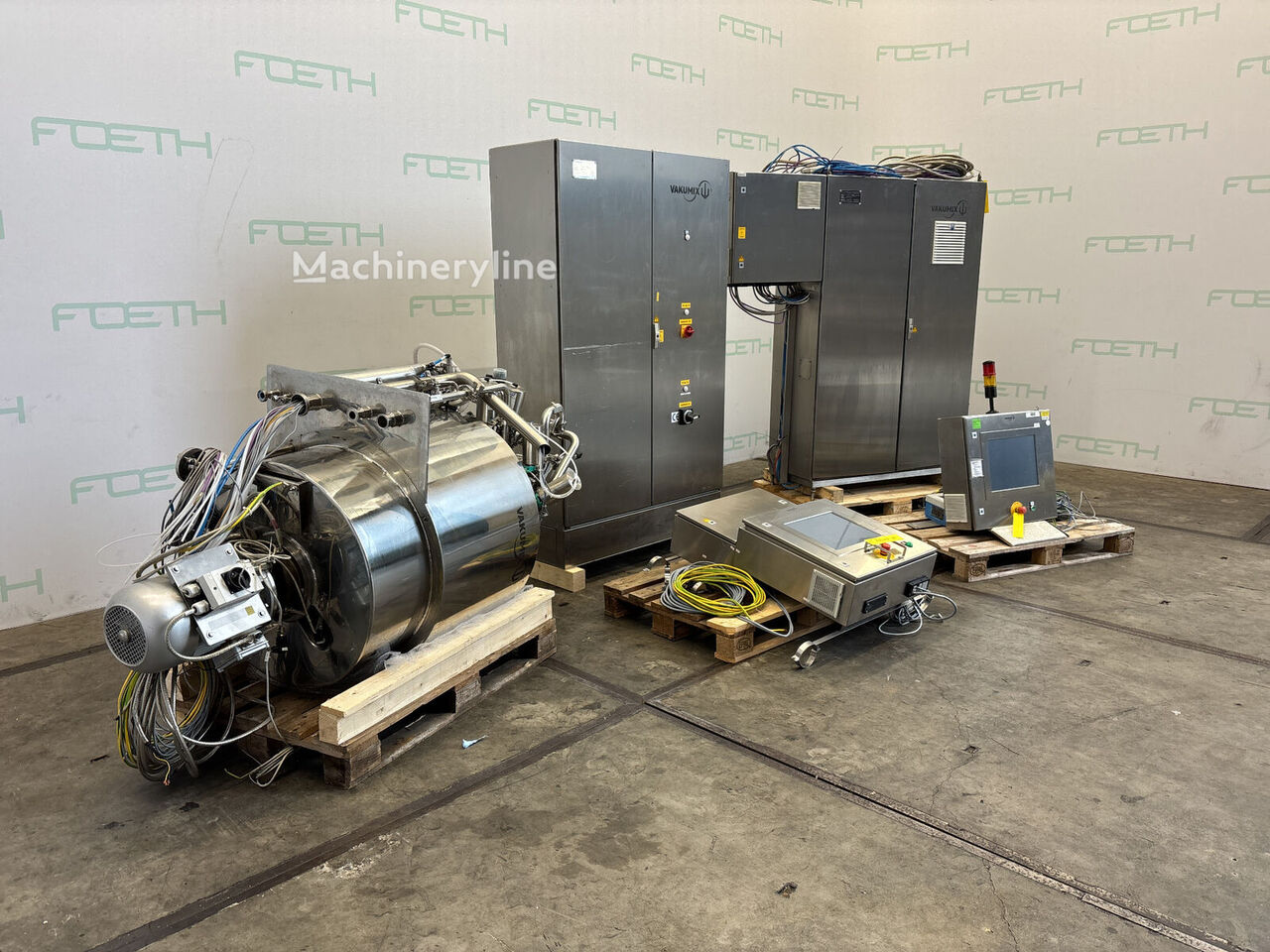

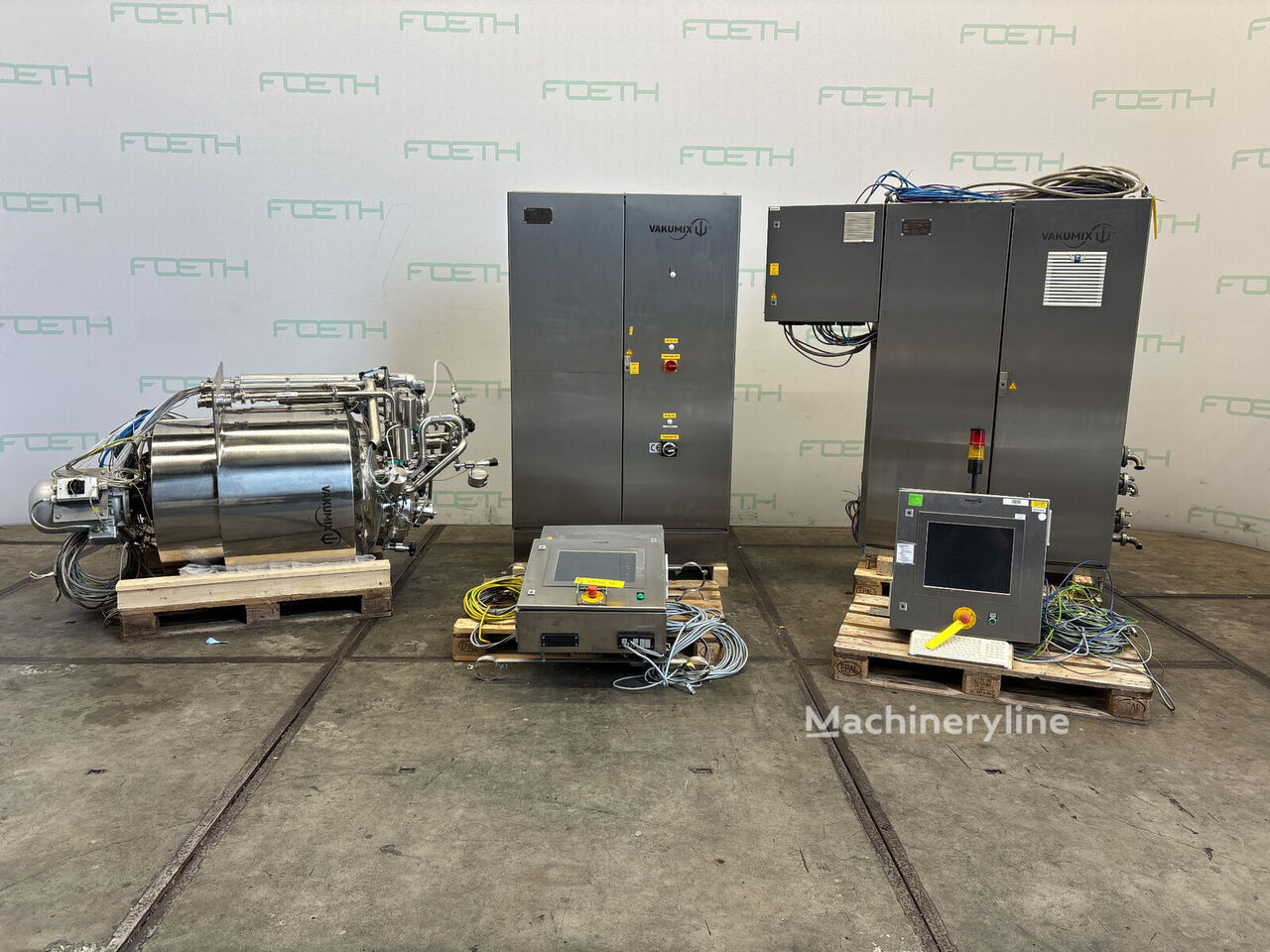

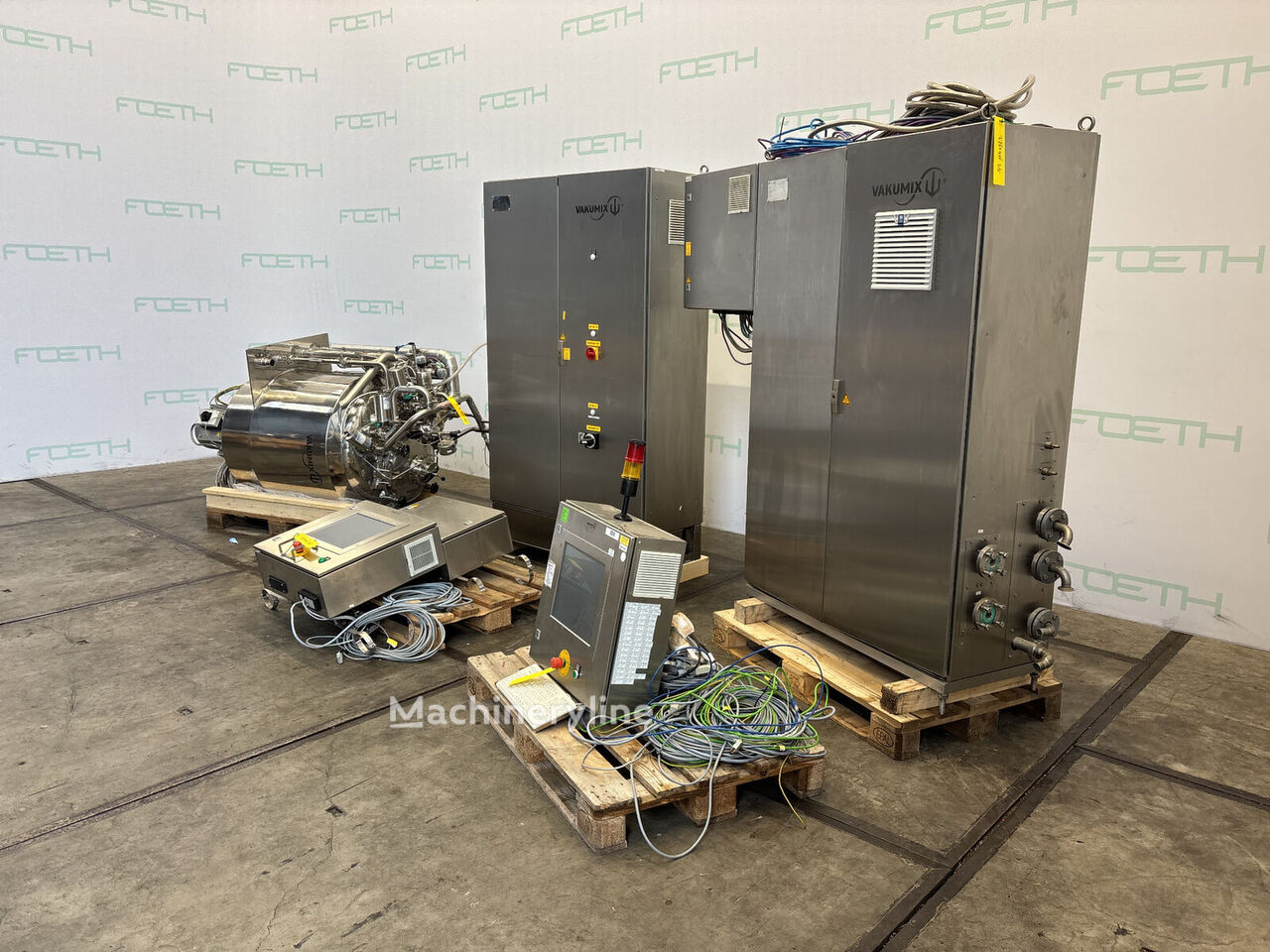

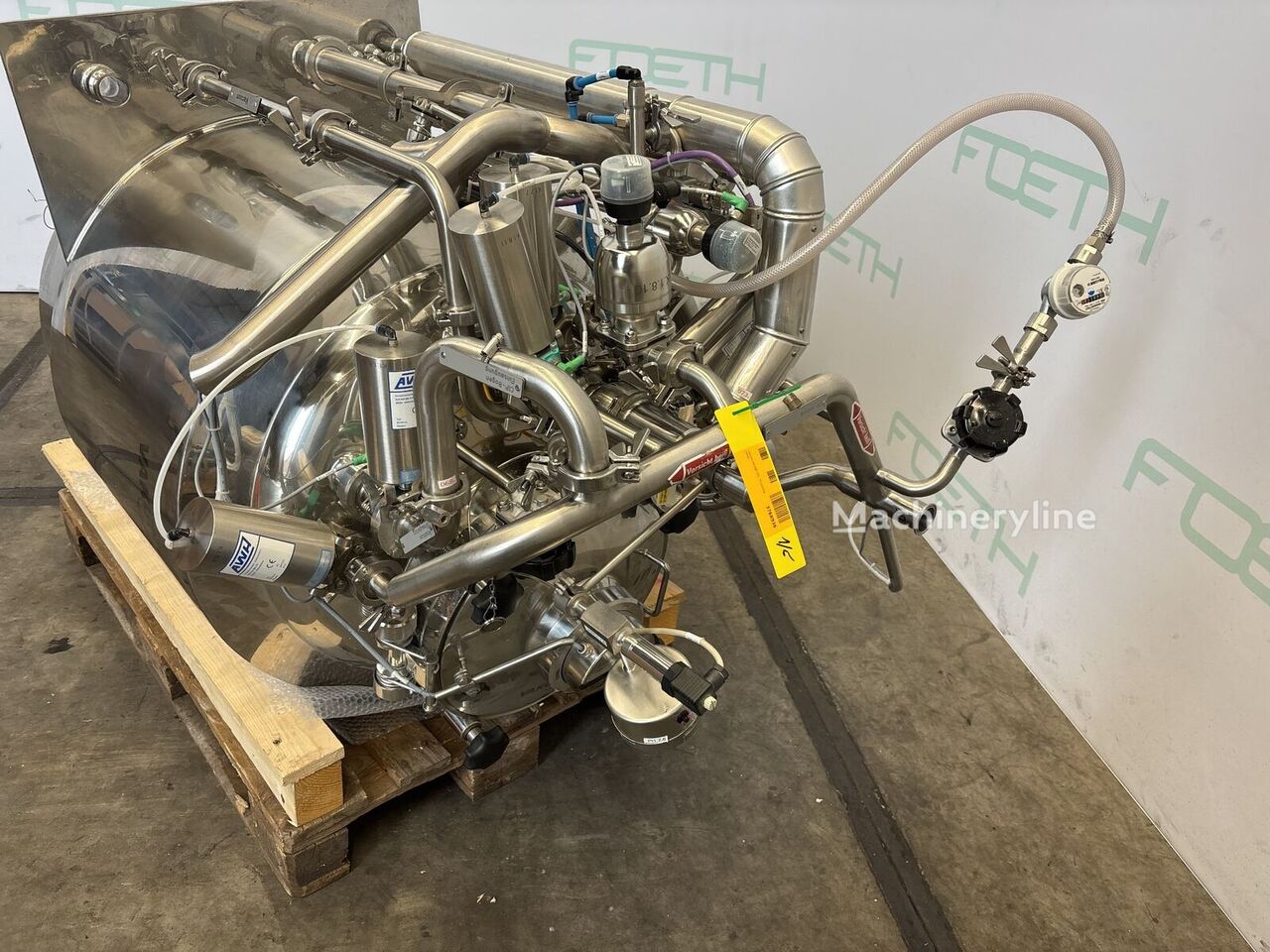

This Vakumix AG ABF-275 is a mixer and blender — sometimes referred to as a mixing vessel or process mixer — designed for blending, emulsifying, and homogenising liquid and semi-liquid products under controlled temperature, pressure, and vacuum conditions. Vakumix AG is a specialist manufacturer of vacuum mixing and processing equipment, supplying industries such as food, cosmetics, and pharmaceuticals with closed, hygienic processing systems built to demanding standards.
This unit, serial number 3200163, was manufactured in 2011 and is available in used condition from Barneveld, Netherlands. It is constructed throughout in stainless steel grade 1.4404, a corrosion-resistant austenitic alloy well suited to food-grade and pharmaceutical applications. The vessel has a total capacity of 275 litres with a working volume of 225 litres, and features dished bottom and dished top profiles, which promote efficient mixing and drainage while withstanding pressure differentials.
The vessel is fully jacketed, allowing temperature-controlled heating or cooling of the product. It is rated to a maximum working temperature of 130 °C, a working pressure of 2 bar in the main vessel, and a jacket working pressure of 4 bar. Vacuum operation is also possible, making the vessel suitable for deaeration and vacuum mixing processes. Top connections and a product outlet are both present.
Mixing is performed by a turbo stirrer driven by an 11 kW motor operating at 400 V and 1,450 rpm. The mixing shaft is variable speed, covering a range of 500 to 4,500 rpm, allowing the operator to adapt agitation intensity to the product and process stage. The machine is supplied with its own switchgear and switch panel, and carries CE marking.
The footprint of the processing vessel alone is 1.5 × 1.5 metres, with a total installed height of 2.5 metres. The listing includes a temperature control unit and a vacuum pump, meaning the machine is offered as a largely self-contained processing system ready for integration into a production line.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
