2006 - Verdés 049 Mixer Blender()
- Listing No
- 1180931
- Year
- 2006
- Manufacturer
- Verdés
- Model
- 049
- Condition
- Used
- Location
- Portugal
- Price
- $72,500
- Description
-

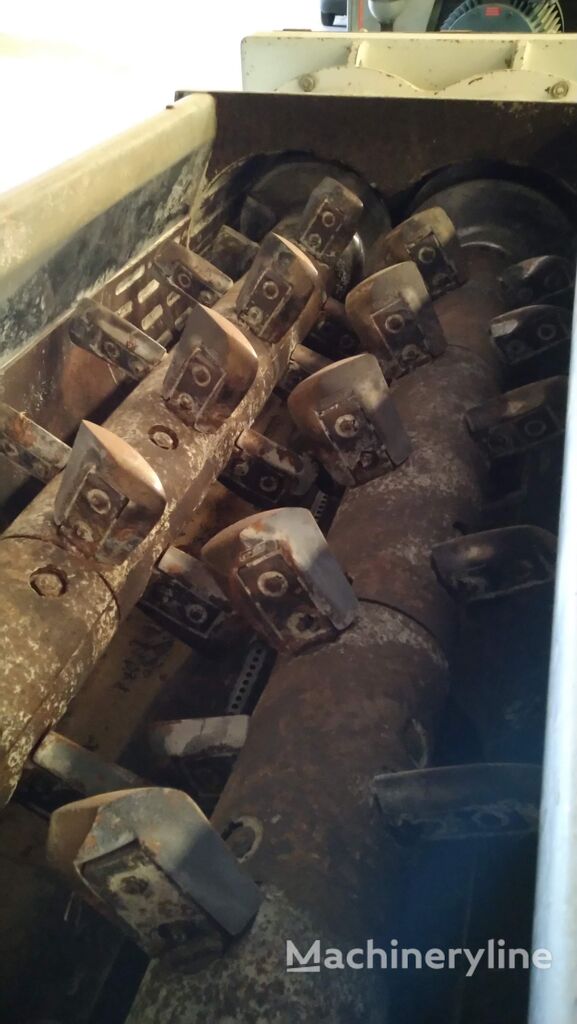

Height: 1.50 Length: 7.00 Obs: Machine Inlet Mouth 2.20 x 0.90m state: For Sale Width: 3.50 Double shaft mixers are essential machines in the preparation process to ensure correct mixing and homogeneity between different types of clays or other minerals and their additives, as well as for the incorporation of water. Its high efficiency is based on the “paddle-to-paddle” mixing concept. A unique feature of Verdés kneaders where the distribution and geometry of their blades intensifies the kneading effect and facilitates the uniform distribution of additives, achieving a completely homogeneous dough. Technical Data: 3 Speed: 130kw / 160kw / 200kw (17/21/25 r.p.m.) Total width and length: 1510mm and 3050mm Diameter of propellers: 640mm Machine pulley diameter and width 870X187mm Center distance between machine pulley axis 2103/2155/2209mm machine dimensions Length: 6000mm Width: 3358mm Height: 1244mm Shipping volume: 18m3 Approximate weight: 12ton It is sold with chassis, electric motors and electrical panel, operating manual and CE certificate. It is in very good working order. It's in our warehouse ready to be loaded.
About this machine

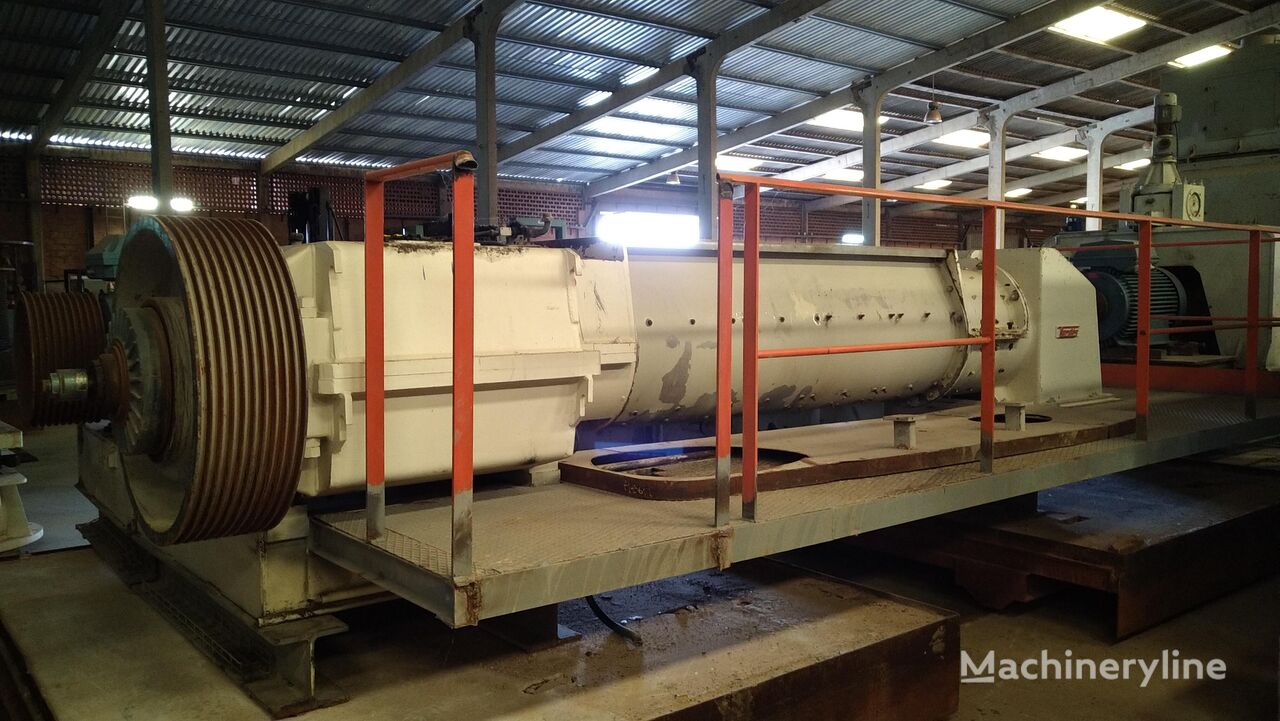

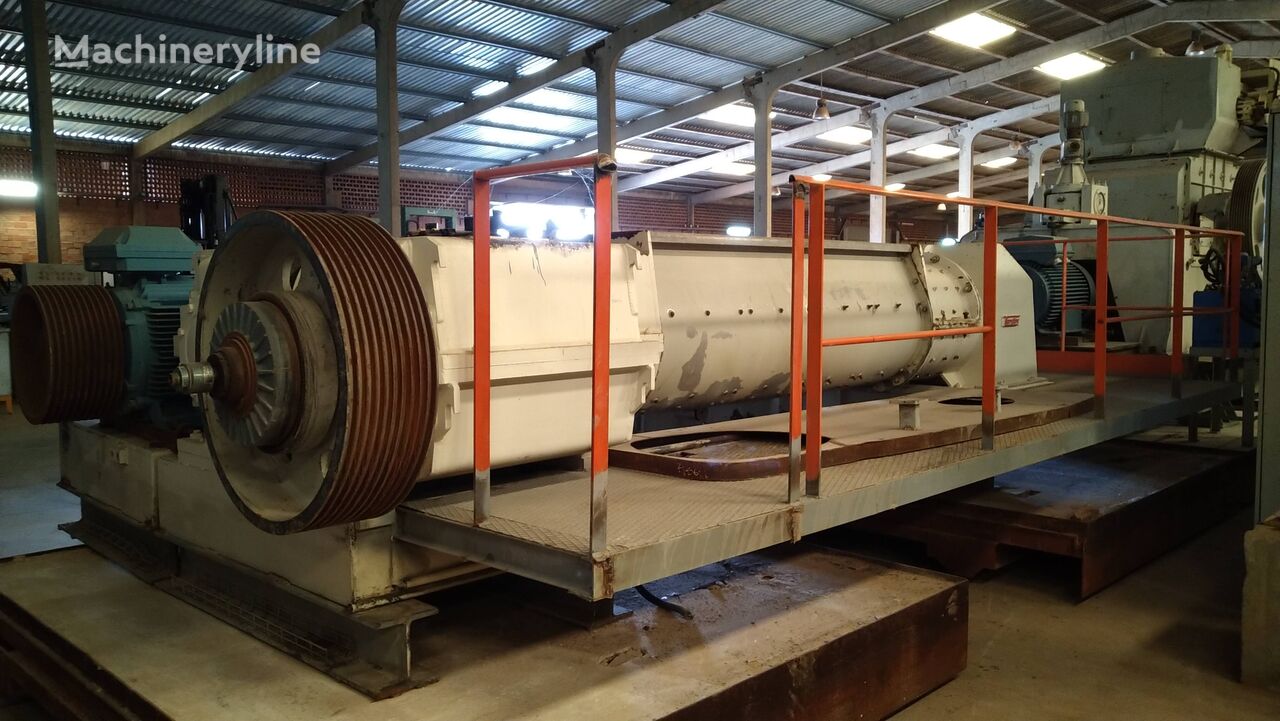

The Verdés 049 Mixer Blender is a double-shaft mixer and blender — sometimes referred to as a double-shaft pugmill — designed for the preparation and homogenisation of clays, minerals, and their additives in ceramic and building-materials manufacturing. Verdés is a well-established Spanish manufacturer of machinery for the brick, tile, and heavy-clay industries, producing equipment across the full preparation and forming line. This machine performs the critical task of combining different raw materials and incorporating water to produce a uniform, workable mass, operating on what Verdés describes as a "paddle-to-paddle" mixing concept, in which the geometry and distribution of the blades intensifies the kneading action and promotes even distribution of additives throughout the mix.
The machine offers three operating speeds, each paired with a corresponding power level: 130 kW at 17 rpm, 160 kW at 21 rpm, and 200 kW at 25 rpm. This stepped power and speed arrangement allows the output to be matched to the rheological demands of the material being processed. The propeller diameter is 640 mm, and the machine pulley measures 870 × 187 mm. Centre distances between the machine pulley axes are given as 2,103 mm, 2,155 mm, and 2,209 mm across the three speed configurations.
The machine body measures 6,000 mm in length, 3,358 mm in width, and 1,244 mm in height, with an inlet mouth of 2,200 × 900 mm. The total working width and length of the mixing assembly are 1,510 mm and 3,050 mm respectively. Shipping volume is quoted at 18 m³ and approximate weight at 12 tonnes.
Manufactured in 2006 and currently located in Portugal, the unit is reported to be in very good working order and is warehouse-stored, ready for loading. The sale includes the chassis, electric motors, electrical panel, operating manual, and CE certificate. It is priced at $72,500.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
