1990 - Vollrath EWTHV-0,5 Mixer Blender()
- Listing No
- 1176809
- Year
- 1990
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: EWTHV 0,5 No: 22.593 Motor: 0,37 kW (380 V, 1390 rpm, (Ex)) Dissolver: check lab Disc diameter: 30/50/65/90 mm Between shaft and frame: 200 mm With variable speed drive: check Speed mixing shaft: 260-1820 rpm With mechanical lifting: check max 250 mm With switch: check Floorspace: 0,55 x 0,45 m Total height: 0,95 m ATEX compatible: check merk: Vollrath General Main Features Specified Features - Dissolver Information
About this machine

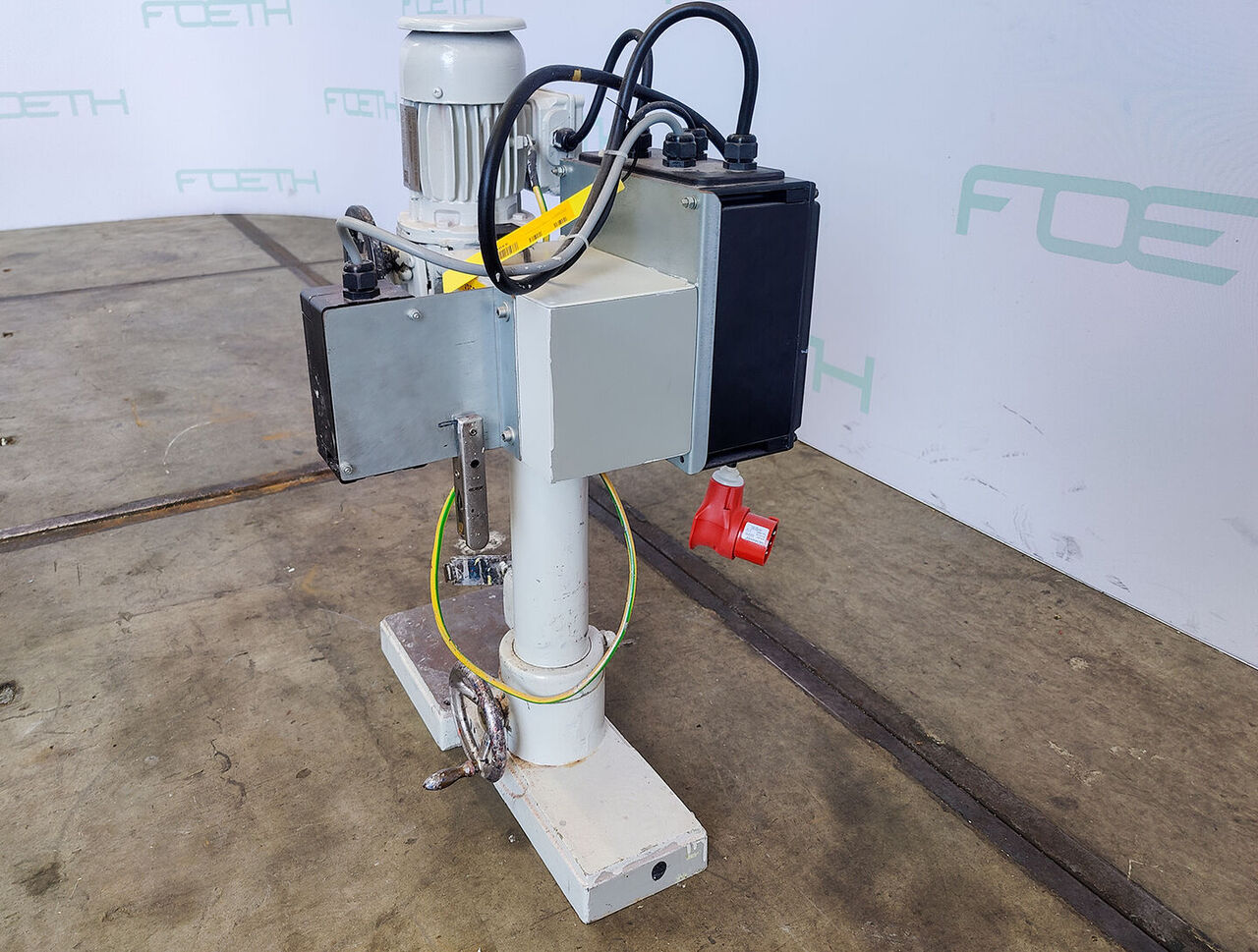

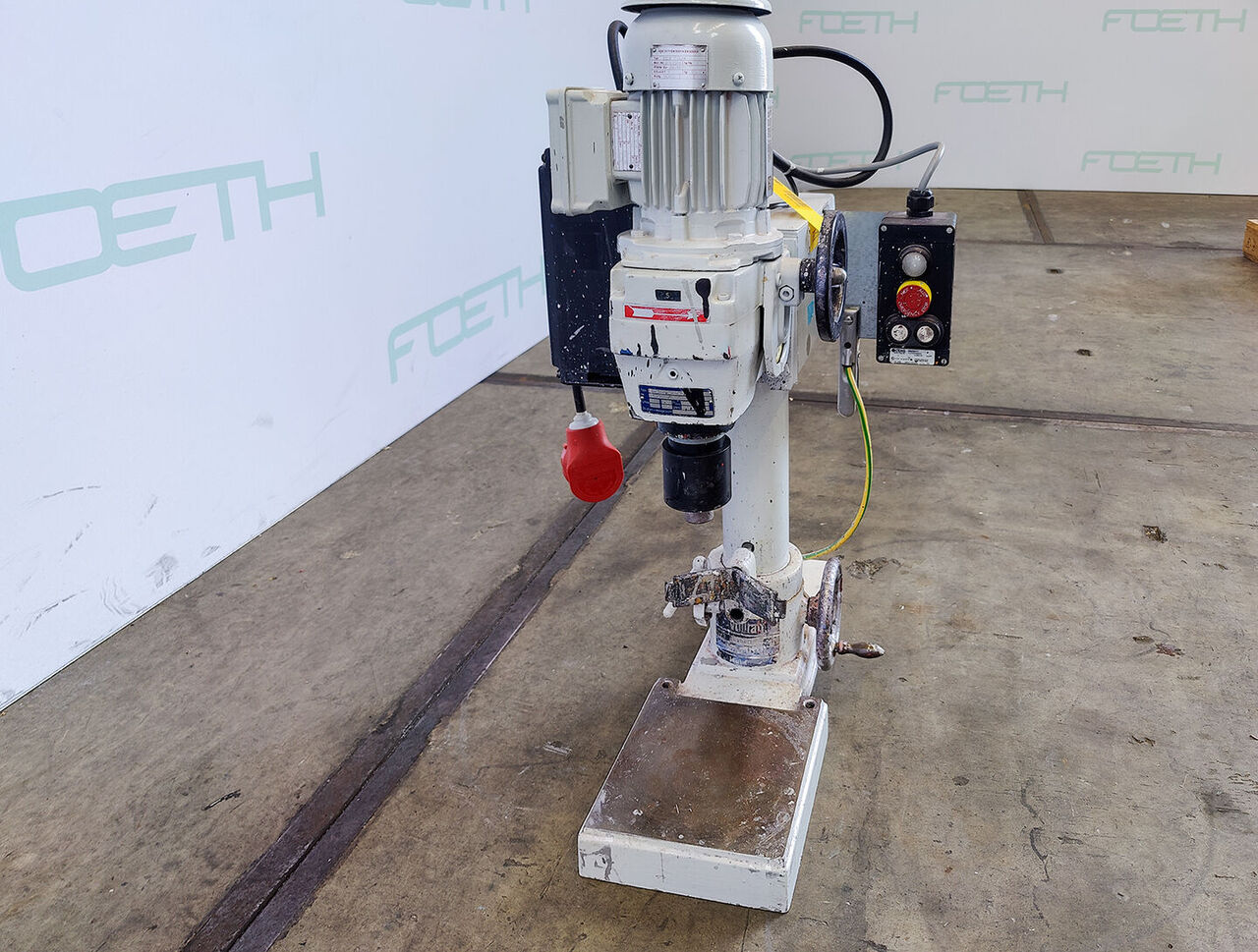

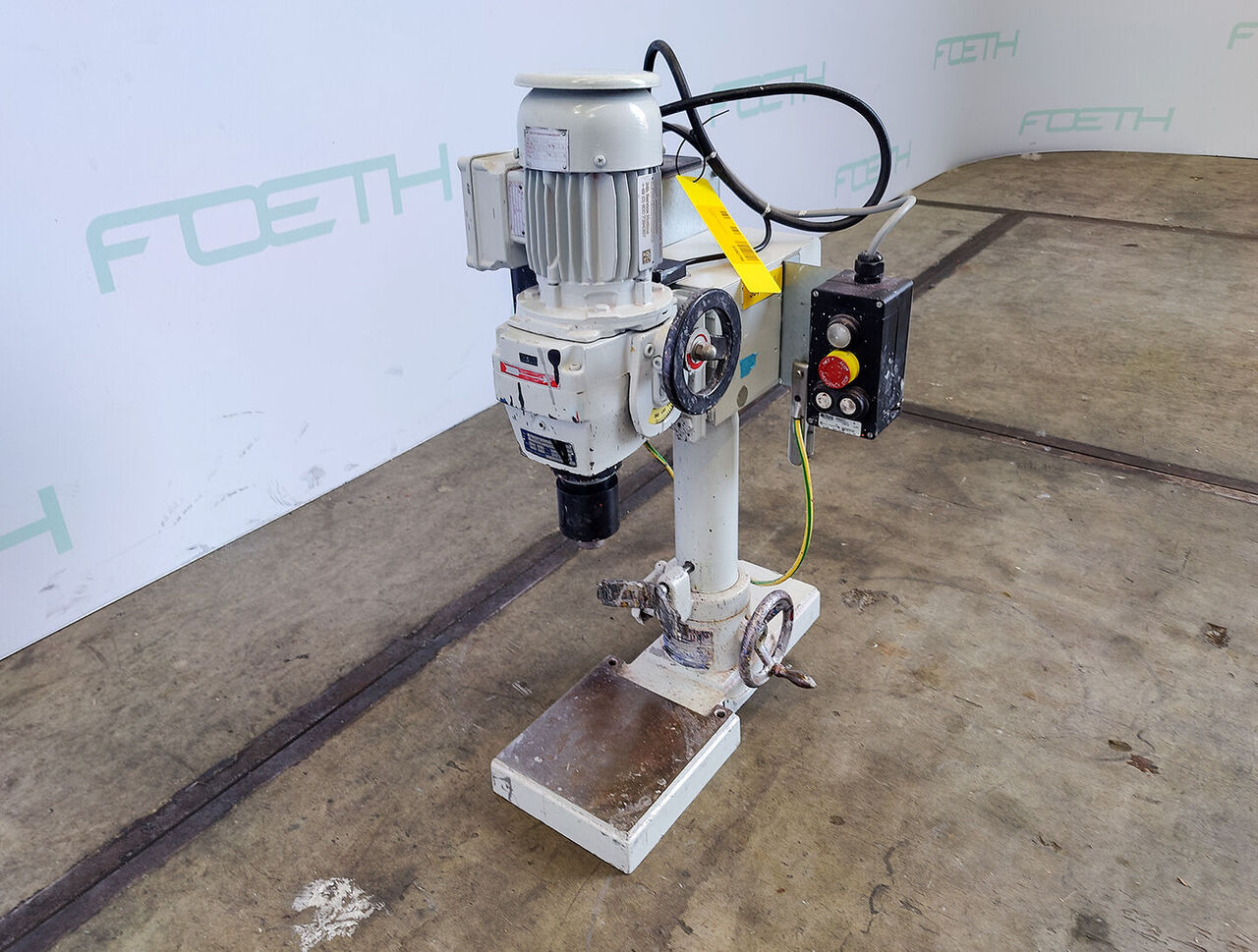

This Vollrath EWTHV-0,5 is a used mixer and blender — sometimes referred to as a laboratory dissolver or high-speed disperser — designed for mixing, blending, and dispersing materials in industrial and laboratory environments. Vollrath is a recognised manufacturer of mixing and processing equipment, producing machinery for chemical, paint, coating, adhesive, and related process industries.
The unit carries serial number 22.593 and dates from 1990. It is located in Barneveld, Netherlands, and is offered in used condition. The machine is driven by a 0.37 kW motor rated at 380 V and 1,390 rpm, and it is noted as ATEX-compatible, meaning it is designed for use in potentially explosive atmospheres — an important consideration for solvent-based or flammable material processing.

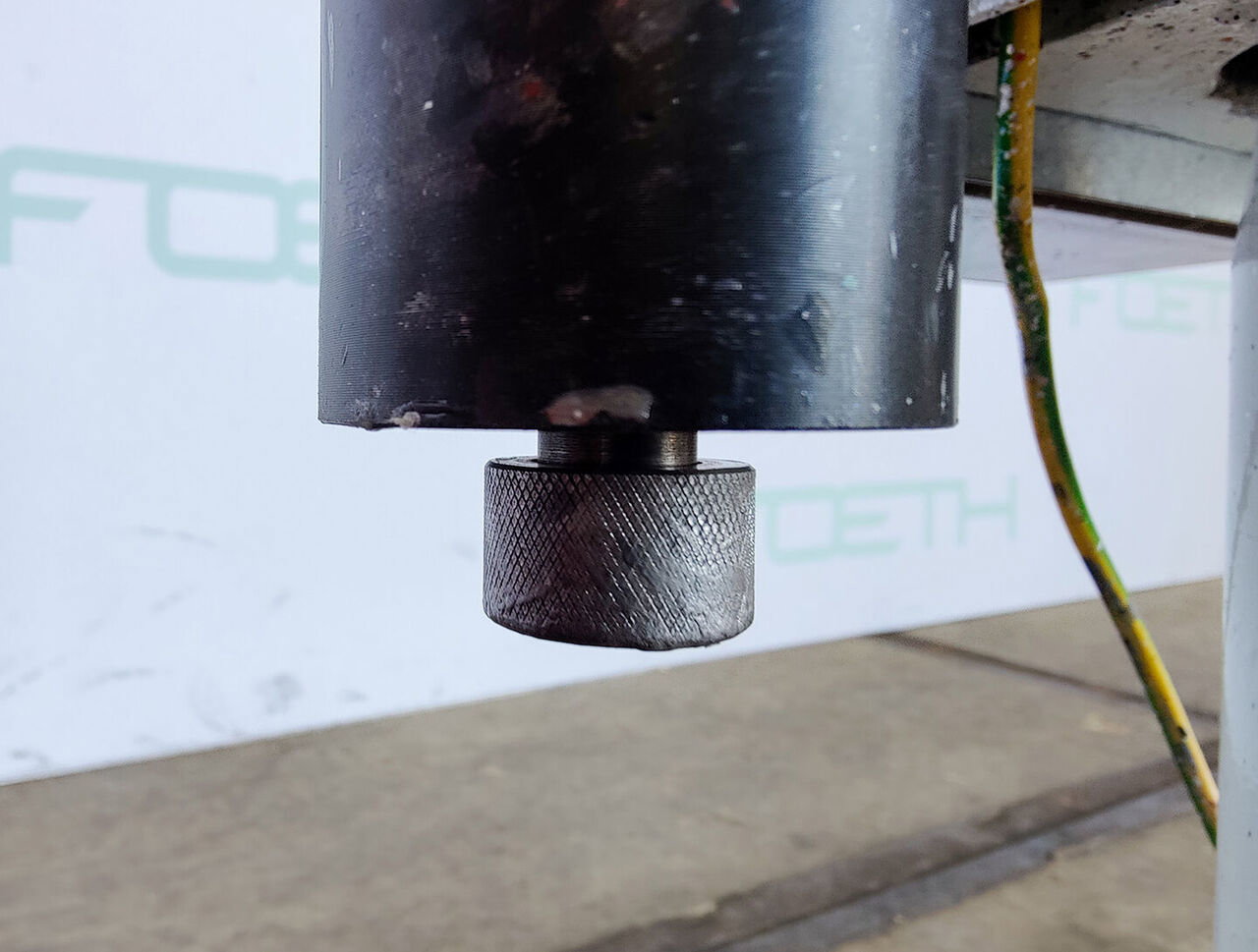

A variable-speed drive is fitted, giving a mixing shaft speed range of 260 to 1,820 rpm, allowing the operator to adjust dispersion intensity to suit the material being processed. The dissolver is equipped with a mechanical lifting mechanism with a maximum stroke of 250 mm, enabling the mixing head to be raised and lowered over the vessel. Four interchangeable dissolver discs are included, with diameters of 30, 50, 65, and 90 mm, providing flexibility for different batch sizes and vessel geometries. The clearance between the shaft and the frame is 200 mm.
The machine has a compact footprint of 0.55 × 0.45 m and a total height of 0.95 m, making it suitable for bench-adjacent or small-floor-space installations. An on/off switch is fitted as standard.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
