1984 - W.Roth Ing. Apparatebau Mixer Blender()
- Listing No
- 1178693
- Year
- 1984
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Working pressure jacket: 2.5 Bar Material: Mild steel, Stainless steel Volume: 1000 Ltr Motor: 7/11 KW, 380Volt Closed stirring vessel: check Capacity: +/- 1000 Ltr Vessel sizes: dia.1150mm x1200mm Dished bottom: check Flat top side: check With cover: (2x) Outlet: dia.32mm With jacket: normal steel Max. temperature: 110 Degr.C With propellor stirrer: check With dissolver stirrer: check Floorspace: 1,35x1,35 M Total height: 3,0 M Extra Specifications: with Ekato EM 2080 KR agitator (1993) merk: W.Roth Ing. Apparatebau (DE) General Pressure Main Features Specified Features - Stirring vessel Information
About this machine
This W. Roth Ing. Apparatebau unit is a mixer and blender — sometimes referred to as a mixing vessel or blending tank — designed for the industrial mixing and blending of liquids and semi-liquid materials. W. Roth Ing. Apparatebau is a German manufacturer of process and apparatus engineering equipment, producing vessels and mixing systems for chemical, pharmaceutical, food, and related processing industries.
Built in 1984 and located in Barneveld, Netherlands, this is a closed, jacketed stirring vessel with a total capacity of approximately 1,000 litres. The vessel body is constructed from mild steel, with the internal contact surfaces in stainless steel. It features a dished bottom and a flat top side, and is supplied with two covers. The cylindrical vessel measures 1,150 mm in diameter by 1,200 mm in height, giving it a compact footprint of 1.35 × 1.35 metres at floor level, with a total installed height of 3.0 metres.

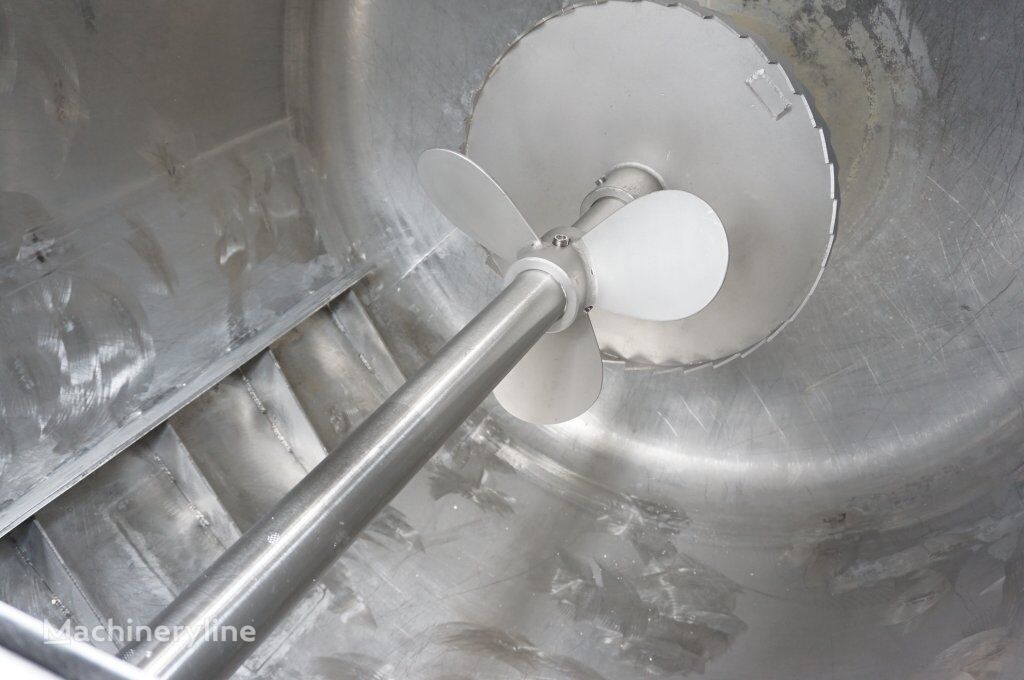

The jacket, fabricated in normal steel, has a working pressure rating of 2.5 bar and supports a maximum operating temperature of 110 °C, allowing for heated or temperature-controlled processing. The vessel is equipped with two distinct agitation systems: a propeller stirrer and a dissolver stirrer, providing versatility across different mixing applications and material viscosities. Notably, an Ekato EM 2080 KR agitator was fitted in 1993, adding a well-regarded component from a specialist agitation manufacturer to the assembly. The drive motor is rated at 7/11 kW and operates on 380 V. Product discharge is via a 32 mm diameter outlet.
The machine is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
