About this machine

The Wangen A. Bolz DB-900 is a used mixer and blender — sometimes referred to as an industrial mixing vessel or blending tank — designed for the thorough mixing and blending of liquid, semi-liquid, or bulk materials at an industrial scale. Wangen and A. Bolz Wangen are associated with the manufacture of process and mixing equipment serving the food, chemical, pharmaceutical, and agricultural industries, among others.

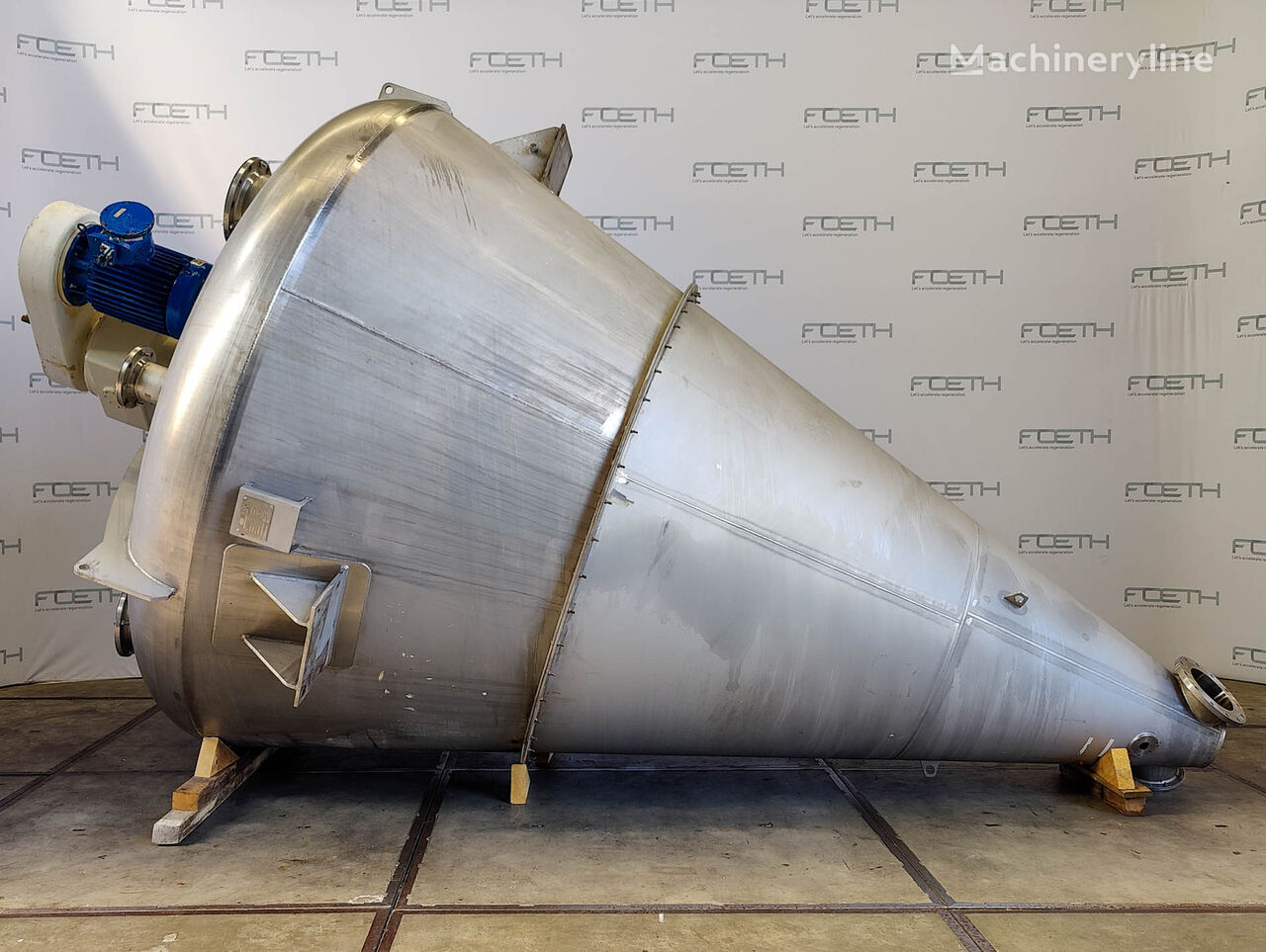

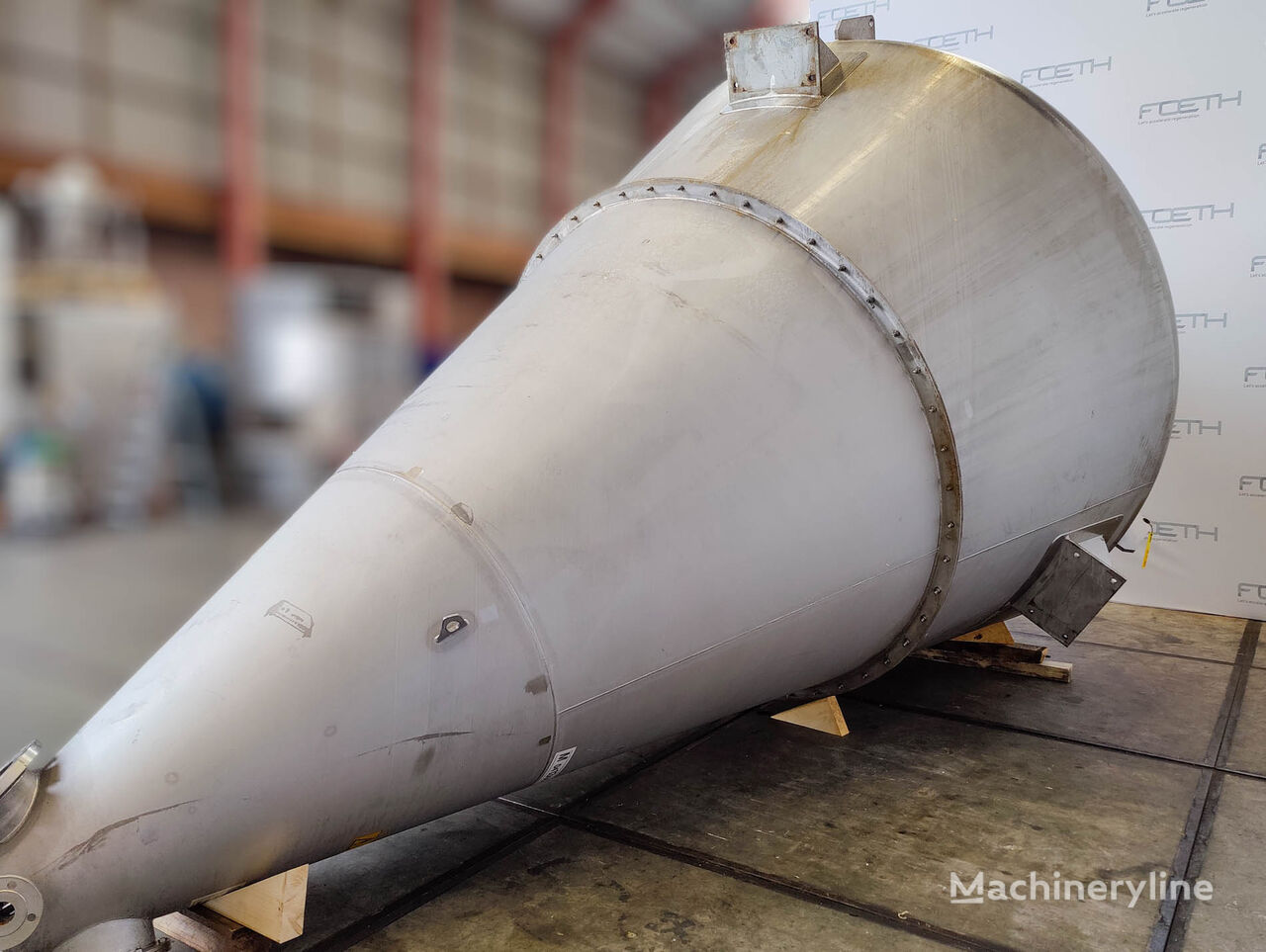

This is a large-capacity conical mixer, with a maximum working volume of 18,000 litres and a nominal operating capacity of 9,000 litres. Its conical geometry, with a largest cone diameter of 3,330 mm and a cone height of 5,205 mm, promotes efficient material flow and thorough blending across the full working volume. The overall machine height is 6.5 metres, and the floor footprint measures 3.6 by 3.6 metres, giving buyers a clear picture of the installation space required.

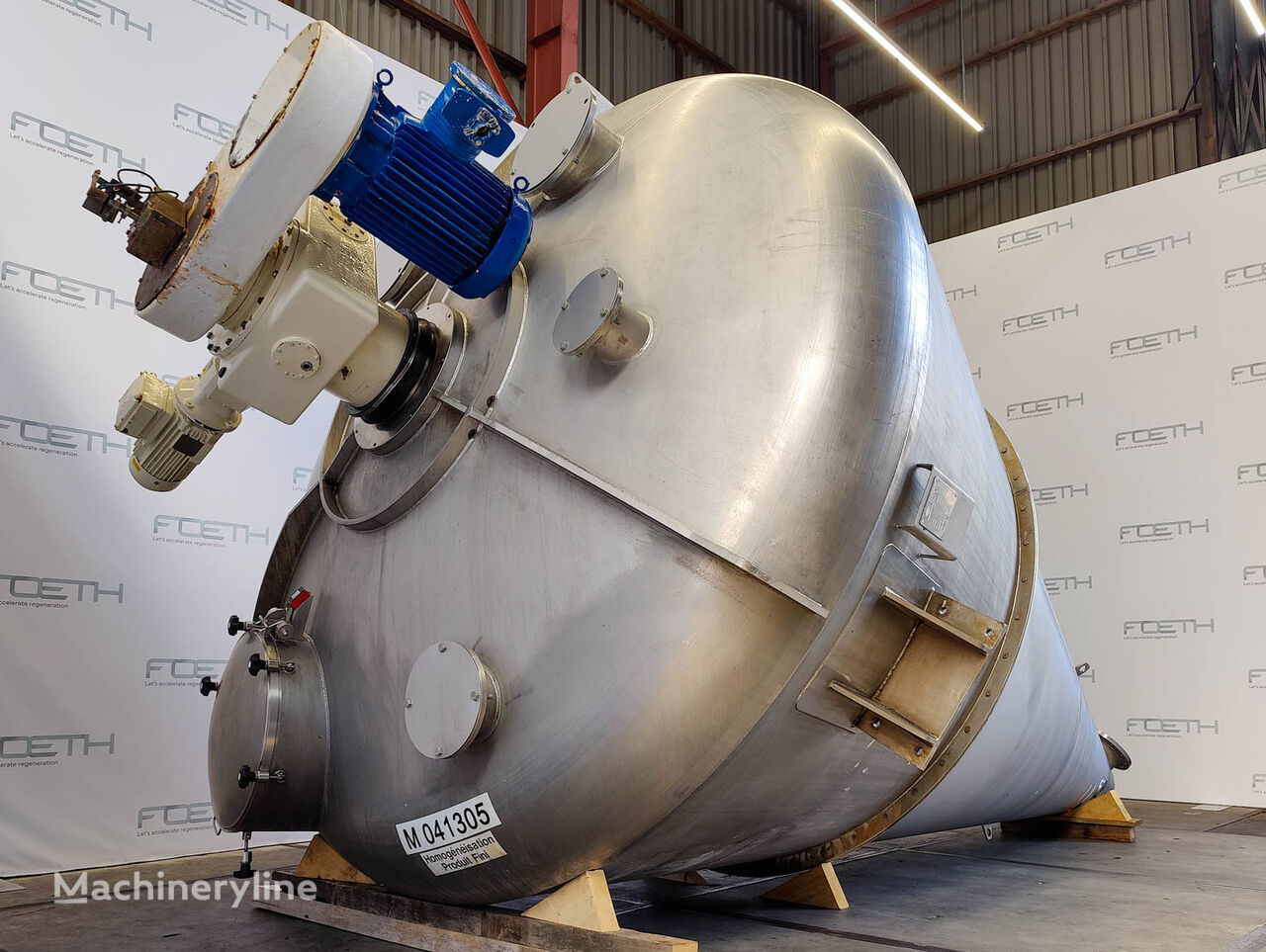

The mixer is constructed throughout in stainless steel grade L), a corrosion-resistant alloy well suited to hygienic and chemically demanding applications. It operates at a working pressure of 0.1 bar and can handle process temperatures up to 100 °C. The unit is equipped with a stainless steel mixing arm and a variable speed drive. The screw runs at a nominal speed of 66 rpm while the arm rotates at a nominal 0.7 rpm, allowing independent control of mixing intensity. A bottom bearing pintle bearing is fitted to support the screw assembly.

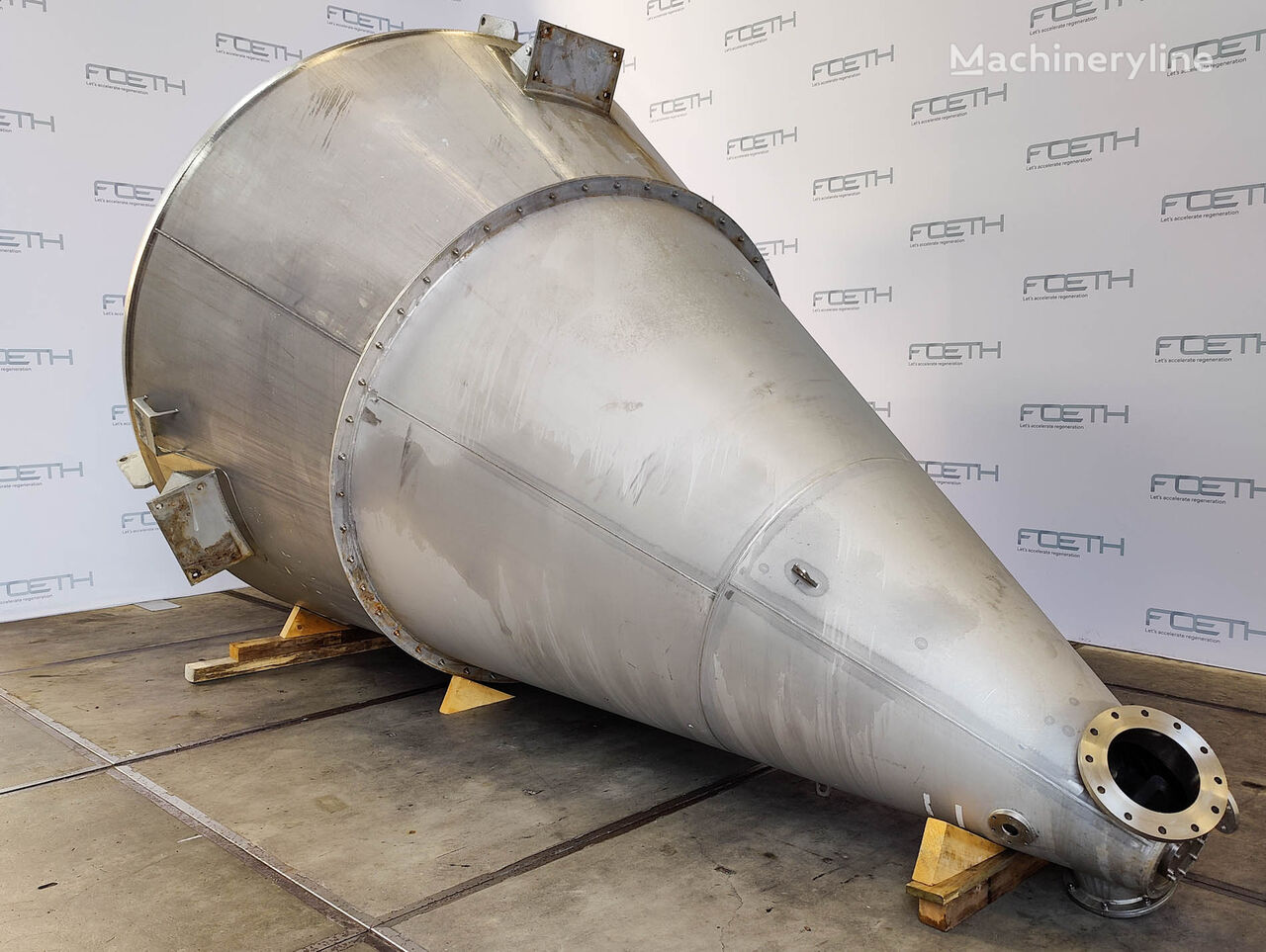

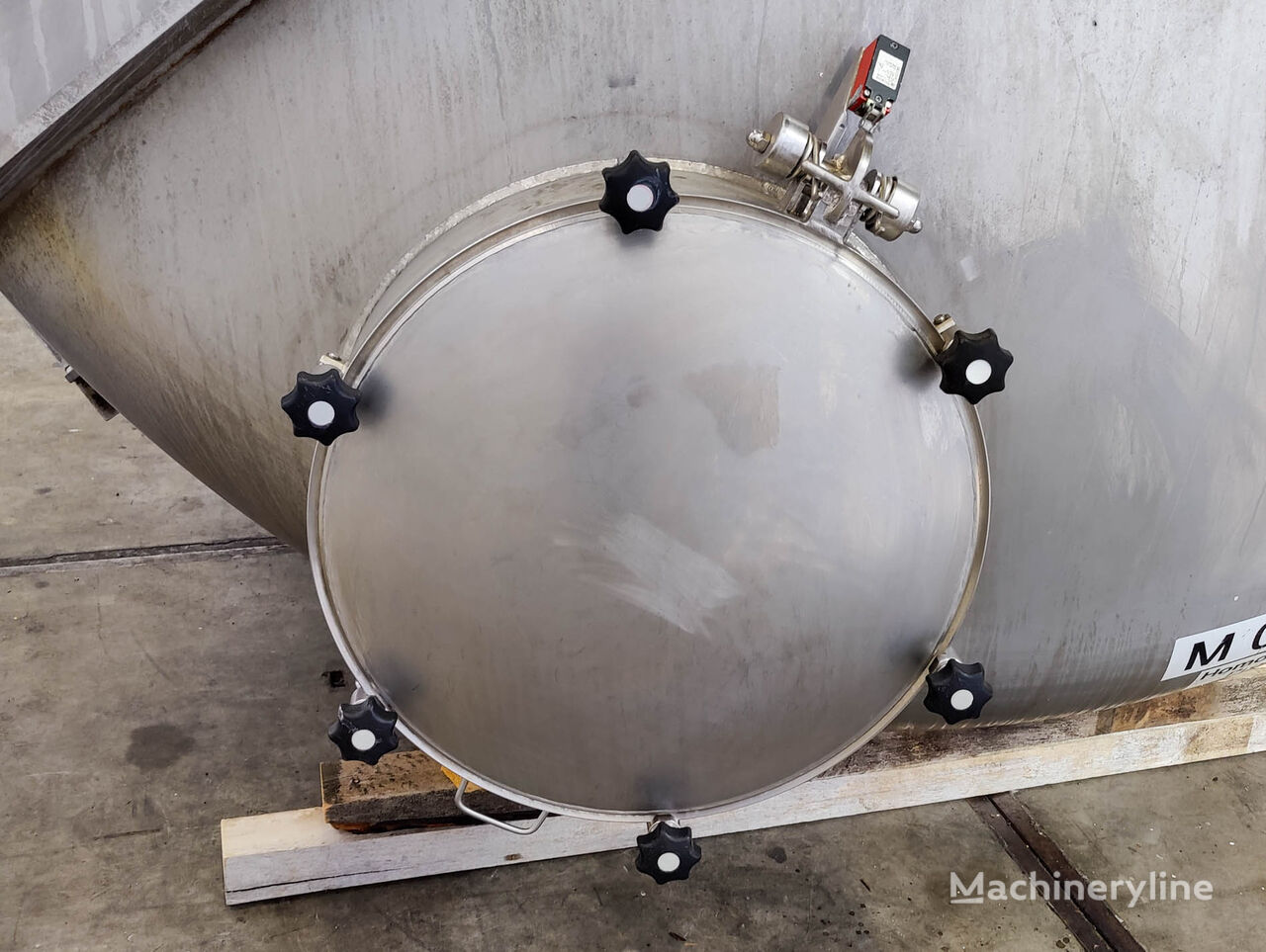

Access to the vessel interior is provided via a DN700 manhole. Bottom discharge is through a DN 250/300 side outlet. The machine also features a Bolz product discharge system. The unit carries ATEX-compatible certification, making it suitable for use in potentially explosive atmospheres. The internal serial number is M041305, and the machine is located in Barneveld, Netherlands.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
