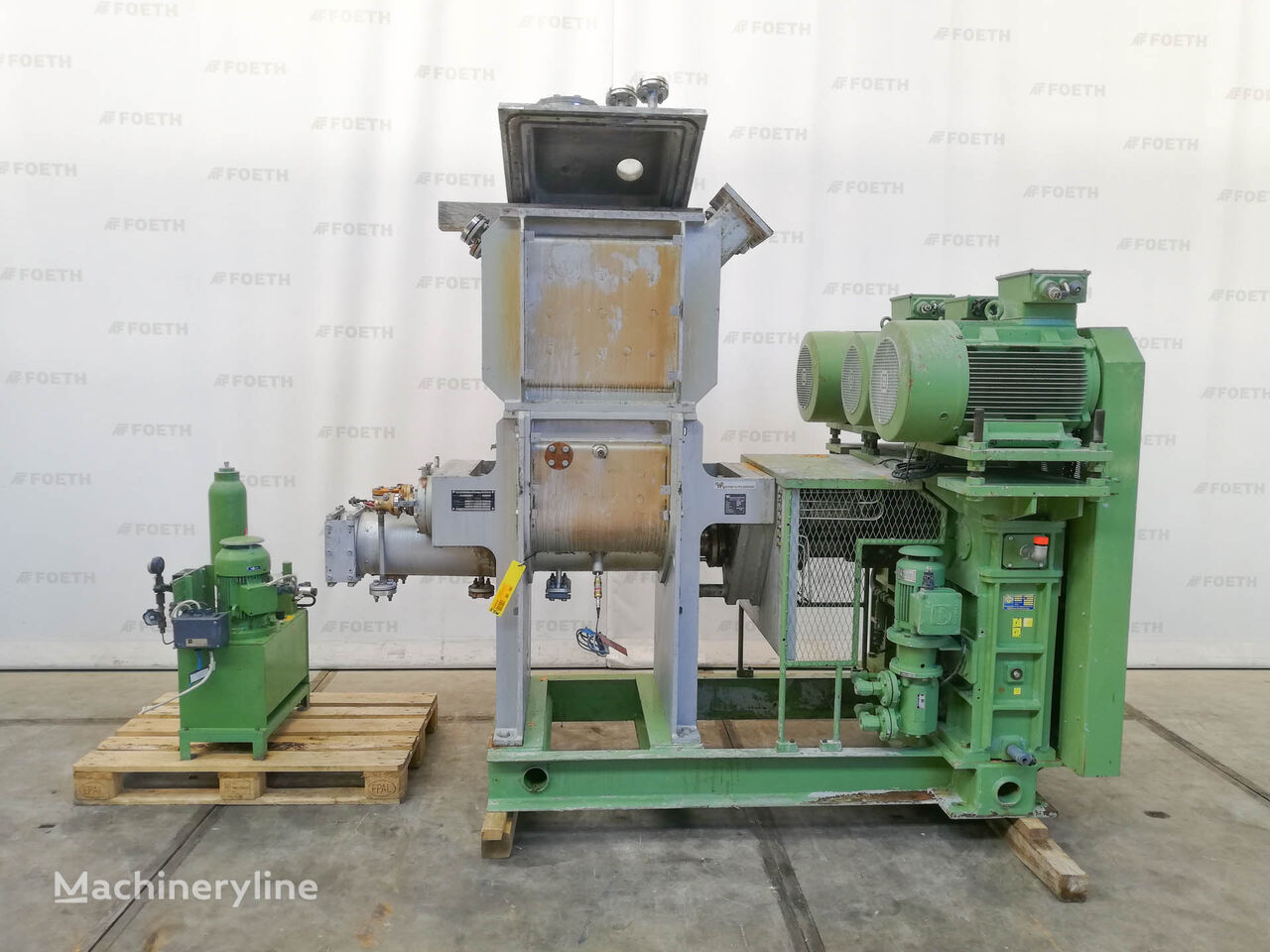

1990 - Werner & Pfleiderer (DE) UK-80 AES – Z-blade mixer Mixer Blender()
- Listing No
- 1179013
- Year
- 1990
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: UK80 AES No: 229808 Working pressure: 6 Bar Material: Stainless steel Volume: 80 Ltr Motor: 11/18 kW 500 Volt (Ex) Capacity: 80 Ltr With jacket: 12 Ltr.; 1,5 Ltr.; 9 Ltr Max. temperature: 200 °C Arm speed: 20-40 rpm Screw speed: 750-1500 rpm Total height: 2,3 m Floorspace: 2,6x1,7 m merk: Werner & Pfleiderer (DE) General Pressure Vacuum possible Main Features Specified Features - Z-blade mixer Z-blade mixer Trough sizes With cover Arms can be heated/cooled Double geared With hydraulic unit Screw discharge With variable speed drive Information Mounted on frame
About this machine
This Werner & Pfleiderer UK-80 AES is a mixer and blender — also commonly referred to as a kneader — built in 1990 and currently located in Barneveld, Netherlands. Z-blade mixers of this kind are used for the intensive mixing, kneading, and blending of viscous, doughy, or paste-like materials, and find wide application in the food, chemical, rubber, and pharmaceutical industries. Werner & Pfleiderer is a well-established German manufacturer with a long history of producing high-performance mixing and extrusion equipment for demanding industrial processing applications.
This machine carries serial number 229808 and has an 80-litre trough volume and working capacity. It is constructed throughout in stainless steel, making it suitable for hygienic or chemically demanding applications. The trough is fitted with a jacket divided into three sections — 12 litres, 1.5 litres, and 9 litres — enabling precise thermal control across different zones. The machine can reach a maximum process temperature of 200 °C, and the arms themselves are designed to be heated or cooled, giving further control over the mixing environment. Both pressure operation at up to 6 bar and vacuum operation are possible.
The mixer is driven by an 11/18 kW motor rated at 500 volts and is configured for use in potentially explosive atmospheres, as indicated by the Ex motor designation. A variable speed drive is fitted, with the Z-blades running at between 20 and 40 rpm and a screw discharge unit operating at between 750 and 1,500 rpm. The double-geared drive arrangement and the inclusion of a hydraulic unit support reliable operation under the high torque demands typical of viscous batch processing.
Additional features include a cover over the trough, a screw discharge system for controlled emptying of the batch, and the entire assembly is mounted on a frame. The machine occupies a floor area of 2.6 by 1.7 metres and stands 2.3 metres in total height. It is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
