2010 - Zeppelin HDS 200 5 SS S Mixer Blender()
- Listing No
- 1181224
- Year
- 2010
- Manufacturer
- Zeppelin
- Model
- HDS 200 5 SS S
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld CE: check Type: HDS 200/5 SS/SS/AC G Material: Stainless steel Inlet diameter: 213 mm Rotary valve: check Capacity: 10 l Inlet: 213 mm Inlet flange sizes: DN200 Outlet: 213 mm Outlet flange sizes: DN200 With hopper: check 0,5 m³ With motor: 0,75 kW (500 V, 1435 rpm) Rotor speed: 21 rpm No: 13034 Mounted on frame: check With switchgear: check Floorspace: 0,7 x 0,74 m Total height: 0,53 m Pressure: 1.5 bar; test pressure: 3.5 bar Maximum product temperature: 50°C Bulk density: 695 kg/m³ General Main Features Specified Features - Rotating valve Information Extra Specifications
About this machine

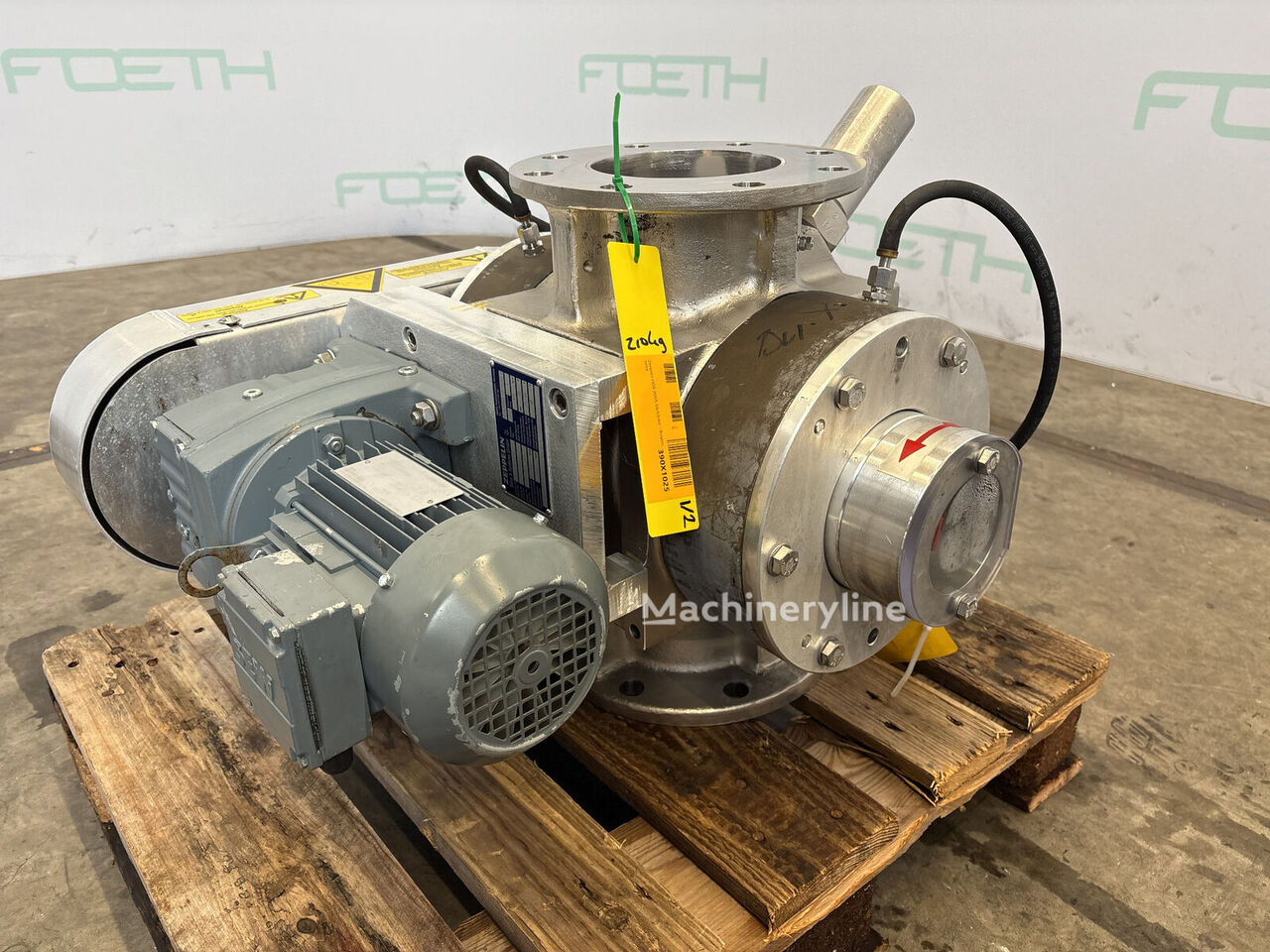

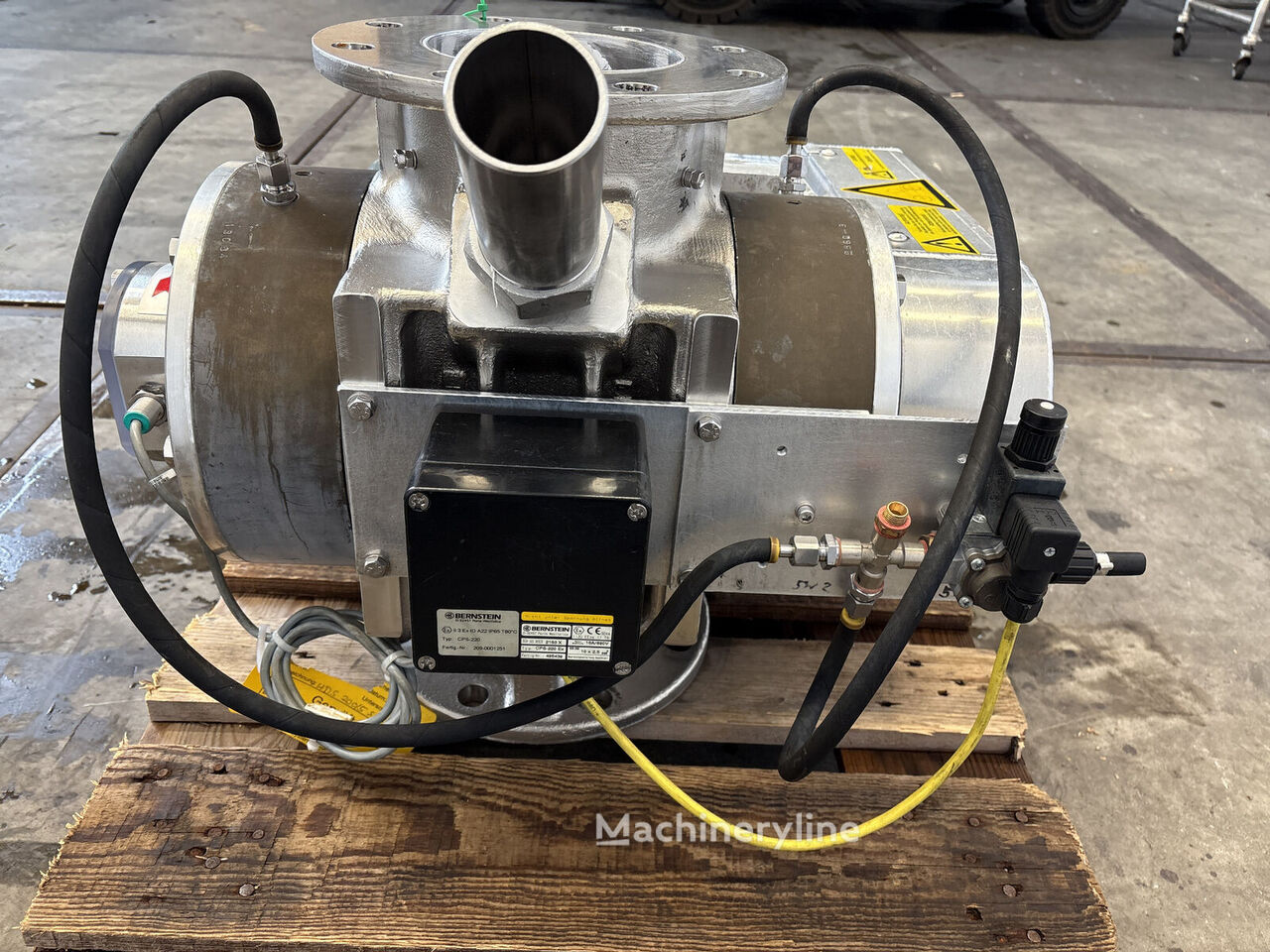

This Zeppelin HDS 200 5 SS S is a mixer and blender — sometimes referred to as a rotary mixer — designed for the controlled blending of bulk solid materials. Zeppelin is a well-established German engineering company with a long history of supplying equipment for the plastics, food, chemicals, and bulk materials handling industries, where precise dosing and gentle product treatment are central requirements.

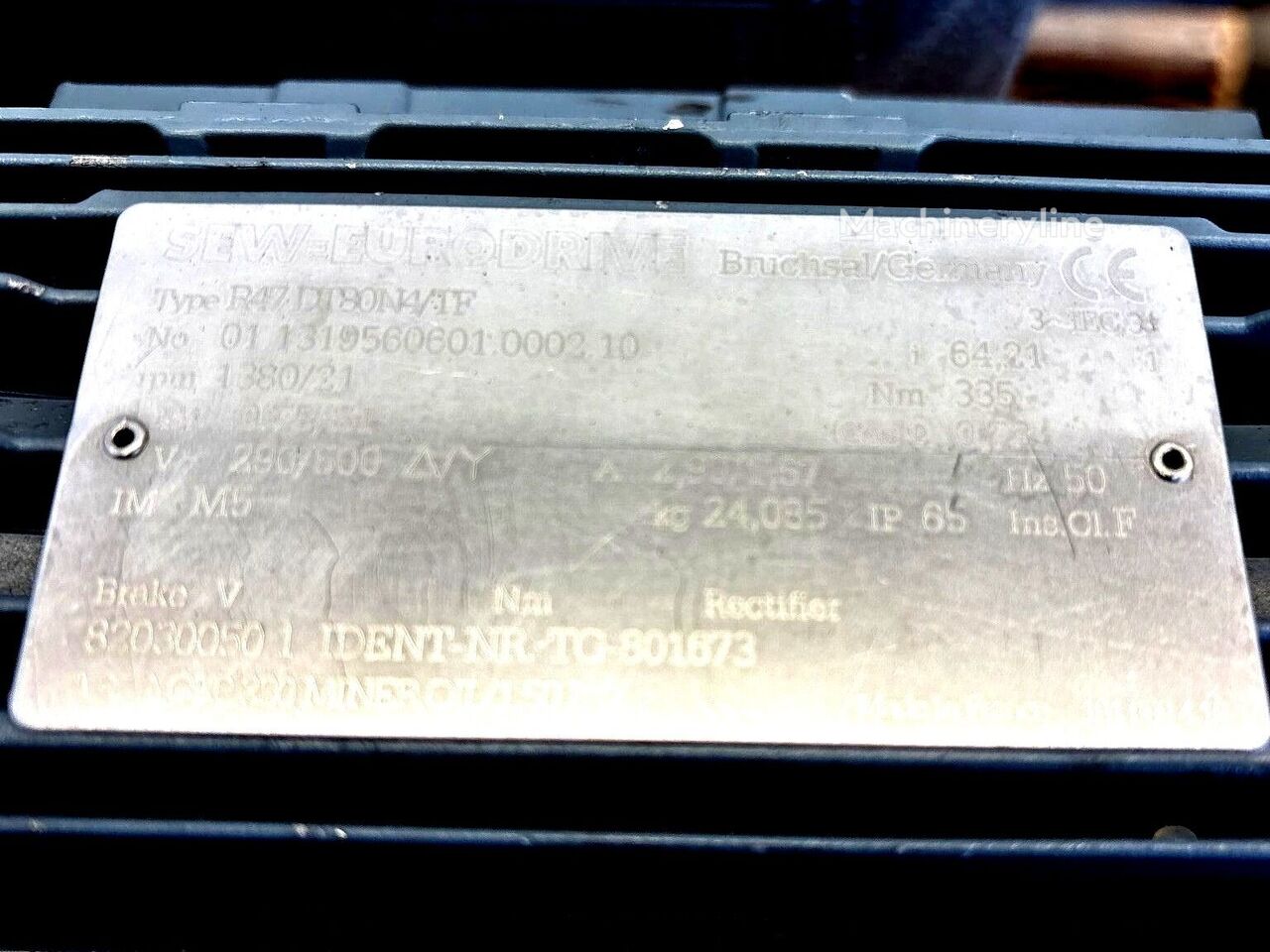

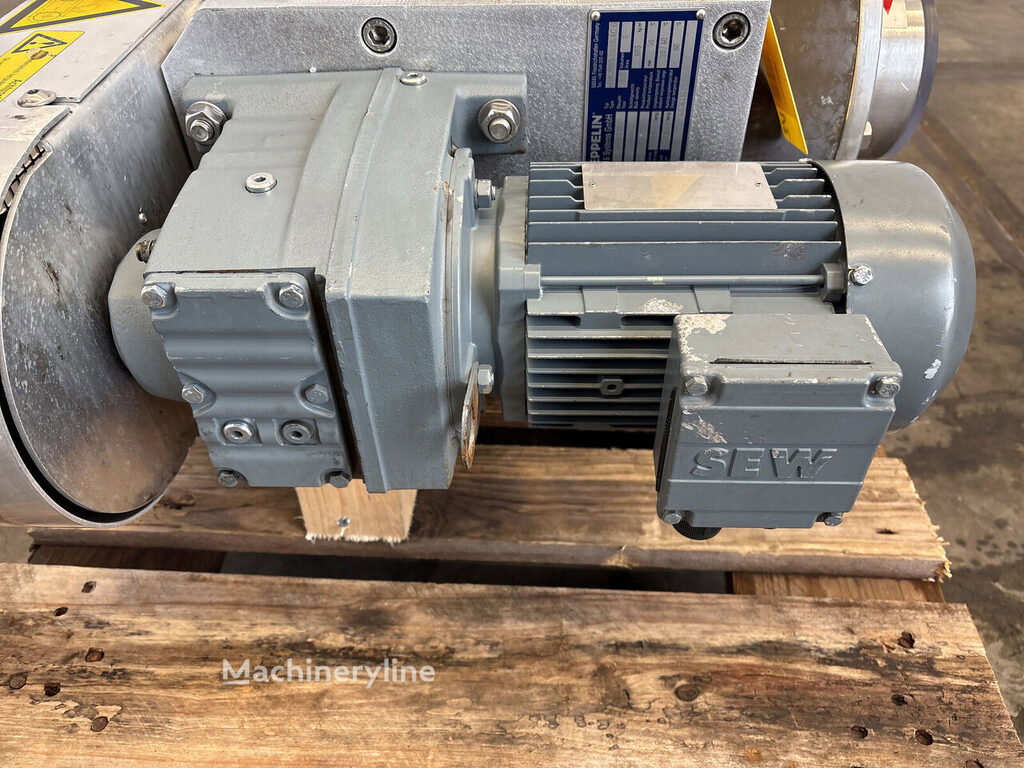

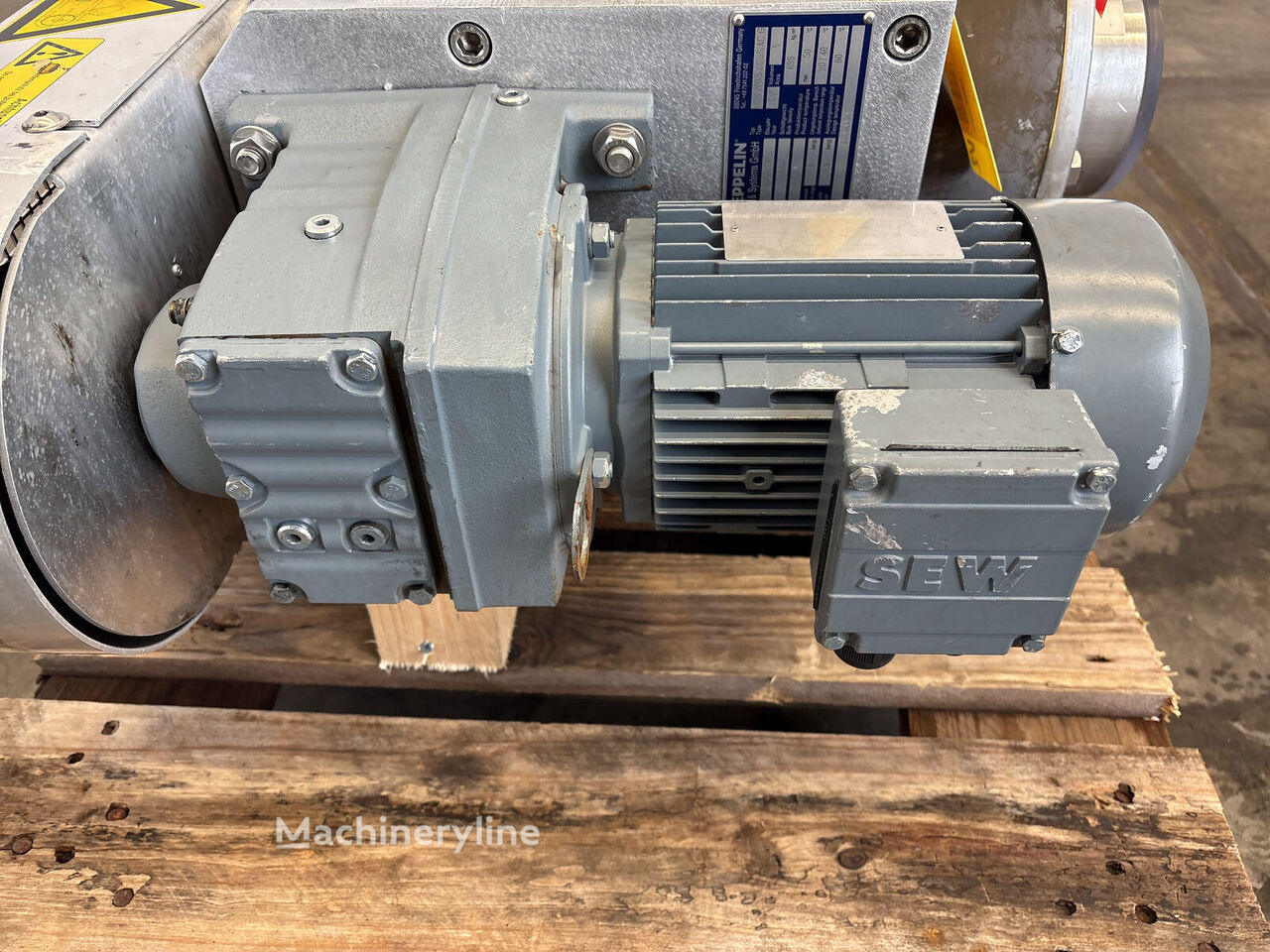

The machine carries type designation HDS 200/5 SS/SS/AC G and is built entirely from stainless steel, making it suitable for applications where hygiene and corrosion resistance are important. It has a working capacity of 10 litres and incorporates a 0.5 m³ hopper. Both the inlet and outlet have a diameter of 213 mm and are fitted with DN200 flanges, allowing straightforward integration into existing pipework or process lines. The unit operates at a rotor speed of 21 rpm, driven by a 0.75 kW motor rated at 500 V and 1,435 rpm.
The machine is rated to an operating pressure of 1.5 bar, with a test pressure of 3.5 bar, and is suitable for products up to a maximum temperature of 50°C. A bulk density of 695 kg/m³ is specified, which is relevant when assessing throughput and product compatibility. The unit is fitted with a rotary valve and carries CE marking.
It is mounted on a frame and supplied complete with switchgear, making it a largely self-contained unit. The footprint is compact at 0.7 × 0.74 metres, with a total height of 0.53 metres. This used machine dates from 2010, bears serial number 13034, and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
