2017 - Zeppelin HDS 200 5 SS S Mixer Blender()
- Listing No
- 1181176
- Year
- 2017
- Manufacturer
- Zeppelin
- Model
- HDS 200 5 SS S
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld CE: check Type: HDS 200/5 SS/SS/AC Material: Stainless steel Inlet diameter: 213 mm Rotary valve: check Capacity: 10 l Inlet: 213 mm Inlet flange sizes: DN200 Outlet: 213 mm Outlet flange sizes: DN200 (with valve) With hopper: check 0,5 m³ With motor: 0,75 kW (500 V, 1435 rpm) Rotor speed: 21 rpm No: 82131346 Mounted on frame: check With switchgear: check Floorspace: 0,7 x 0,74 m Total height: 0,53 m Pressure: 1.5 bar; test pressure: 3.5 bar Maximum product temperature: 50°C Bulk density: 695 kg/m³ General Main Features Specified Features - Rotating valve Information Extra Specifications
About this machine

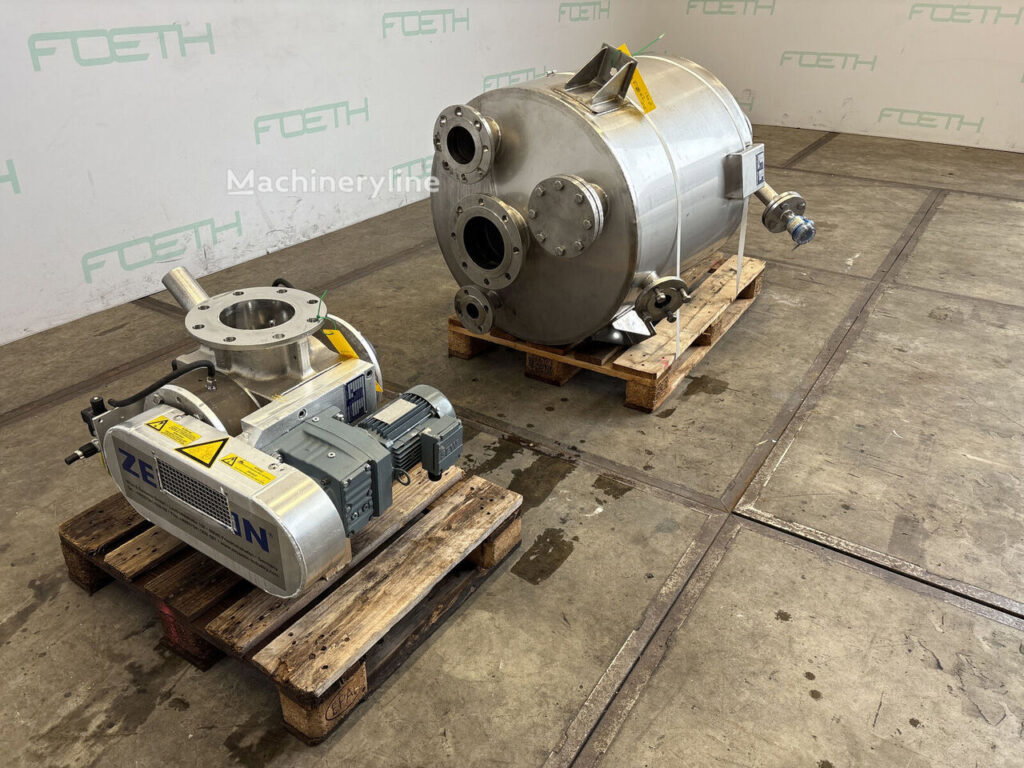

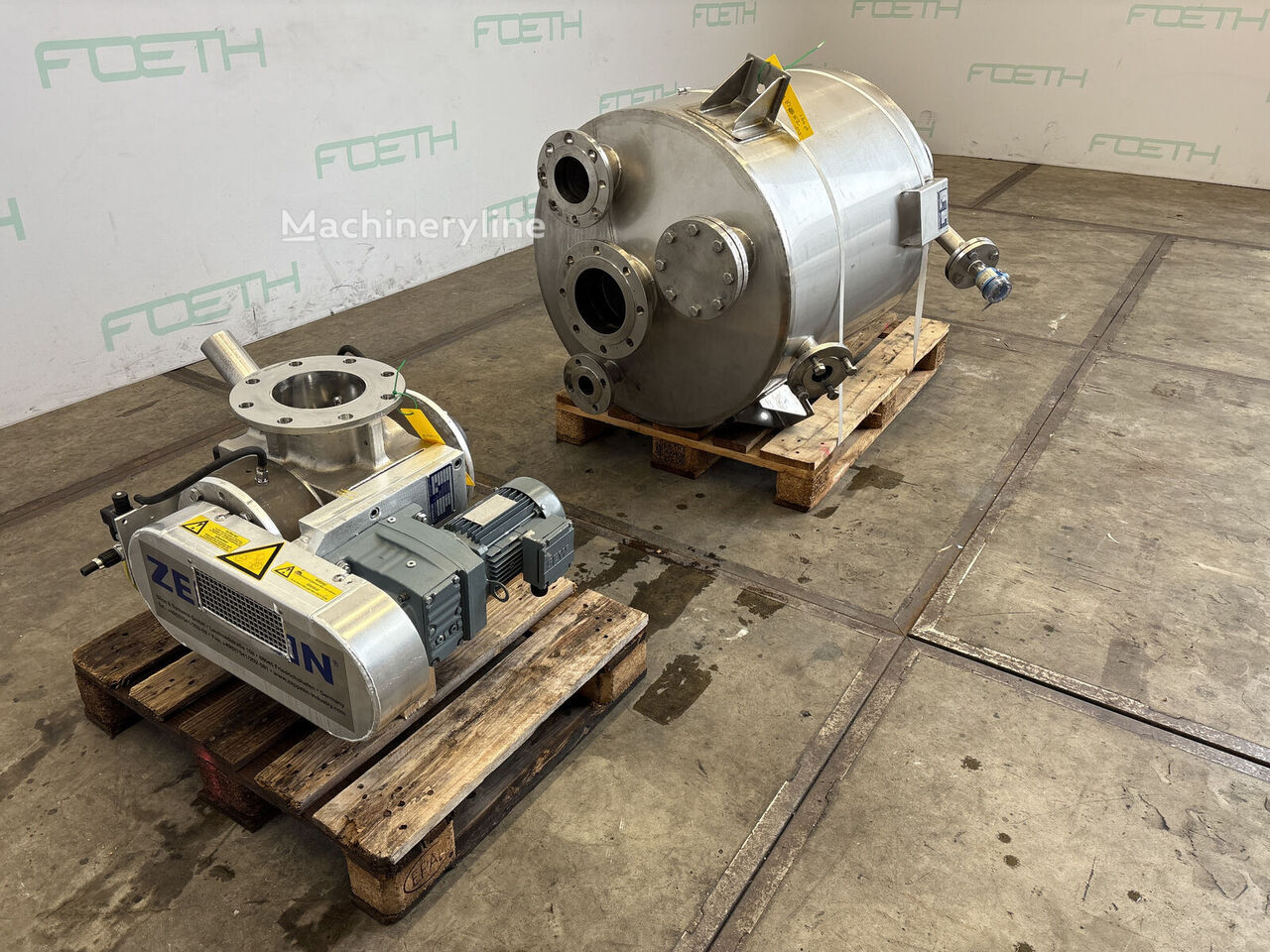

This Zeppelin HDS 200 5 SS S is a mixer and blender — a type of industrial mixing machine, sometimes referred to as a rotary mixer — designed for the blending and homogenising of bulk solid materials in process and powder-handling applications. Zeppelin is a well-established German engineering group with a long track record in bulk material handling, pneumatic conveying, and process equipment, supplying industries such as food, chemicals, and plastics.
This unit was manufactured in 2017 and is offered in used condition from Barneveld, in the Netherlands. It is built entirely in stainless steel, making it suitable for hygienic or corrosion-sensitive applications. The machine carries serial number and is CE-marked.

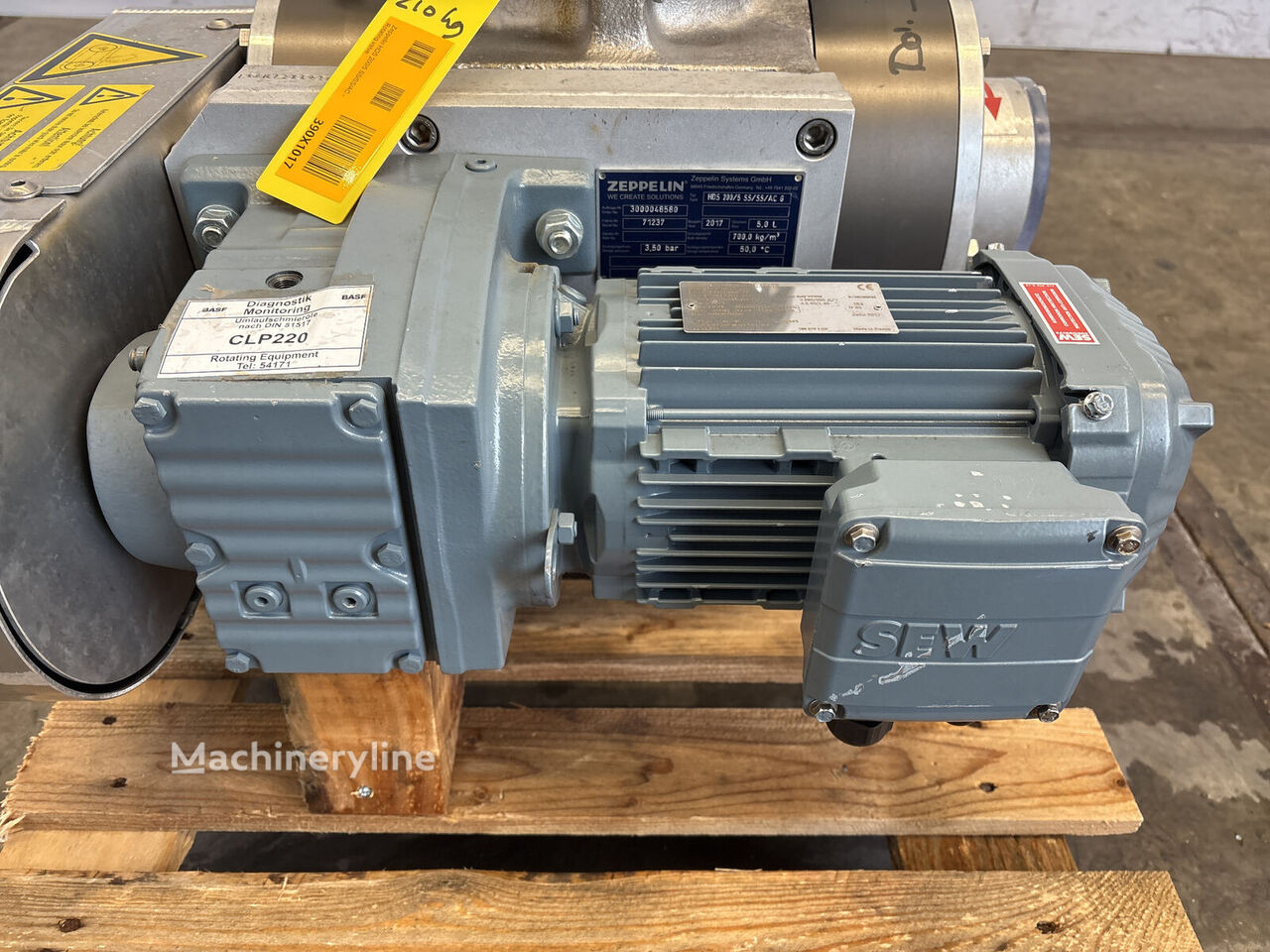

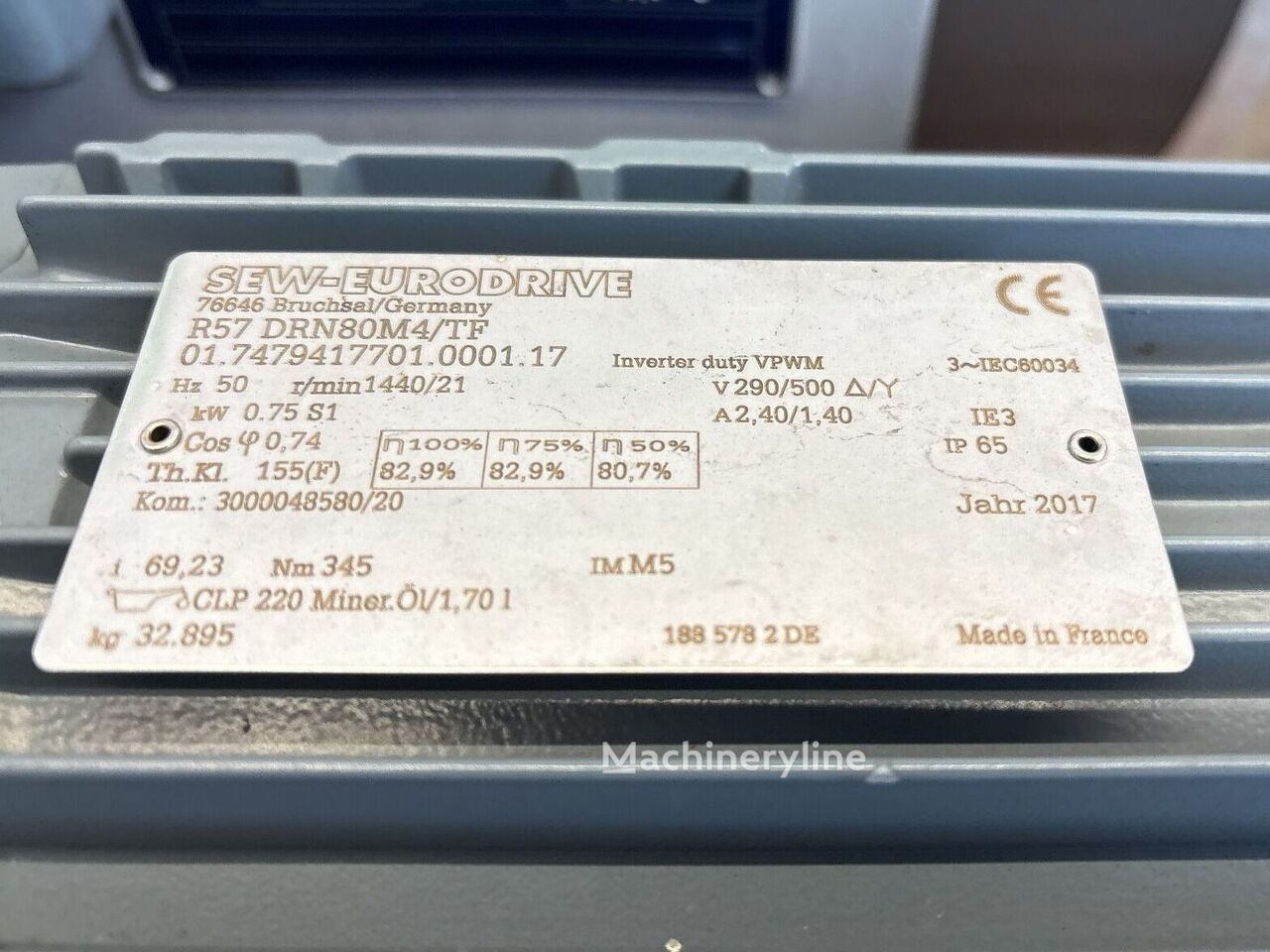

The mixer has a working capacity of 10 litres and is fitted with a 0.5 m³ inlet hopper. Both the inlet and outlet have a diameter of 213 mm with DN200 flanges; the outlet is equipped with a valve. The unit operates at a rotor speed of 21 rpm, driven by a 0.75 kW motor rated at 500 V and 1,435 rpm. It is designed for a maximum operating pressure of 1.5 bar, with a test pressure of 3.5 bar, and can handle products up to 50°C. The machine is rated for a bulk density of 695 kg/m³.

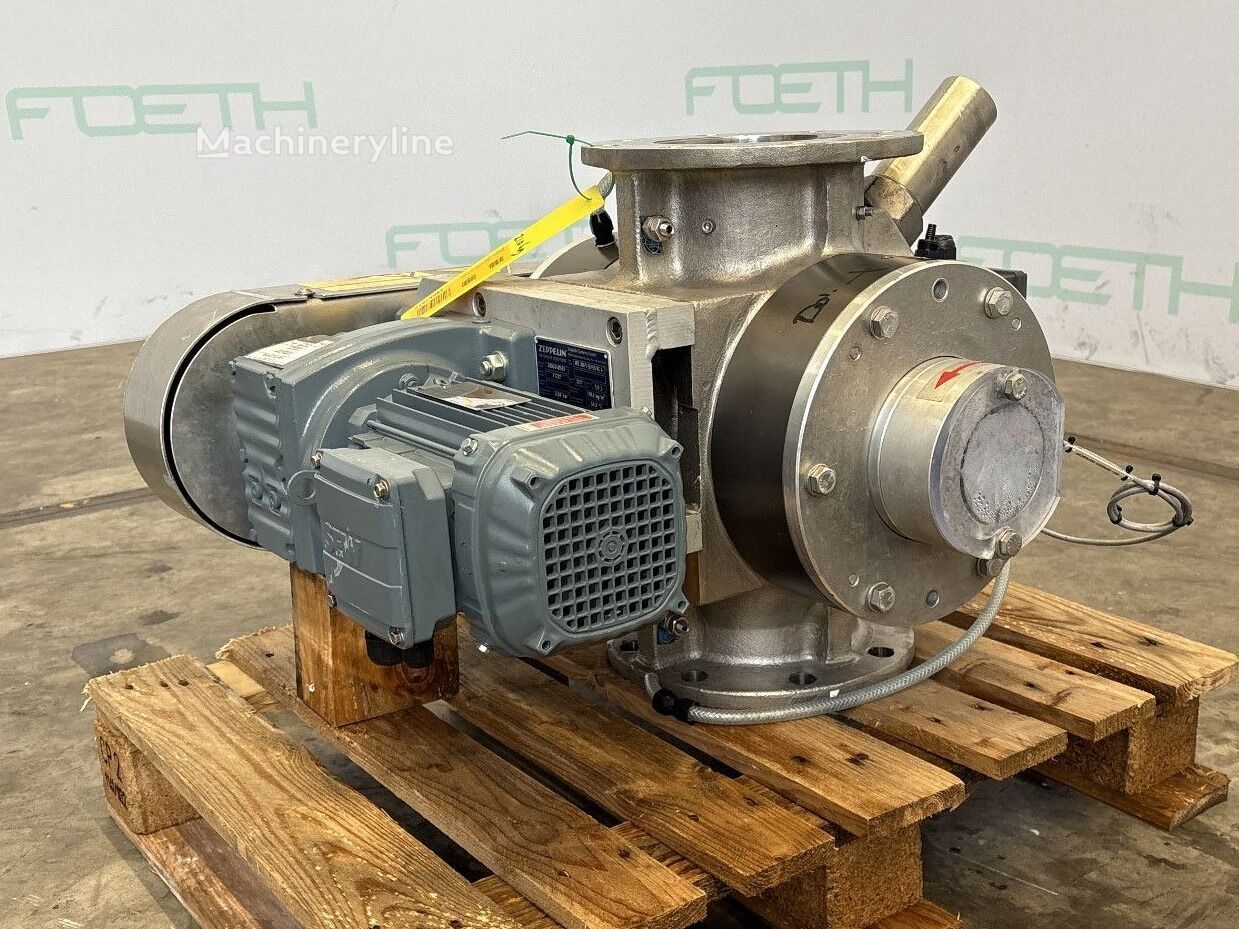

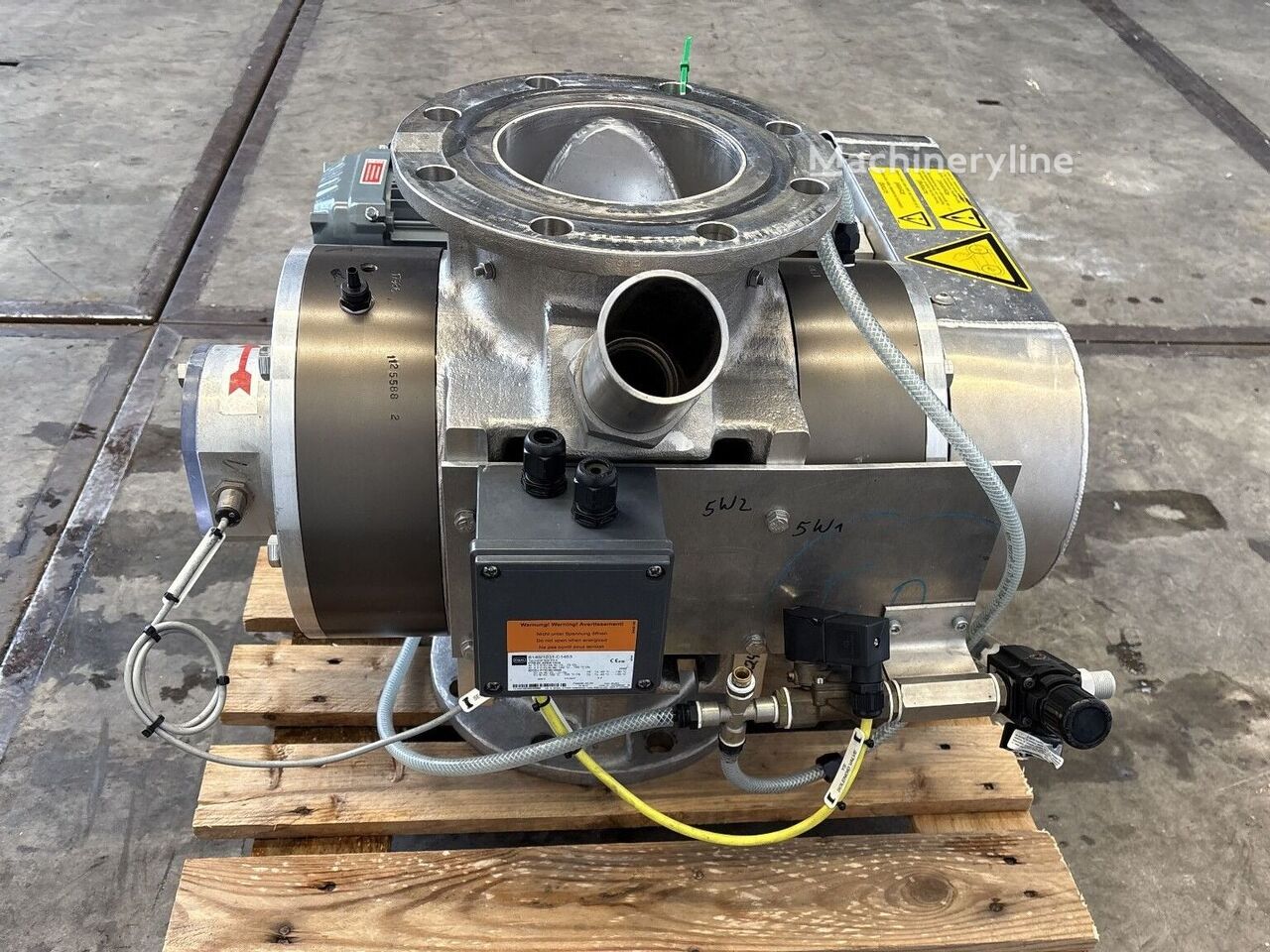

The unit is mounted on a frame and includes a rotary valve and switchgear. Its footprint measures 0.7 × 0.74 metres with a total installed height of 0.53 metres, making it a compact installation suitable for integration into an existing process line.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
