2012 - Zeppelin Zeppeling HDS Mixer Blender()
- Listing No
- 1181164
- Year
- 2012
- Manufacturer
- Zeppelin
- Model
- Zeppeling HDS
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld CE: check Type: HDS 200/5 SS/SS/AC Material: Stainless steel Inlet diameter: 213 mm Rotary valve: check Capacity: 10 l Inlet: 213 mm Inlet flange sizes: DN200 Outlet: 213 mm Outlet flange sizes: DN200 With hopper: check 0,5 m³ With motor: 0,75 kW (500 V, 1435 rpm) Rotor speed: 21 rpm No: 17131 Mounted on frame: check Floorspace: 0,7 x 0,74 m Total height: 0,53 m Pressure: 1.5 bar; test pressure: 3.5 bar Maximum product temperature: 50°C Bulk density: 695 kg/m³ merk: Zeppeling General Main Features Specified Features - Rotating valve Information Extra Specifications
About this machine

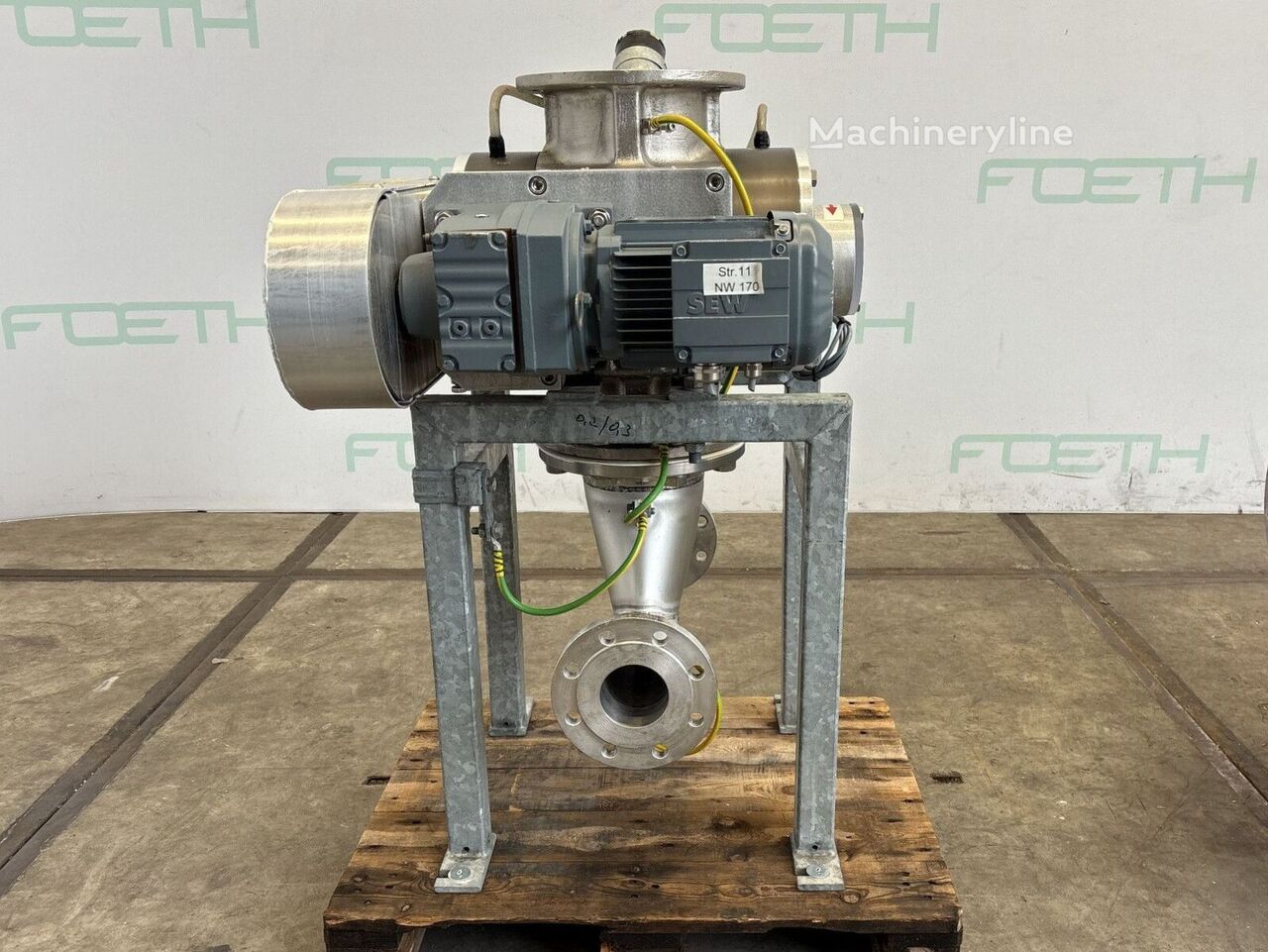

This Zeppelin HDS Mixer Blender is a used mixer and blender — sometimes referred to as a rotary blender or rotary valve mixer — designed for the controlled mixing and blending of bulk solid materials. Zeppelin is a well-established manufacturer of bulk materials handling and processing equipment, serving industries such as food, chemicals, plastics, and pharmaceuticals, where precise and gentle handling of powders and granulates is essential.

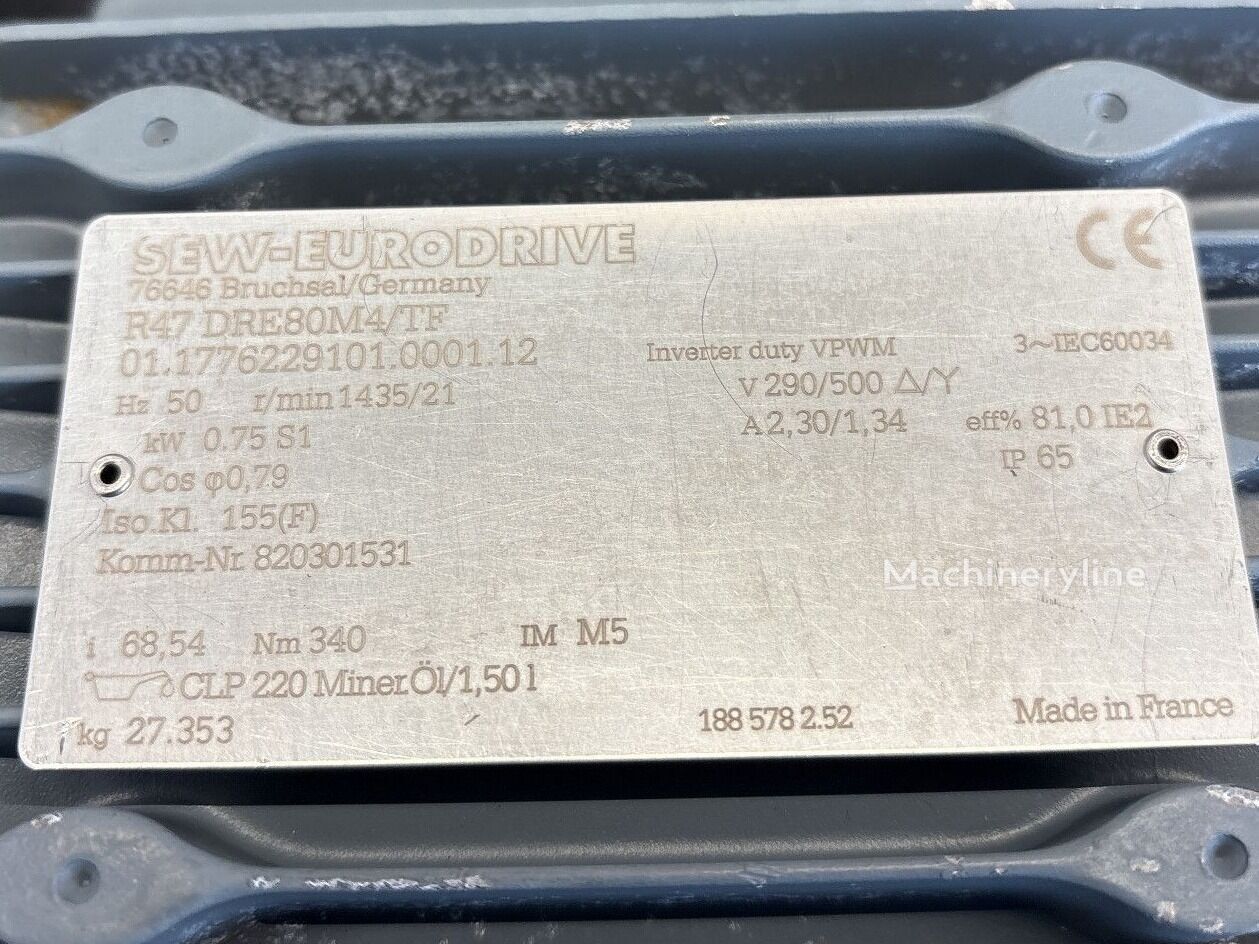

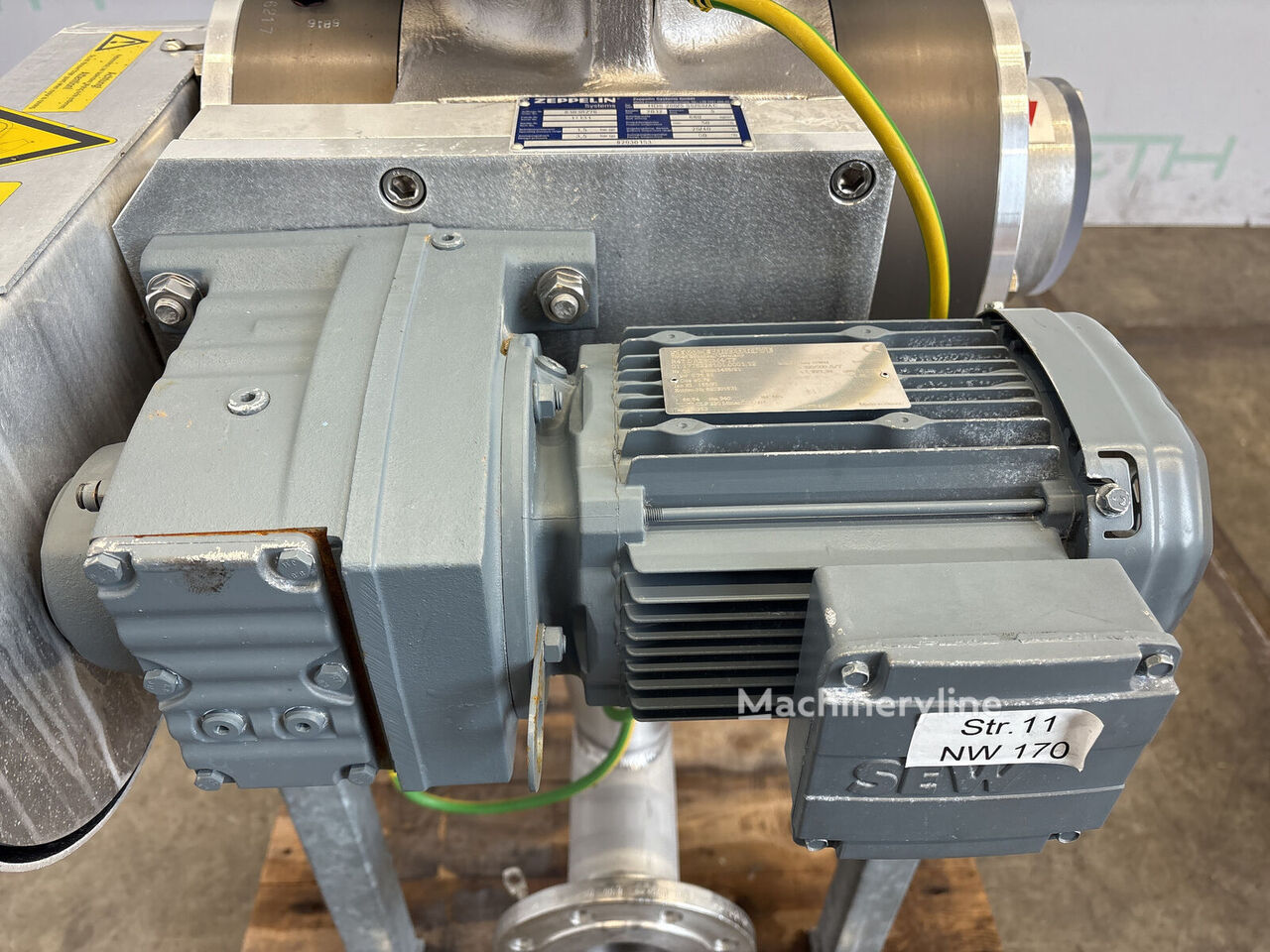

The machine carries the type designation HDS 200/5 SS/SS/AC and is constructed entirely in stainless steel, making it well suited to hygienic or corrosion-sensitive applications. It operates at a rotor speed of 21 rpm, driven by a 0.75 kW motor running at 500 V and 1,435 rpm. The working capacity is 10 litres, with a bulk density rating of 695 kg/m³ and a maximum product temperature of 50°C.
Pressure ratings have been confirmed: the machine is rated for 1.5 bar working pressure and has been test-rated at 3.5 bar, which reflects a standard safety margin for pressurised mixing applications. Both the inlet and outlet measure 213 mm in diameter, with flanged connections at DN200 on both sides, allowing straightforward integration into an existing pipeline or process line.

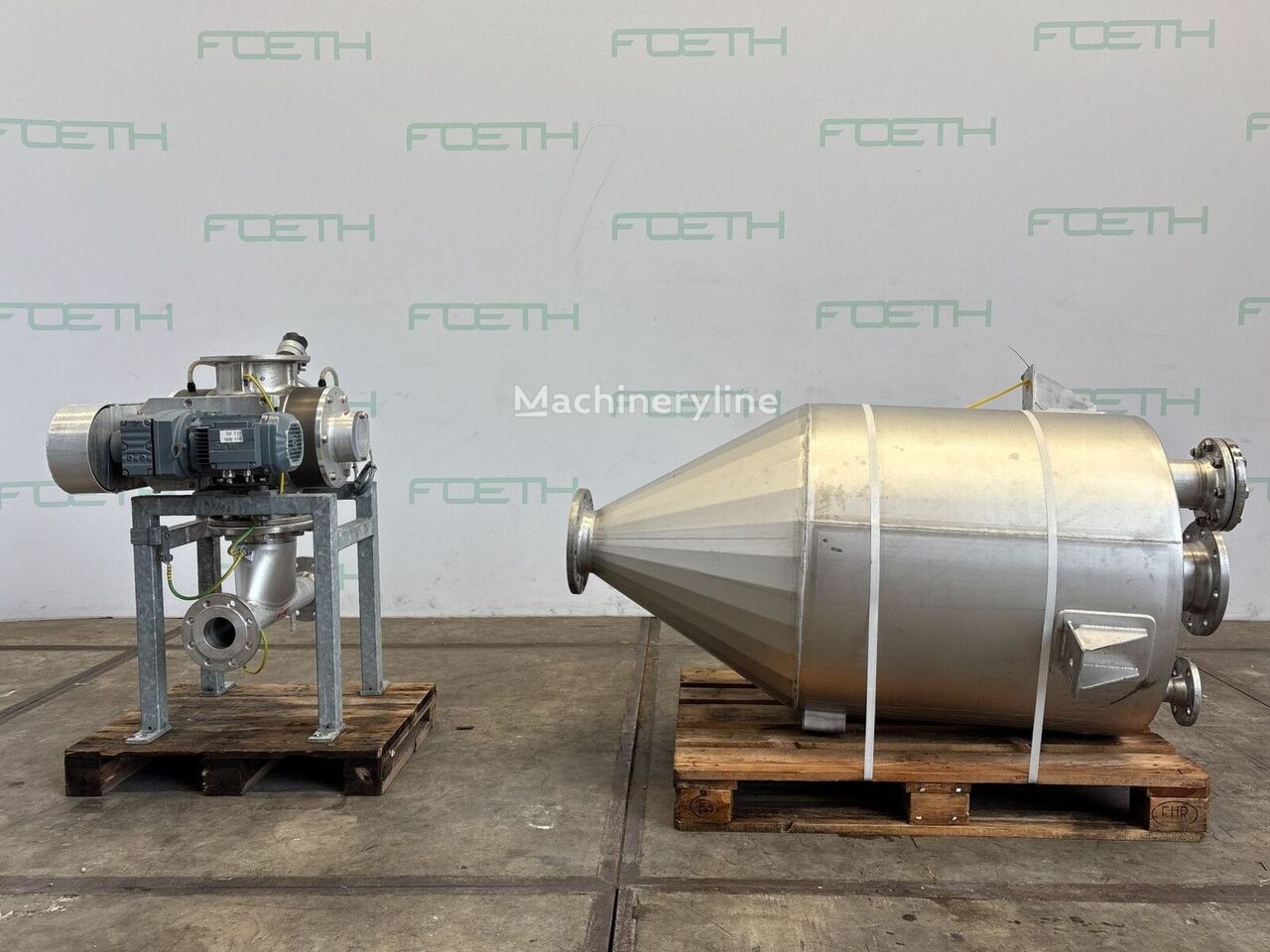

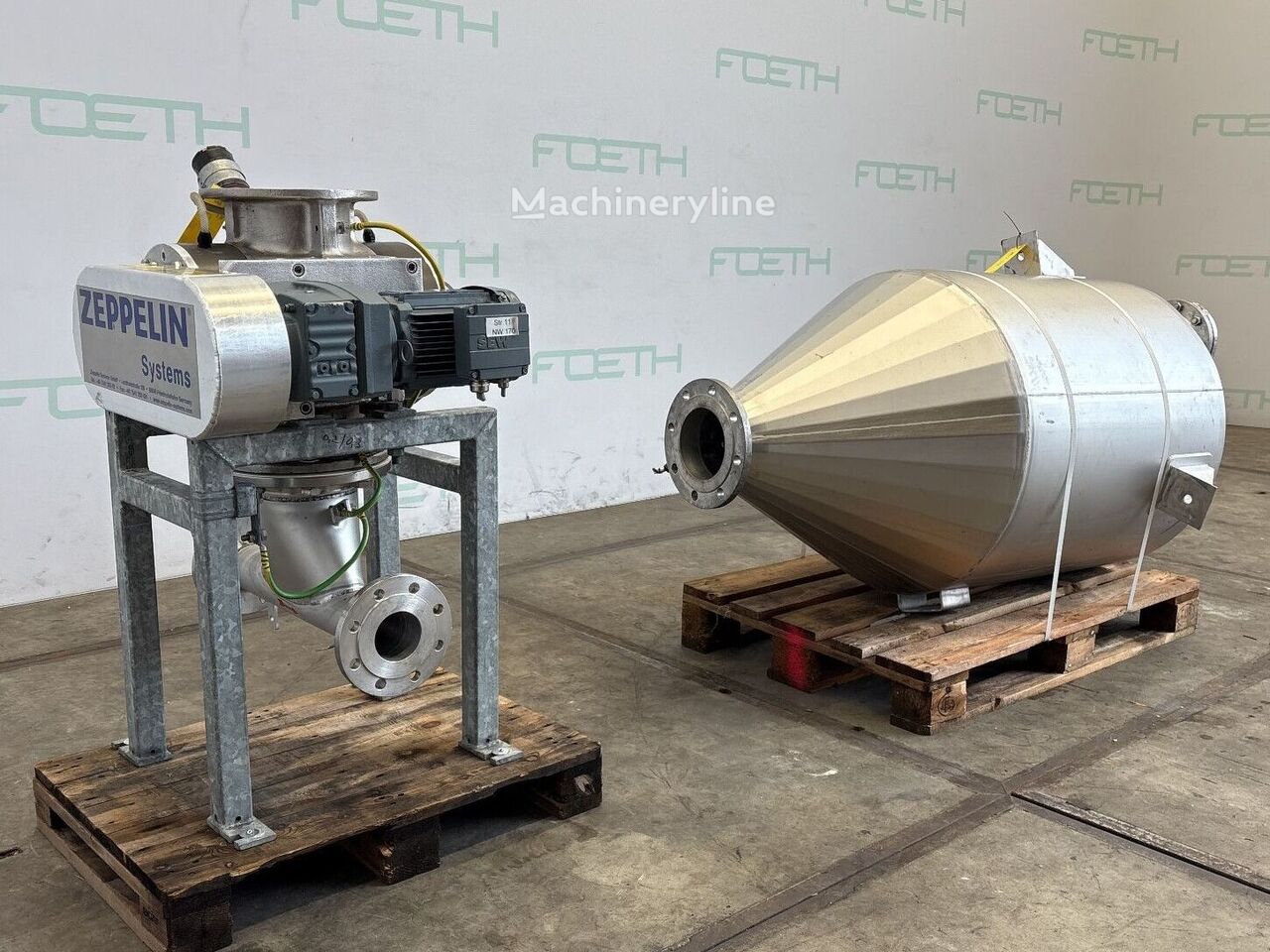

The unit is equipped with a rotary valve and is supplied with a 0.5 m³ hopper, which feeds material into the mixing chamber. It is mounted on a frame with a compact footprint of 0.7 × 0.74 metres and a total height of 0.53 metres, making it relatively easy to position within a production facility. CE marking is confirmed. The machine bears serial number 17131 and is located in Barneveld, Netherlands, available in used condition from 2012.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
