About this machine

This Ziemann is a used mixer and blender — sometimes referred to as a mixing vessel or blending reactor — a type of industrial process equipment used for combining, agitating, or homogenising liquids and other fluid media under controlled conditions of pressure and temperature. Ziemann is a well-established German manufacturer with a long history of building process vessels, fermentation tanks, and related equipment for the brewing, beverage, and broader food and chemical processing industries.

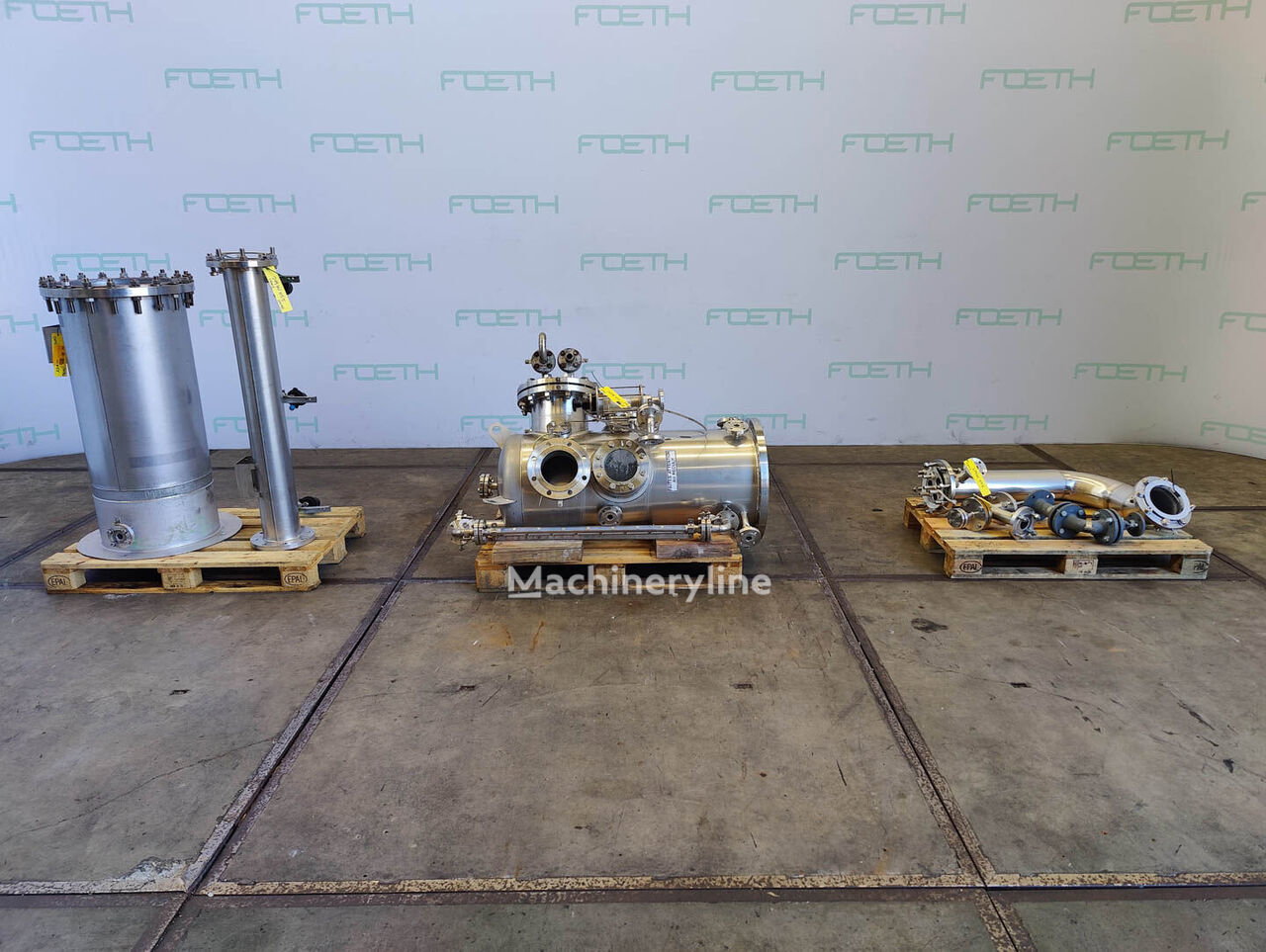

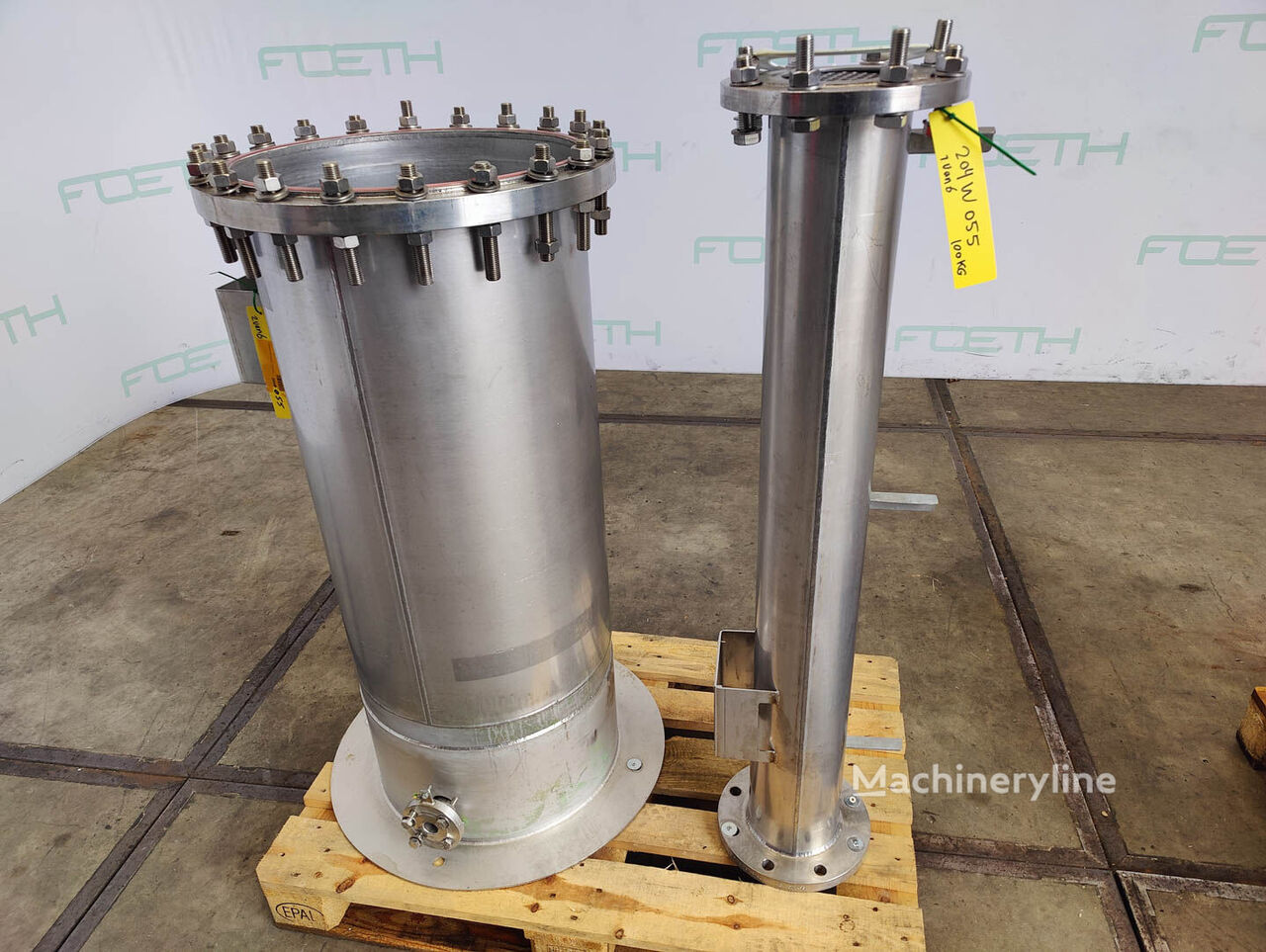

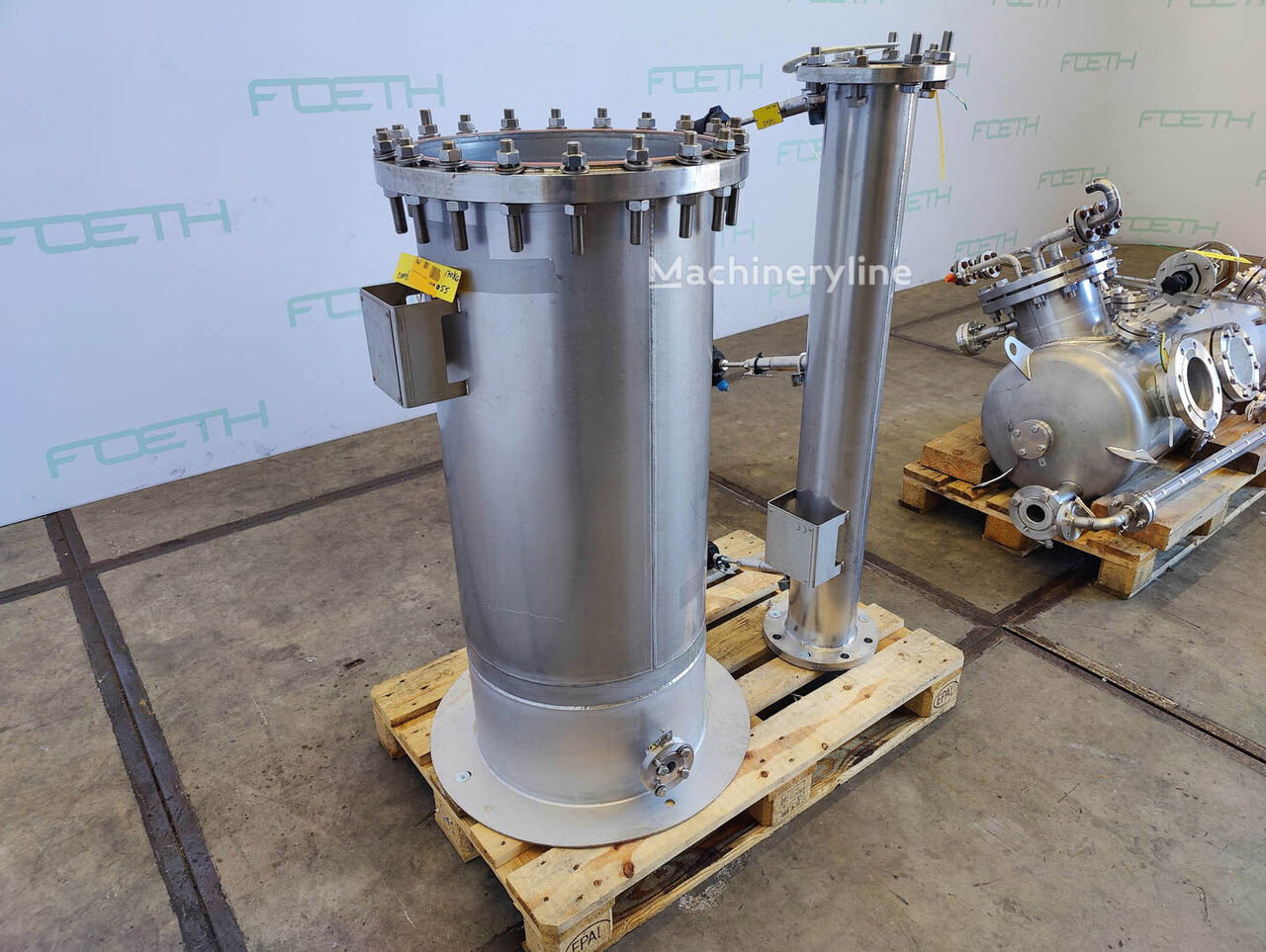

This particular unit is a single-column configuration with a working capacity of 390 litres, housed in a cylindrical vessel measuring 500 mm in diameter and 1,200 mm in height. The overall installation stands 2.70 metres tall and occupies a floor footprint of 0.90 by 0.90 metres, making it a relatively compact unit suitable for pilot-scale or specialised production environments.

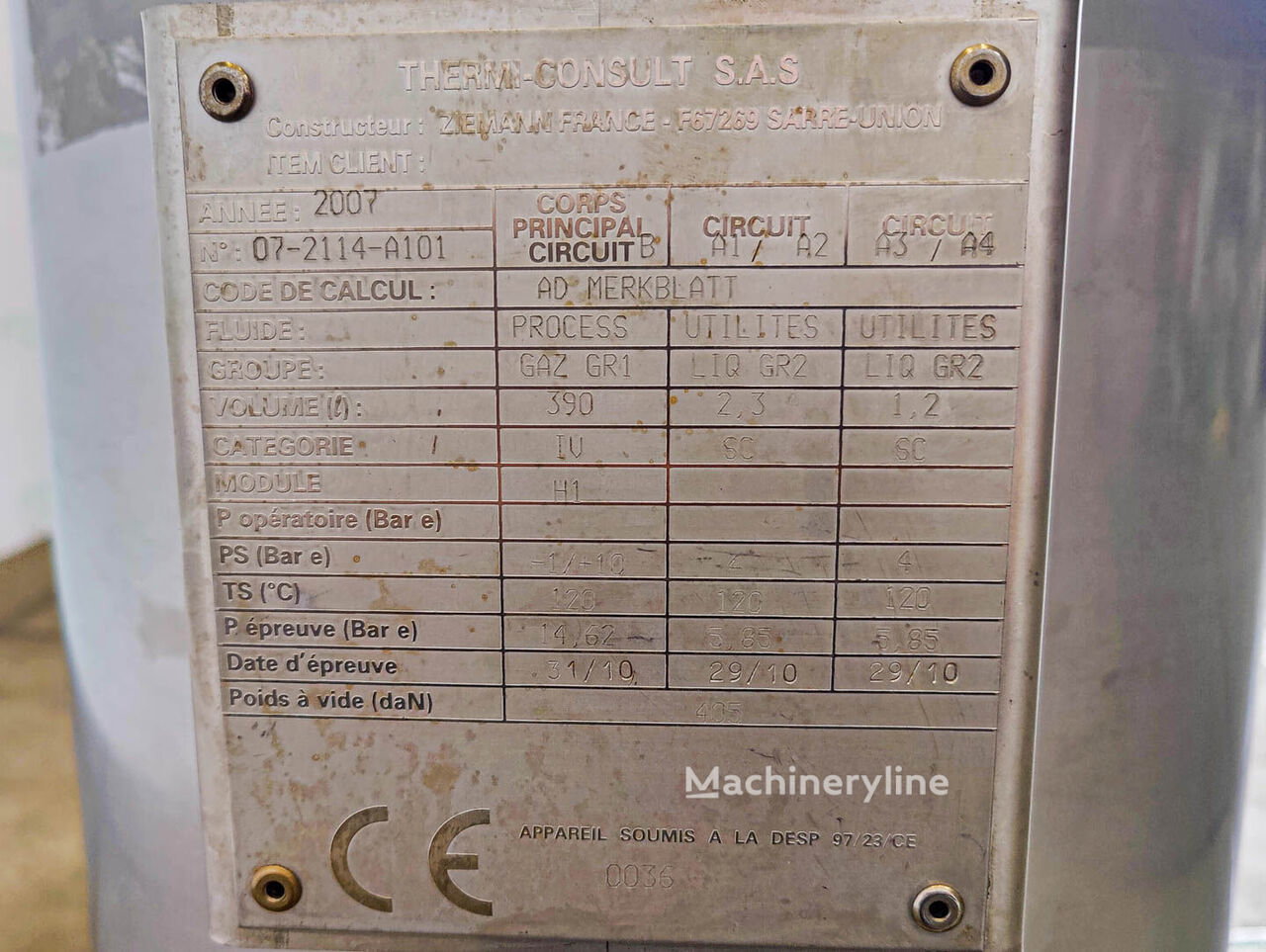

The vessel is rated for a working pressure of 10 bar and is fitted with a heating or cooling jacket rated to 4 bar. The maximum operating temperature is 120°C, enabling use across a range of thermal process applications. The unit is equipped with a distillation installation, broadening its functional scope beyond simple mixing to include separation or concentration processes. Fluid process classification is noted as Gas GR1, with utility fluid classified as Liquid GR2, indicating the machine has been assessed and rated in accordance with the European Pressure Equipment Directive fluid categorisation system.

The machine is supplied without a motor, which should be taken into account when planning integration into an existing installation or sourcing a suitable drive unit. It carries CE marking, confirming compliance with applicable European safety and equipment standards. The unit is located in Barneveld, Netherlands, and dates from 2007.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
