1986 - Ziemann Mixer Blender()
- Listing No
- 1182239
- Year
- 1986
- Manufacturer
- Ziemann
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Working pressure: 5.4 Bar Vacuum possible: check Working pressure jacket: 10 Bar Material: Stainless steel 1.4541 (321) Volume: 2500 Ltr Motor: 0,75 KW, 380 Volt (Ex) Reactor: check Capacity: 2500 Ltr Vessel sizes: dia. 1400x1250mm Dished bottom: check Dished top side: check Top connections: 4x dia. 25mm Outlet: dia. 35mm Half coil jacketed: check (26 Ltr) Max. temperature: 140°C With propellor stirrer: make Ekato Mounted on legs: check Floorspace: 1,6x1,5 m Total height: 3,3 m ATEX compatible: check General Pressure Main Features Specified Features - Stainless Steel Reactor Stainless Steel Reactors Information
About this machine
This Ziemann is a used mixer and blender — sometimes referred to as a mixing vessel or blending reactor — a type of process equipment widely used in the chemical, pharmaceutical, and food industries for blending, dissolving, and reacting liquid or semi-liquid materials under controlled conditions of temperature and pressure. Ziemann is a recognised manufacturer of process and storage vessels, known for supplying stainless steel equipment to demanding industrial and hygienic processing applications.

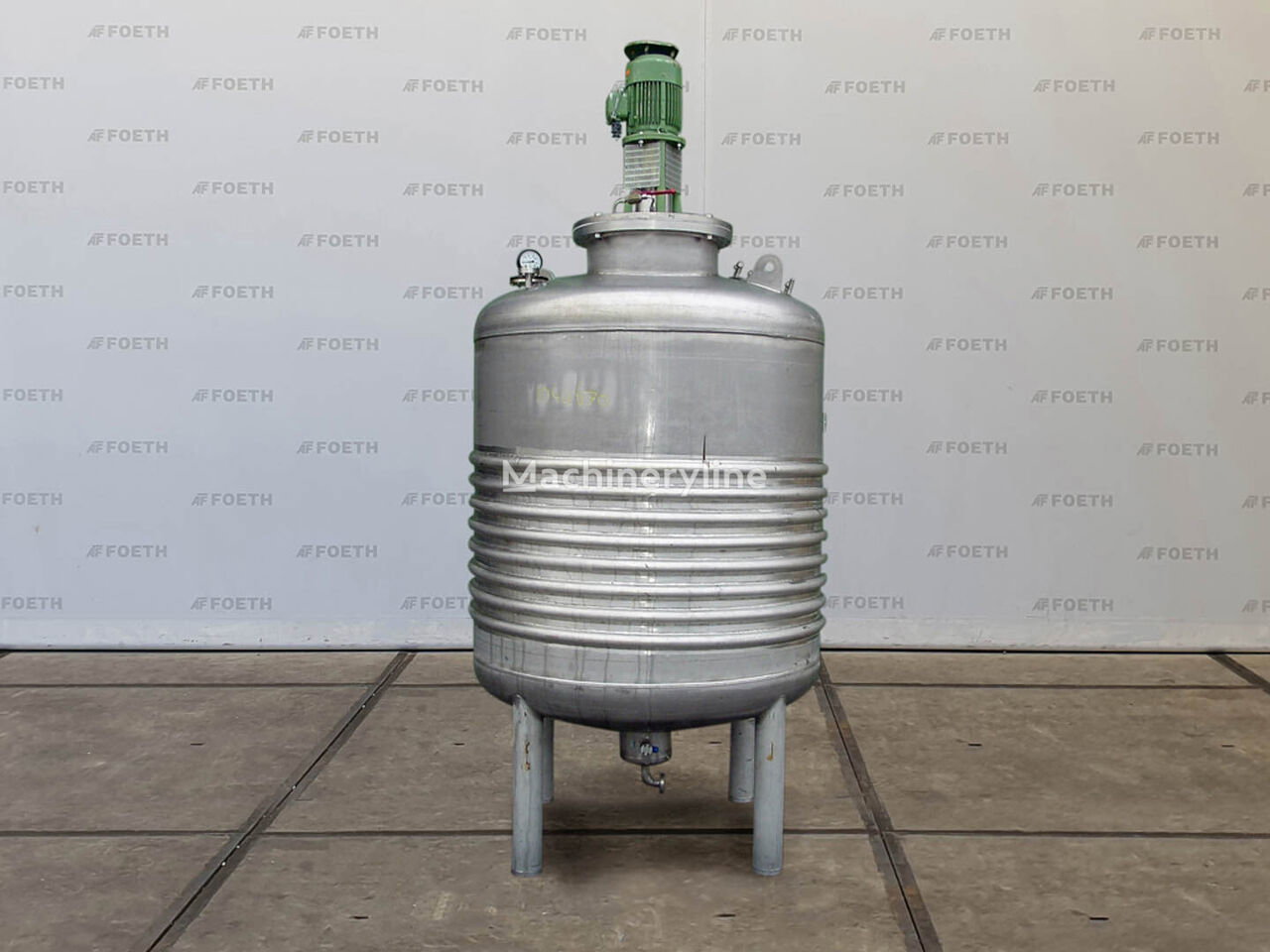

This particular unit dates from 1986 and is located in Barneveld, Netherlands. It is constructed from stainless steel grade 1.4541 (AISI 321), a stabilised austenitic alloy well suited to elevated temperatures and corrosive media. The vessel has a capacity of 2,500 litres, with a cylindrical body measuring 1,400 mm in diameter and 1,250 mm in height, and features both a dished bottom and a dished top, a configuration that supports even pressure distribution and efficient drainage.

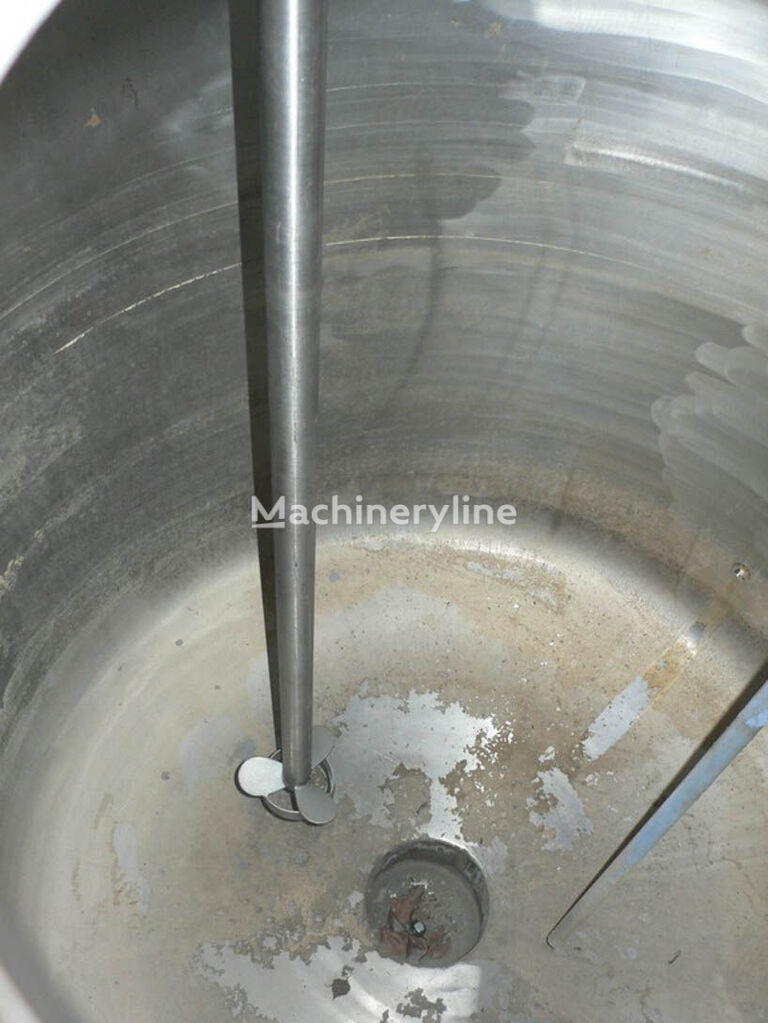

The vessel is rated to a working pressure of 5.4 bar and can also operate under vacuum. The heating or cooling jacket is a half-coil design with a volume of 26 litres and is rated to a working pressure of 10 bar, allowing a maximum operating temperature of 140 °C. Agitation is provided by a propeller-type stirrer manufactured by Ekato, a specialist in industrial mixing technology, driven by a 0.75 kW motor running on 380 V. The unit carries ATEX-compatible classification, making it suitable for use in potentially explosive atmospheres. It is also noted as reactor-configured.

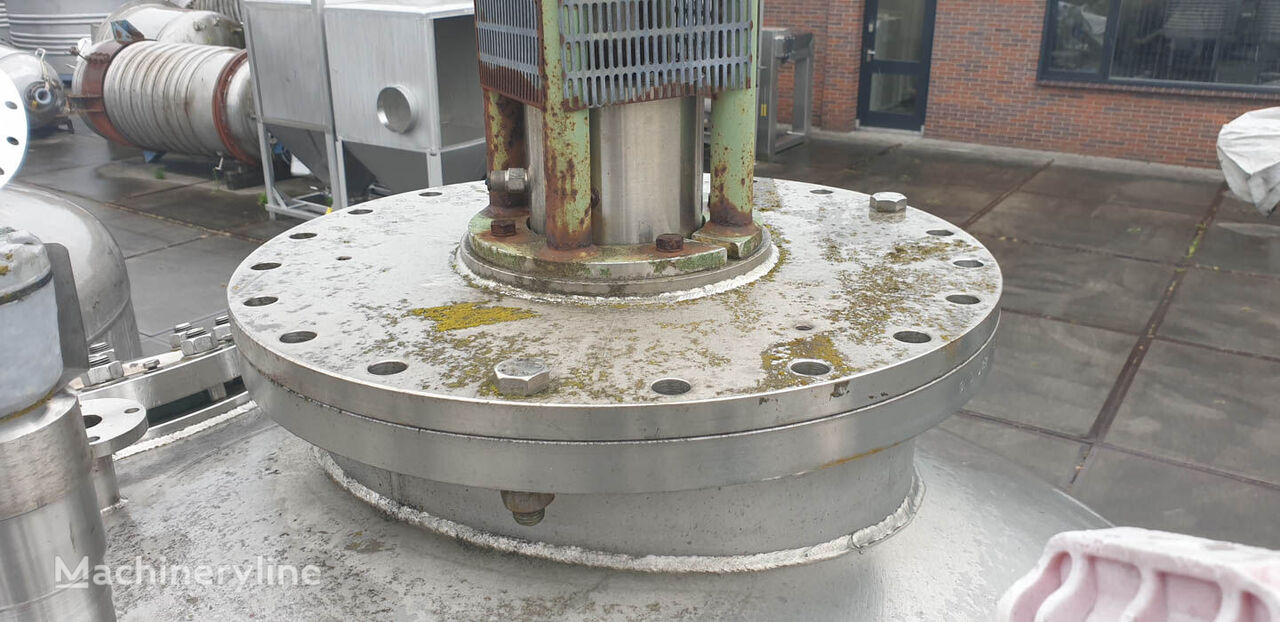

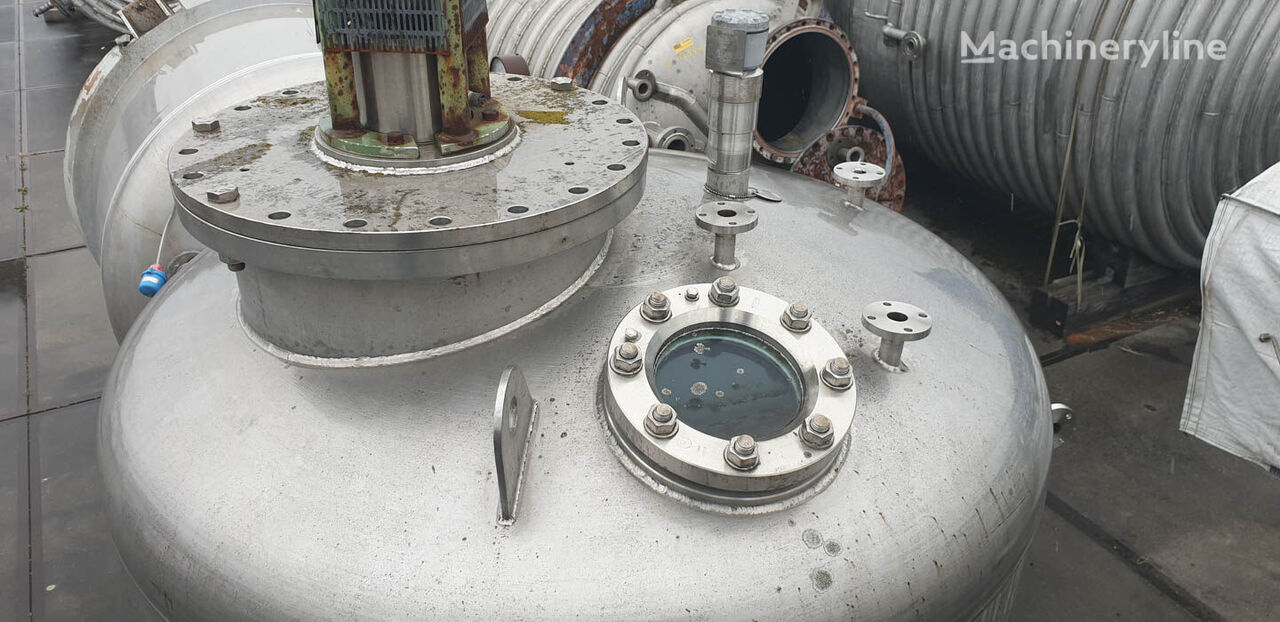

Process connections include four top nozzles of 25 mm diameter and a 35 mm diameter bottom outlet. The vessel is mounted on legs and has a total installed height of 3.3 metres, with a floor footprint of 1.6 × 1.5 metres.
