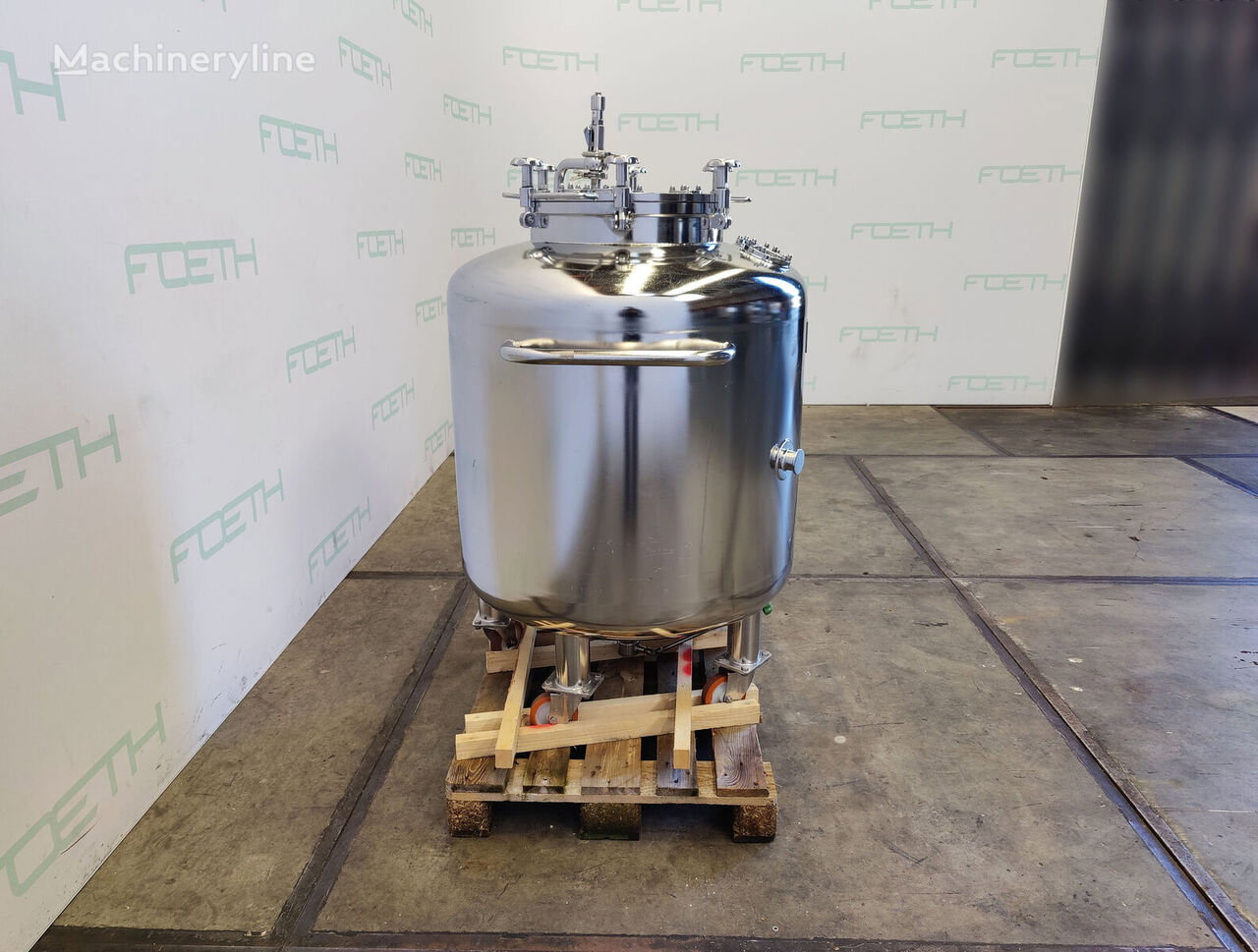

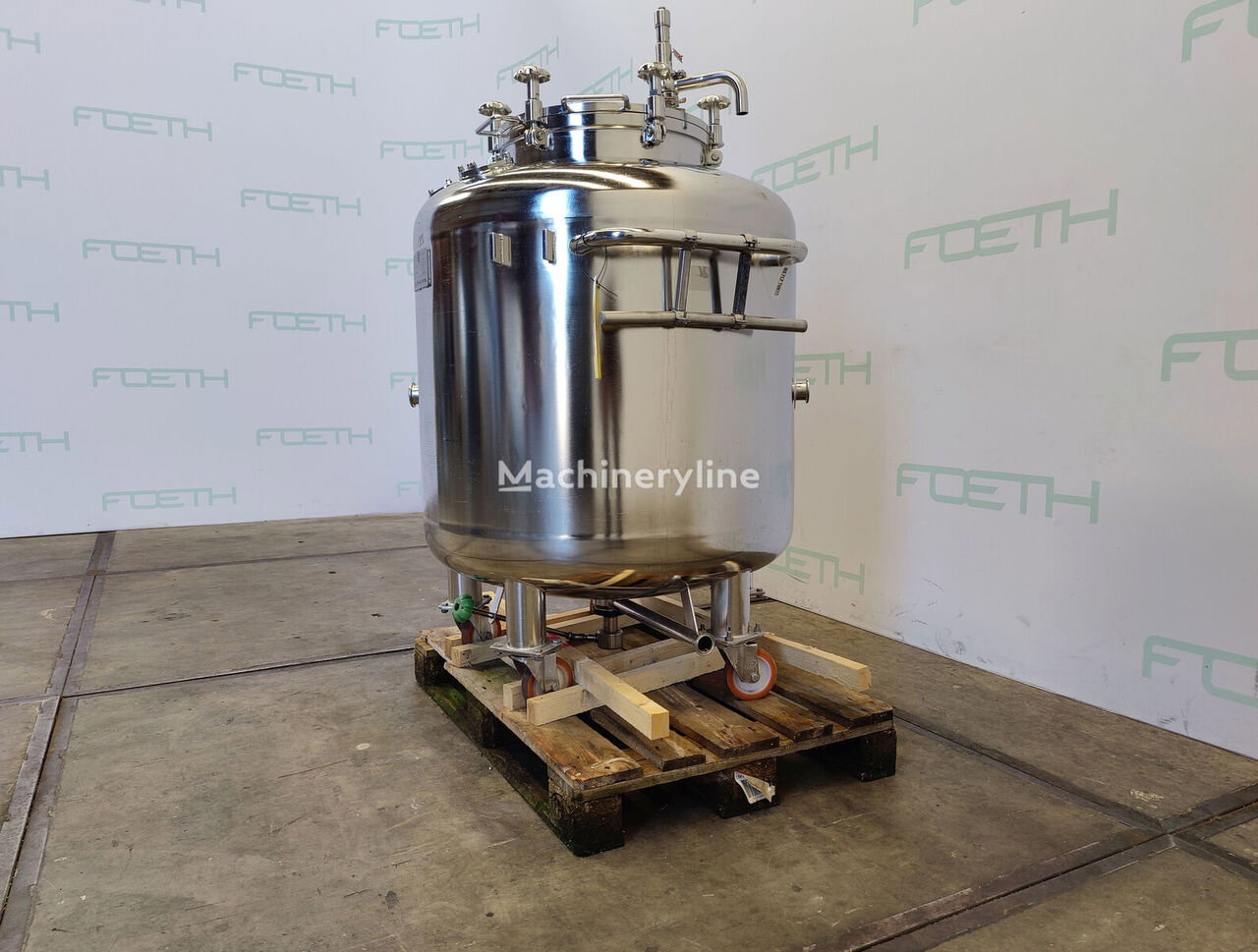

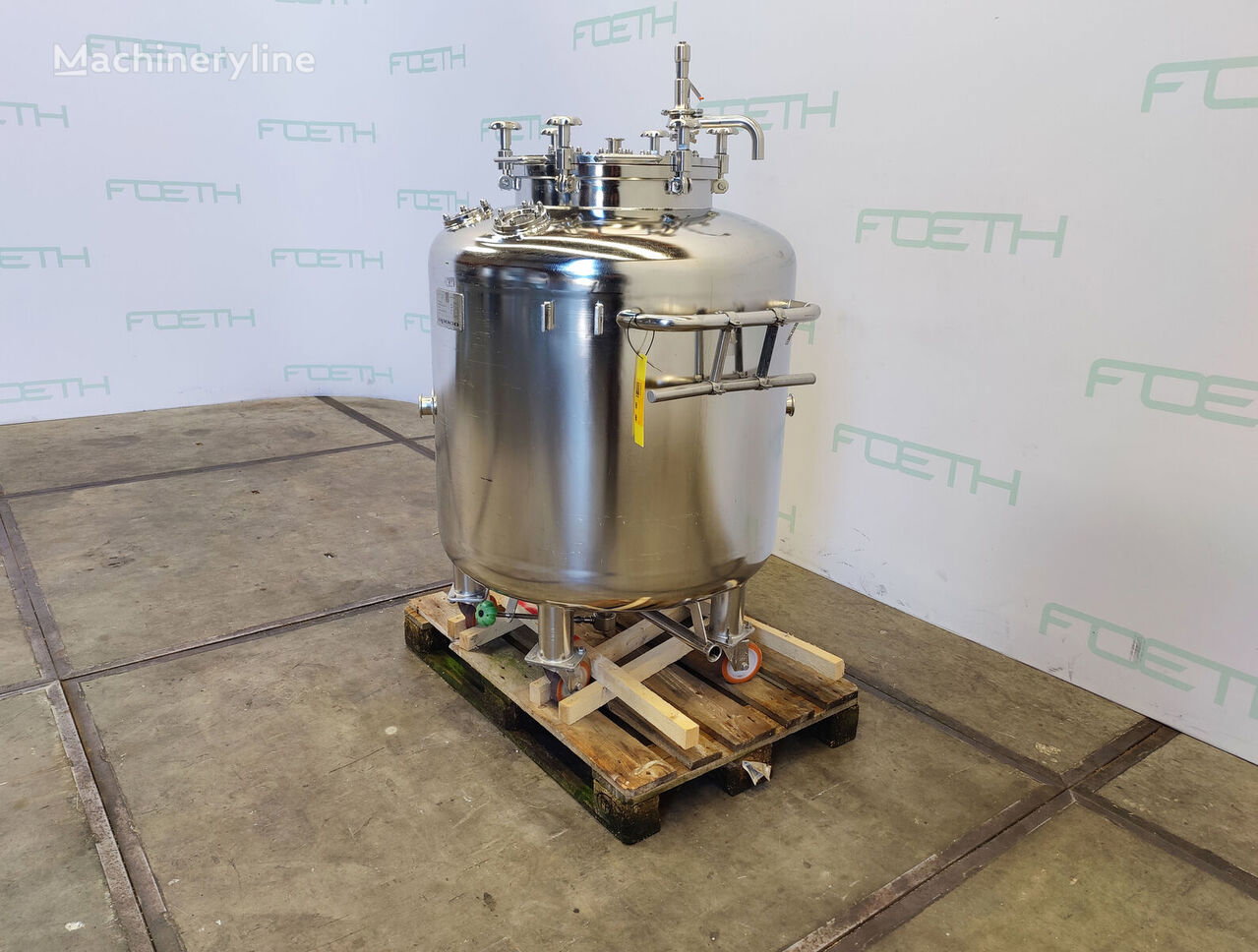

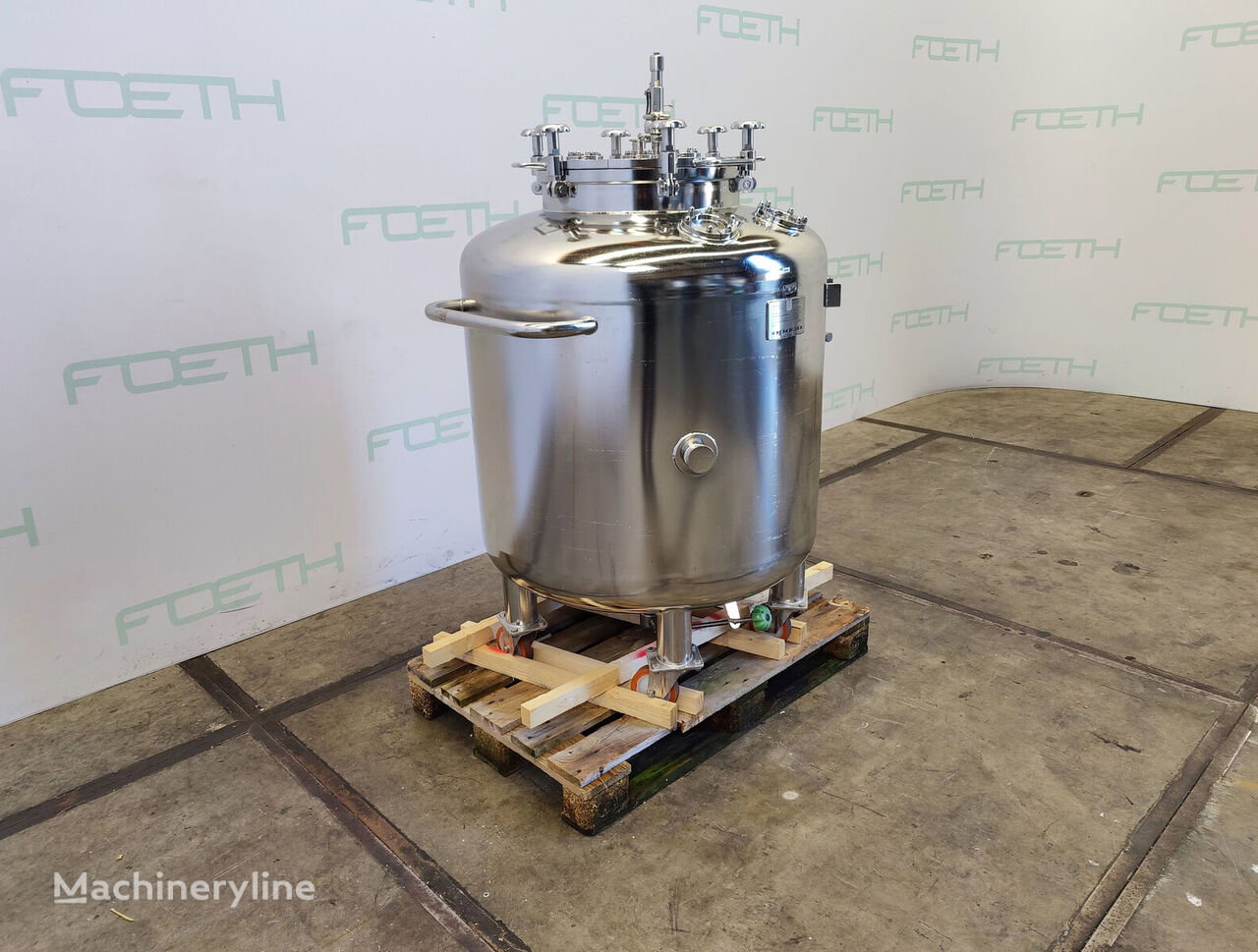

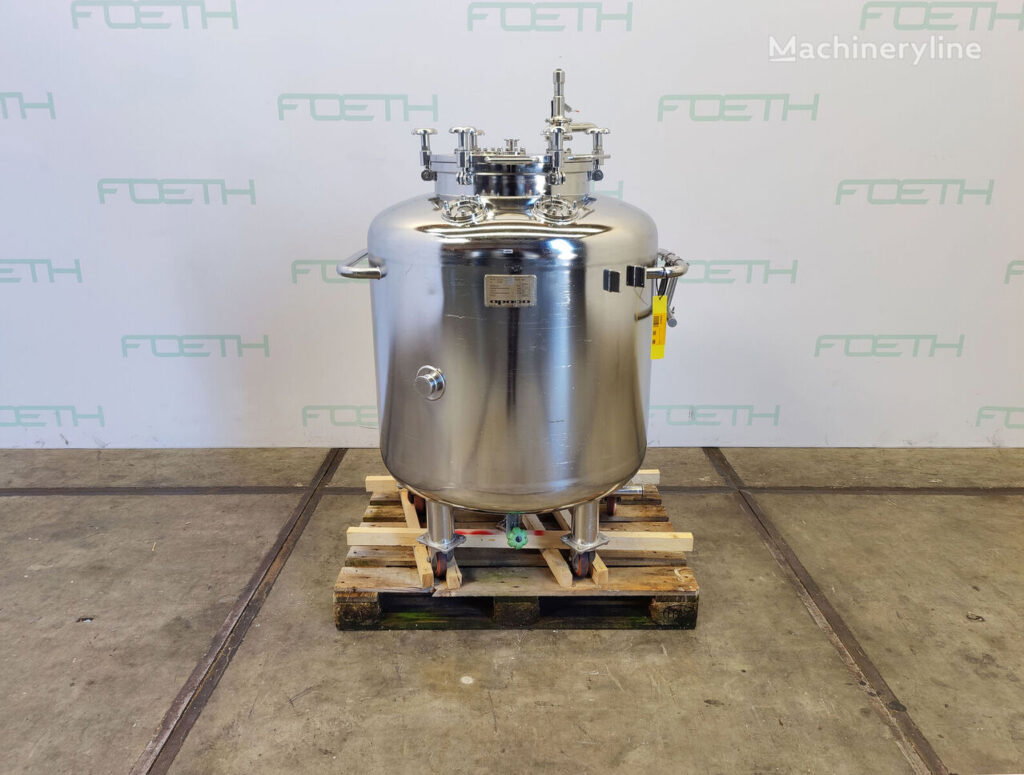

2002 - Apaco AS-650 Tank Container
()- Listing No
- 1180156
- Year
- 2002
- Manufacturer
- Apaco
- Model
- AS-650
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: AS 650 No: 515'425 Material finish: Polished inside and outside Working pressure: 2.5 Bar Vacuum possible: check Material: Stainless steel 1.4435(316L) Volume: 650 Ltr Pressure: 2.5 Bar Vacuum: check Capacity: 650 l Vessel sizes: Dia 950x1000 mm Dished top: check Dished bottom: check With cover: check Manhole: check DN500 Top connections: DN 25 (2x) Outlet: 1,1/2" Max. temperature: 140°C Total height: 1,7 m Mounted on legs: check on wheels Floorspace: 1,2x1,2 m General Specified Features - Pressure vessel Pressure Main Features Pressure vessels Information
About this machine
This Apaco AS-650 is a used tank container — sometimes referred to as a pressure vessel — designed to store, hold, and handle liquids under controlled pressure or vacuum conditions. Apaco is a manufacturer associated with stainless steel process equipment, producing vessels and tanks for industries such as food, beverage, dairy, and pharmaceutical processing.
This particular unit carries serial number 515'425 and was manufactured in 2002. It is currently located in Barneveld, Netherlands. The vessel is constructed from stainless steel grade L), a material chosen for its excellent corrosion resistance and suitability for hygienic and chemically demanding applications. Both the interior and exterior surfaces have been polished, which supports cleanability and is typical of vessels intended for food-grade or pharmaceutical use.
The tank has a working capacity of 650 litres and a cylindrical vessel diameter of 950 mm with a shell length of 1,000 mm. The total installed height is approximately 1.7 metres, and the unit occupies a floor footprint of 1.2 × 1.2 metres. It is mounted on legs fitted with wheels, allowing it to be repositioned on the shop floor without lifting equipment.
The vessel is rated to a maximum working pressure of 2.5 bar and supports vacuum operation. It is certified for temperatures up to 140°C. The top head and bottom head are both dished, which is standard for pressure vessels as the geometry distributes stress evenly and aids drainage. The tank is fitted with a cover and includes a DN500 manhole, giving full internal access for inspection and cleaning. Process connections comprise two DN25 top connections and a 1½-inch outlet at the base.
The unit is offered in used condition and represents a ready-to-integrate stainless steel pressure vessel suitable for process lines requiring closed, pressure-rated liquid containment.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
