2008 - Asdorfer Eisenwerk 5.2 m² (330°C, 55 bar) Tank Container
()- Listing No
- 1180174
- Year
- 2008
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Vacuum possible: check Vacuum possible jacket: check Working pressure shell: 18 Bar Vacuum possible shell: check Working pressure tubes: 55 Bar Tubular vacuum possible: check Shell (Material): Stainless steel Tube (Material): Stainless steel Surface: 5.2 m2 Heat exchanger: check Horizontal: check Heating surface: 5,2 m² Tube capacity: 46 Ltr Number of tubes: 62 Tube diameter: 20 mm Tube length: 1348 mm Max. temperature: —10 / 330 °C Shell capacity: 70 Ltr Shell diameter: 324 mm Shell length: 2006 mm Wall thickness shell: 5 mm Shell connections: DN25 Cover connections: DN80 Material: Stainless steel 1.4571 (316Ti) No: 077713-1 merk: Asdorfer Eisenwerk General Pressure Main Features Specified Features - Shell and tube heat exchanger Information Mounted
About this machine

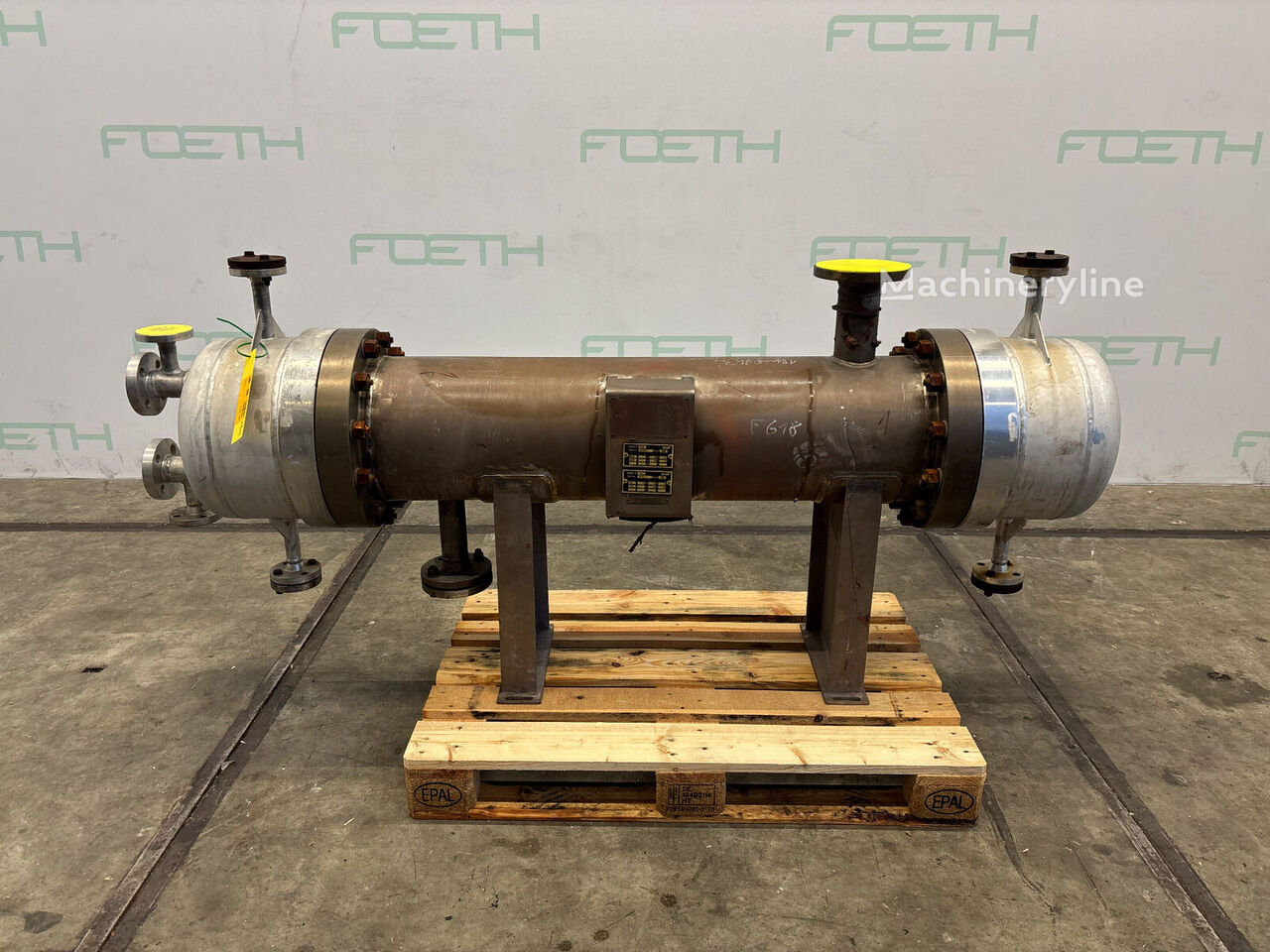

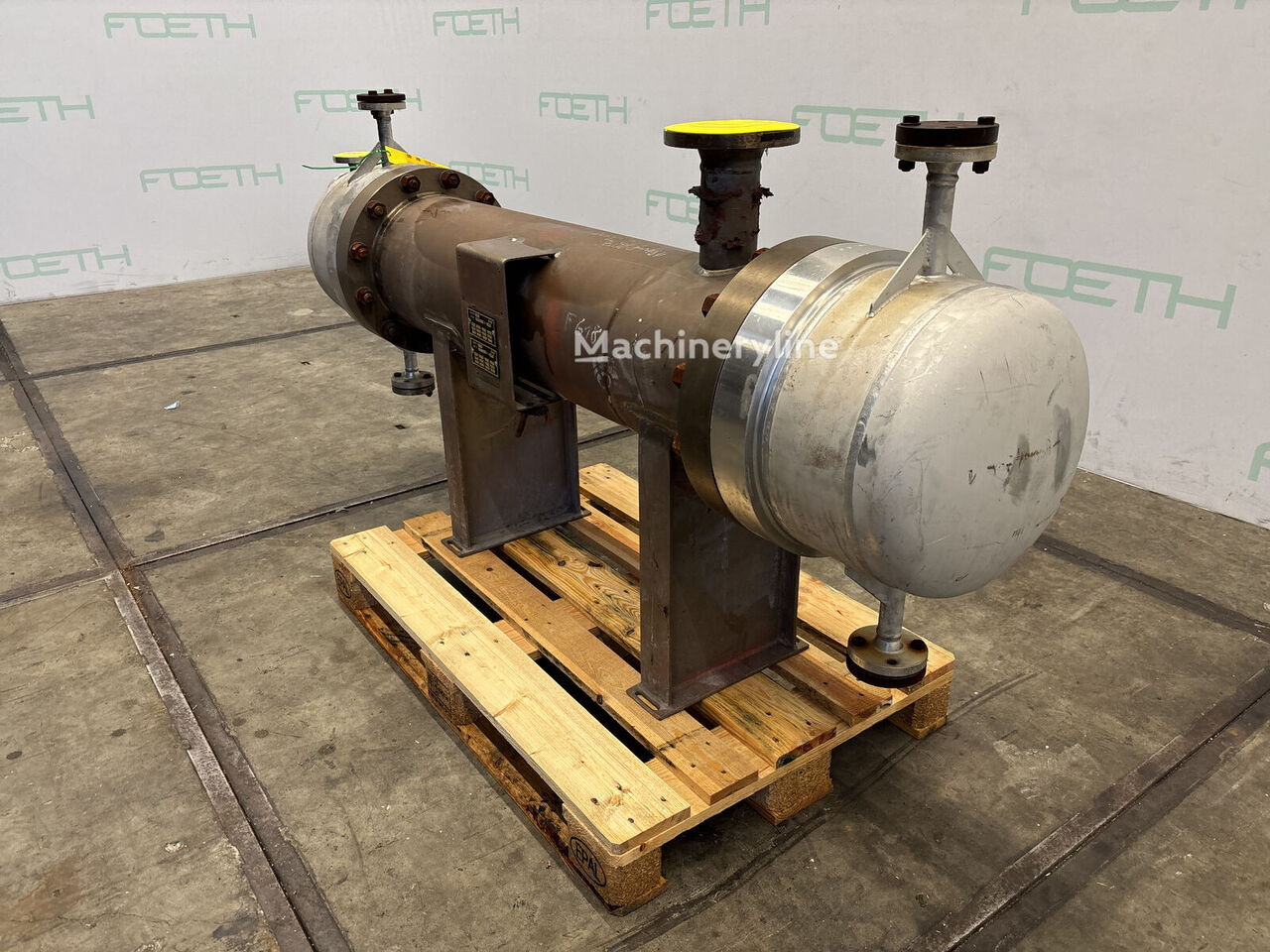

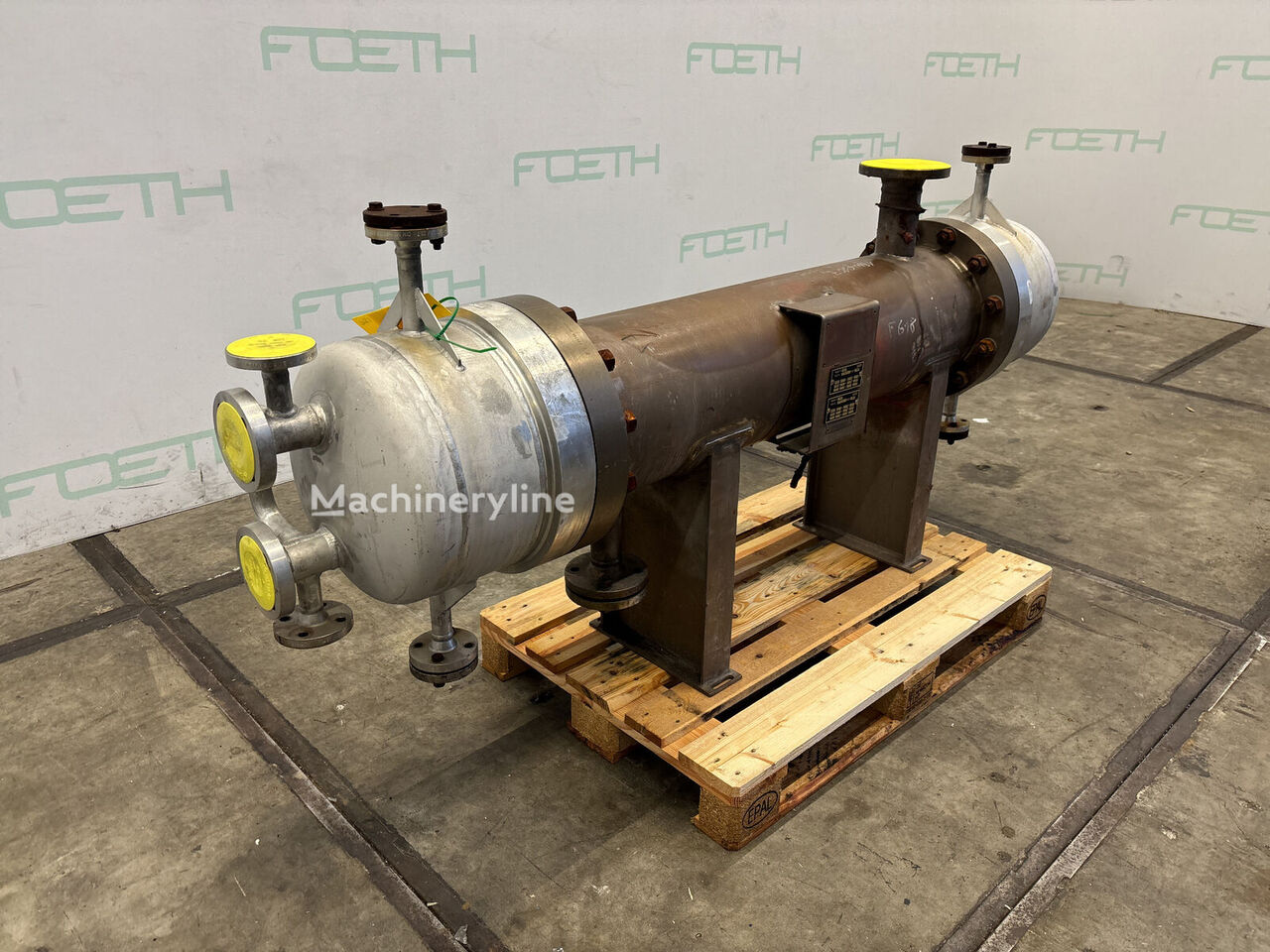

This Asdorfer Eisenwerk 5.2 m² (330°C, 55 bar) is a shell and tube heat exchanger — sometimes referred to as a tubular heat exchanger — a type of process equipment used to transfer heat between two fluid streams kept physically separate, making it a staple of chemical processing, pharmaceutical production, food and beverage manufacturing, and a wide range of industrial heating and cooling applications.
The unit is constructed entirely from stainless steel grade Ti), a titanium-stabilised austenitic alloy selected for its resistance to intergranular corrosion at elevated temperatures, making it well suited to demanding process environments. The heat exchanger is oriented horizontally and carries the serial reference .
The shell side has an internal diameter of 324 mm and a length of 2,006 mm, with a wall thickness of 5 mm and a liquid capacity of 70 litres. Shell-side connections are sized at DN25, while the cover connections are DN80. The shell operates at a working pressure of 18 bar and is rated for vacuum service. The tube bundle comprises 62 tubes, each 20 mm in diameter and 1,348 mm in length, giving a total heating surface area of 5.2 m². Tube-side capacity is 46 litres, and the tubes are rated to a working pressure of 55 bar, also with vacuum capability on the tube side. The temperature range for the unit is stated as −10°C to 330°C, indicating suitability for both cryogenic-adjacent and high-temperature process duties.
This used heat exchanger dates from 2008 and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
