1998 - Haagen & Rinau 300 Ltr. – Pressure vessel Tank Container()
- Listing No
- 1180067
- Year
- 1998
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 301017/3 Material finish: Polished inside Working pressure: 3 Bar Vacuum possible: check Number of vertical pressure tanks: 1 Material: Stainless steel 1.4435 (316L) Volume: 300 Ltr Pressure: 3 Bar Vacuum: check Notified body: TÜV Capacity: 300 Ltr. ( bruto 380 ltr) Vessel sizes: Dia. 740x997 mm Dished top: check Dished bottom: check With cover: check Manhole: DN400 Top connections: check Outlet: DN40 Max. temperature: 143°C Mounted on legs: check wheels Floorspace: 0,95x1,15 m Total height: 2,0 m Extra Specifications: with spray ball. inspection window in manhole merk: Haagen & Rinau General Specified Features - Pressure vessel Pressure Main Features Pressure vessels Information
About this machine

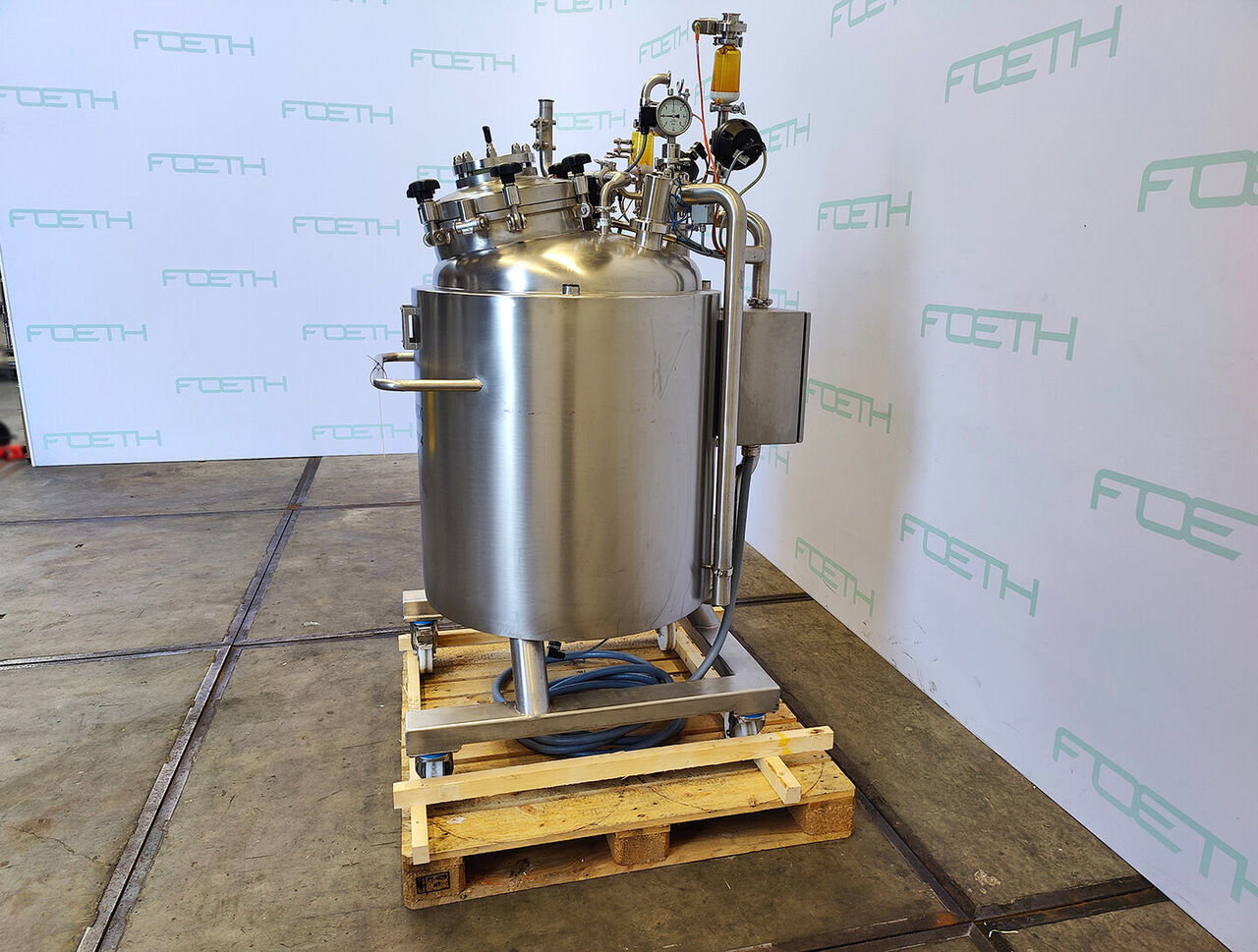

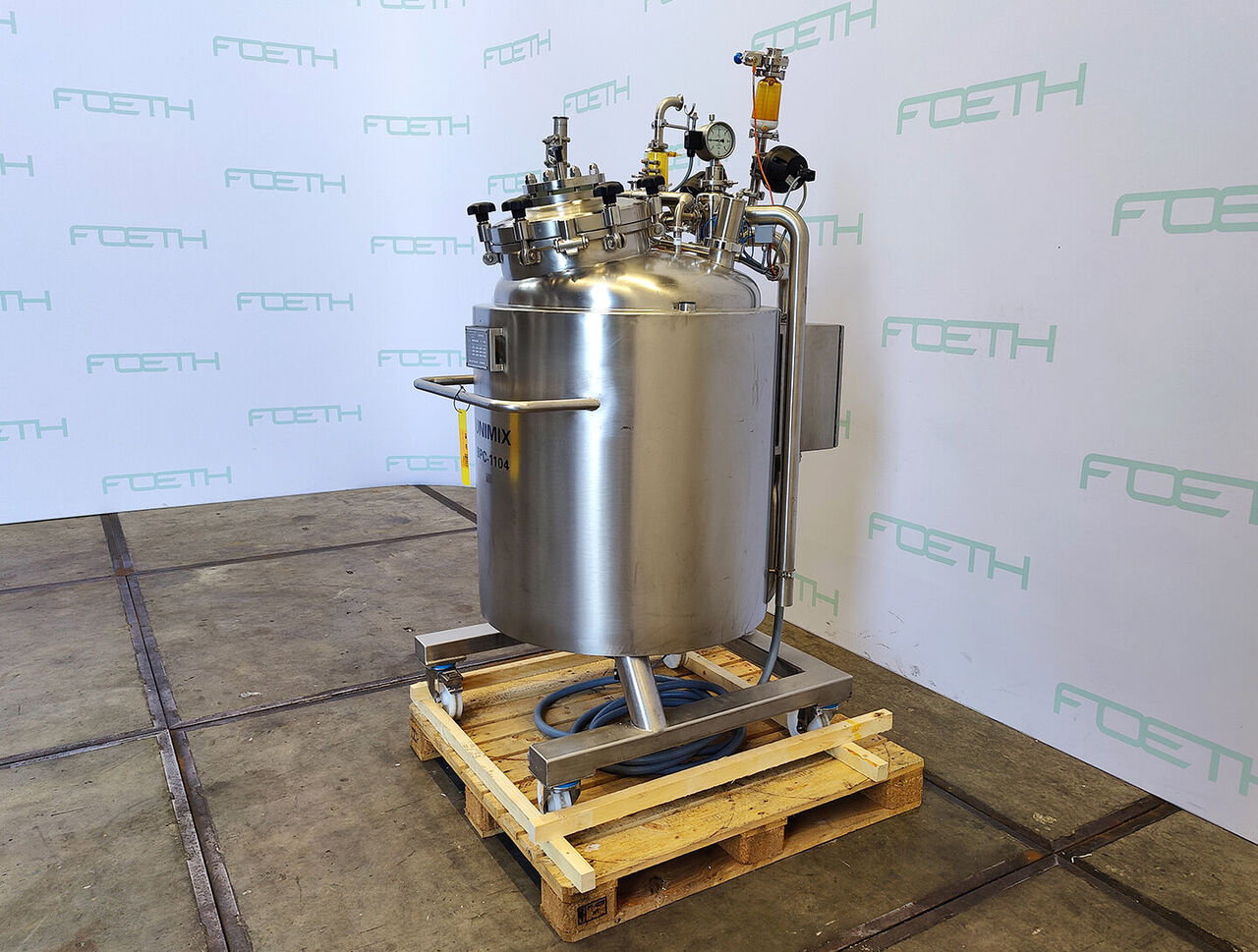

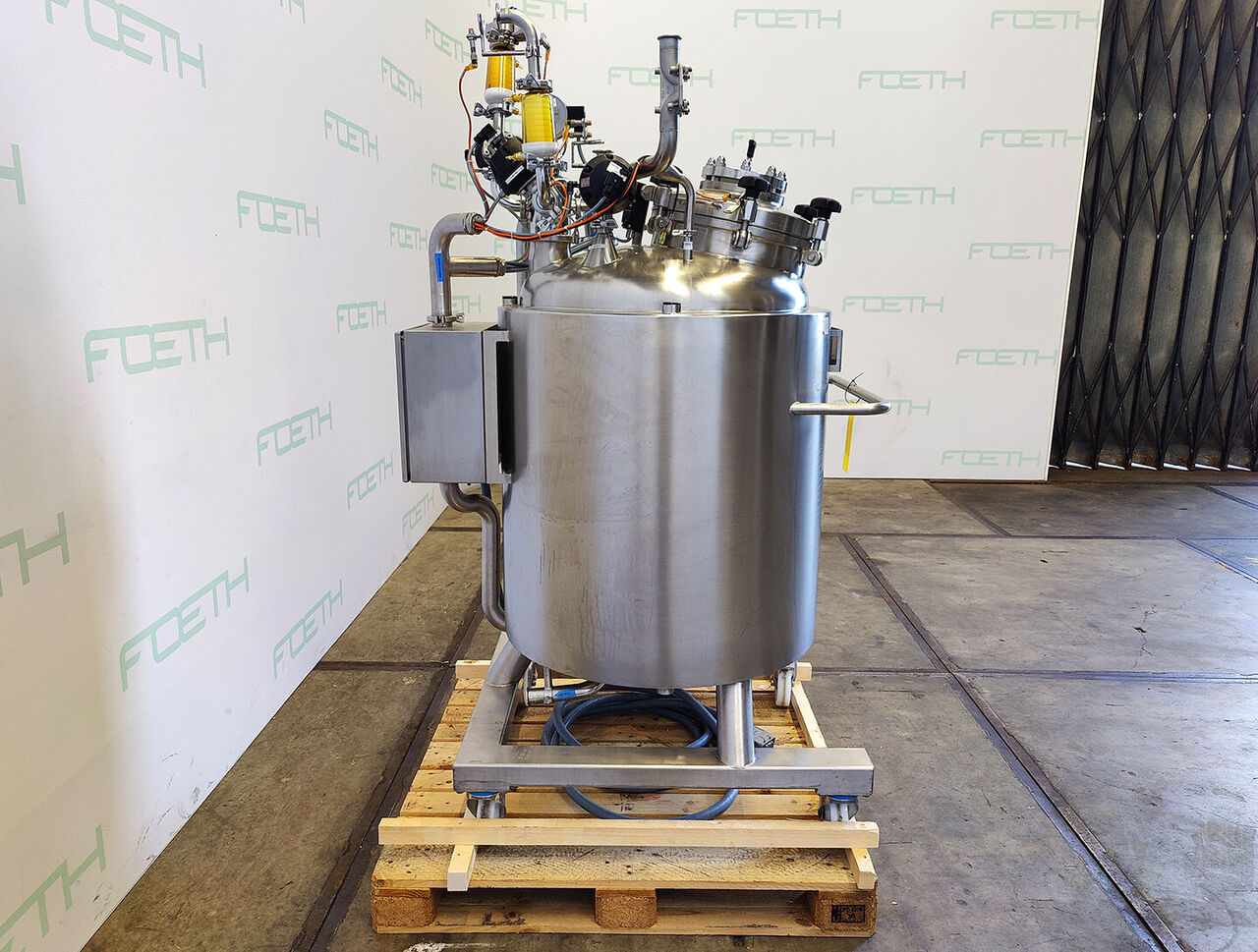

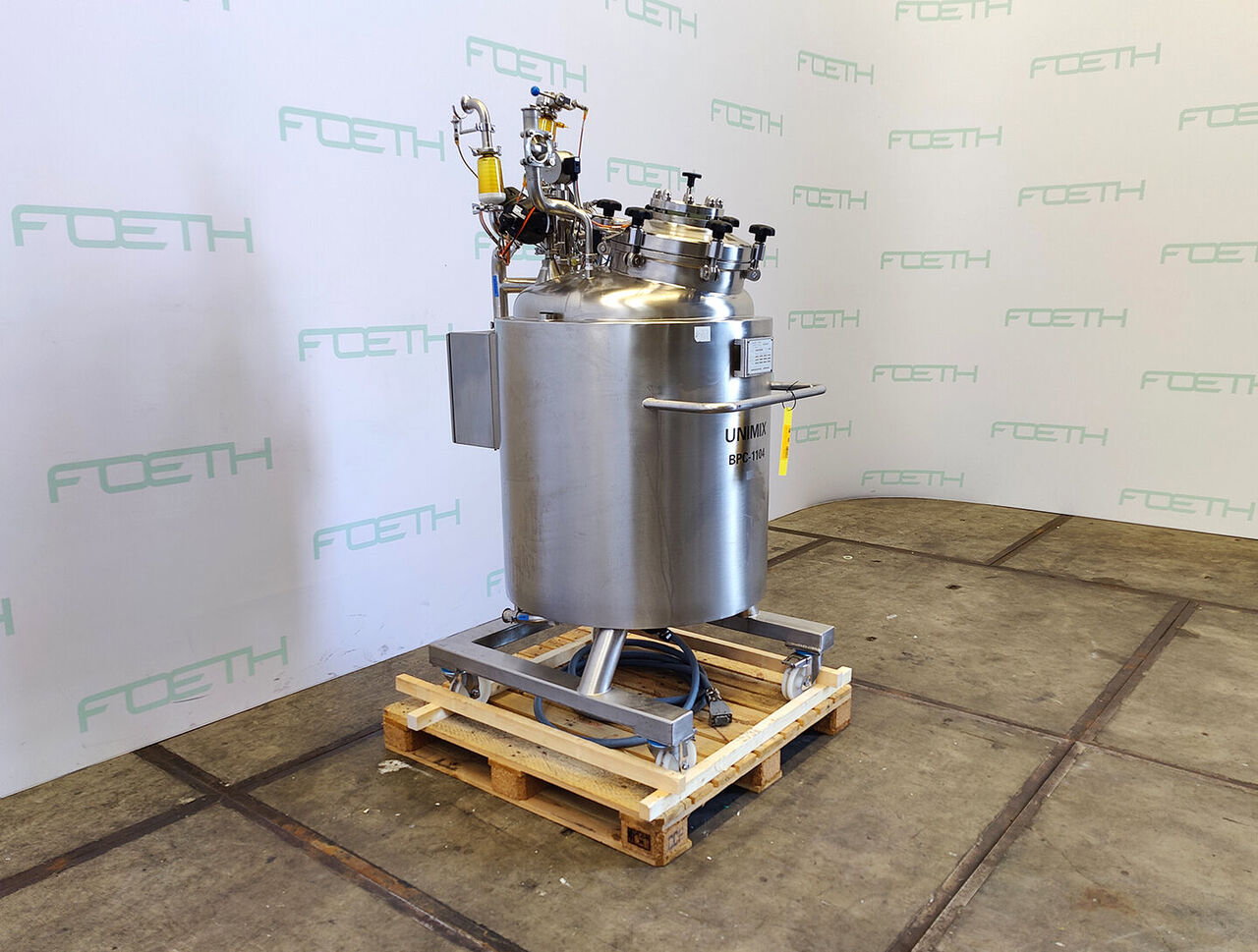

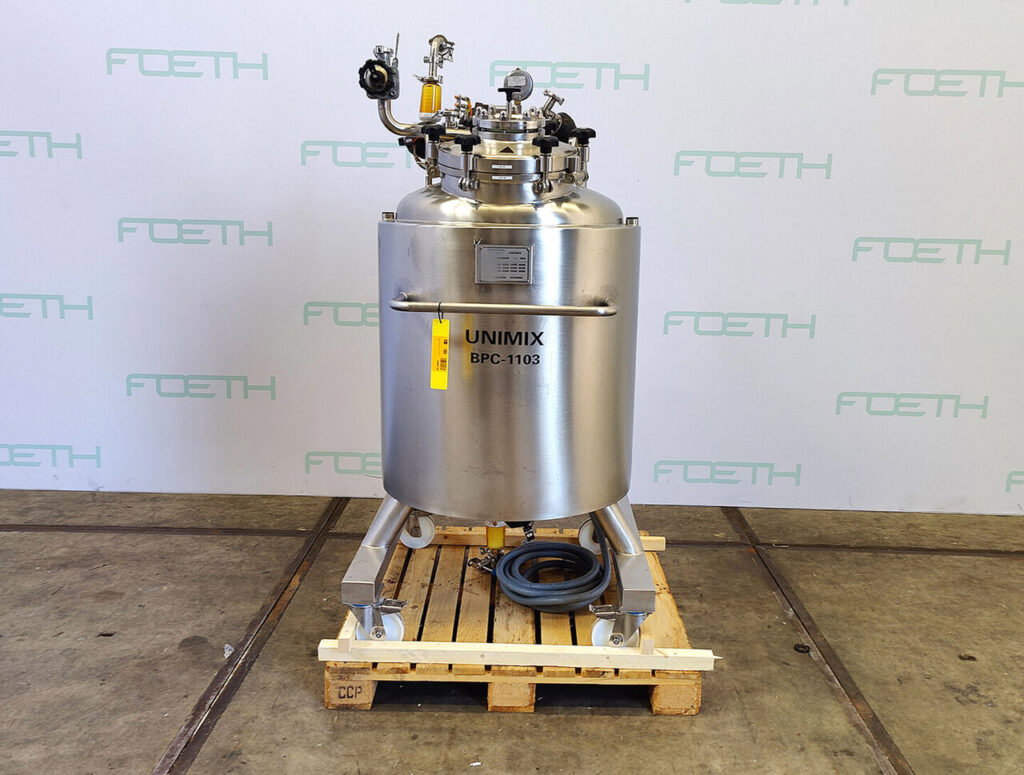

This Haagen & Rinau 300 Ltr. - Pressure vessel Tank Container is a vertical pressure tank — sometimes referred to as a pressure vessel or storage vessel — designed to hold liquids or gases under controlled pressure conditions. Vessels of this type are widely used across food processing, pharmaceutical, chemical, and dairy industries wherever hygienic containment under pressure or vacuum is required.
Constructed from stainless steel grade L), the tank is polished internally, making it well suited to sanitary or corrosion-sensitive applications. It has a net working capacity of 300 litres, with a gross volume of 380 litres, and the vessel body measures 740 mm in diameter by 997 mm in height. The top and bottom closures are both dished, contributing to structural integrity under pressure. The vessel is mounted on legs fitted with wheels, allowing it to be repositioned within a facility; its floor footprint is 0.95 × 1.15 m and its total height reaches 2.0 m.
The tank is rated for a maximum working pressure of 3 bar and supports vacuum operation. Maximum operating temperature is 143°C. It has been certified by TÜV as the notified inspection body, confirming its compliance with applicable pressure equipment standards. The manhole opening is DN400, equipped with an inspection window, and the vessel includes a spray ball for internal cleaning in place. The main outlet connection is DN40, and additional top connections are fitted. A cover is also included.
This vessel was manufactured in 1998, is offered in used condition, and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
