1998 - Haagen & Rinau 300 Ltr. – Pressure vessel Tank Container
()- Listing No
- 1180086
- Year
- 1998
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 301017/4 Material finish: Polished inside Working pressure: 3 Bar Vacuum possible: check Number of vertical pressure tanks: 1 Material: Stainless steel 1.4435 (316L) Volume: 300 Ltr Pressure: 3 Bar Vacuum: check Notified body: TÜV Capacity: 300 Ltr. ( bruto 380 ltr) Vessel sizes: Dia. 740x997 mm Dished top: check Dished bottom: check With cover: check Manhole: DN400 Top connections: check Outlet: DN40 Max. temperature: 143°C Mounted on legs: check wheels Floorspace: 0,95x1,15 m Total height: 2,0 m Extra Specifications: with spray ball. inspection window in manhole merk: Haagen & Rinau General Specified Features - Pressure vessel Pressure Main Features Pressure vessels Information
About this machine

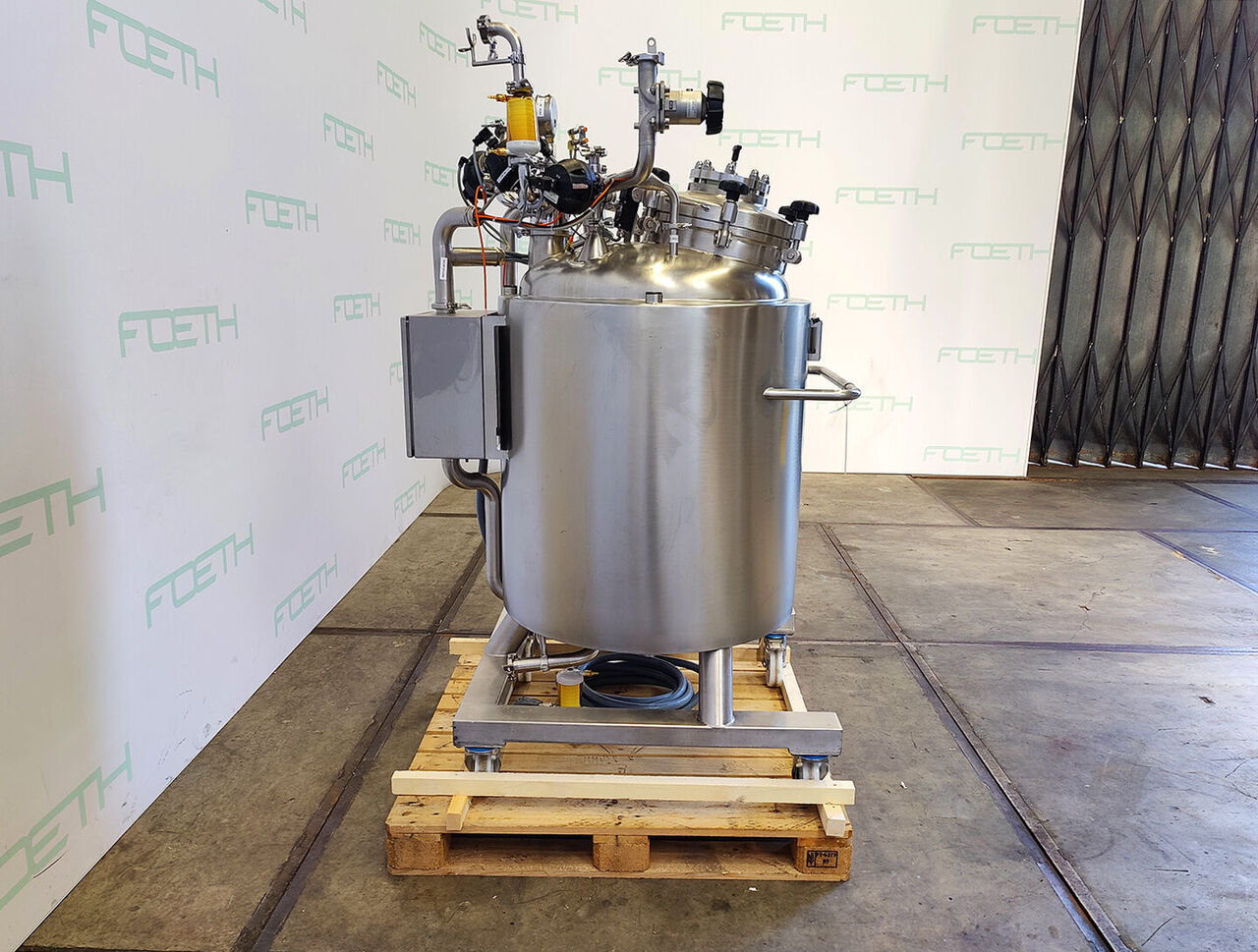

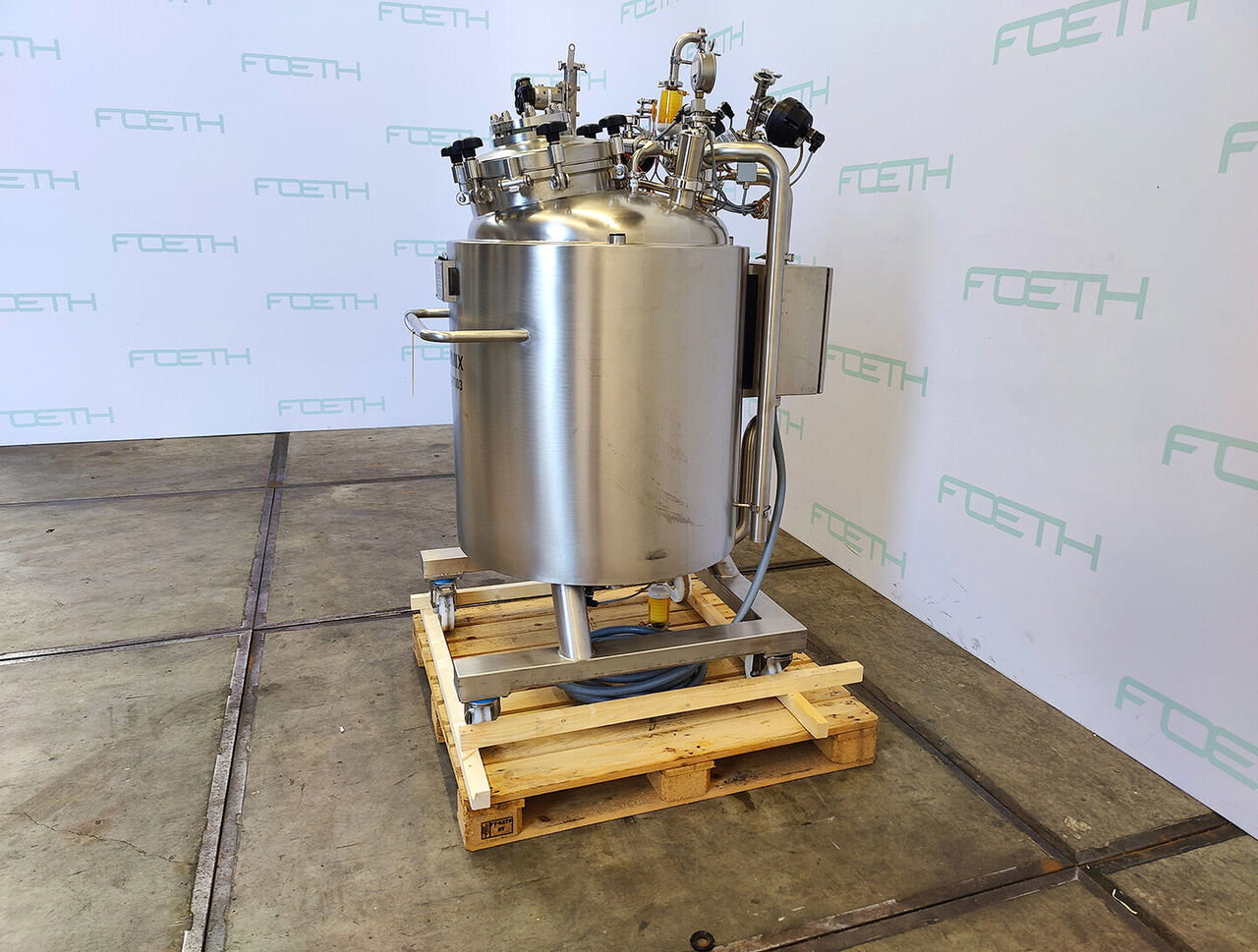

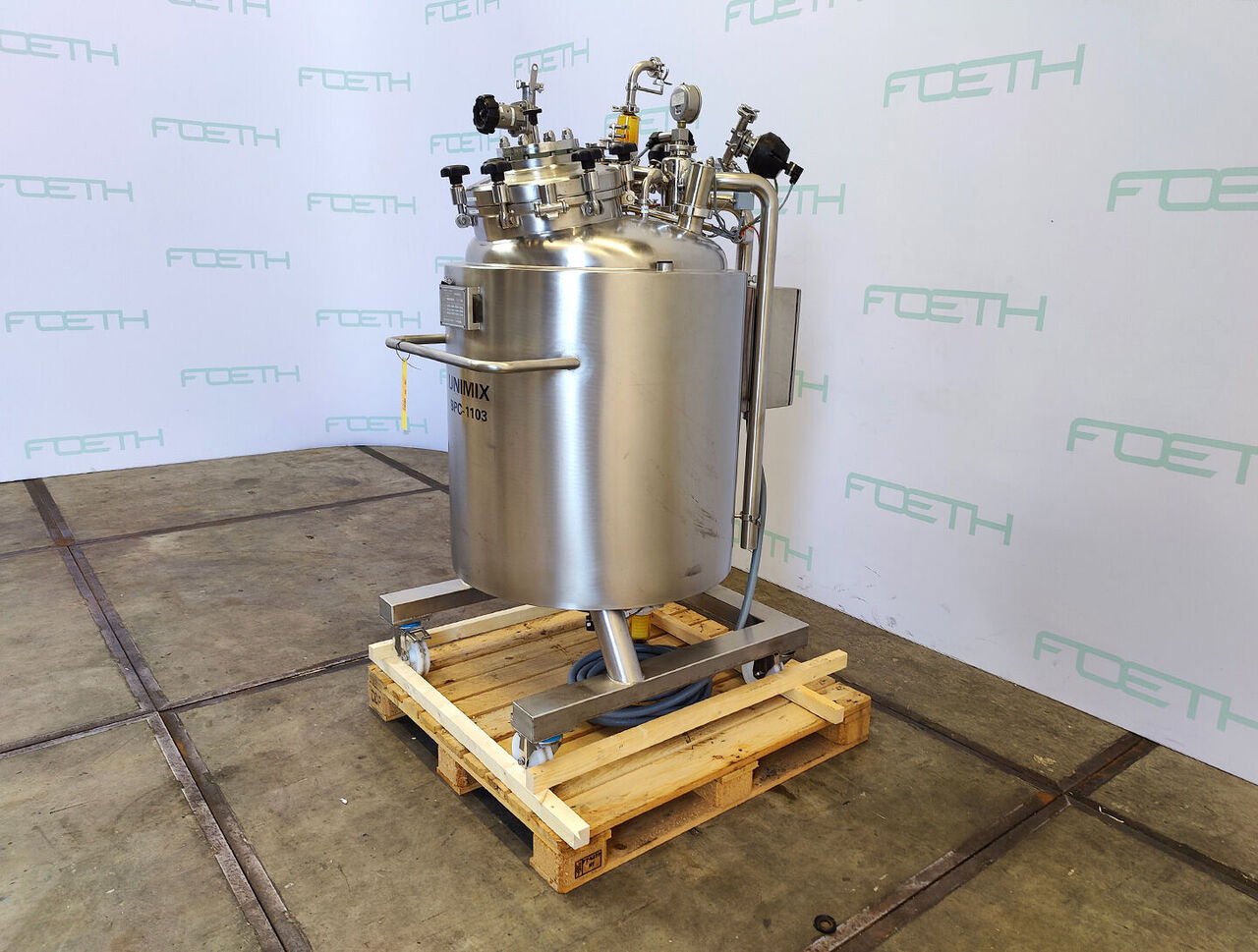

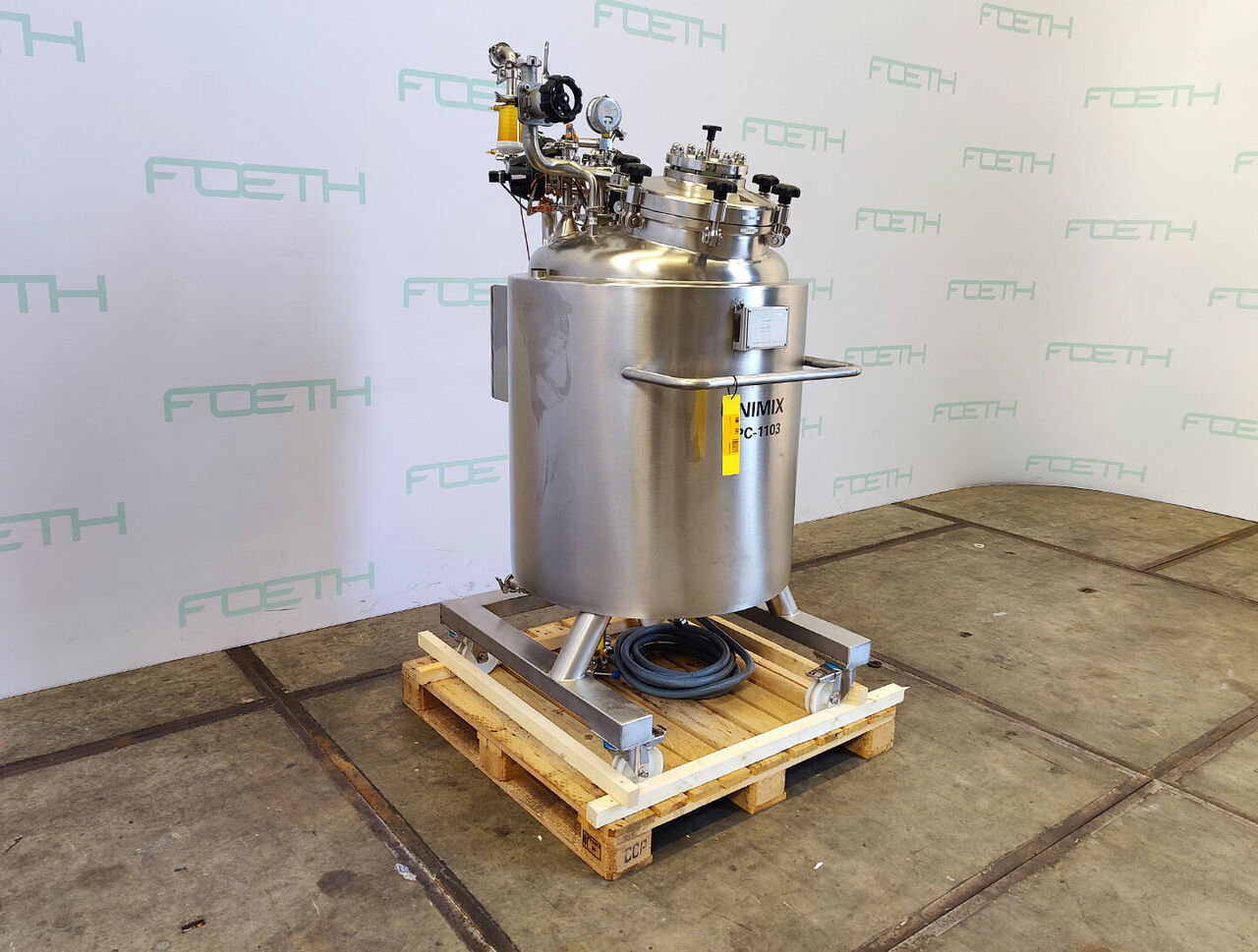

This Haagen & Rinau 300 Ltr. – Pressure Vessel Tank Container is a vertical pressure vessel, a type of equipment also commonly referred to as a pressure tank, used in industrial and food-grade processing applications for storing, mixing, or holding liquids and semi-liquids under controlled pressure or vacuum conditions. Haagen & Rinau is a recognised German manufacturer of stainless steel processing and pressure equipment, supplying vessels and systems to the food, beverage, dairy, and pharmaceutical industries.
The vessel is constructed from stainless steel grade L), a low-carbon austenitic alloy well suited to hygienic and corrosion-resistant applications, with a polished interior finish appropriate for sanitary processing environments. Its nominal volume is 300 litres, with a gross capacity of 380 litres, and the cylindrical shell measures 740 mm in diameter by 997 mm in height. Both the top and bottom ends are dished, providing structural integrity under pressure and facilitating complete drainage.
The vessel is rated for a working pressure of 3 bar and a maximum operating temperature of 143 °C, with vacuum capability also confirmed. Certification has been carried out by TÜV, the independent German notified body. The unit is mounted on legs with wheels for ease of repositioning, occupies a floor footprint of 0.95 × 1.15 m, and stands 2.0 m in total height.
Access is provided through a DN400 manhole fitted with a cover, which incorporates an inspection window for visual monitoring of contents. The manhole also houses a spray ball, supporting clean-in-place (CIP) operations. Additional top connections are present, and the outlet is sized at DN40. The vessel is located in Barneveld, Netherlands, and was manufactured in 1998.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
