2016 - Waldner Hermann Tank Container
()- Listing No
- 1180229
- Year
- 2016
- Manufacturer
- Waldner
- Model
- Hermann
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 1450 l No: 5064 Working pressure: 6 Bar Vacuum possible: check Working pressure jacket: 10 Bar Vacuum possible jacket: check Number of vertical pressure tanks: 1 Material: Stainless steel 1.4404 (316L) Volume: 1000 Ltr Pressure: 6 Bar Vacuum: check Capacity: 1450 l.( 1000l) Vessel sizes: Dia. 1200x1500 mm Dished bottom: check Manhole: DN500 Top connections: check Outlet: DN50 Max. temperature: 20°C/+200°C With jacket: check Mounted on legs: check CE: check Floorspace: 1,50x1,30 m Total height: 2,30 m Extra Specifications: mirror polished inside - pneumatic outlet valve - no lid merk: Hermann Waldner General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

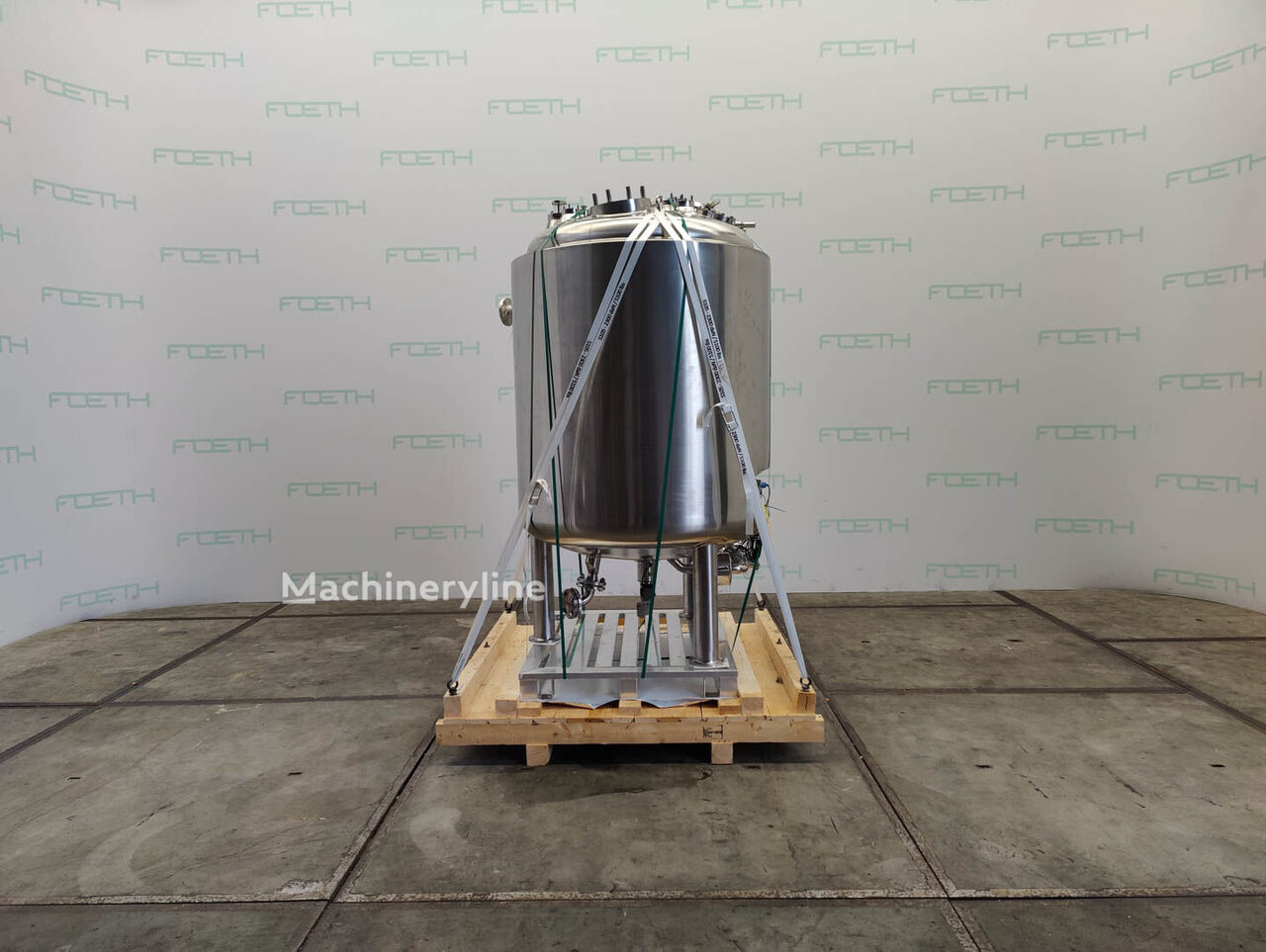

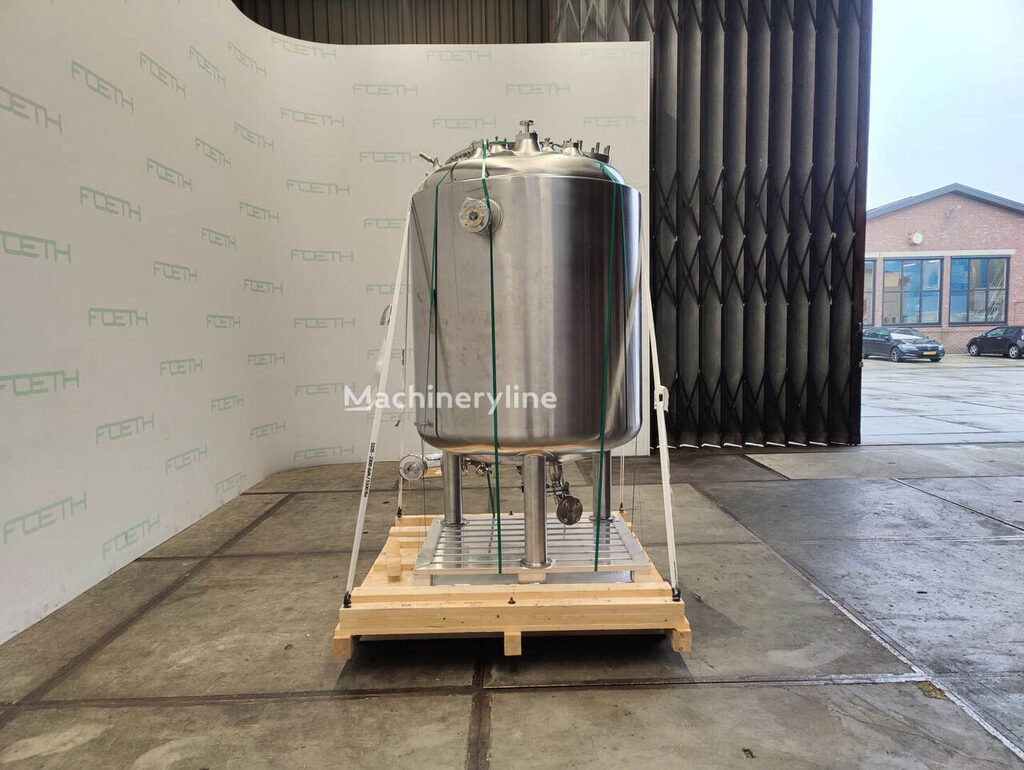

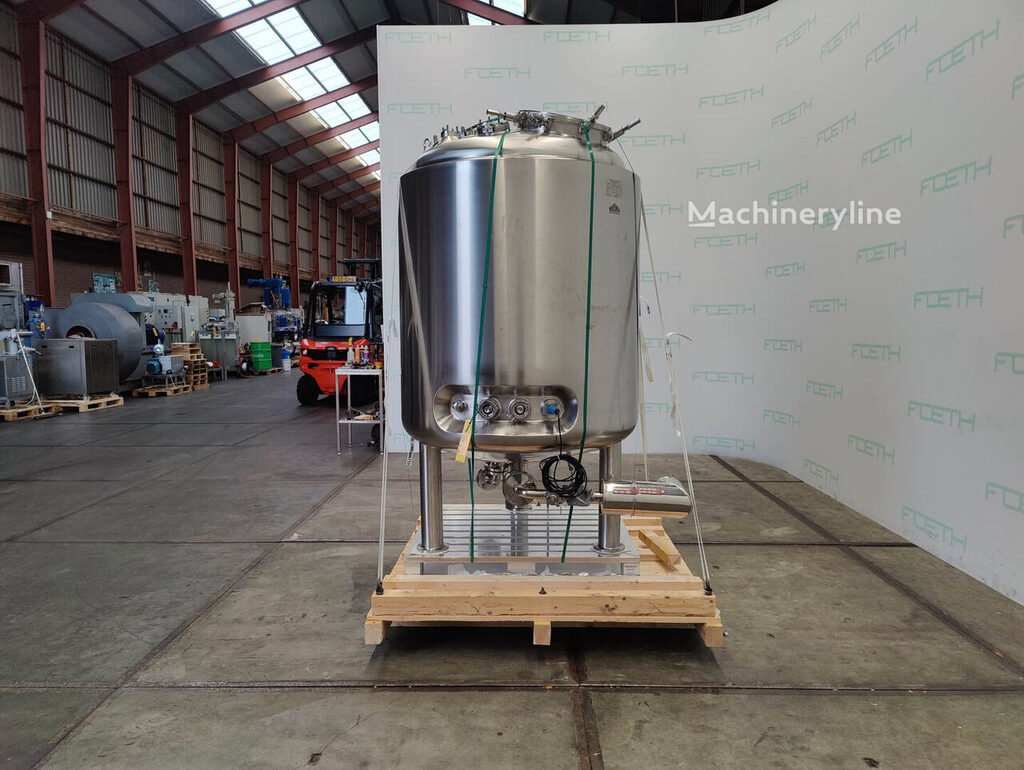

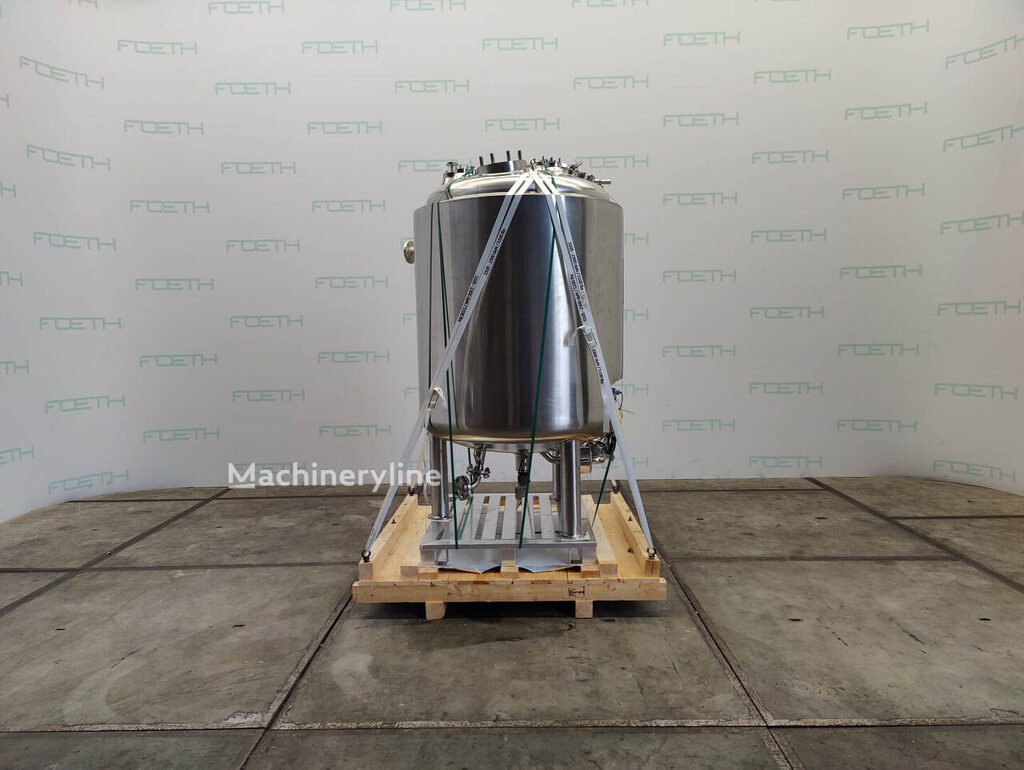

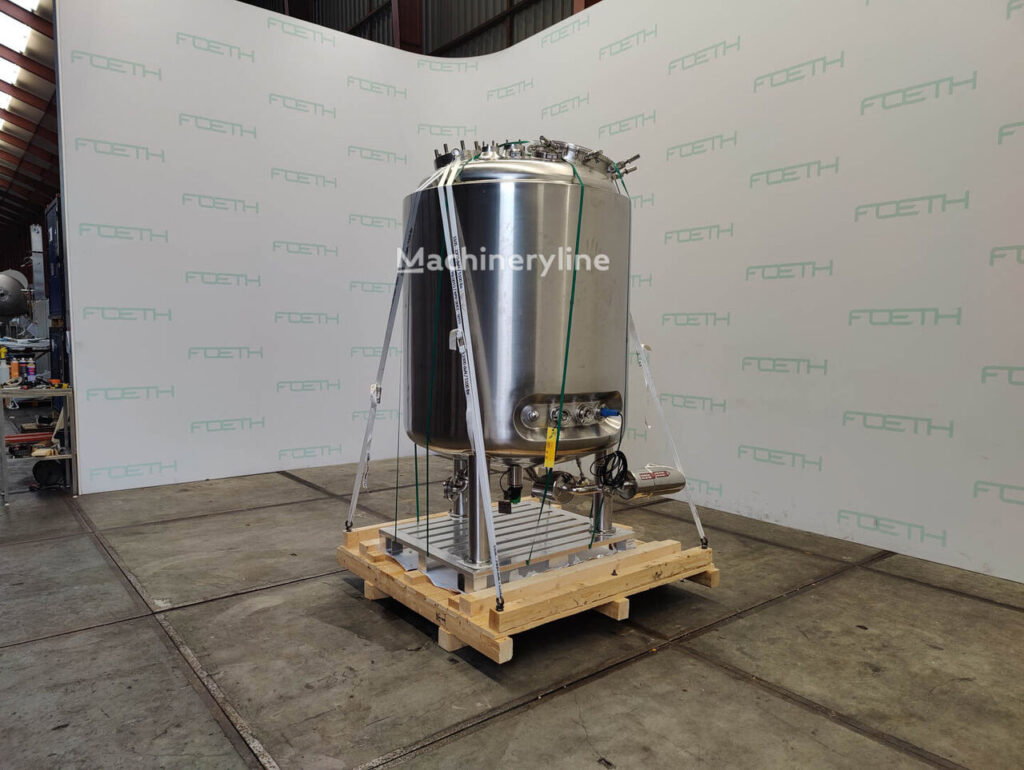

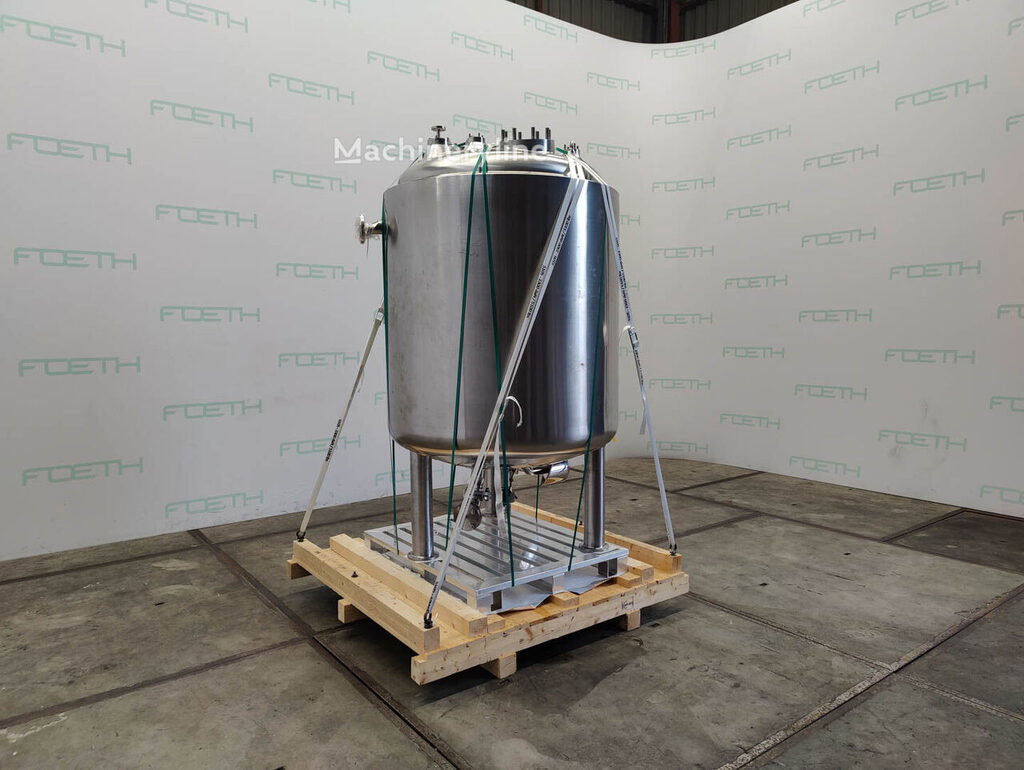

This Waldner Hermann Tank Container is a vertical pressure vessel — also known as a pressure tank — designed for the storage and processing of liquids under controlled pressure and temperature conditions. Hermann Waldner is a well-established German manufacturer specialising in stainless steel process equipment for the food, beverage, dairy, and pharmaceutical industries, known for high-quality hygienic vessels and process systems.
The tank is constructed from stainless steel grade L), a material chosen for its corrosion resistance and suitability for demanding hygienic applications. The interior is mirror polished, which minimises surface roughness and aids cleaning, making it well suited to food-grade or pharmaceutical environments. The vessel has an internal volume of 1,000 litres within an overall capacity of 1,450 litres, with a cylindrical body measuring 1,200 mm in diameter and 1,500 mm in height, and features a dished bottom for efficient drainage. The tank is mounted on legs and occupies a floor space of 1.50 × 1.30 metres, with a total installed height of 2.30 metres.
The vessel is rated for a working pressure of 6 bar and supports vacuum operation. It is equipped with a full heating or cooling jacket, which operates at a working pressure of 10 bar and also supports vacuum on the jacket side, allowing precise temperature control across a range from -20°C to +200°C. Access to the interior is provided via a DN500 manhole, and the vessel includes top connections and a DN50 outlet fitted with a pneumatic outlet valve. There is no lid beyond the manhole arrangement. The unit carries CE certification and bears the serial number 5064. It is located in Barneveld, Netherlands, and is offered here in used condition from a 2016 build.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
