2000 - Pfaudler CH4000 Tank Container
()- Listing No
- 1177341
- Year
- 2000
- Manufacturer
- Pfaudler
- Model
- CH4000
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: CH 4000 No: 66058 Working pressure: 3 Bar Vacuum possible: check Number of vertical pressure tanks: 1 Material: Glass - Enamel (WWG-9115) Volume: 4440 Ltr Pressure: 3 Bar Vacuum: check Notified body: TÜV Capacity: 4440 Ltr Vessel sizes: 1400x3200 mm Dished top: check Dished bottom: check Manhole: DN500 Top connections: DN100, DN80, DN50 Outlet: DN100 Max. temperature: 20ºC/+150ºC Mounted on legs: check Floorspace: 1,5x1,5m Total height: 4,1m merk: Pfaundler General Pressure Main Features Specified Features - Pressure vessel Information
About this machine

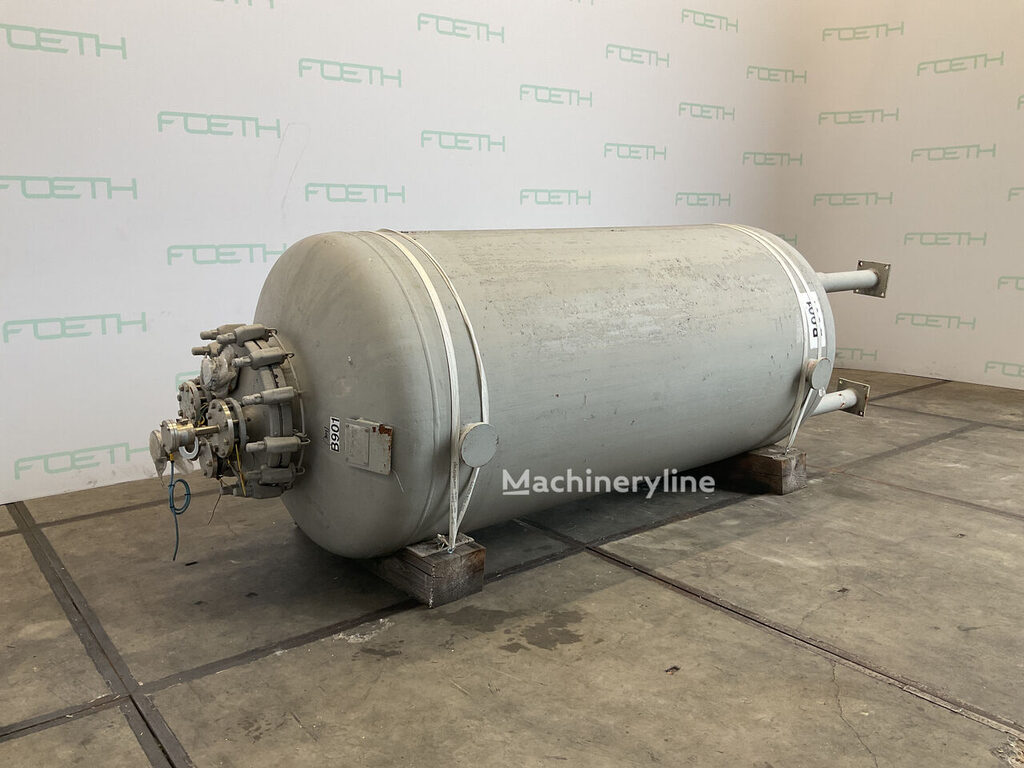

This Pfaudler CH4000 is a used pressure tank and container — sometimes referred to as a pressure vessel — designed for storing, mixing, or processing liquids under controlled pressure and temperature conditions. Pfaudler is a well-established manufacturer specialising in glass-lined processing equipment, serving industries such as pharmaceuticals, chemicals, and food processing where corrosion resistance and product purity are critical requirements.
The vessel is constructed from glass-enamel material to specification WWG-9115, providing a chemically resistant interior lining suitable for aggressive or sensitive process media. It has a capacity of 4,440 litres and carries serial number 66058. The unit is certified to a working pressure of 3 bar and is capable of operating under vacuum conditions. The notified body responsible for certification is TÜV, and the vessel operates within a temperature range of -20 °C to +150 °C.

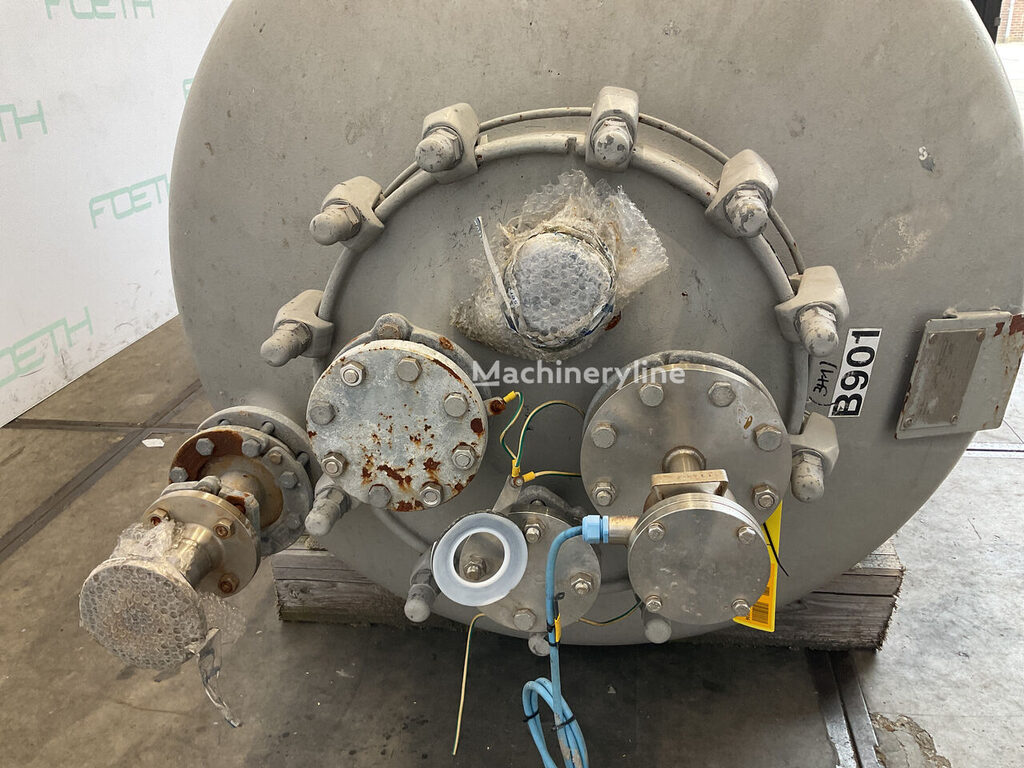

In terms of geometry, the tank measures 1,400 mm in diameter by 3,200 mm in length, with both a dished top and a dished bottom. A DN500 manhole provides access to the interior. Process connections on the top include ports of DN100, DN80, and DN50, and the outlet is sized at DN100. The vessel is mounted on legs, giving it a floor footprint of 1.5 × 1.5 metres and a total installed height of 4.1 metres.
The unit is located in Barneveld, Netherlands, and is available as a single vessel.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
