2005 - Starick Fördertechnik GmbH Tank Container
()- Listing No
- 1179651
- Year
- 2005
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: LS3 / BAV1200 No: 1821.2694.01.05 Working pressure: 1 Bar Material: Stainless steel 1.4301 (304) Volume: 3000 Ltr Pressure: 1 Bar Silo: check Closed: check Capacity: 3 m³ Diameter: 2000 mm Cylindrical height: 500 mm Conical height: 1310 Conical bottom: check Dished top: check Manhole: DN300 Inlet: DN200 Top connections: DN600, DN500 Outlet with vibro bottom: check 0,80 kW, 400Volt (EX) Outlet: DN200 CE: check Total height: 4,42 m ATEX compatible: check Extra Specifications: This silo comes complete with dust filter and rotary valve merk: Starick Fördertechnik GmbH netto gewicht: ca. 500 kg General Pressure Main Features Specified Features - Silo Information
About this machine

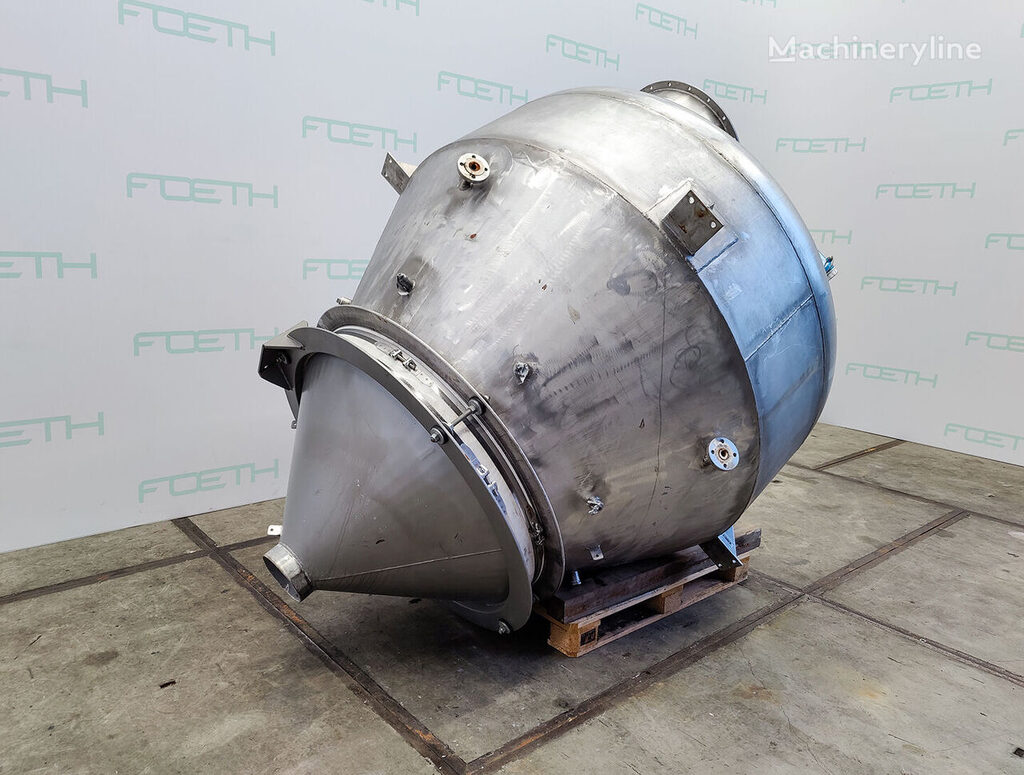

This Starick Fördertechnik GmbH Tank Container is a used tank and container — sometimes referred to as a storage silo or pressure vessel — used for the contained storage and controlled discharge of bulk materials such as powders, granules, or other dry goods. Starick Fördertechnik GmbH is a German manufacturer specialising in conveying and bulk material handling equipment, serving industries such as food processing, chemicals, and pharmaceuticals. This unit, type LS3 / BAV1200 with serial number , is located in Barneveld, Netherlands, and dates from 2005.
The vessel is constructed entirely from stainless steel grade 1.4301 (AISI 304), making it suitable for hygienic and corrosion-sensitive applications. It has a total volume of 3,000 litres (3 m³) and is designed for a working pressure of 1 bar. The overall height of the unit is 4.42 metres, with a cylindrical diameter of 2,000 mm. The cylindrical section has a height of 500 mm, while the conical bottom section measures 1,310 mm in height. The vessel features a conical bottom to promote consistent material flow toward the discharge point, and a dished top lid.
Access and process connections are well specified. The manhole is sized at DN300, the inlet at DN200, and the outlet likewise at DN200. The top of the vessel carries two additional connections at DN600 and DN500. The outlet is equipped with a vibro bottom driven by a 0.80 kW, 400-volt motor, which assists in the controlled discharge of materials, particularly those prone to bridging or compaction.
The unit is a closed, pressure-rated silo and is CE marked. It is also ATEX compatible, meaning it is suitable for use in potentially explosive atmospheres — a significant feature for applications involving combustible dusts or flammable materials. The silo is supplied complete with a dust filter and a rotary valve, both of which support controlled, dust-free material transfer. The net weight of the unit is approximately 500 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
